Hydraulic C Type press machine 40 tons

Product Overview

Description

The C- type hydraulic press is produced according to your production purposes and your tools. It is built by default with the force capacity of 40 to 200 tons.
It is possible to precisely control the pressing force and position during the Operation.
With the press can be worked depending on position or pressure.
The hydraulic press can be operated with "PLC" or semi-automatically.

The advantage

• User friendly (can be operated by one person)


• Improved deformed-plate-surface-quality by making use of rolling (with optional roll unit)


• Hydraulic-blocking device: Safety valve protects against overloads


• Sturdy construction and proven design which is a guaranty for a long life-span


• Service friendly design, low maintenance costs by using only high quality components and tools


• high operator safety by two-hand operation for inlay work and Pedal

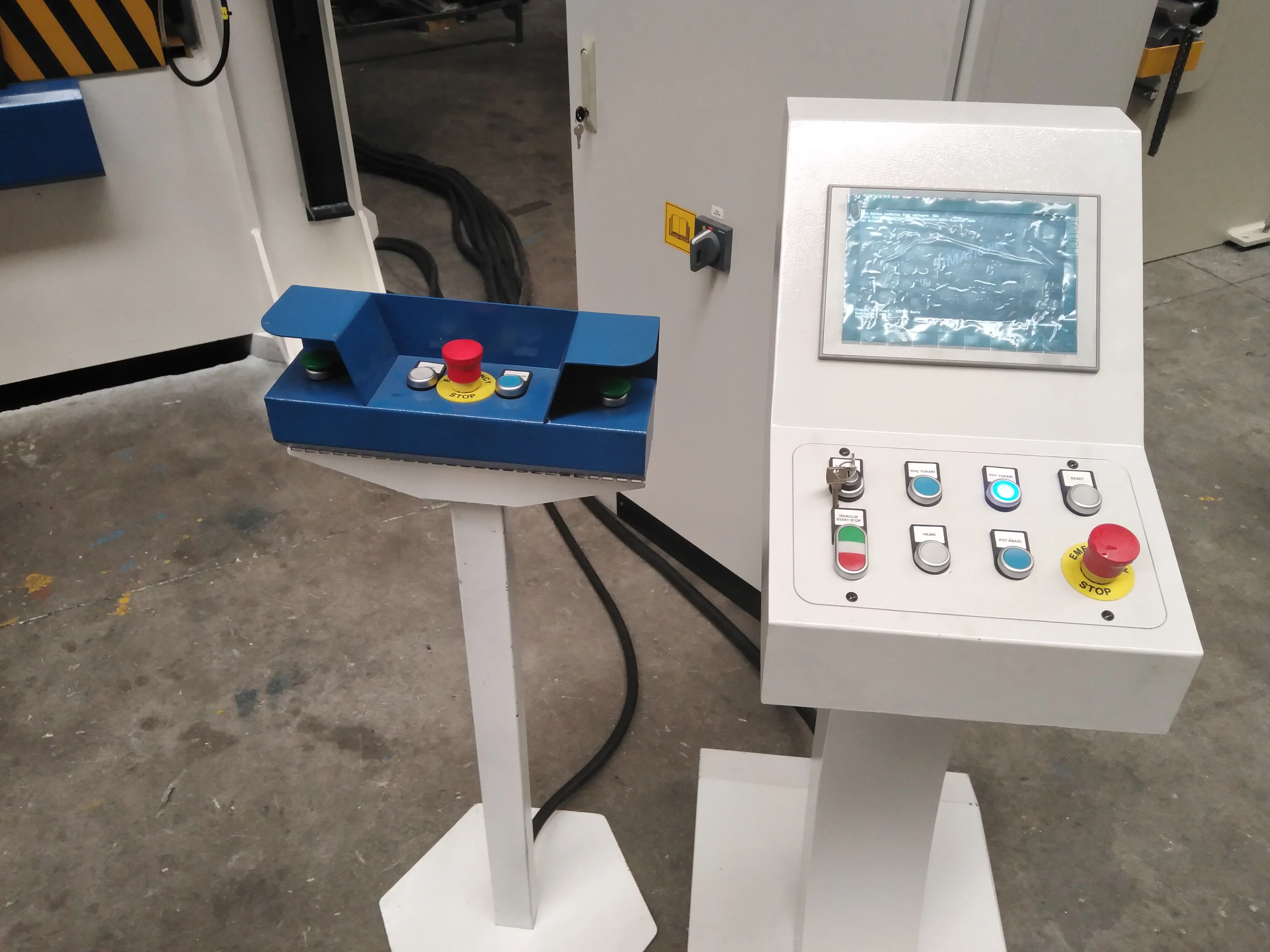

• Advanced control system with PLC


• Hydraulics: Rexroth or Parker


• attractive price / performance ratio

 Press
-CAPACITY: 40 tons
-A Height:2400 mm
-B Wideness:1050 mm
-C Width:500 mm
-D Table Height:850 mm
-E Table Area:500x600 mm
-F Work Capacity:600 mm
-G Piston Axis Distance:250 mm
-Piston Stroke:500 mm
-Hydraulic Pump:11 l
-Motor Power:5.5kw
-Working Pressure:260 bar
-Approaching speed: 150 mm/s

- Under Pressure: 17 mm/s

- Backwards: 150 mm/s
