Nucleic Acid Amplification and Detection Analyzer
- Category: >>>
- Supplier: Ustar Biotechnologies (hangzhou) Ltd.
Share on (1700007417697):
Product Overview
Description
Product Description

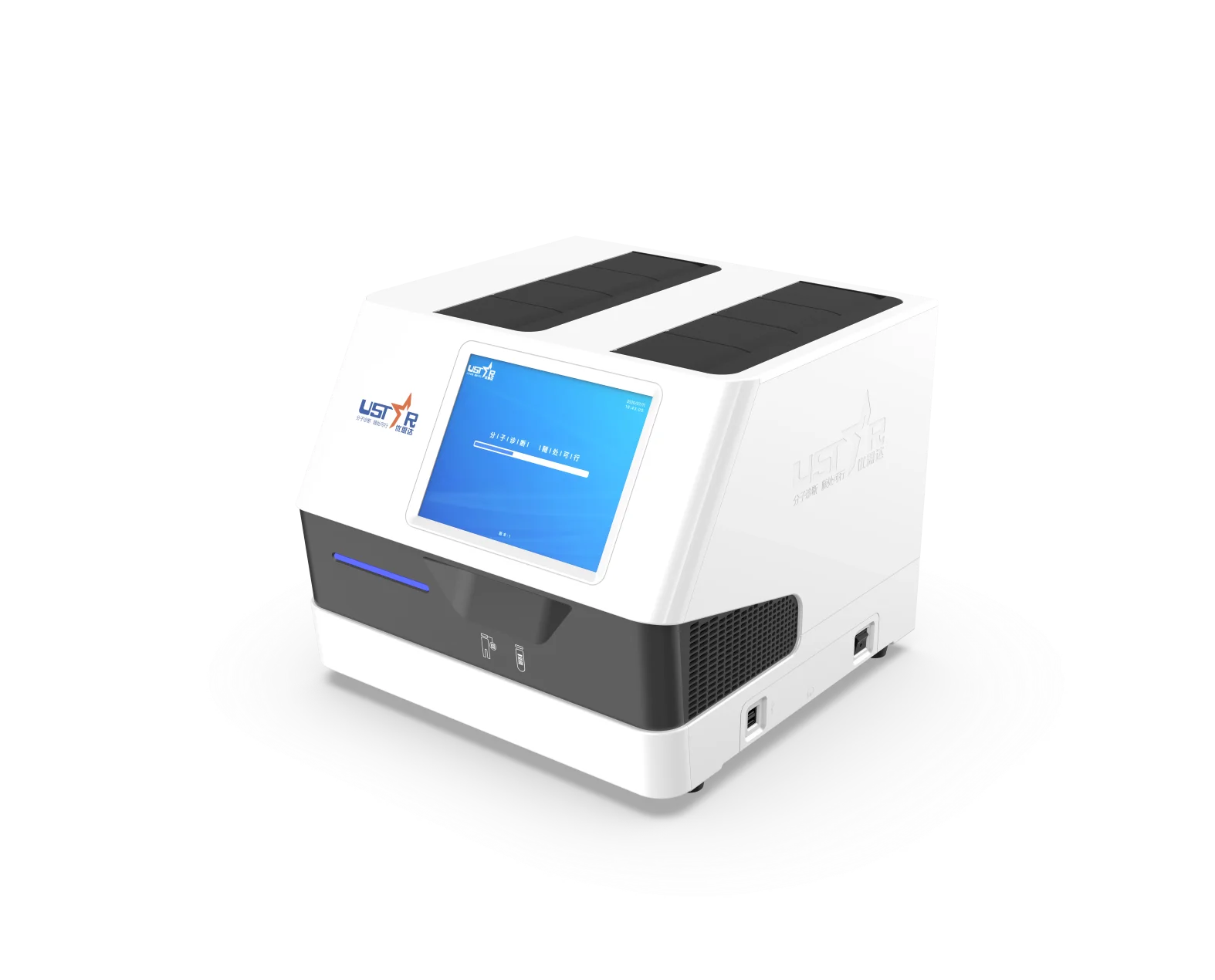

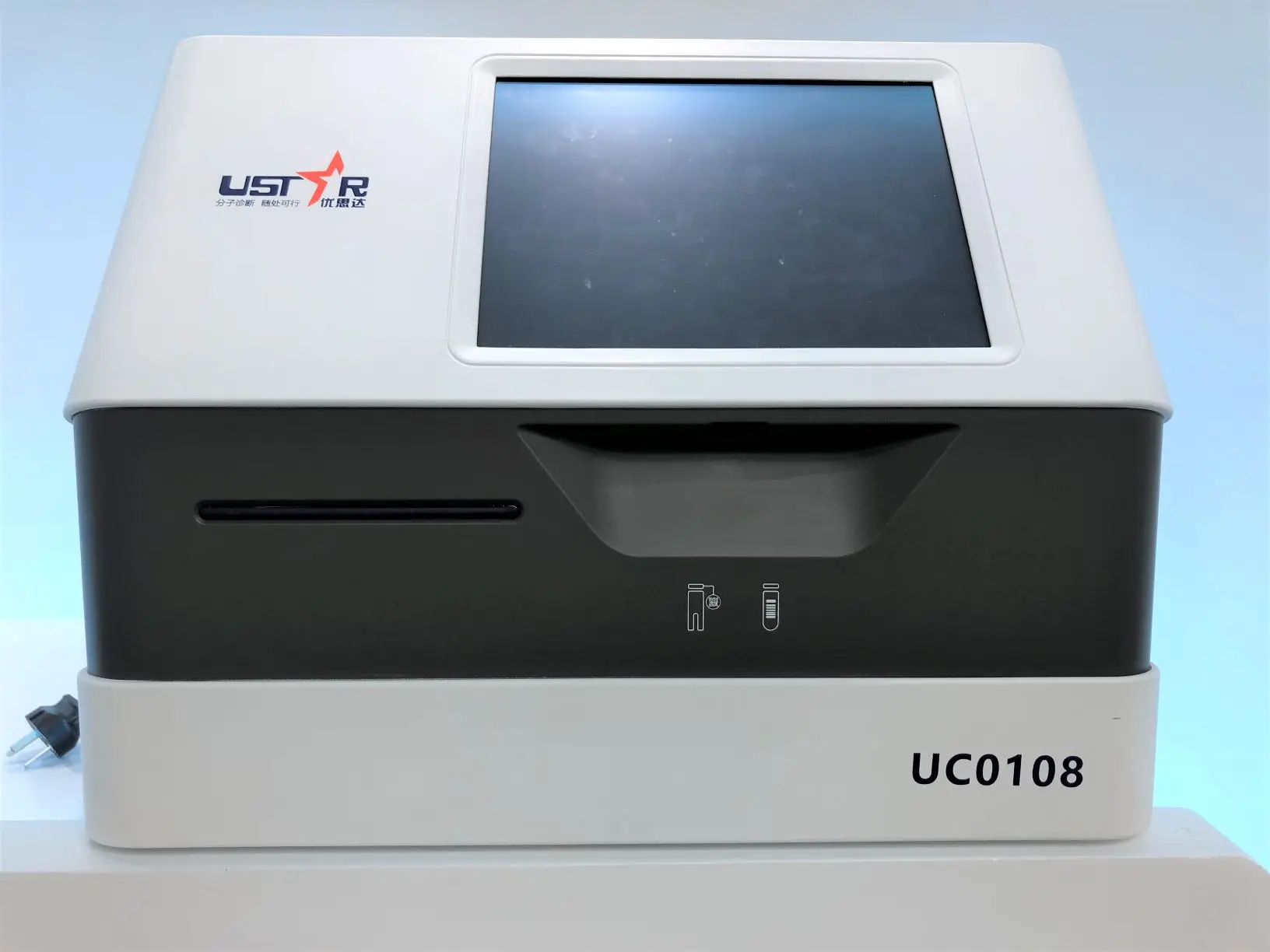

Nucleic Amplification and Detection Analyzer
This analyzer integrates nuleic acid extraction, amplification and detection steps into one instrument. It used exclusive amplification technology named Cross Priming Amplification (CPA) technology. All-in-One design to achieve molecular diagnostic anywhere!
Details Images
Scan Area

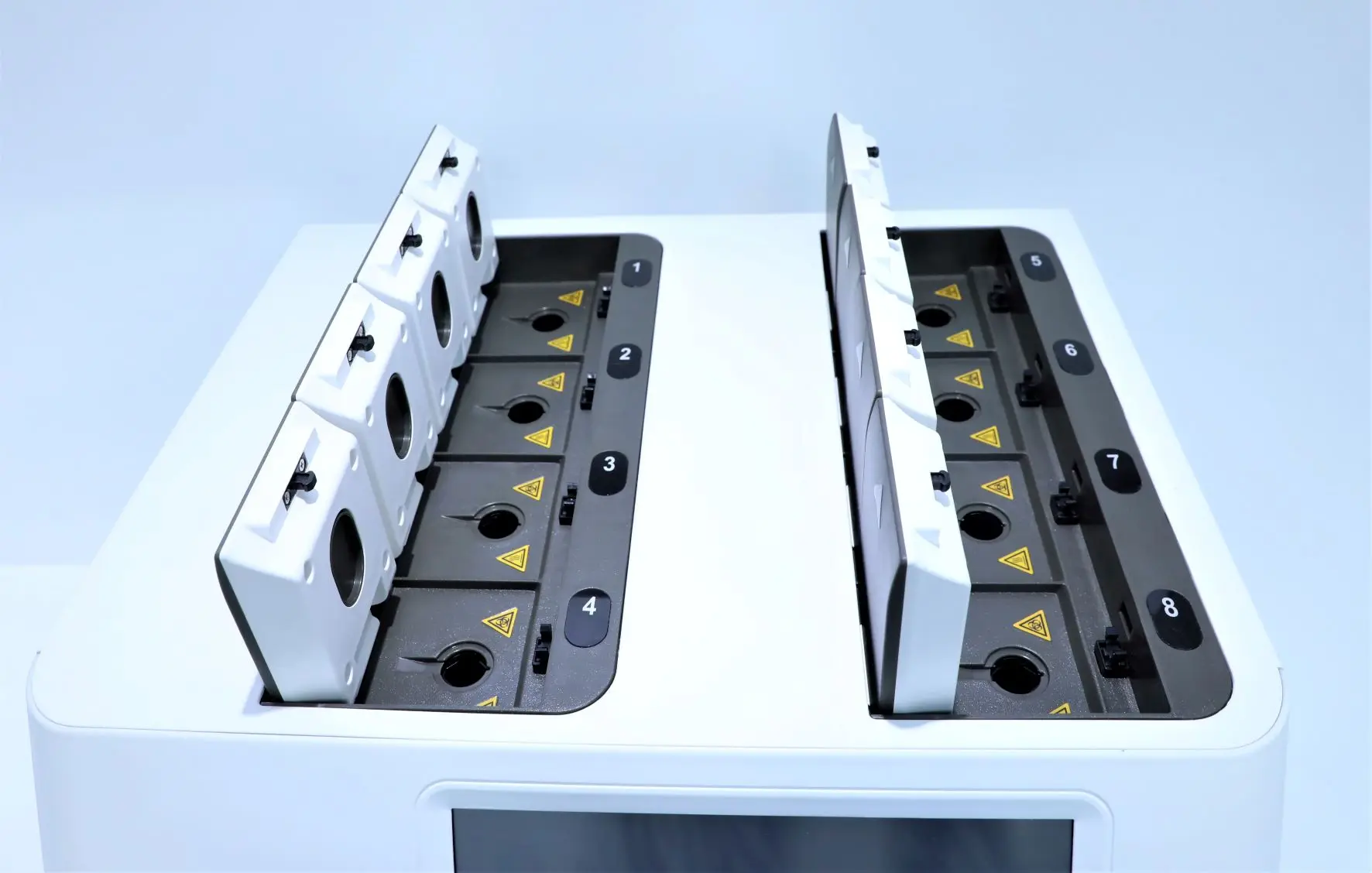

Test Module
When insert the catridege into the module

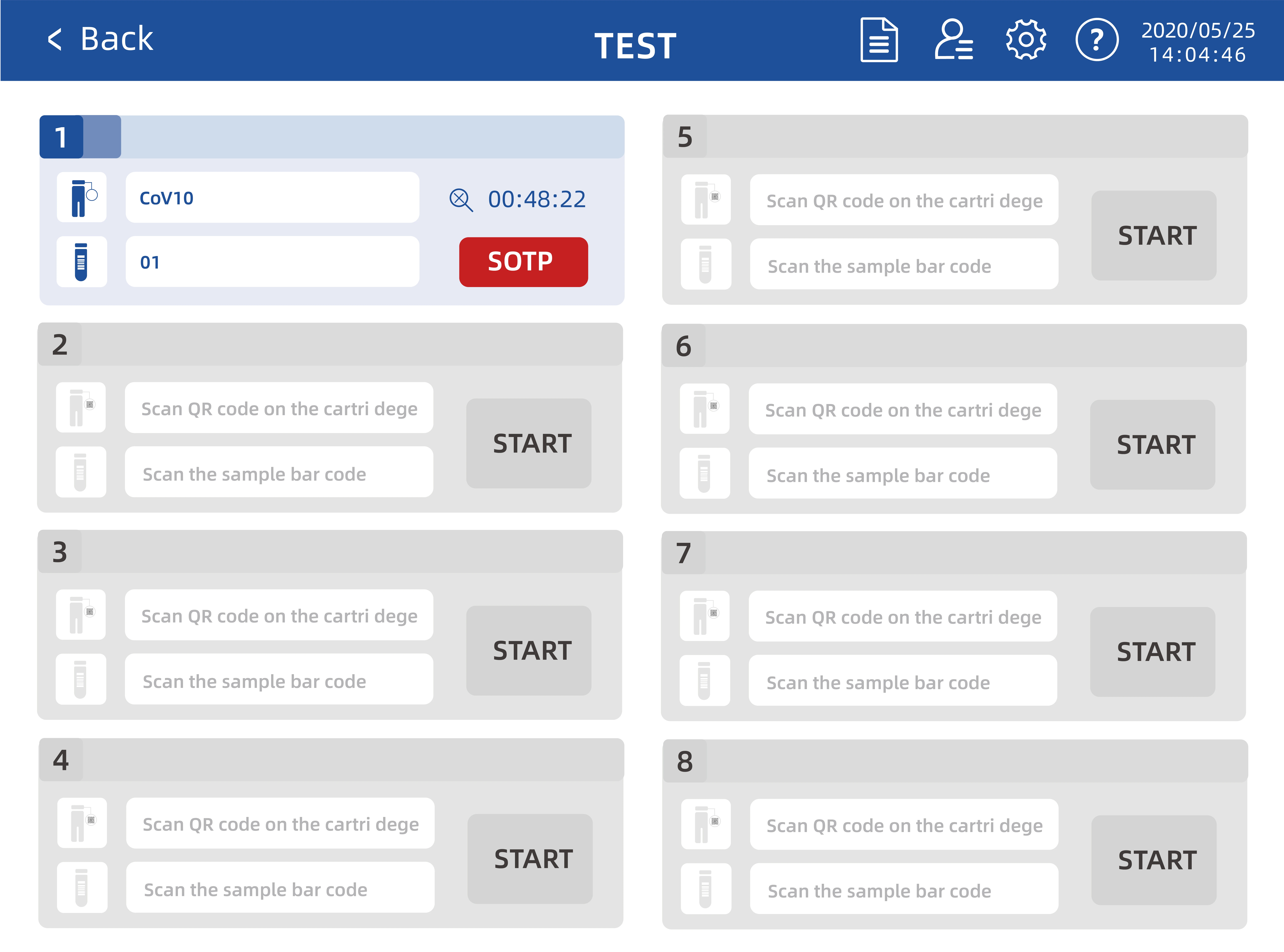

Running Test
Negative Result

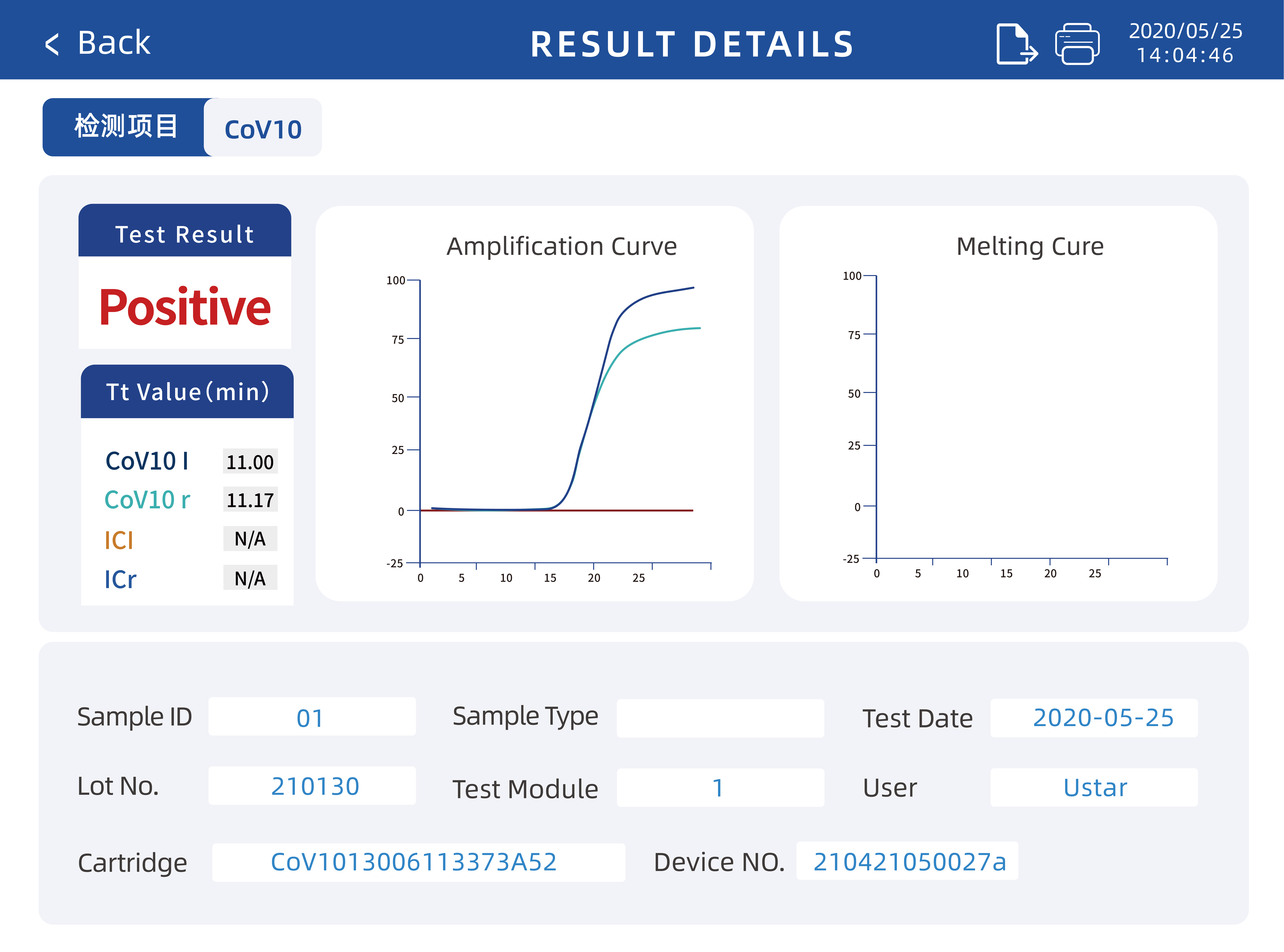

Positive Result
Product Paramenters
Item | Paramenter |
Weight | 33 kg |
Rated voltage | AC 100V~240V, 50/60Hz |
Rated | 850 VA |
Fuse specifications | 5*20mm, T4AL 250V |
Excitation wavelength | Channel 1: 470nm; Channel 2: 628nm |
Detection wavelength | Channel 1: 525nm; Channel 2: 692nm |
Repeatability of Fluorescent | CV value < 3% |
Software interface | Chinese / English |
Certifications
China_NMPA
EU_CE
Brazil_ANVISA
Our Advantages
High-sensitivity
High-specificity
LoD: 200 copies/ml
49 minutes
output result
One-button operation
Cooperation Partner
Company Profile
Ustar Biotechnologies (Hangzhou) Ltd.
Founded in 2005, Ustar has always been focused on POCT molecular diagnostic technologies & products for more than 15 years.
Our vision and mission is:
Molecular Testing, Anywhere !
Our vision and mission is:
Molecular Testing, Anywhere !
To build rapid molecular diagnostic systems so that it could be performed not only all levels of medical facilities, but also public areas, companies, etc.
