10 12 inch Android panel PC touch screen computer with RFID 125KHz 13.56MHz fingerprint

Share on (1700007453553):


Price:

Quantity:


Product Overview

Description


10 12 inch Android panel PC touch screen computer with RFID 125KHz 13.56MHz fingerprint



Product Description


The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance ARM based Octa-Core RK3399 1.8GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design, embedded RFID reader and finger printer. The ITD ARM-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Android 7.1/8/9 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.








Features




 Easy-to-clean, true flat front surface without bezel

 Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

 Web camera, RFID and thermal printer integrated

 Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

 Eliminates dust and debris build-up at the edge and corners of the display

 Provides improved power efficiency and reduced consumption

 Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

 Aluminum front bezel and steel chassis construction designed for harsh and industrial environments




Specification


























































Panel



Cell Type/Glass Surface



TFT



Size



12.1”



Aspect Ratio



4:3



Active Area



246.0(W) x 184.5(H)mm



Pixel Pitch



0.3075 × 0.3075mm



Native Resolution



800 x 600 (1024 x 768 optional)



Colors



262K/16.2M



Brightness



300cd/m2



Contrast



700:1



Response Time



30ms



Viewing Angle(Typical)



80/80/60/80



Light Source



LED Backlight with 50000Hours’Lifetime



SPECIFICATION














































































System



CPU



Quad Core RK3288 1.8GHz



BIOS



TBA



Chipset



Rockchip



Memory






Default to 2GB

Graphic Chipset



TBA



ROM



Default to 8GB



LAN



1 x 10/100/1000Mbps Ethernet



Input / Output



Serial Ports



1 x COM



USB Ports



2 X USB



AD/TF Card Slot



Yes



HDMI Port



1x HDMI Output



Audio Card



with Realtek ALC662


Line-Out/MIC IN



Power



Power Input



DC 12V



Operation/Power Saving



15W



Environment Considerations



Operating Temperature



-10~60 (-20~70 Optional)



Storage Temperature



-20~70



Relative Humidity



10%~90%














Product Display

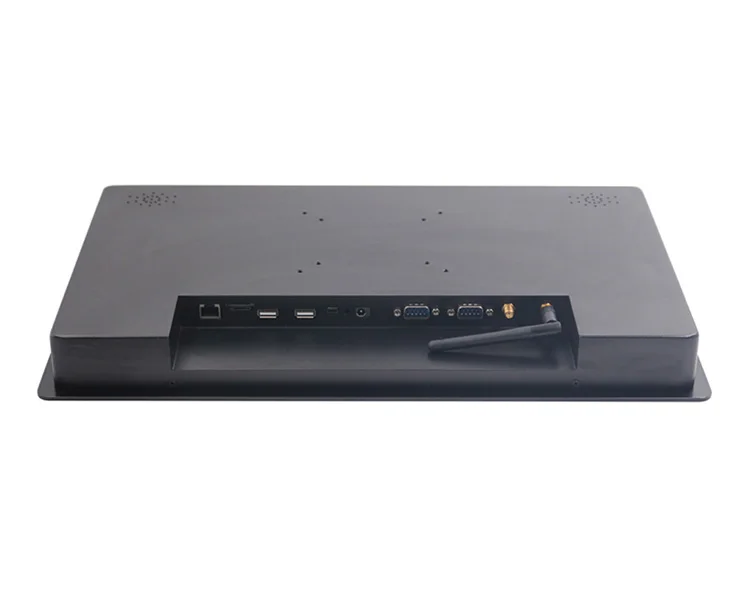

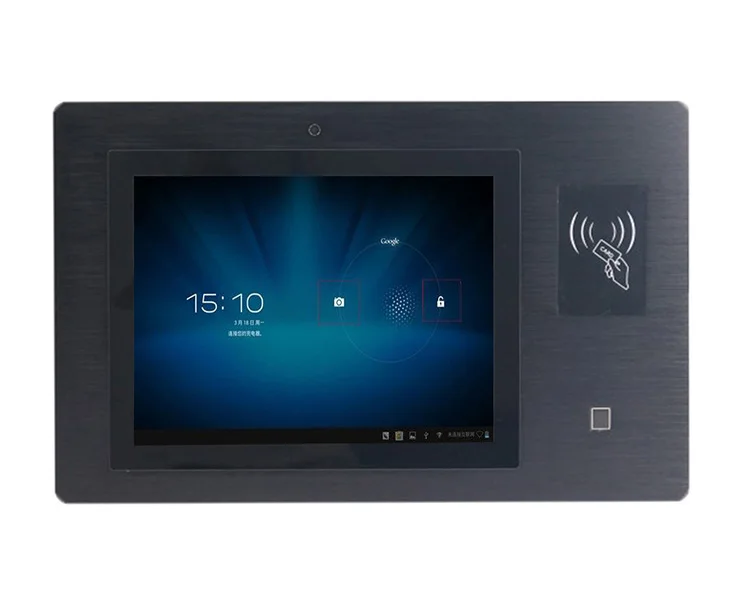

 panel PC.jpgRFID PPC.jpg





Packaging & Shipping




Firm, safe, standard cartons with foams


Wooden Shelf or Case for big sizes and big quanity


 .jpg



Our Services


 All ITD products come standard with a 2-year comprehensive warranty. Additionally, our extended warranty service, offered up to 3 years, provide extra peace of mind that any problem will be solved quickly and effectively. ITD also offers tailored service contracts to meet our partners’ specific needs.
With service and support centers in Hong Kong, China mainland, Europe, we are able to respond quickly and efficiently to ensure uninterrupted productivity for our customers. We are committed to speedy turnaround times on repairs and service needs.

- DOA Service (Dead On Arrival):
To run DOA within 1 month after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.

- RMA Service (Return Merchandise Authorization):
To run RMA within 24 months after shipment (TFT LCD panels come with 12months' warranty). Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.








Company Information


 ITD is a worldwide leading industrial touch display equipment’s solutions provider with an after-service center in Netherlands combining researching, developing, manufacturing, marketing & service with an excellence in varied kinds of industrial displays and touchscreen products started from 2005 and later expanded to embedded panel PC, digital signage, rugged stainless steel/aluminum alloy IP65 industrial displays, and ultra-wide stretched bar LCD displays for industries ranging from banking, transportation and logistics, to automation, marine, railway, oil and gas, energy, healthcare, and field service.ITD2 - _jpg -
