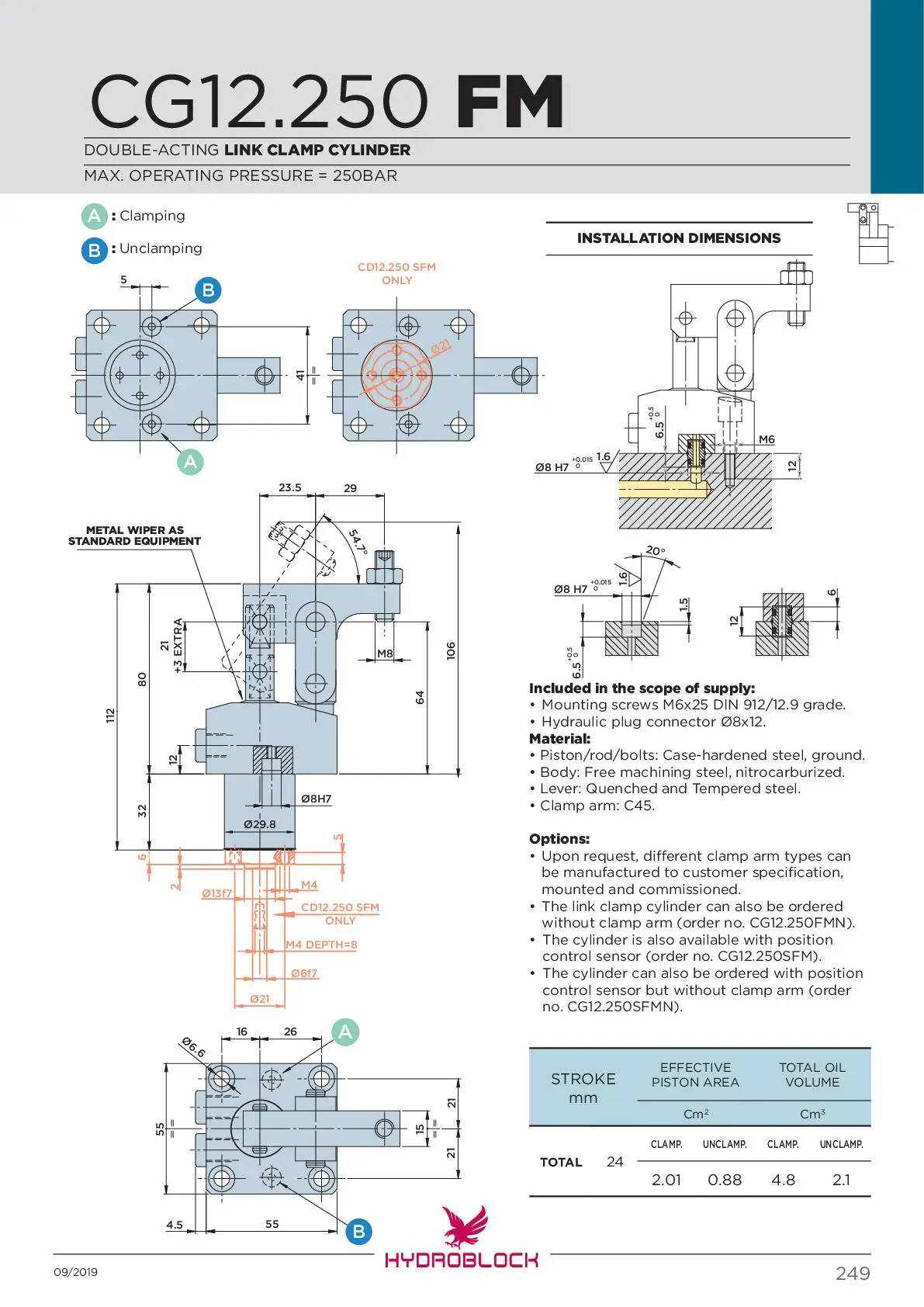

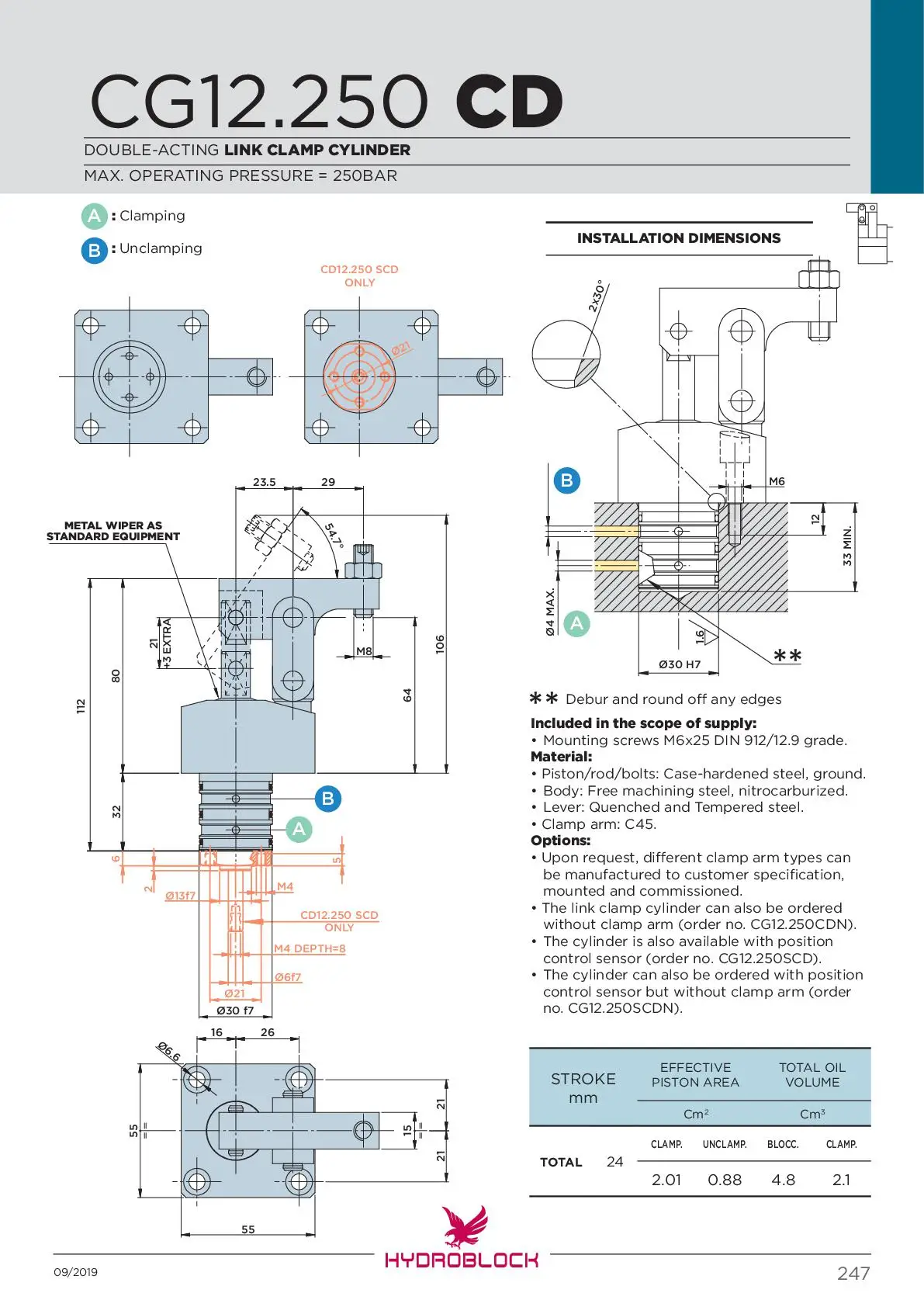

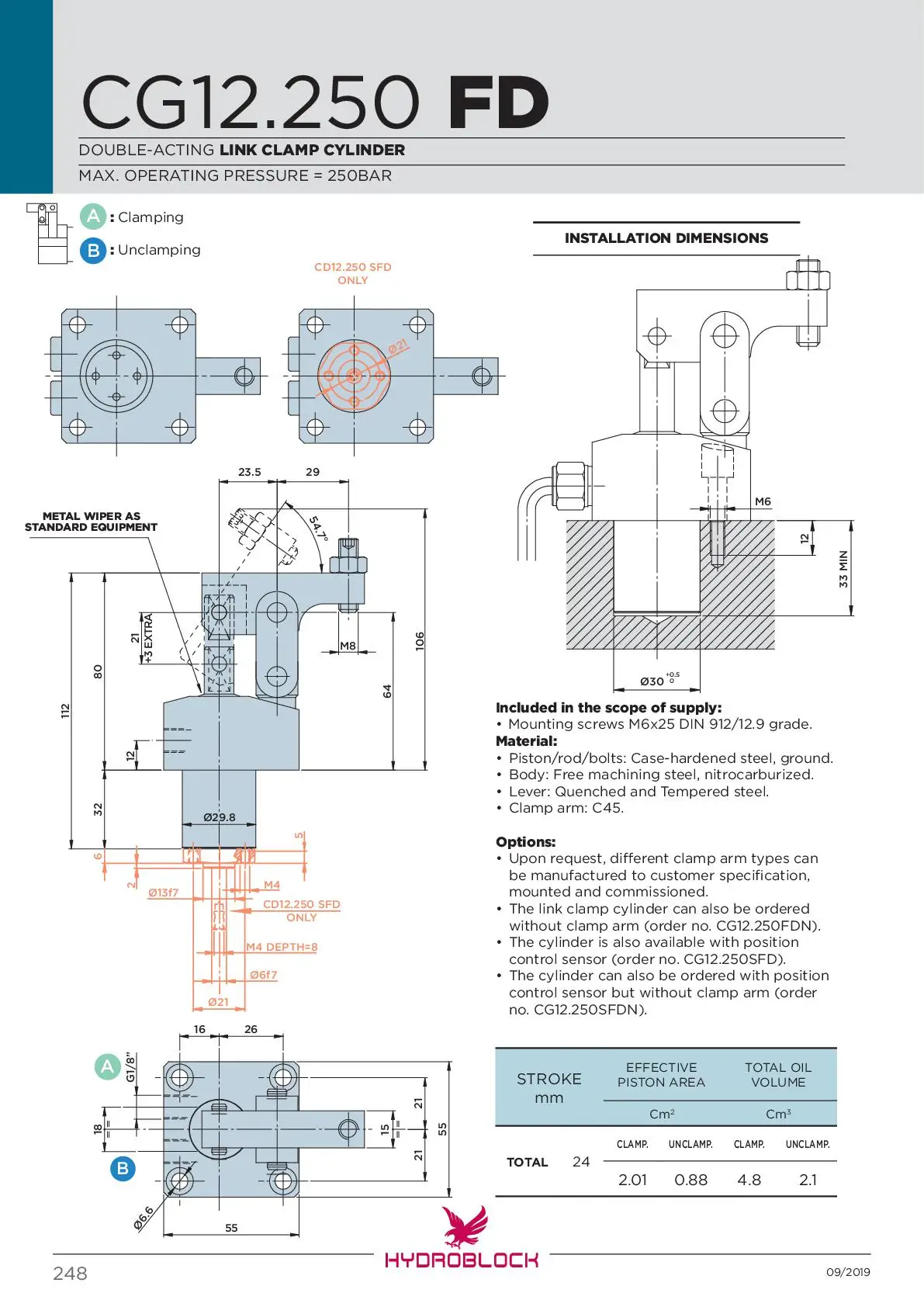

CG12.250 Hydraulic link clamp cylinders
- Category: >>>
- Supplier: Hydroblock s.r.l.
Share on (1700007601989):
Product Overview
Description
Product Description
Specification
item | value |
Warranty | 1 Year |
After Warranty Service | Video technical support, Field maintenance and repair service, Spare parts |
Local Service Location | Brazil, Germany, India, Italy, Romania, Spain, China, Austria, Denmark |
Showroom Location | Brazil, Germany, India, Italy, Romania, Spain, China, Austria, Denmark |
Brand Name | Hydroblock |
Place of Origin | Italy |
Pressure | Max operating pressure (bar): 250 |
Structure | Cartridge; Upper flange |
Certification | UNI EN ISO 9001:2015 |
Power | Hydraulic |
After-sales Service Provided | Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service |
Rod Diameter | 12 mm |
Maximum Stroke | Total cylinder stroke: 24 mm |
Outer Tube Diameter | 20 mm |
Inner Tube Diameter | 30 mm |
Double-acting version | Yes |
Single-acting version (spring return) | No |
Piston clamping area (cm2) | 2.01 |
Piston Unclamping area (cm2) | 0.88 |
Clamping oil volume (cm3) | 4.8 |
Unclamping oil volume (cm3) | 2.1 |
Nom. clamping force (KN) at max op. prs | 3.7 |
Packing & Delivery
Wooden cases, cardboard boxes, Special anticorrosive paper for metal protection.
Catalogue
Company Profile
Hydroblock: world's most precise hydraulic clamp cylinders
Since 2001 Hydroblock has been developing unparalleled high technological solution for the automotive industry and industrial applications in general.
Thanks to both our worldwide patented technical solutions and our unique internal compensation system we offer world’s most precise hydraulic clamp cylinders. Check our technical sheets for more information on this topic.
We can offer extremely reliable premium-quality hydraulic cylinders with outstanding clamping characteristics thanks to:
1.\tStrict quality control on every production process phases;
2.\tStrict computerized testing of 100% of our production.
We guarantee fast and on-time deliveries all over the world thanks to constant availability of products in our stocks.
Thanks to both our worldwide patented technical solutions and our unique internal compensation system we offer world’s most precise hydraulic clamp cylinders. Check our technical sheets for more information on this topic.
We can offer extremely reliable premium-quality hydraulic cylinders with outstanding clamping characteristics thanks to:
1.\tStrict quality control on every production process phases;
2.\tStrict computerized testing of 100% of our production.
We guarantee fast and on-time deliveries all over the world thanks to constant availability of products in our stocks.
FAQ
1. who are we?
We are based in Reggio Emilia, Italy.
2. how can we guarantee quality?
We cand guarantee extremely reliable premium-quality hydraulic cylinders with outstanding clamping characteristics thanks to:
1.\tStrict quality control on every production process phases
2.\tStrict computerized testing of 100% of our production
3.what can you buy from us?
You can buy from us world’s most precise hydraulic clamp cylinders with Hydroblock unique internal compensation system.
4. why should you buy from us not from other suppliers?
You shoul buy from us because we offer:
5. what services can we provide?
Accepted Delivery Terms: Ex-works；
Accepted Payment Currency: Euros;
Accepted Payment Type: T/T;
Language Spoken: Italian, English
We are based in Reggio Emilia, Italy.
2. how can we guarantee quality?
We cand guarantee extremely reliable premium-quality hydraulic cylinders with outstanding clamping characteristics thanks to:
1.\tStrict quality control on every production process phases
2.\tStrict computerized testing of 100% of our production
3.what can you buy from us?
You can buy from us world’s most precise hydraulic clamp cylinders with Hydroblock unique internal compensation system.
4. why should you buy from us not from other suppliers?
You shoul buy from us because we offer:
1. hydraulic cylinders with unparalleled clamping characteristics thanks to our unique internal compensation system and and high technical solutions, worldwide patented.
2. Customised technical solutions
3. Fast and on-time deliveries all over the world thanks to constant availability of products in our stocks.
5. what services can we provide?
Accepted Delivery Terms: Ex-works；
Accepted Payment Currency: Euros;
Accepted Payment Type: T/T;
Language Spoken: Italian, English
