MS700 Outdoor cabinet IP 55 telecom cabinet with SNMP function Can be customized manufacture
- Category: Electronics & Instrument Enclosures >>>
- Supplier: Shenzhen,Impower,Technology,Co.,Ltd.
Share on:
Product Overview
Description

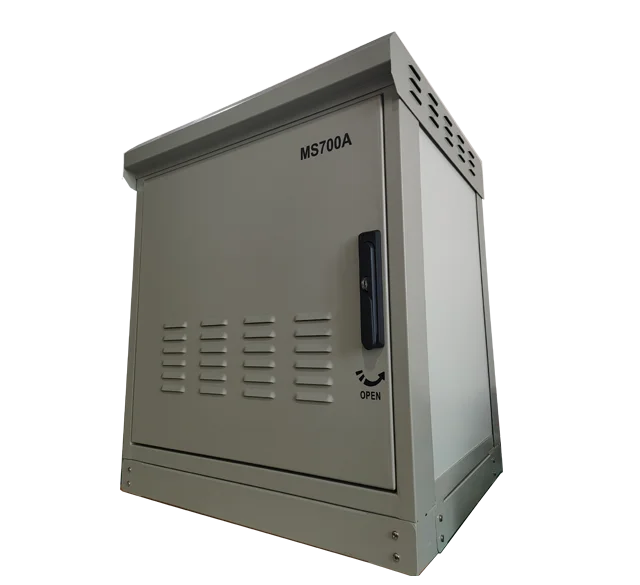

MS700A
is a new generation telecom energy solution which realizes site power to be a network element
to ensure maximum site level cost saving,easy O&M and seamless evolution in future.
Deployed as a battery capsule is a very important application mode of MS700A.
The cabinet is designed with sandwich panel,multiple anti-theft components
and plentiful optional thermal control devices to provide safe and suitable working environment for battery.
Features:
1:High reliability cooling devices with -48V DC input
2:High heat isolation performance lead to OPEX saving
3:Super anti-theft, European standard lock and enhanced fence
4:Fast deployment
5:Compact figure, easy land acquisition
Cabinet Specifications
Dimension (includes door and plinth) | 680mm(W)×650mm(D)×825mm(H) (excluding base) |
Weight | ≤60kg (without rectifier module and battery) |
Cooling mode | Heat exchange(equipment cabin) +Fan cooling(battery cabin)/TEC |
Cooling capacity | 850W |
Heater | 500W(optional) |
Panel material | Sandwich panel |
Security lock | European standard |
Installation mode | On ground\\Wall mounted\\Pole mounted |
Cabling mode | At the bottom, inlet/outlet downwards |
Protection level | IP55 |

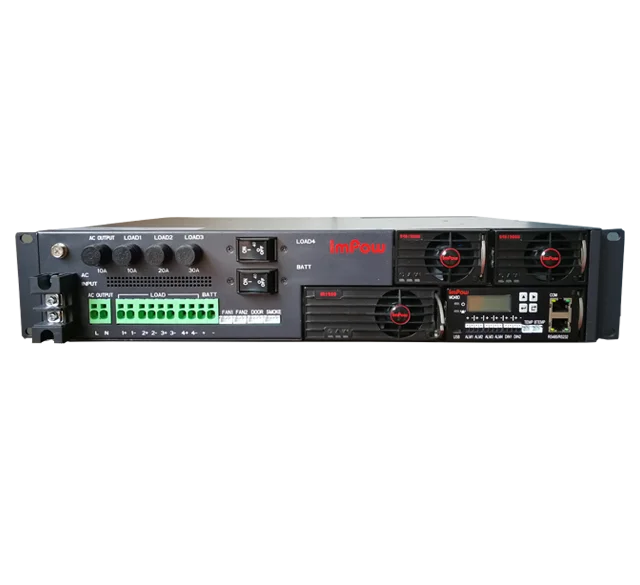

Telecom power supply productions
Telecom exhibitions
Application Scenarios:
Outdoor site
Battery cabinet
Wireless base station
Transmission network
Mobile/Microwave communication
Satellite communication ground station
Visit: www.impowercorp.com for more information
-------------------------------------------------------------------------------------------------------
Contact person: James Liu
QQ ID: 672344184
Mobile/Wechat/Whatsapp ID: 0086-13590412029
