Automatic tapes sleeve shrink sleeve seaming machine price

Product Overview

Description

Automatic tapes sleeve shrink sleeve seaming machine price



Application:

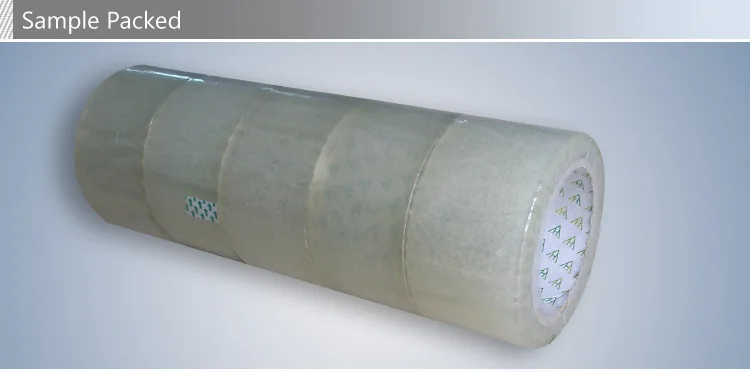

Different kinds of tapes or rolls.



Automatic Tapes Sleeve Sealing Machine Shrink Packing Machine



Automatic Tapes Sleeve Sealing Machine Shrink Packing Machine

Technical data	BMD-750B
Sealing type	sleeve sealing
Power supply	380V/50-60Hz/3phase
Max product size	420(L) x 200(W) x 150(H) mm
Packing capacity	8 - 20 packs/min
Film type	polyethylene (PE) film
Max film size	530 (width) x  280mm(outer diameter)
Power consumption	max. 12kw
Shrink tunnel oven size	1250mm(L) x 600(W) x 220(H) mm
Tunnel conveyor speed	variable, 30m/min
Tunnel conveyor	teflon mesh belt or stainless steel mesh conveyor
Working height	850-950 mm
Air pressure	0.5MPa (5 bar)
Sealing knife	Teflon coated alloyed knife with permanently heated bar
Main control components	Siemens PLC and touch screen, Omron temperature controller, relay and sensor
Machine main material	powder coated carbon steel

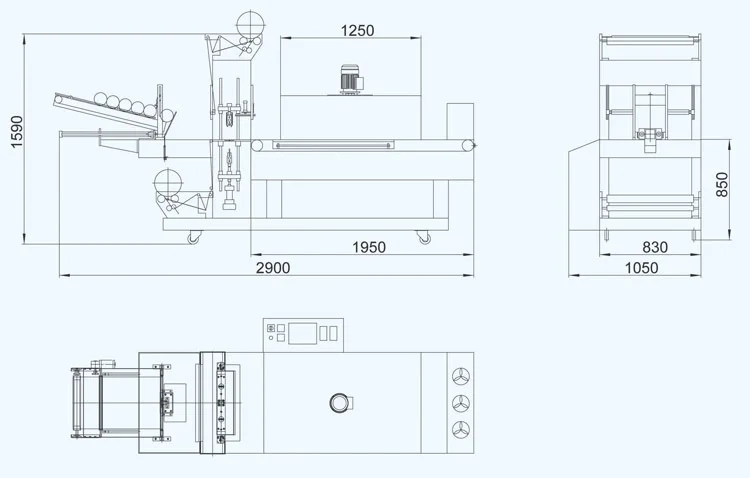

Machine dimensions	2900 x 1050 x 1590mm
Machine weight	600kgs
