Multi function self piercing clinching tooling solution for production facility
- Category: Other Power Tools >>>
- Supplier: Photon Technology Kunshan Co. Ltd.
Share on (1700007917925):
Product Overview
Description
Products Description

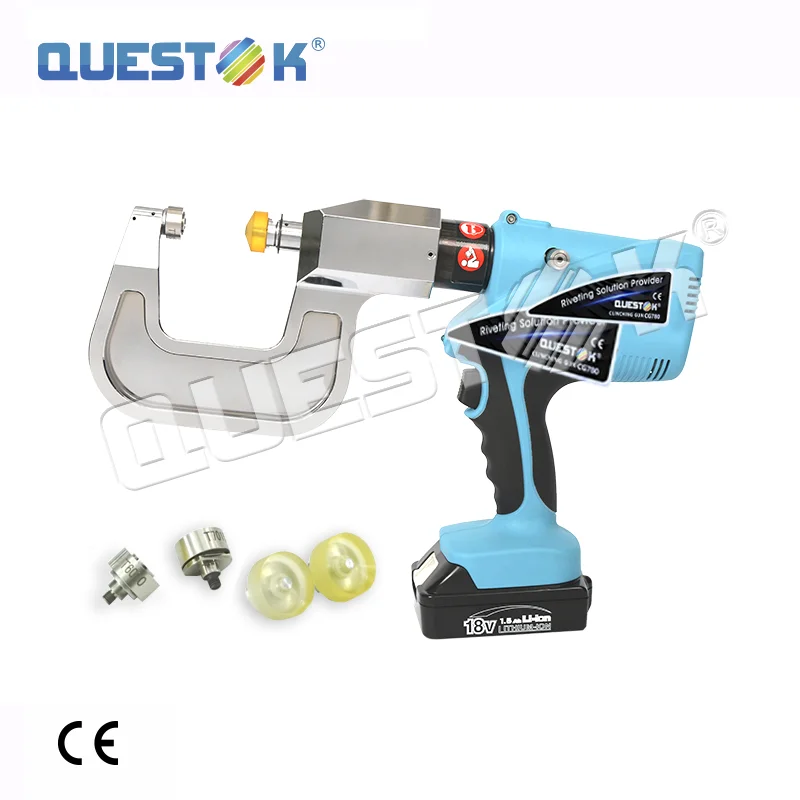

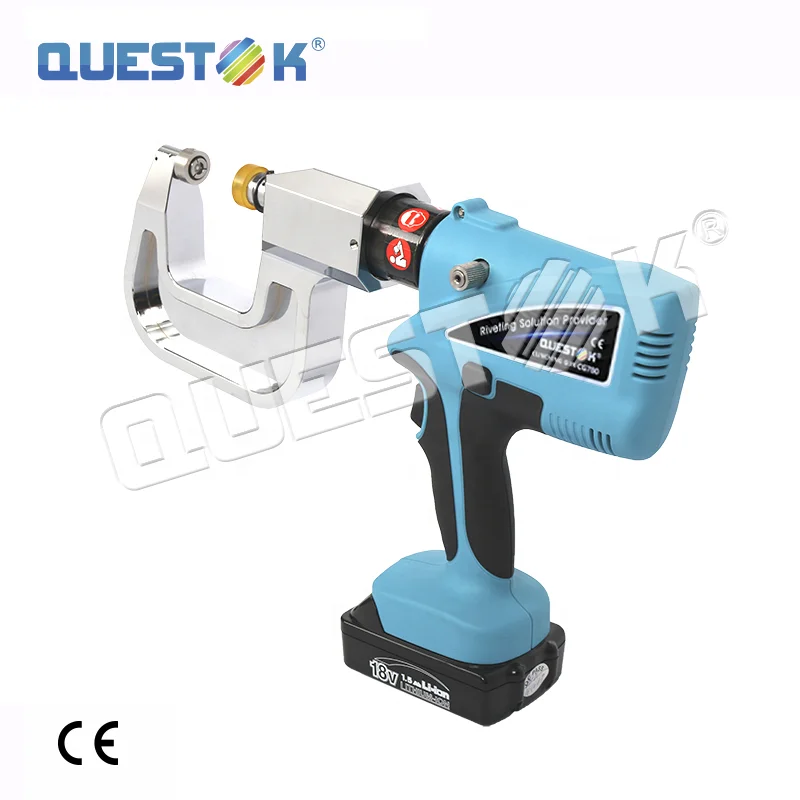

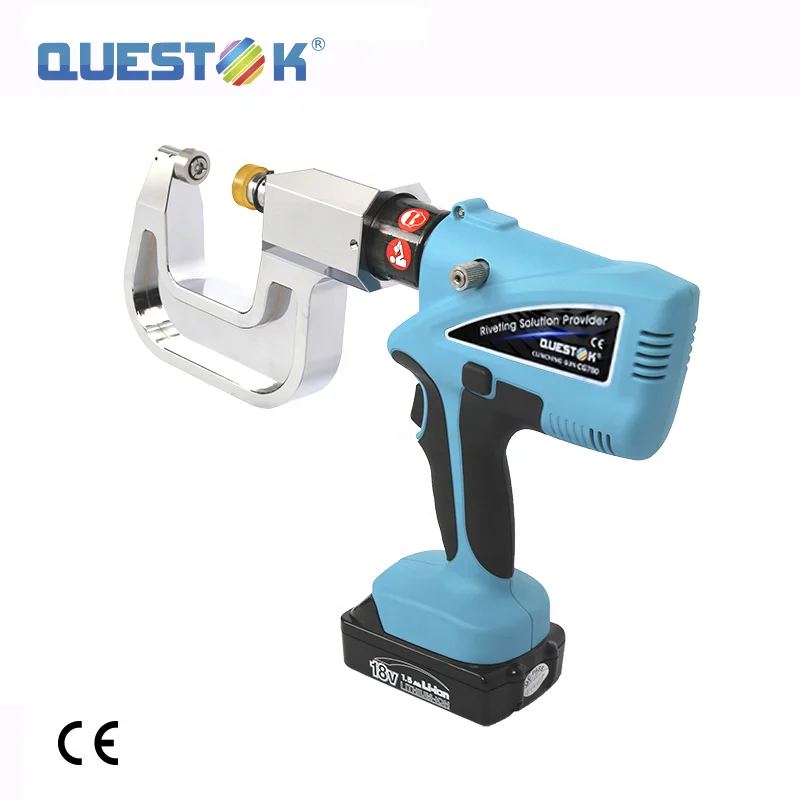

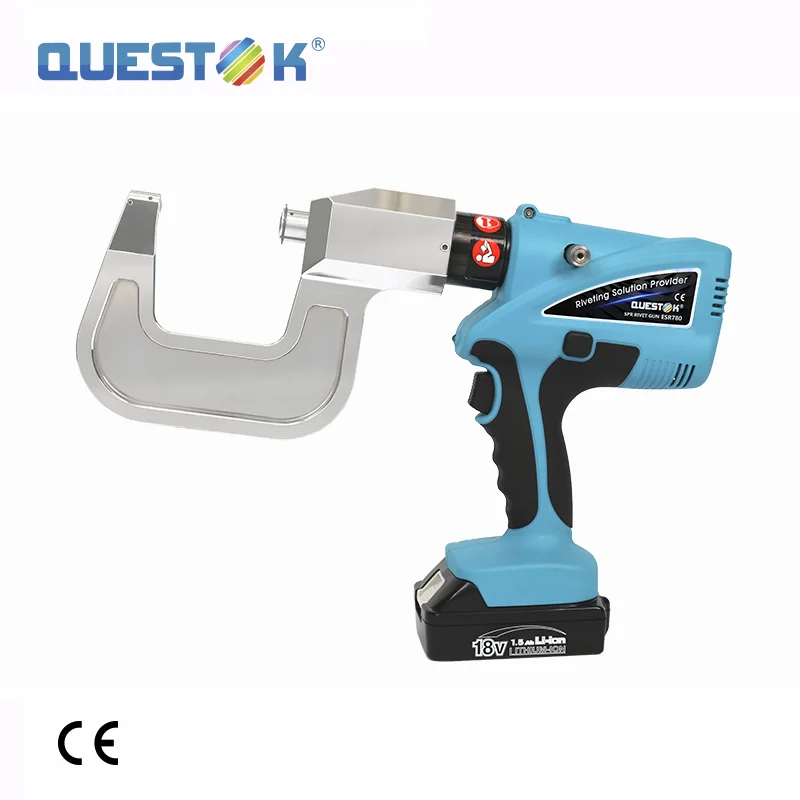

Electric chargeable hand held multi-function clinching tool
Questok electric multi-functional clinching guns are widely used in different industries such as: construction, application, HVAC, sheet metal, automotive, electronic and general industry. Our clinching guns help different industries to improve work efficiency and save cost.
Questok clinching guns feature as following:
1, Multi-function: hole punching, sheets and profiles joining, sheets flatening, rivets removing, etc.
2, Cost saving: no fastners to buy, sort or feed.
3, No protruding screw head giving a flush surface on the profile.
4, No sharp tips that may cause hand injuries.
5, No damage to galvanizing, paint or coatings, Conserved corrosion protection.
6, Possibility of joining more than two layers and different materials and different thickness.
7, Possibility for intermediate layers for sealing and sound damping.
Product Paramenters
No | Item | Specification | No | Item | Specification |
1 | Driving mode | Electro-hydraulic | 6 | Working temperature | -10℃~40℃ |
2 | Pressure | 25~55Kn adjustable | 7 | Time per riveting | 2~3s/time |
3 | Motor | 18V DC | 8 | Work time/fully charged | 130~350 time |
4 | Power | AC 100V-240V 50-60HZ | 9 | Noise | 75dB |
5 | Charging time | 1 hour | 10 | Weight/set | 5kg |
Our Advantages
Working force is adjustable
Questok clinching gun CG780 work force is adjustable from 25kn to 45kn. For different joining materials and different thickness, we can choose different force to guarantee quality clinching.
Wireless and chargeable
Questok clinching gun is wireless and chargeable. It comes with two lithium batteries and one charger. No need for air power, no need for power supply, it is a perfect solution for outside production.
Ergonomic design
Questok joining machine clinching gun adopts ergonomic design, and the weight of main body is around 3.5kg, thus it is easier and comfortable to hold for operators.

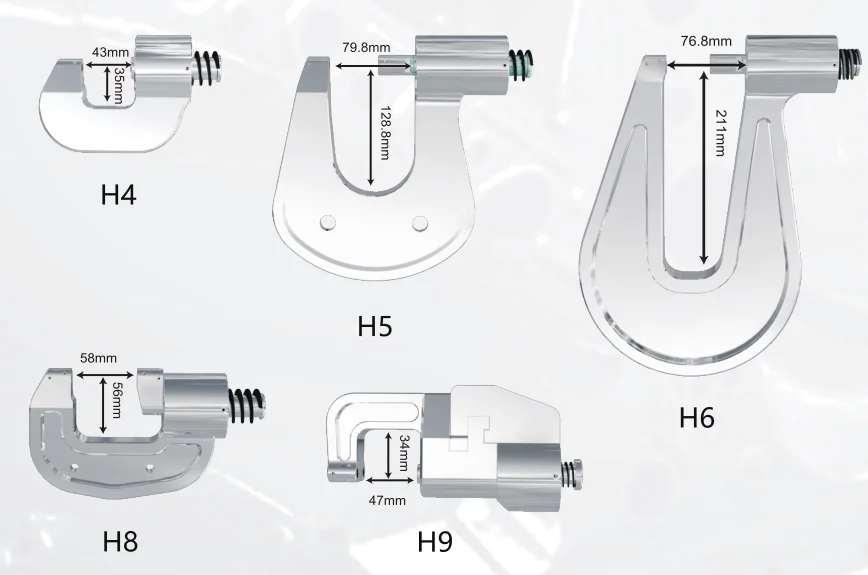

Customized arms
Customized arms for different production requirement
Clinching equipment for HVAC, construction, automotive, application, electronic, sheet metal and general industries, customers need different clinching arms for different working pieces and different work situation. Our experienced technician team is always ready for you to make customized design to meet your special demand.
If you have any project and need a clinching gun with customized arms, you are welcome to contact us.
Certifications
CE APPROVAL 1 FOR CLINCHING EQUIPMENT
CE APPROVAL 2 FOR CLINCHING EQUIPMENT

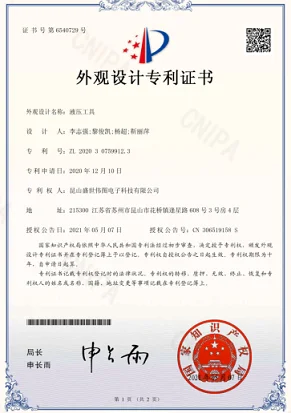

Our R&D capacity

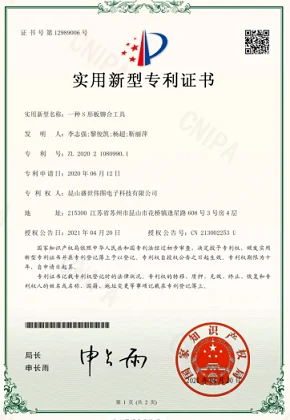

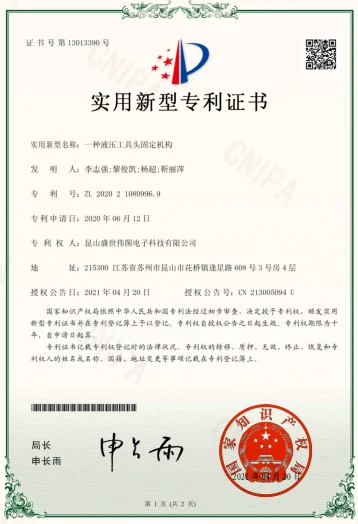

Joining machine patent

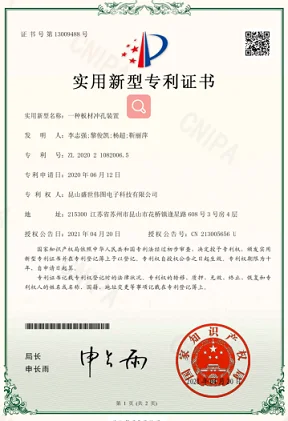

Clinching equipment patent

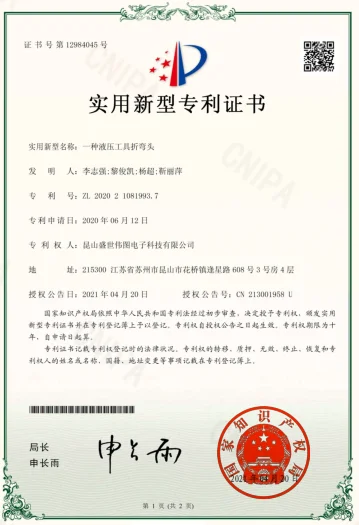

SPR rivet gun patent
Product packaging
Shock absorption package
Questok adopts heavy-duty plastic case with cushion to avoid transportation damage to machine.
5-layer carton
Each set is packed with individual quality 5-layer carton.
