50kg Cement plaster powder fixed cement bag loading machine

Product Overview

Description

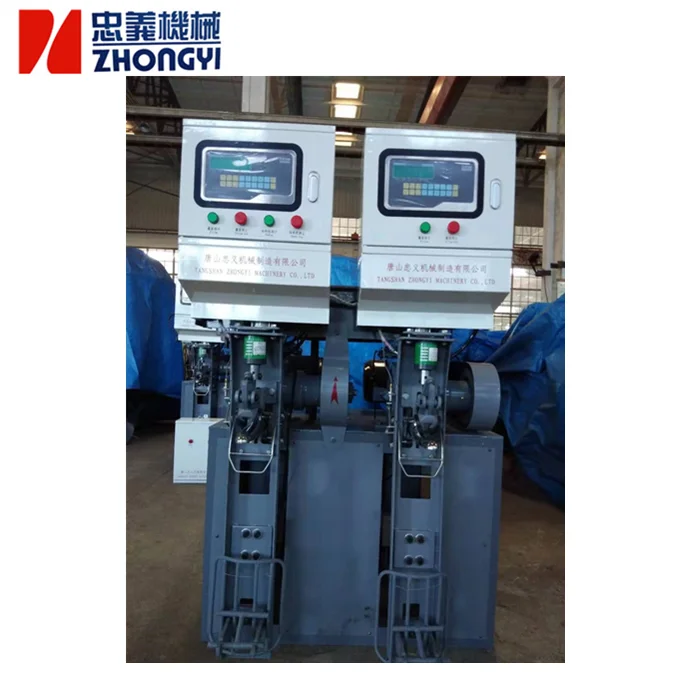

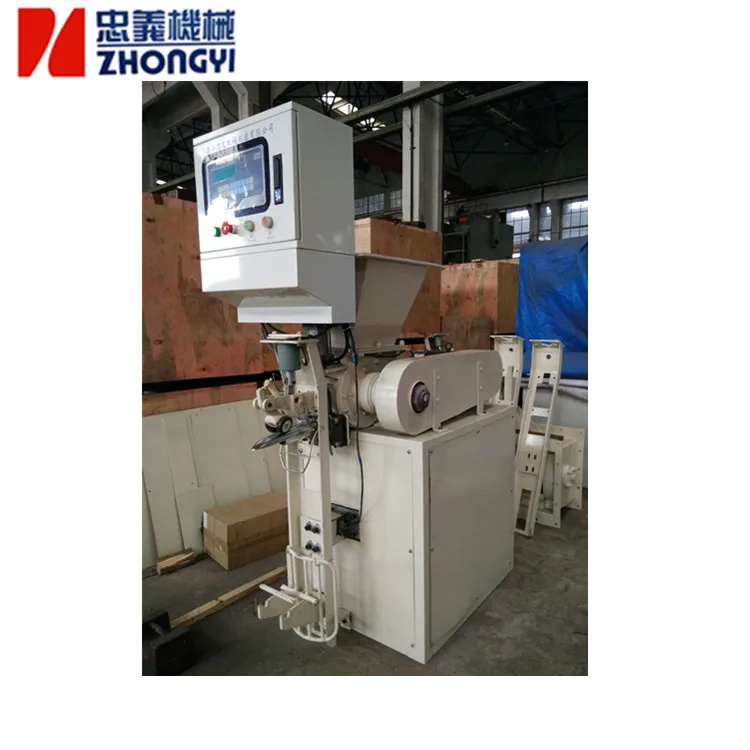

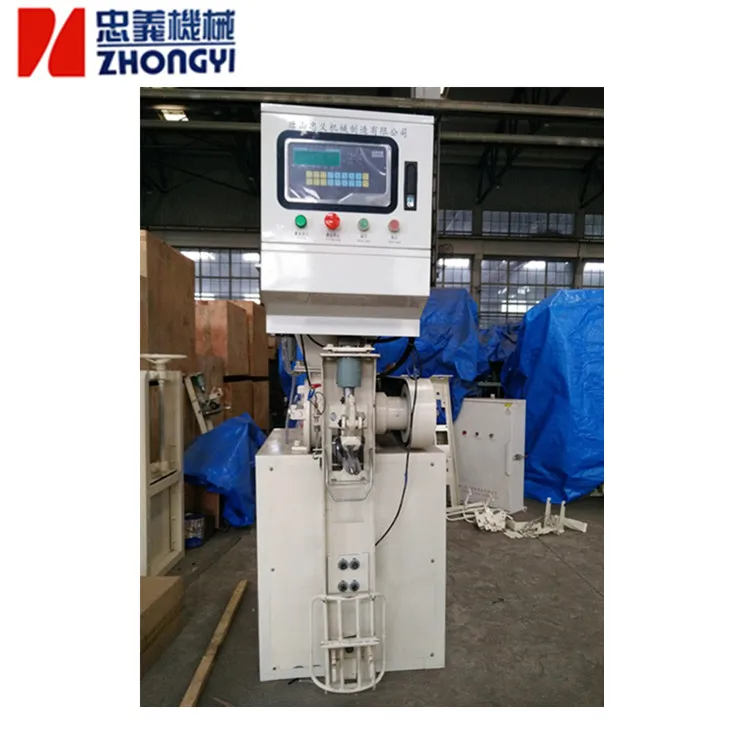

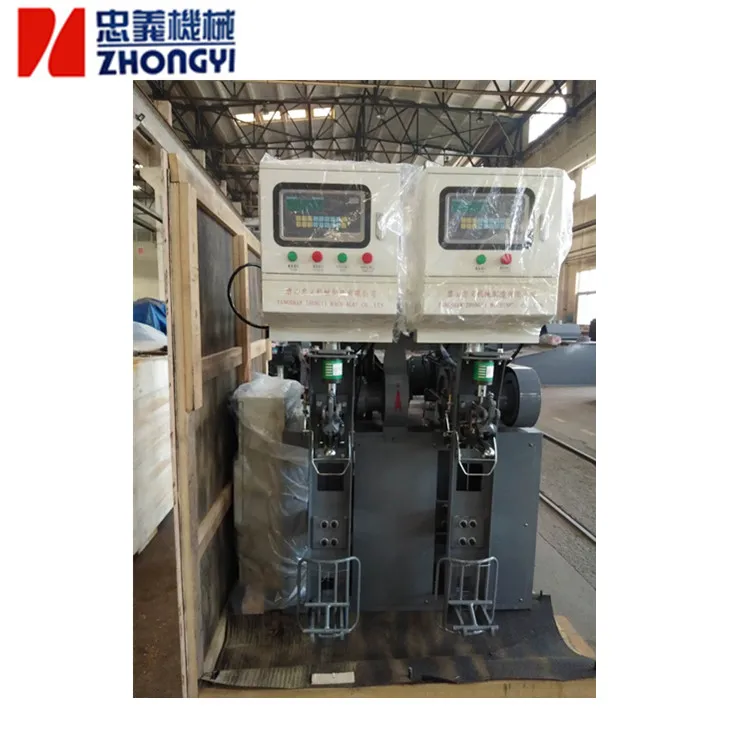

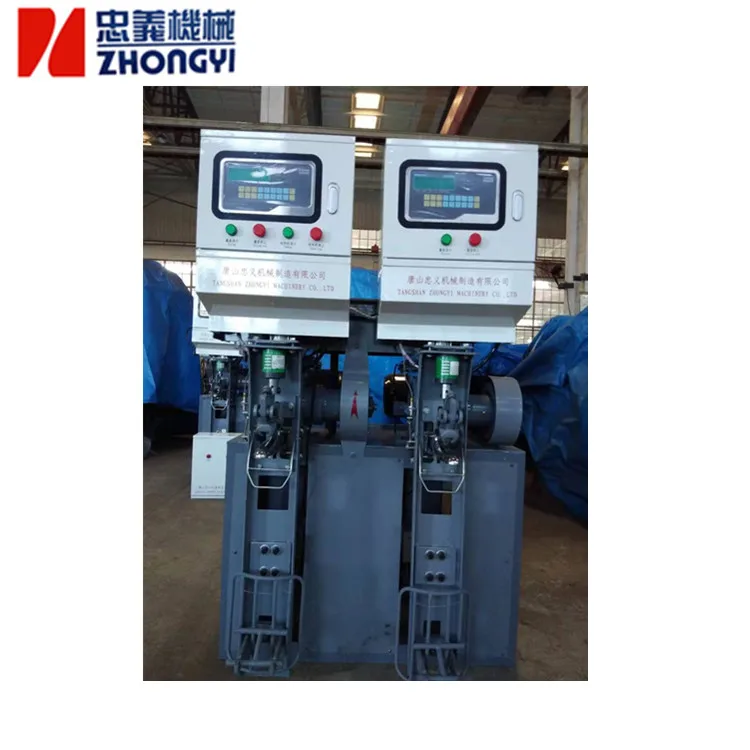

50kg Cement plaster powder fixed cement bag loading machine











1. ABOUT US



The history of TangShan ZhongYi Machinery Co., LTD. began in 1989, it's one of the earliest and biggest cement packing line equipment manufacturers in China.

Due to the strong quality and excellent performances, machines produced by TangShan ZhongYi Machinery Co., LTD. have reached to over 3000 users around the country and also been exported to other countries, including Kazakhstan, Russia, Uzbekistan, Tajikistan, Ukraine, Georgia, Indonesia, Pakistan,Vietnam, Peru, Ethiopia, Algeria, Ethiopia, Zimbabwe, Madagascar, Turkey, Saudi Arabia, Bangladesh, etc. They are not only enjoyed the reputation, but also earned credits from the customers.



Main products of our company:

Rotary cement packing machine; Fixed cement packing machine; Big bag cement packing machine; Cement bulk loading system; Auxiliary equipment for cement packing line, such as Vibrating screen, Bag receiving conveyor, Bag positing conveyor, Bag cleaning conveyor, Bagged cement truck loading machine.



2. ADVANTAGE

1. high efficiency and energy saving


2. measuring accuracy and stable performance


3. good sealing, easy to operate and convenient maintenance



3. MAIN STRUCTURE AND PRINCIPLE OF OPERATION

3.1  Main structure:

The packer is composed by feeding mechanism, weighing system, discharging mechanism, hang, shutter lever mechanism, bag charged influence mechanism, base frame, electric control box and aerating system.



3.2  Principle of operation:

(1) Cement flows into the middle silo after screening out clutters via vibrating screen; At the outlet of middle silo set manual screw gate that can make initial flow control; Cement from the middle silo equably flows to discharging mechanism of packing machine by the impeller feeder.



(2) Cement in the hopper of discharging mechanism, under the effect of high-speed rotating impeller, compelled and continuously filled into the bags.



(3)  With that the operator hangs the empty bag on the spout; the rubber wheel on the bag-filling rack locks the bag automatically. At the same time the hung cement bag push the rocker, while the rocker drive the magnet close to the inductive switch, then the inductive switch sends signal to micro-computer control system, and then the micro-computer controller sent signal to switch on motor and open the flashboard. Micro-computer control system receives bag charging signal to send instruct opening the shutter. At the same time, the motor startup, flashboard open, the packer starts to fill.



4.TECHNICAL DATA









FAQ

1. What is the usage of this machine?

-- This machine mainly used for packing good mobility material like cement, gypsum powder and others powder, granule less than 7mm.

2. What is the voltage/phase for this machine?

-- We normally make voltage into 220V / 50HZ / Single phase or 380V / 50HZ / Three Phase. But it can be made according to clients' demand, like 415V / 50HZ / Three phase and so on.

3. What kind of packing box is?

-- We pack machines in a standard exporting plywood case, no vermin, germs. It can help to protect the machine while transporting.

4. How long is the guarantee?

-- For non-human damage factor, within 12 months after commissioning or within 18 months from the date of B/L, whichever comes first.

5. How should I do if meet some trouble while using?

-- Don't worry about that. We are always be pleased to provide using support to clients. We can take a video for showing how to resolve the problem, and write detail resolution to you.

6. What's the payment mode?

-- T/T, L/C.

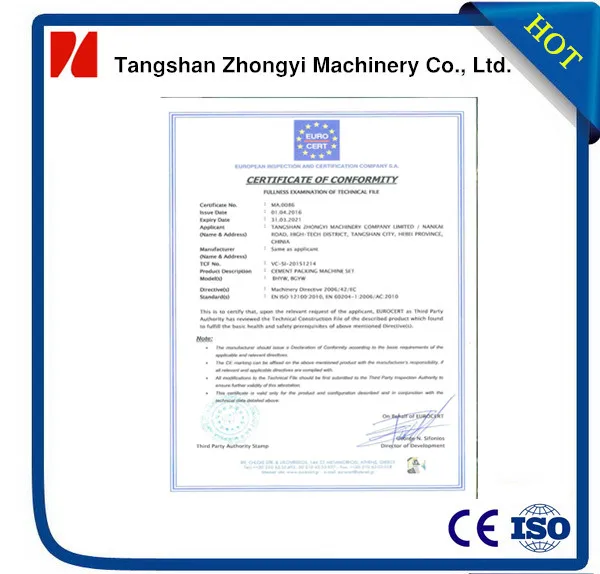

5. CERTIFICATE

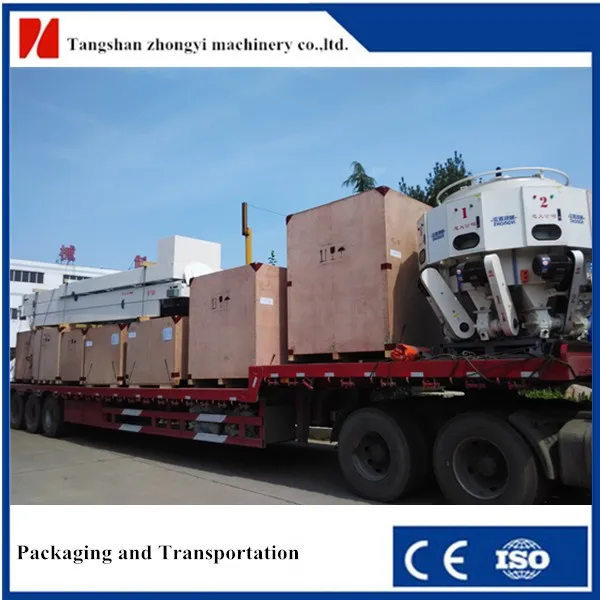

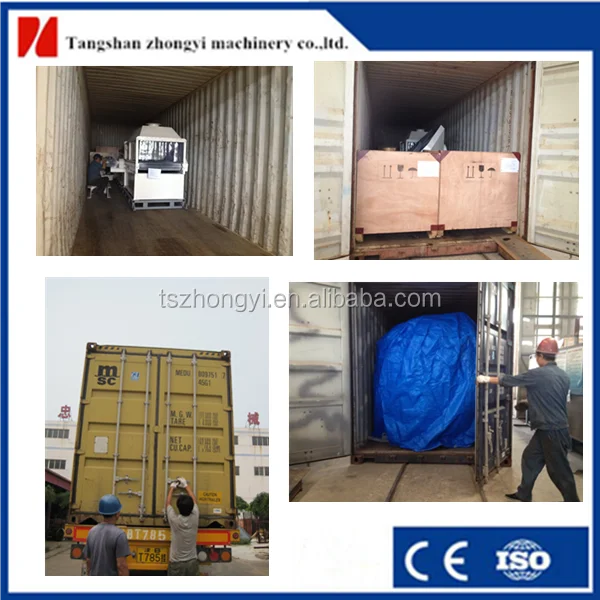

6. PACKAGE AND TRANSPORTATION



















7. BUSINESS COOPERATION

















8. OUR EXHIBITION

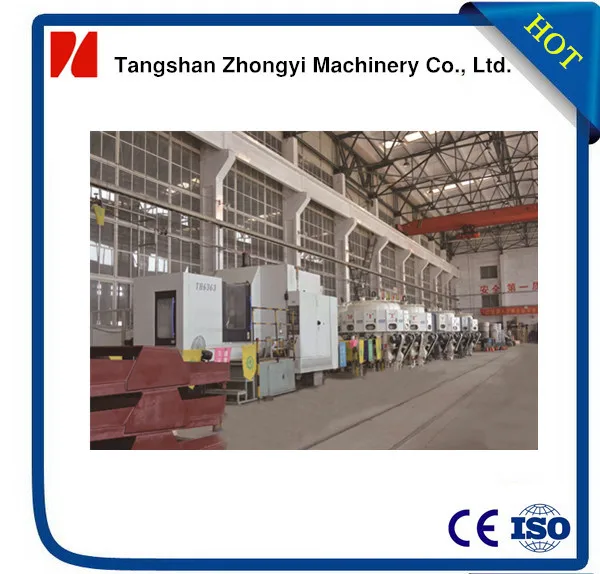

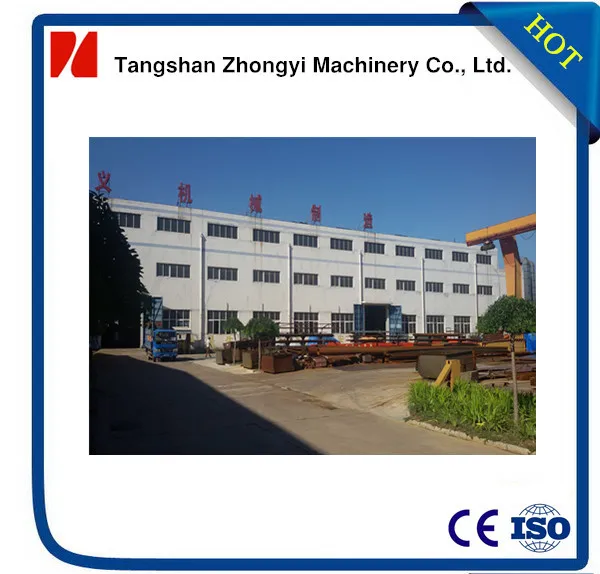

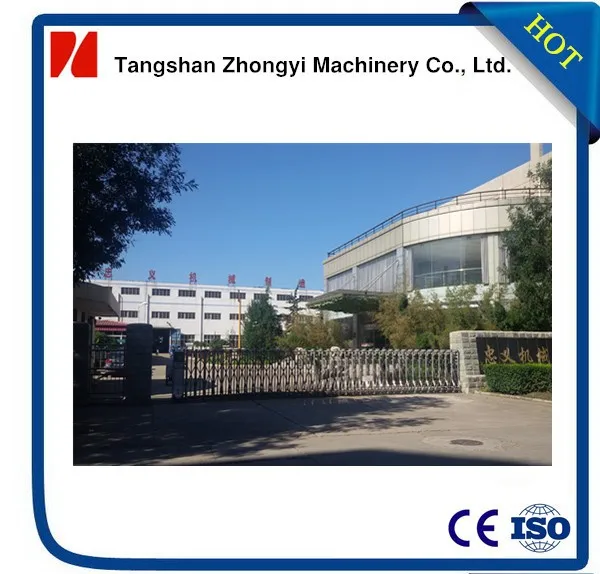

9. COMPANY AND FACTORY

















10. CONTACT ME















Hope to cooperate with you!!!
