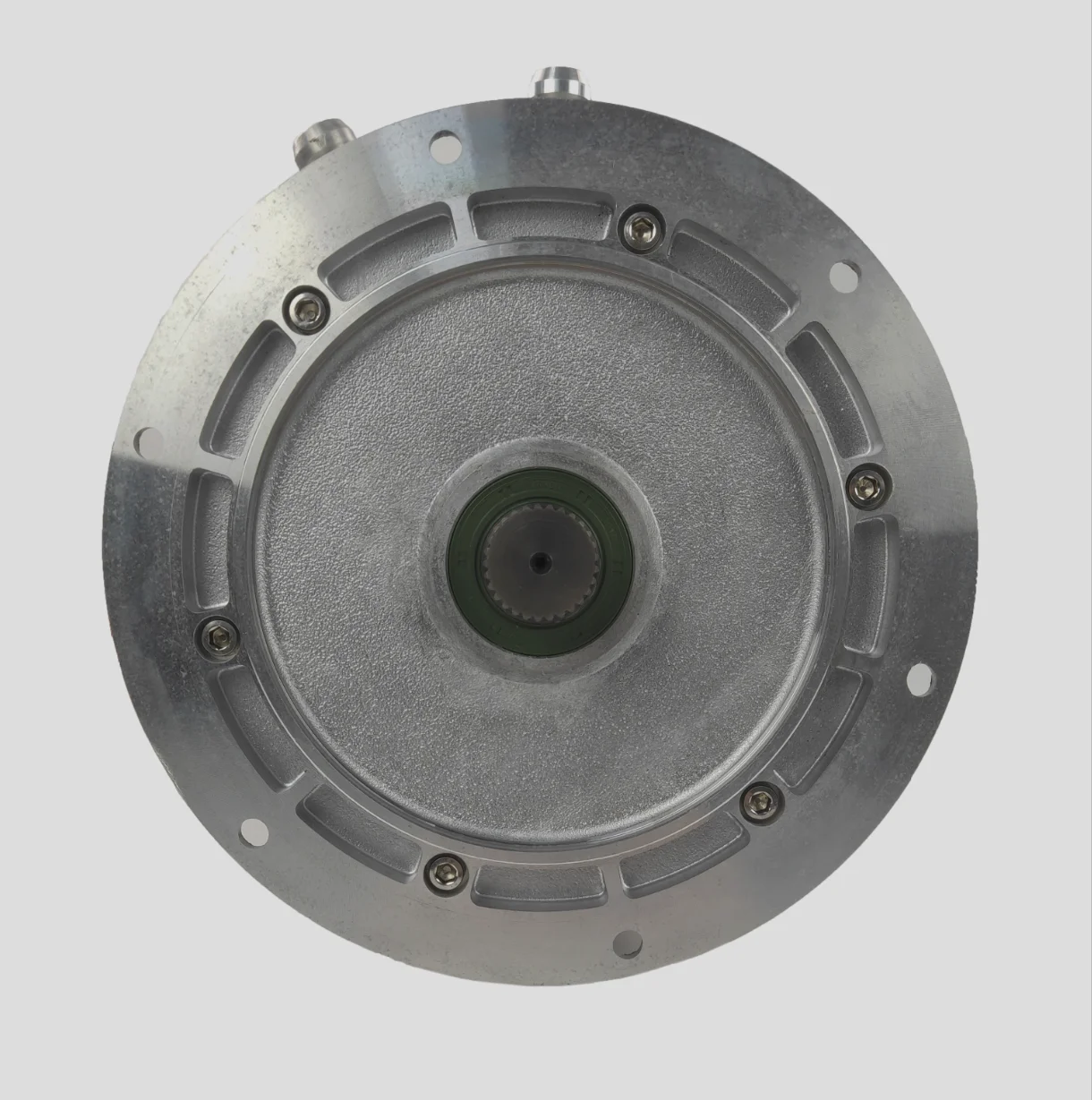

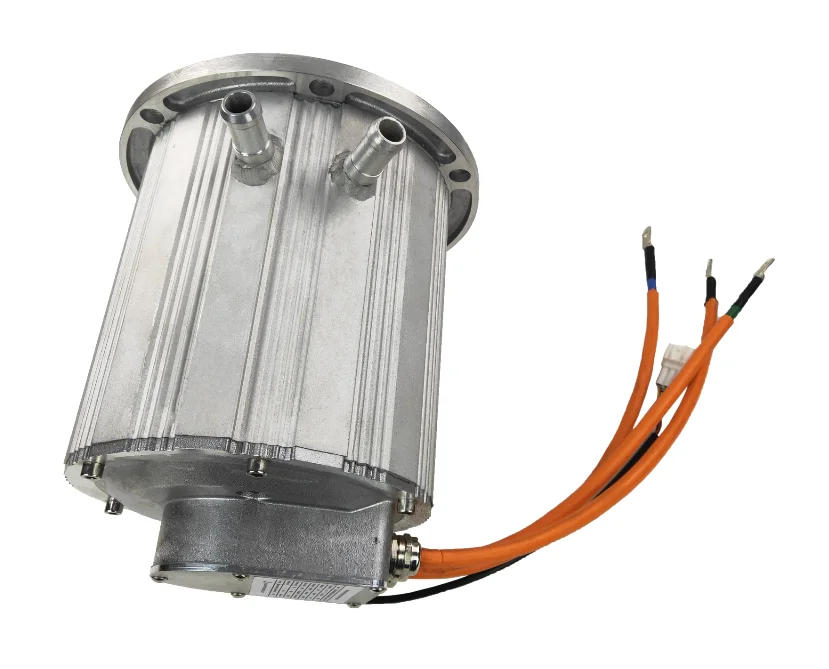

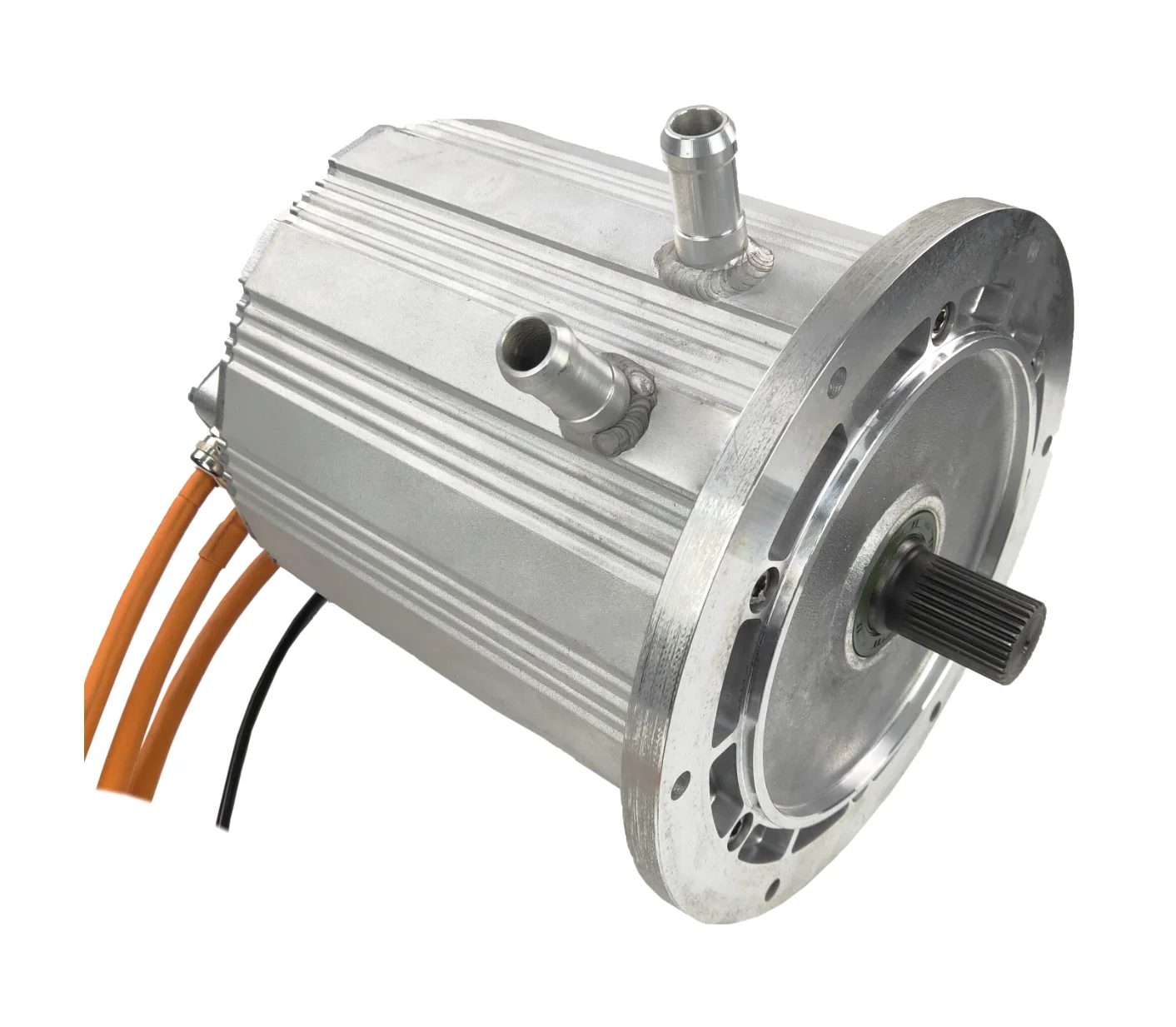

Electric Car Motor Kit High Power 8000rpm 144v 40kw Automobile Middle Electric High Speed Brushless Dc Gear Motor
- Category: >>>
- Supplier: Wuxi Aoqiang Electronic Technology Co. Ltd.
Share on (1700007994332):
Product Overview
Description
Warranty | 3 Months-1Year >>Click here to get latest price |
Model Number | PEEV-180 |
Usage | Electric Car，Electric Mini Bus，Off-road Truck |
Type | Brushless DC Hub Motor |
Torque | 130N.M |
Ratedcurrent | 80A |
Ratedpower | 20 KW |
Peaktorque | 130 N.m |

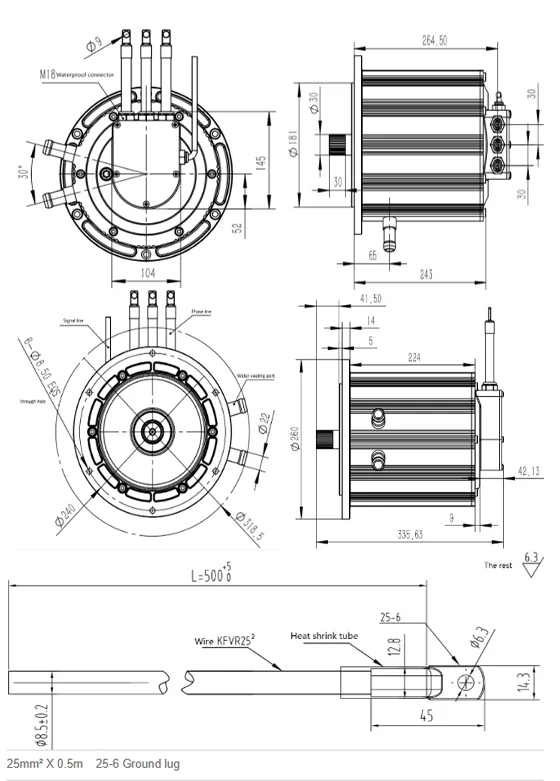

Motorsize | 270*270*332.5mm |
Continuous Current(A) | 90A |
Maximun Efficiency | ≥90 % |
Q: How is the delivery time after the order is placed?
A:15~45days.
Q: Can you provide the customization according to the different voltage and rpm of the motor?
A: Yes.
Q: How to set the parameters of the controllers we ordered?
A: We can provide the GUI software for clients.
Q: How to apply all the electronic parts to the driving system?
A: We can offer the one stop service which including CAN communications between all.
Q: Do you have aftersales agent abroad?
A: Yes.
