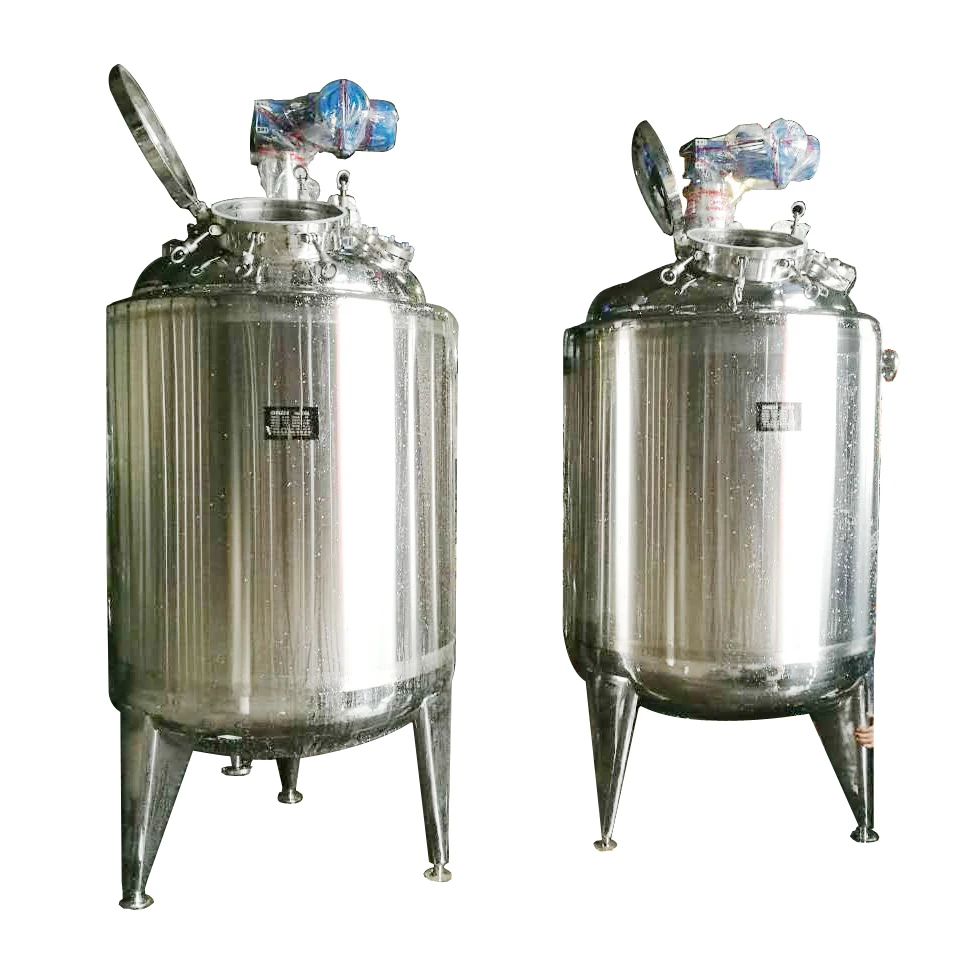

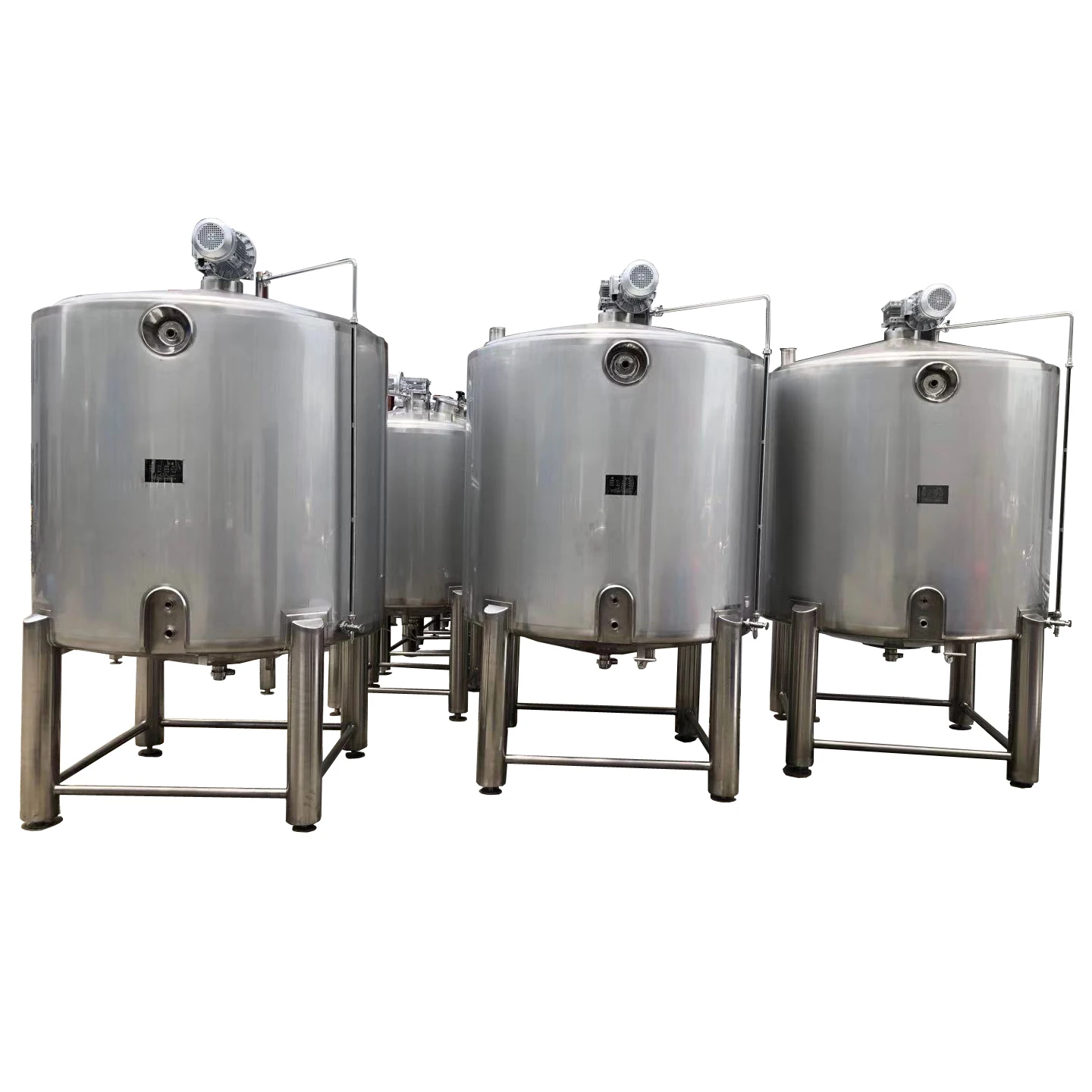

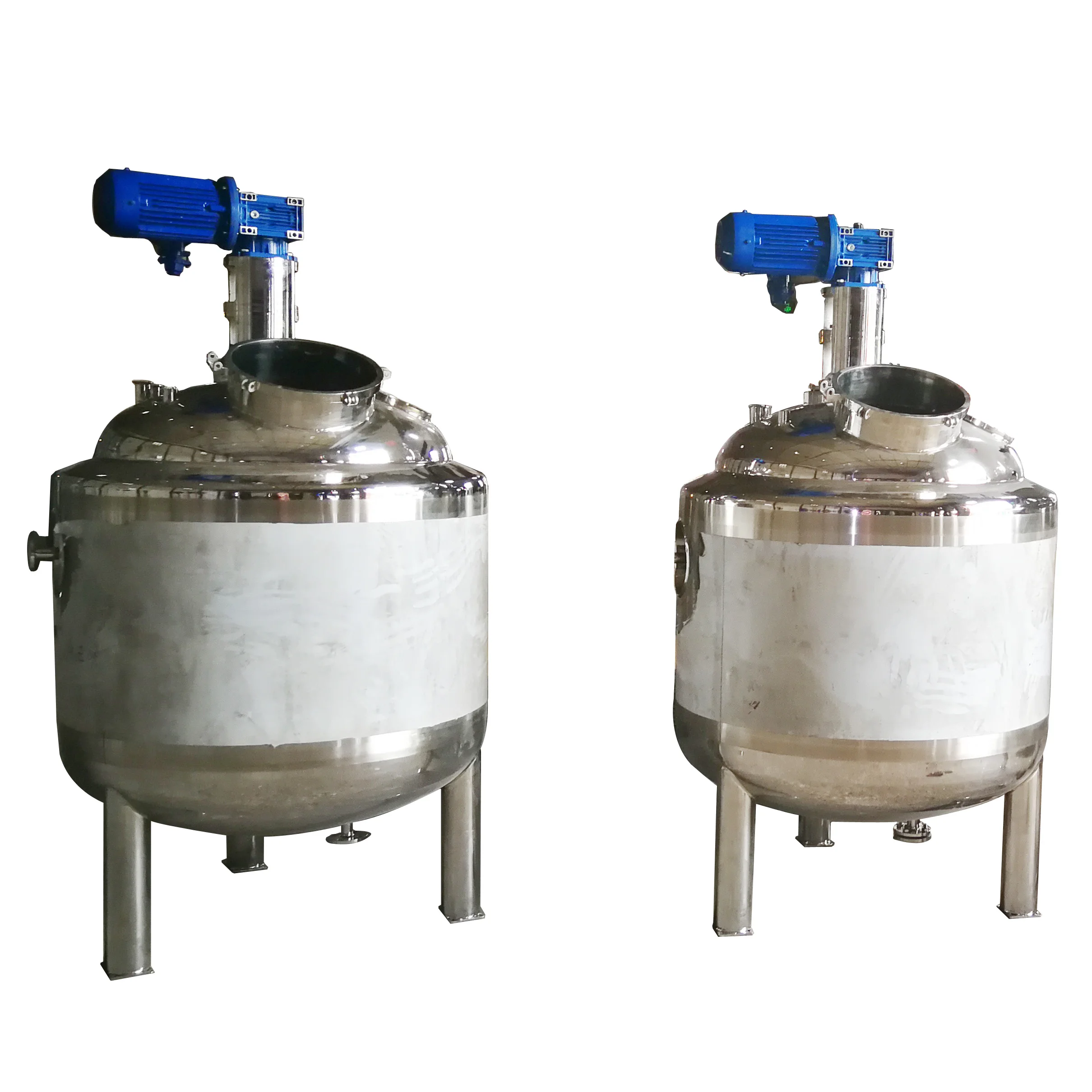

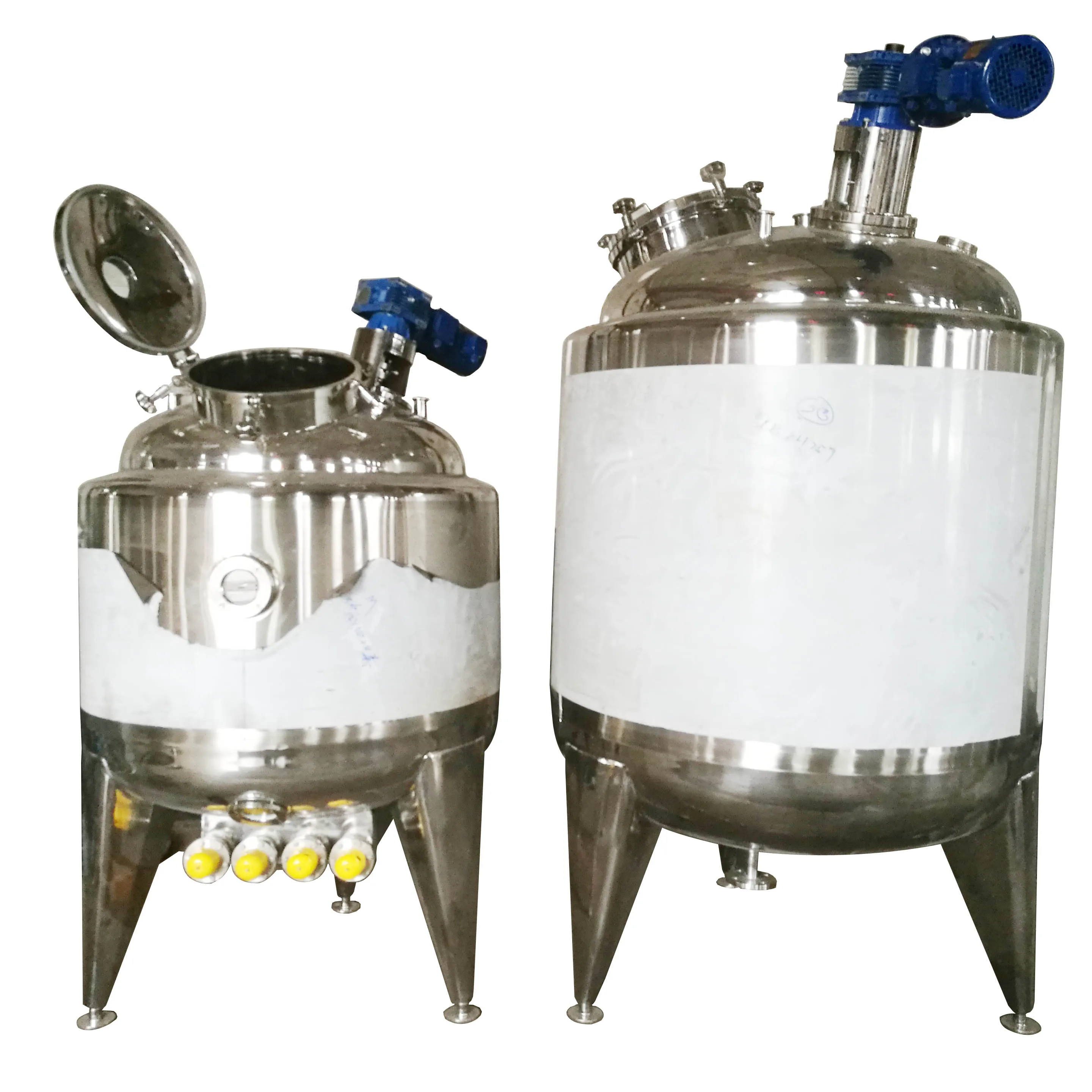

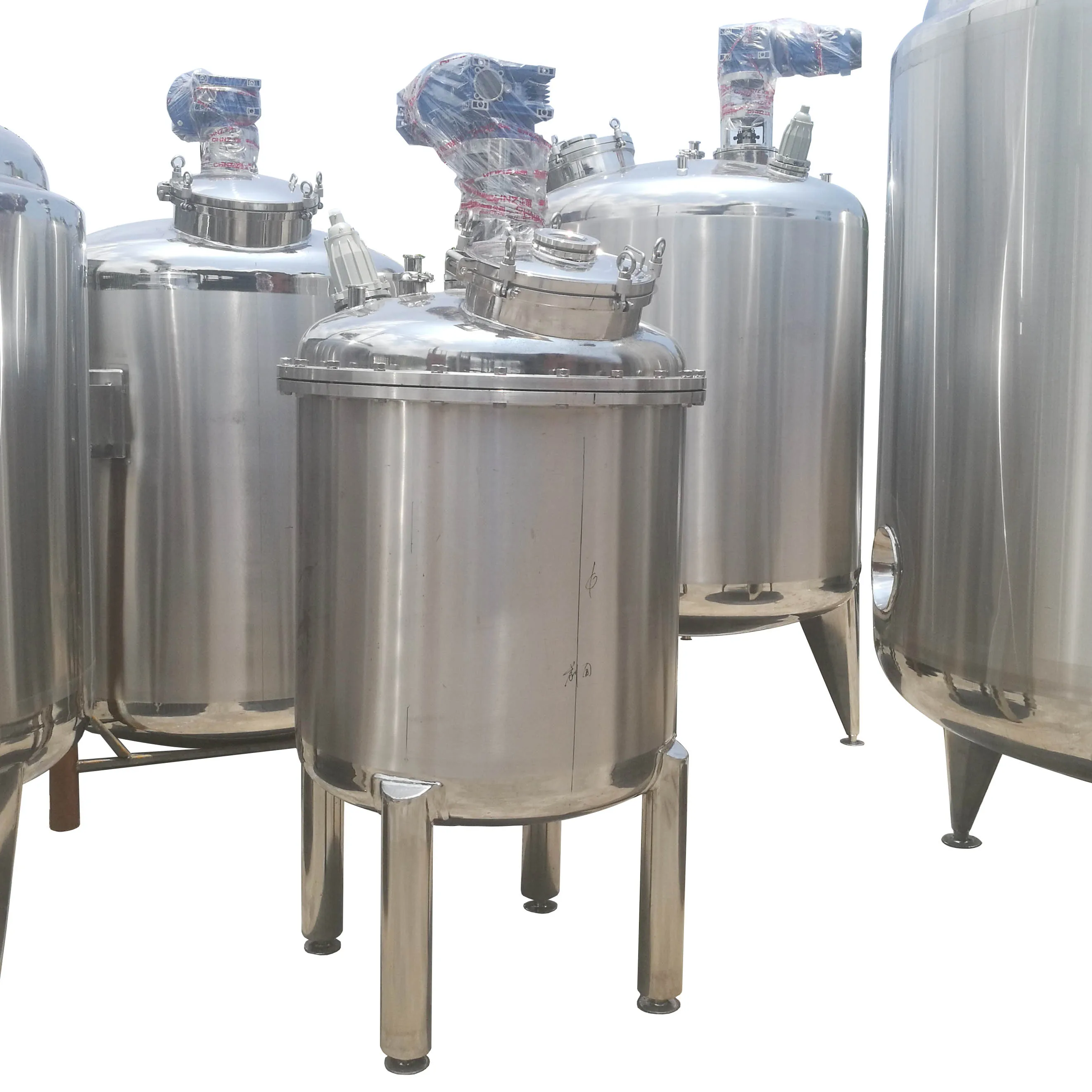

Yogurt milk storage fermentation tank fermentor equipment

Product Overview

Description

Yogurt milk storage fermentation tank fermentor equipment



Fermentation tank (full closed) heating and cooling cylinder has energy saving, noise elimination, decay resistance, strong production capacity, convenient cleaning etc. features, widely used in the dairy industry, food, pharmaceutical, chemical, beverage and other industrial sectors, as heating, cooling, heat preservation, sterilization or slurry storage of necessary equipment, especially suitable for babbitt disinfection and heat preservation of milk, is a necessary equipment in ice cream production line.

Can be used as  raw milk storage tank, milk tank, ingredients preparation tank (not heated), temporary storage tank, canning, etc.

Tank configuration:
1. Quick open manhole.
2. Rotary CIP cleaning ball .
3. The ventilation hood flies prevention health level.
4. Adjustable legs.
5. Removable feeding device .
6. The thermometer (according to the demand of customers).
7. The ladder ( according to customer requirement).
8. Paddle agitator.
9. The level meter and the level control (according to the demand of customers).
10. The Prevent eddy plate,

.
Structure features:
1. Adopt stainless steel structure.
2. Materials are sanitary stainless steel,
3. The structure design of humanization, extremely strong operability.
4. The simplified internal transition section USES the circular arc transition, ensure health no dead Angle.

Heat preservation tank description:

Heat preservation tank before using, must wash clean with fresh hot water within the receiver, and then use steam disinfection. Material is inlet into the cylinder at the top of the cylinder, the material should not be installed too full.



Heat preservation methods:

When work, open the hot water inlet valve, launch into the hot water pump, hot water from overflow vent discharge (recycled), and to start the mixing machine, stirring constantly is expected to achieve heat preservation effect. To keep from jacketed through, the temperature of the cylinder material. Cold water or hot water (note the thermometer), in order to achieve the purpose of insulation.

Cleaning:

Complete processing, discharge off the material in the cylinder , should rinse with warm water as soon as possible, brushed glue paste materials, then use 400 c ~ 500 c alkaline on the inner wall of the container, and a comprehensive cleaning, use clean water to rinse, for next time use.
