DC AC power inverter 2000w 24VDC to 230VAC electrical power inverter M 2000
- Category: >>>
- Supplier: Yueqing Minghong Electric Co. Ltd.
Share on (1700009502117):
Product Overview
Description

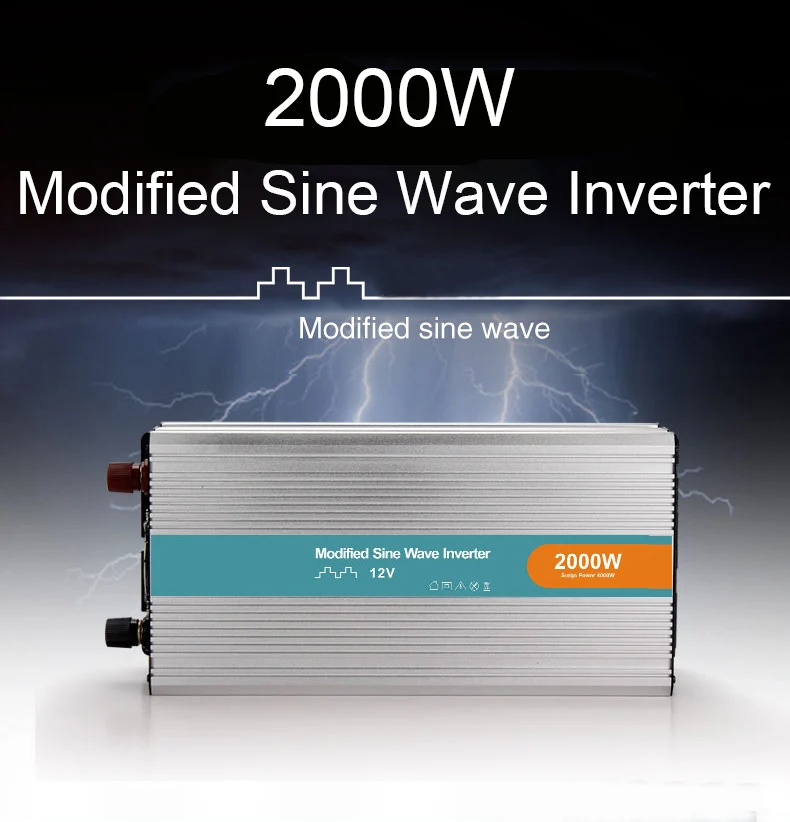

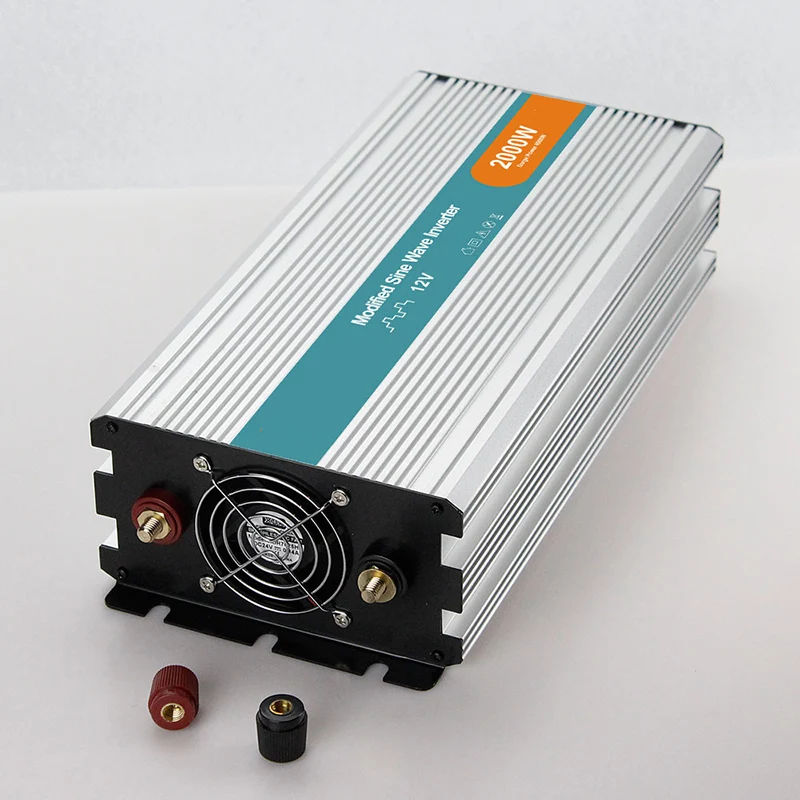

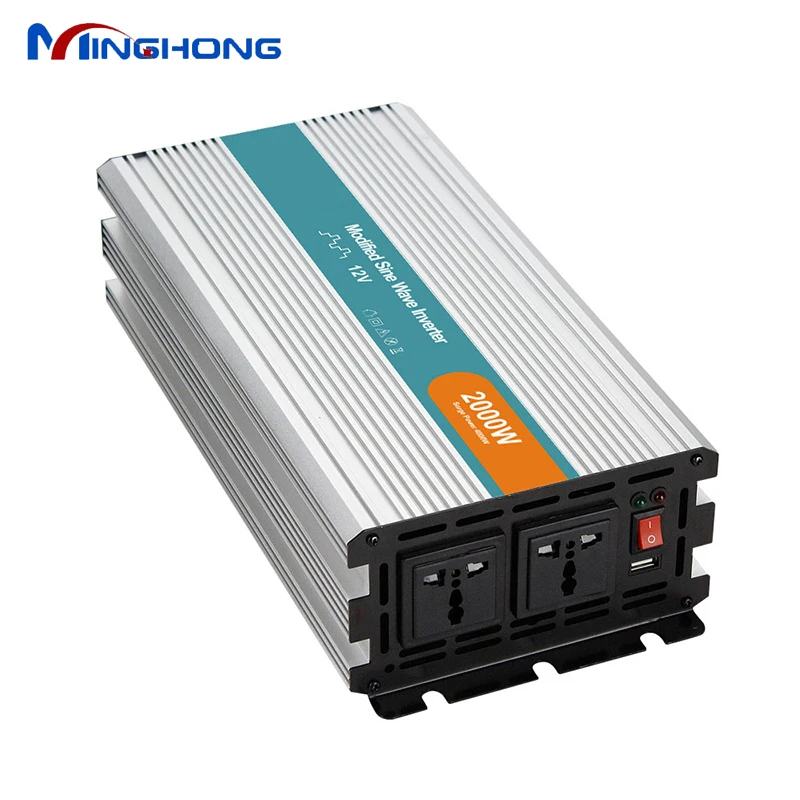

DC AC power inverter 2000w 24VDC to 230VAC electrical power inverter M-2000 .
| Technical Parameters for 2000W Modified Sine Wave Inverter | |||
| Model | M-2000W-12V | M-2000W-24V | M-2000W-48V |
| Rated power | 2000W | ||
| Peak power | 4000W | ||
| Input voltage(Range) | DC12V(9.5-15.5V) | DC24V(19-31V) | DC48V(40-61V) |

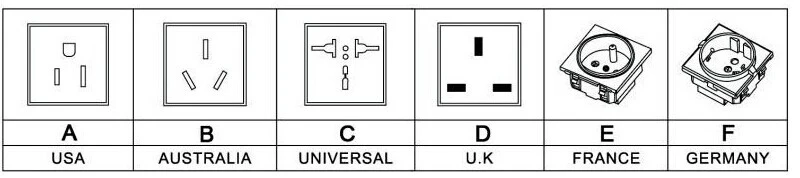

| Output voltage(Single) | (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5% | ||
| Unload current less than | ≤0.3A | ≤0.2A | ≤0.1A |
| Output frequency | 50Hz±2Hz or 60Hz±2Hz | ||
| Output waveform | Modified Sine Wave | ||
| USB | 5V,2.1A | / | |
| Max.efficiency | 90% | ||
| Low voltage protection | Pre-alarm (alarm off after 1 sound), LED Red light on, voltage contiously reduce and shutdown | ||
| Over voltage protection | Pre-alarm (alarm off after 2 sounds), LED Red light on, shutdown | ||
| Over load protection | Continuous alarm, LED Red light on, shutdown | ||
| Over temperature protection | Pre-alarm (alarm off after 3 sounds), tempurature continously rise, LED Red light on, shutdown | ||
| Short circuit protection | Perfect protection and no damage the circuit | ||
| Input reverse polarity protection | Fuse burn-out | ||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 9.5±0.5V | 19±0.5V | 38±1V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14V±0.2V | 28V±0.5V | 54V±1V |
| Working temperature | -10°- +50° | ||

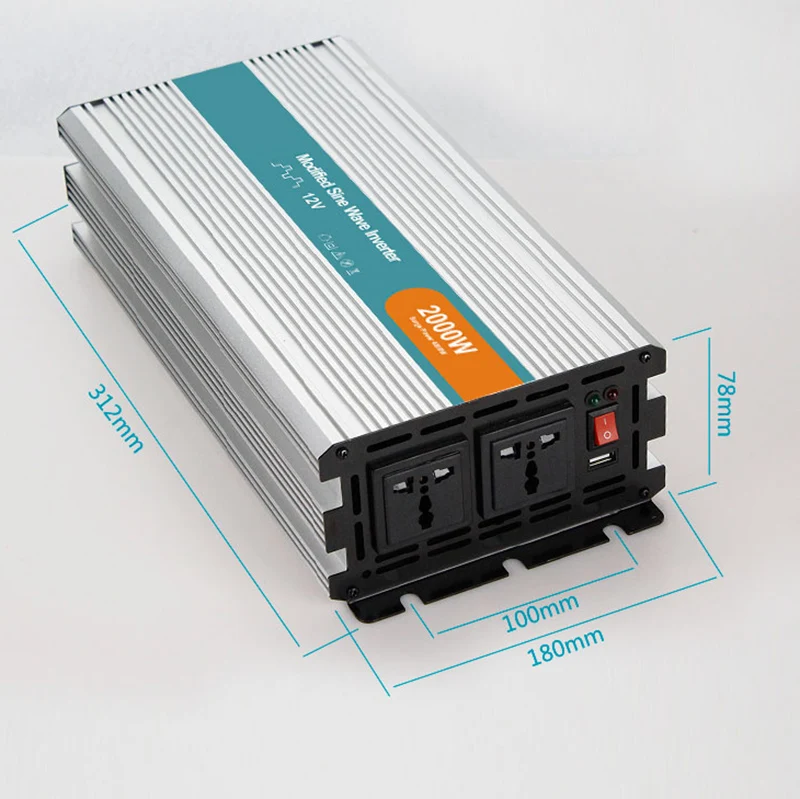

| Product Dimension(mm) | 346x180x78mm | ||
| Packing(mm) | 395x240x105mm | ||
| Net./gross weight(g) | 3600/4400g | ||
| QTY/CTN | 4 PCS | ||
| Meas./CTN(mm) | 500x400x415mm | ||
| Gross weight/CTN(g) | 17600g | ||
| Warranty | 12Months | ||
| Accessories | English Manual*1pc; Pure copper cable*2pcs; Spare fuse*4pcs | ||
| Cooling method | Intelligent air cooling | ||
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | |||
About our inverter
Relative Products
Pure sine wave 1000w Pure sine wave 2000w Pure sine wave 3000w
Applications
FAQ
Q1:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave solar power inverters can drive them successfully.
..........................................................................................................................................................
Q2:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
..........................................................................................................................................................
Q3:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
..........................................................................................................................................................
Q4.Could you offer Form A,Form F or C/O for the customer ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
..........................................................................................................................................................
Q5.Would you accept to use our logo on your 2000 watt modified sine wave solar inverter ?
A.If you have good quantity,it absolute no problem to do OEM.
..........................................................................................................................................................
