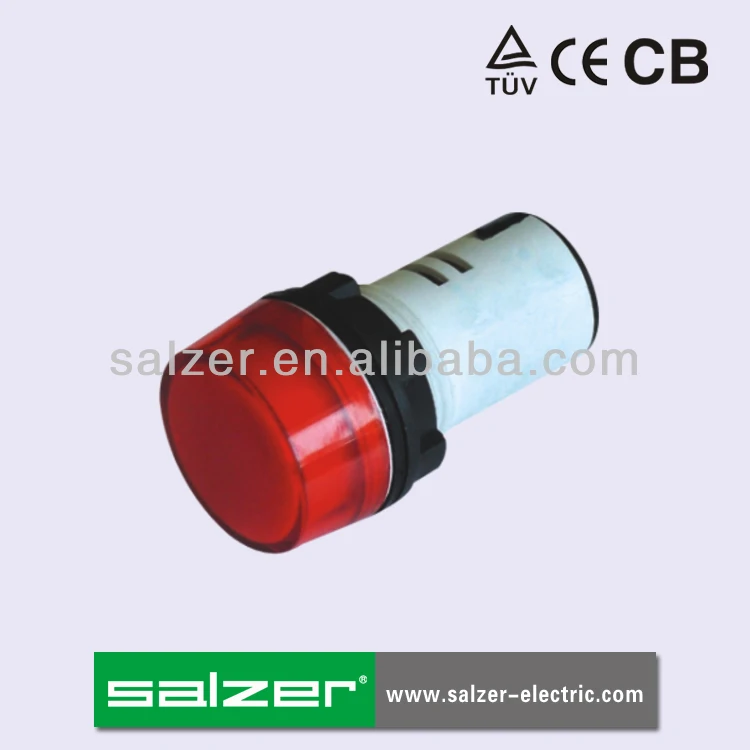

Salzer PL16 22B LED Indicator lamp, Signal Lamp, Pilot lamp light 22mm (TUV CE and CB Approved)

Product Overview

Description

Salzer PL16-22B LED Indicator lamp, Signal Lamp, Pilot lamp light 22mm  (TUV CE and CB Approved)

General Information
1. All ultra-short type lights are suitable for mounting holes Φ22, Φ25 without additional
accessories.
2. "FD" is dischargeable indicator light of the capacitive cabinet if the fixture density is too high, good heat radiating conditions should be offered.
3. Buzzer is intermittent sounding or flashing with 10cm/80db, current 15-20mA.
4 If 220VDC and a dischargeable lamp are required, longer light shell is available.
5. DC power supply can be replaced by AC power.
6. The electric consumption is 20mA.
7. Rated voltage: 6V AC/DC, 12V AC/DC, 24V AC/DC, 36V AC/DC, 48V AC/DC, 110V AC/DC, 127V AC/DC, 240V AC/ DC, 380VAC

Model	PL16-22B
Color	Red,Green,Yellow,Blue,White
Light Voltage	DC.AC 6V
	DC.AC 12V
	DC.AC 24V
	DC.AC 36V
	DC.AC 48V
	DC.AC 110V
	DC.AC 127V
	DC.220V
	FD.380V
	AC.220V/230V
	AC.380V



As a professional φ22mm LED indicator manufacturer and supplier in China, we also offer flush push button switch, analog ammeter, AC axial fan, cam switch, isolator switch, high temperature wire, fan filter, and much more.

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000

More detail informations, please feel free to contact us!
