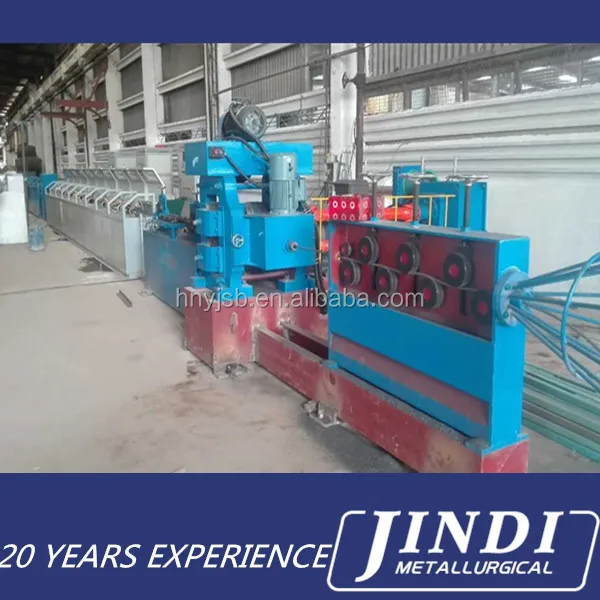

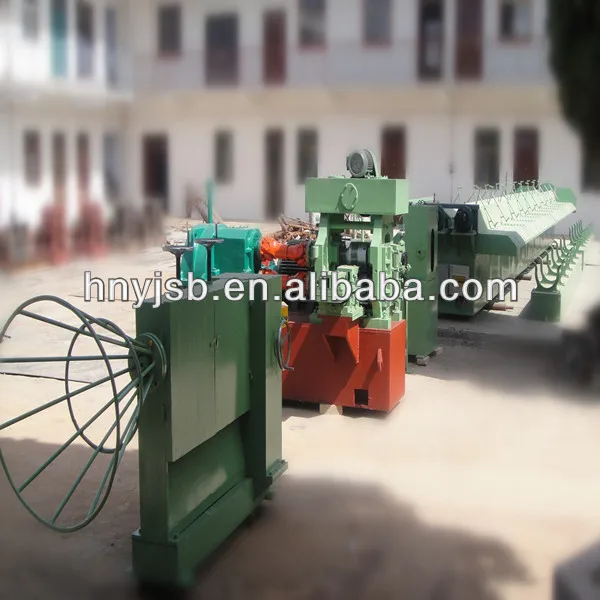

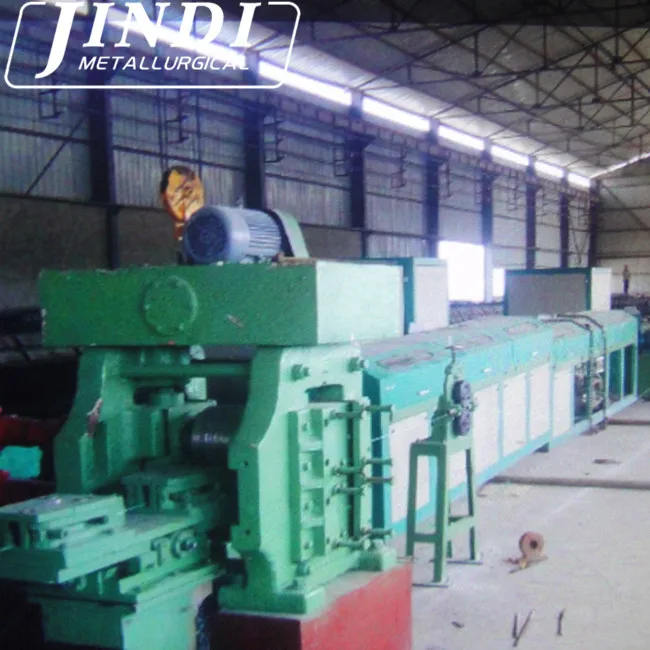

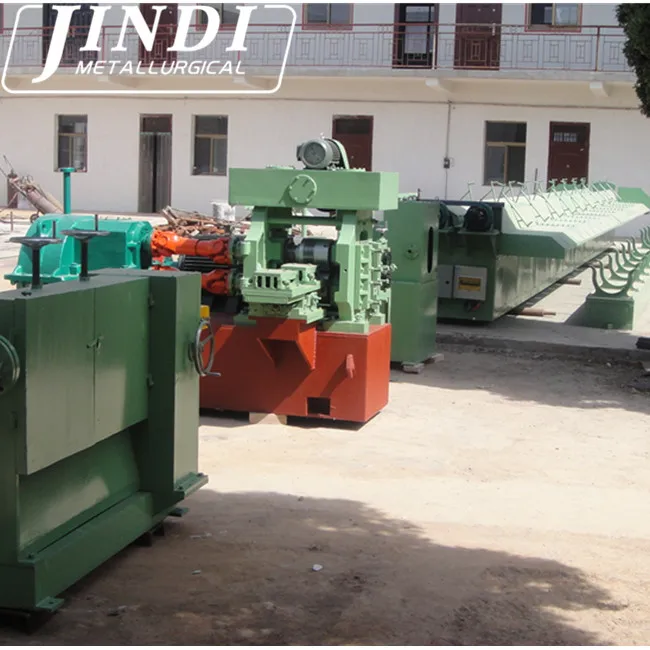

Cold-rolled reinforcing bars production line is the new & high techinical equipment which we designed and developed independently with years practical experience after absorbing advanced technology from other similar products both home and abroad.The production line was controlled by a microcomputer with a touch screen ,and its mainly characteristics are not only advancing process ,compact structure ,energy-efficient but also easy to use.The φ5-φ11 cold rolled 2 ribs bar processed by our equipment conforms to the state standard GB13788-2000 which is not only widely used in the construction industry but also hot in the steel market .
Product Process
Cold-rolled ribbed steel bars are processed by 5 Steps whith mainly 5 equipments
1 Scaling machine
First the hot rolled wire rod (wire rod,coil rod,rolled steel wire,rod coil ) will be de-rusted and reduced by Scaling machine

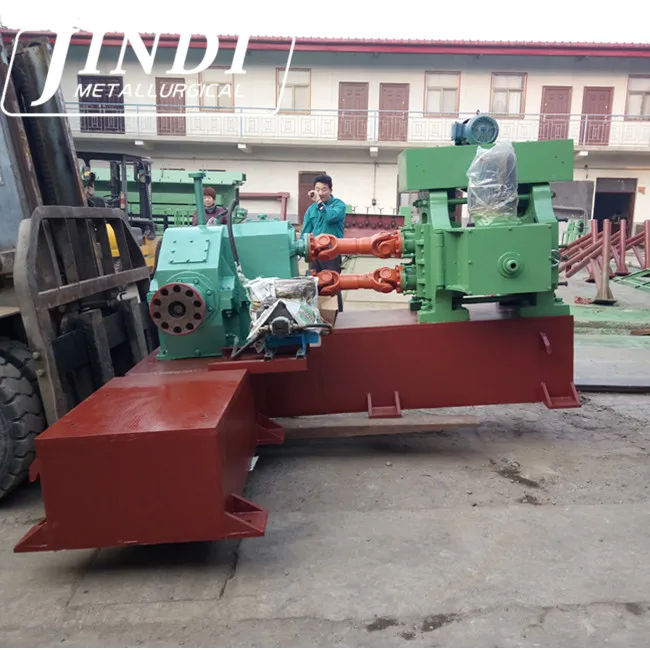

2 rolling mill
Second the steel wire will be pressed to form crescent ribs on 2 sides of the surface by Rolling mill
3 Mid-frequency heat treatment equipment
Third the steel wire will be heated by Mid-frequency heat treatment equipment
4 Flying shear (steel bar cutting machine )
Fourth the steel wire will be measured and cut by Flying shear
5 Flip rack
Fifth the fished cold ribbed steel bars will be packed by Flip rack
Cold-rolled reinforcing bars production line Technical Parameter
Item
LLZ200
Small type
LLZ228
Medium type
LLZ228
Medium type
LLZ228
Medium type
Raw material
Φ6.5-10
Φ 6.5-12
Φ 10-16
mm
Roller Diameter
Φ200
Φ228
Φ285
mm
Power
55-75
75-110
130-160
KW
Center distance between gears
200
228
285
mm
Rolling speed
1.5-2
1.5-3
3
m/s
Cutting length
1-12
1-12
3-12
m
Motor of flying shear
5.5
5.5-11
11-15
KW
Finished Product specification
Φ5-8
Φ5-12
Φ10-14
mm
Output
20-50
20-50
60-80
T/Shift
Packaging & Shipping
1. Packing method: naked packing with machinery packed
2. Transport method: sea transportation
3. Depending on customers' needs.
Our Services
Jindi Metallurgy equipment lnc offers design and development services for cold rolling mill depending your requests and also our engineers will provide professional advices to produce certified product.
Honour and certificate
Company Information
Gongyi Jindi Metallurgy equipment Lnc.As a appointed producing factory by Construction Ministry specialized in producing cold rolling mill(steel bar making machinery )We have a full set processing equipment ,advanced manufacturing technology and process ,abilities to research and develop new products.
The full set of steel bar machinery including cold rolling mill,bar straightener ,cutting machine .They are all famous and rated as excellents by Henan Municipal Government in the last few years.
We Jindi Metallurgy equipment linc has been awarded in good faith to quality by Henan Quality and Technical Supervision .The honour of ours is earned by manufacturing hight quality products ,providing whole life tracing service ,offering reasonable price of every piece of our products,taking good reputation more important than life .
We welcome every client overseas to be our guset . Here you can get what you expect .We guarantee you never regret buying our products .
