P4.8 led display screen alibaba in russian

Product Overview

Description

P4.8 led display screen alibaba in russian



No.	Item	Technical parameter
1	Color configuration	1R1G1B SMD 3 in 1
2	Pixel size	3.5mm * 2.8mm
3	Pixel pitch	4.8mm
4	Core wavelength	R:620-625mm;G:525-527.5mm;B:462.5-465mm
5	Module size	240 * 240

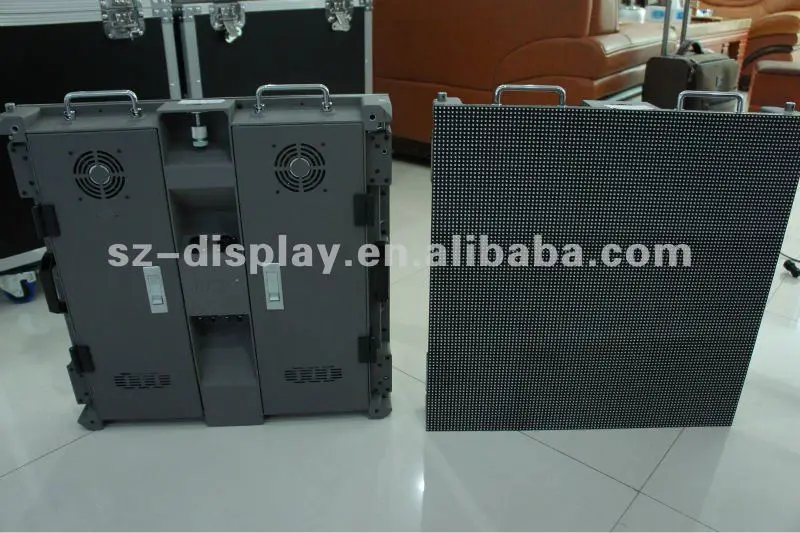

6	Cabinet size	480mm * 480mm
7	Install mode	Hanging or stand
8	Pixel density	43402dots/sqm
9	Brightness	>3000 nit, @ white during
10	Gray scale	16384
11	Vision adjust method	Nonlinearity γ adjustment
12	Contrast ratio	>1000:1,
13	Drive mode	1/16 scanning, constant current
14	Clock frequency scanning rate	>10MHz
15	Refresh rate	>600Hz
16	Viewing angle	H>150°, V>150°
17	Best viewing distance	5-100m
18	Brightness uniformity	>97%
19	Brightness adjust grade	64
20	Brightness adjust method	Chip current programmable or PWM
21	Main control equipment	Industrial level IBM compatible system
22	Video port	DVI or HDMI
23	Computer system	WinXP/ Vista/ Win 7
24	Data communicate port	1000M Ethernet or optical fiber, EIA/TIA-T568B
25	Muti-media video processor	Support
26	Display information format	Support all kind of media format
27	Control method	Synchronous
28	Power parameter	AC220V/110V±10%, 50-60Hz, single phase.4.2V output
29	Power consumption	Max:930W/sqm,Average:455-475W/sqm It is related to brightness and display content
30	MTBF	>5,000hours
31	Life span	>50,000hours
32	Broken dot ratio	<200ppm
33	Working temperature, humidity	0°C~+50°C, RH=40-90%
34	Storage temperature, humidity	_40°C~+60°C, RH=10-95%
35	Heat dissipation method	Natural convection + outer shell conduction + assistant fan
36	Net weight rate	<20Kg/sqm
37	IP grade	IP20
38	Certifications	CE, UL, CCC, RoHS







Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. our engineer will be on your service.We can give you technology support at any time.

7. We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.

8.We can send our engineer to install the screen freely if you requested.



 Trade Terms
1.Payment:L/C,western union,Paypal.T/T,30% deposits before production,70% balance to be paid before deliverying.ETC.
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm
