super cone SCN rubber fender
- Category: Other Rubber Products >>>
- Supplier: Zhaoyuan,Talent,Plastic,Chemical,Co.,Ltd.
Share on:
Product Overview
Description
super cone SCN rubber fender
1, super cone SCN rubber fender is the 3rd generation of cell type rubber fender, the structure more reasonable, deflection can reach 70%,the equal specification fender energy absorb raise one more times, long life using. It can reduce the cost of the dock project.
2,While vessel angular berthing, the performance basically unchanged.
3,Front panel set in the margin of fender, it can lower the surface pressure of the vessel side board, the surface pressure can be controlled at below 200KN/m2.
It applies for large vessel berthing.
4,UHMW-PE installed in front of front panel, it can reduce the friction factor between vessel and fender, and lower the shear strength while vessel berthing, and raising the fender using life.
5,It applies for low reaction force, high energy absorption dock and that using supper cell rubber fender all dock. The style of installation variety. Easily be installed.
Exceptional good energy absorption to reaction force ratio
Outstanding energy absorption per weight of fender
High shear stability which allows the fender to carry even larger panel weights without using chains.
Very good inherent resistance against shear forces due to its geometry and self-centering characteristics
No reduction of energy absorption up to compression angle
Internal overload stopper as standard
specifications
specification | H | Φ1 | Φ2 | Φ3 | Φ4 | n | M | m | h | (Kg) Weight reference |
TLT-AB500 | 500 | 425 | 325 | 675 | 750 | 4 | M24 | 30 | 25 | 140 |
TLT-AB 600 | 600 | 510 | 390 | 810 | 900 | 6 | M24 | 30 | 27 | 232 |
TLT-AB 700 | 700 | 595 | 455 | 945 | 1050 | 6 | M30 | 38 | 32 | 395 |
TLT-AB 800 | 800 | 680 | 520 | 1080 | 1200 | 6 | M36 | 44 | 36 | 540 |
TLT-AB 900 | 900 | 765 | 585 | 1215 | 1350 | 6 | M36 | 44 | 41 | 760 |
TLT-AB 1000 | 1000 | 850 | 650 | 1350 | 1500 | 6 | M42 | 56 | 45 | 1015 |
TLT-AB 1100 | 1100 | 935 | 715 | 1485 | 1650 | 6 | M42 | 50 | 50 | 1505 |
TLT-AB 1150 | 1150 | 998 | 750 | 1550 | 1725 | 6 | M42 | 56 | 52 | 1600 |
TLT-AB 1200 | 1200 | 1020 | 780 | 1620 | 1800 | 8 | M42 | 50 | 54 | 1960 |
TLT-AB 1300 | 1300 | 1105 | 845 | 1755 | 1950 | 8 | M48 | 60 | 59 | 2400 |
TLT-AB 1400 | 1400 | 1190 | 930 | 1890 | 2100 | 8 | M48 | 60 | 66 | 3060 |
TLT-AB 1600 | 1600 | 1360 | 1060 | 2160 | 2400 | 8 | M48 | 70 | 72 | 4600 |
TLT-AB 1800 | 1800 | 1530 | 1190 | 2430 | 2700 | 10 | M56 | 76 | 78 | 6600 |
DYNAMICS PERFORMANCE
Note(1)Other performance specification can be negotiated by the buyer and supplier.
(2) R-reaction force (KN), E-energy absorption (KN-M);
(3) RS-ultra high reaction force, RH-high reaction force, RO-standard reaction force,
RL-low reaction force
(4)Performance tolerance :±10%

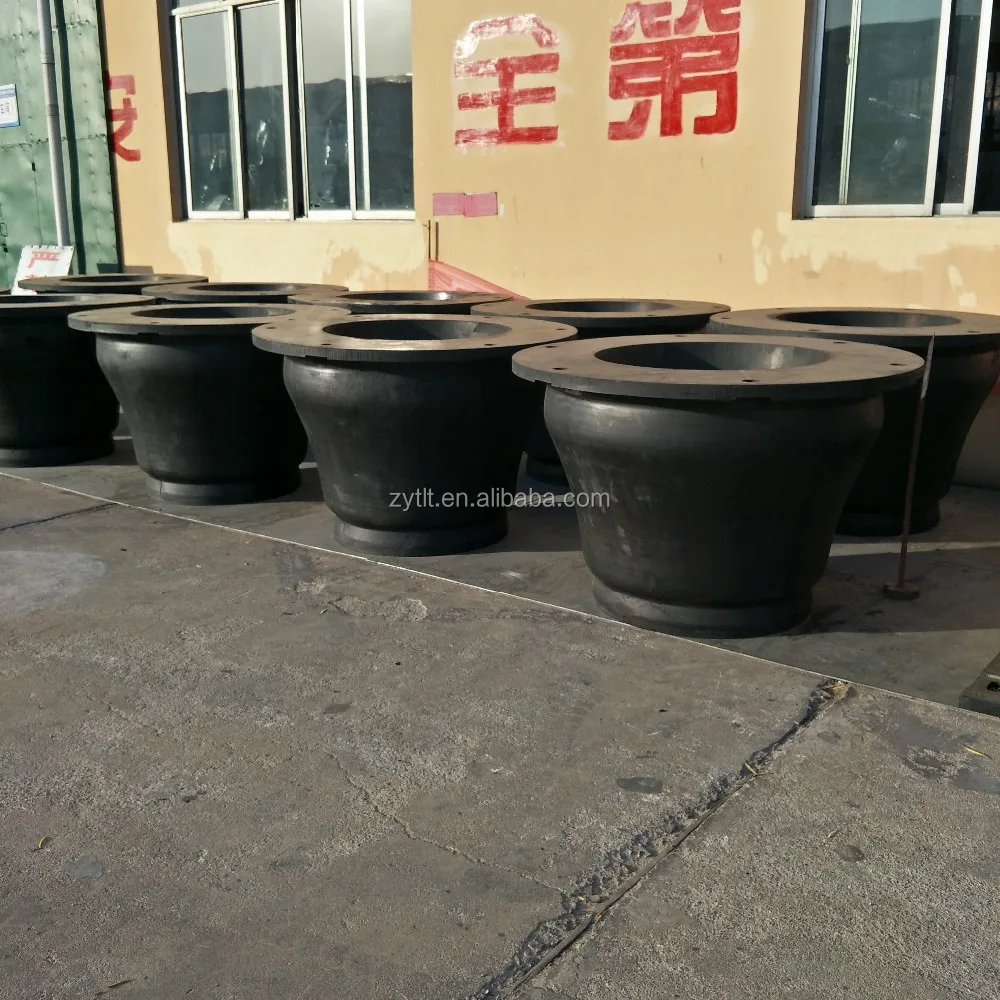

work shop site & factory view
We can provide various kinds of rubber fenders. Welcome to send us e-mails to get more information about our company and products. believe our professional technology!!
If you have any problems, please feel free to contact us. We would do our best to solve them as soon as possible. Welcome negociating business,you can gain the maximum efficacy with the least investment.
