industrial ice flake making machines 20 tons per day
- Category: >>>
- Supplier: Shenzhen Zhongxue Refrigeration Equipment Co. Ltd.
Share on (1702949212):
Product Overview
Description

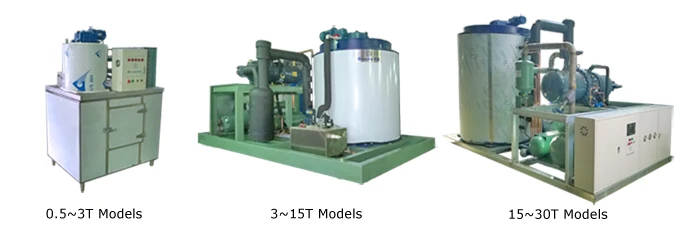

Flake Ice Machine
Product DescriptionFeatures:
- Material of ice drum: 16Mn carbon steel or SUS316; SUS304 external cover
- Evaporating mode: spiral channel
- Compressor: Copeland scroll type, Bitzer piston type, Hanbell screw type
- Cooling type: air cooling, water cooled, evaporative cooled
- Refrigerant: R404A, R22, R507, R717
- Control system: PLC control
- Operation panel: touch screen

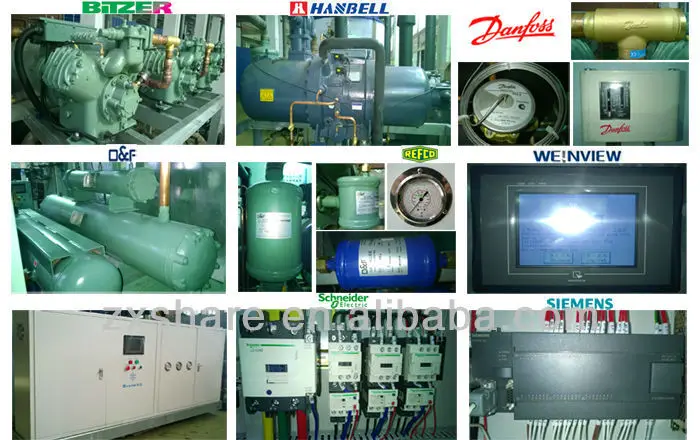

Components:

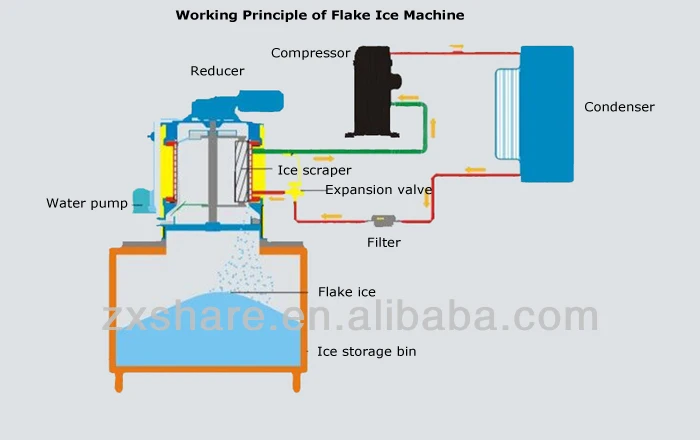

Working principle:
Parameter list:
Flake Ice Machine | ||||||
Model | Daily Output | Total Power | Compressor | Cooling Type | Dimension | Weight |
ZF0.5T-R4A | 0.5T/24h | 2.73kW | Copeland | Air cooling | 1200*900*765mm | 300Kg |
ZF1.0T-R4A | 1.0T/24h | 3.65kW | Copeland | Air cooling | 1200*900*930mm | 450Kg |
ZF2.0T-R4A | 2.0T/24h | 8.7kW | Copeland | Air cooling | 1300*1100*1080mm | 550Kg |
ZF3.0T-R4A | 3.0T/24h | 15.3kW | Bitzer | Water cooled | 1700*1470*1200mm | 1200Kg |
ZF5.0T-R4W | 5.0T/24h | 22kW | Bitzer | Water cooled | 1800*1400*1570mm | 1300Kg |
ZF8.0T-R2W | 8.0T/24h | 31kW | Bitzer | Water cooled | 2750*1900*2000mm | 1400Kg |
ZF10.0T-R2W | 10.0T/24h | 44kW | Hanbell | Water cooled | 2700*1850*2033mm | 2200Kg |
ZF12.0T-R2W | 12.0T/24h | 43.2kW | Hanbell | Water cooled | 2480*2000*1780mm | 2400Kg |
ZF15.0T-R2W | 15.0T/24h | 51.3kW | Hanbell | Water cooled | 3550*2150*1750mm | 3000Kg |
ZF20.0T-R2W | 20.0T/24h | 67.5kW | Hanbell | Water cooled | 3100*2160*2520mm | 4000Kg |
ZF25.0T-R2W | 25.0T/24h | 89kW | Hanbell | Water cooled | 4250*2100*2650mm | 4200Kg |
ZF30.0T-R2W | 30.0T/24h | 101kW | Hanbell | Water cooled | 4250*2100*2875mm | 4800Kg |
Company Information

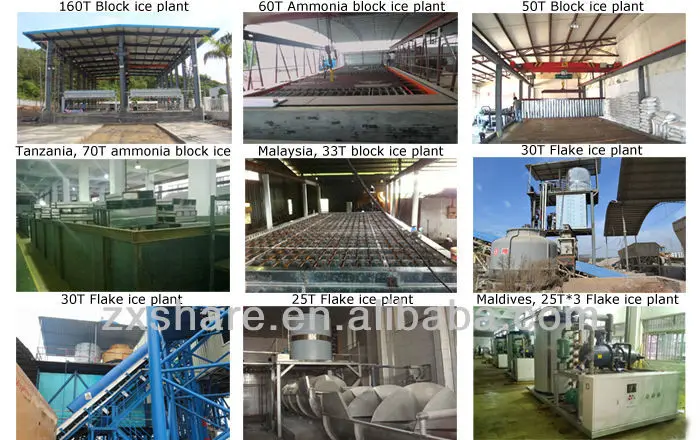

Project case:
Application field:
Packaging & Shipping
Our Services
- All the machines enjoy 72 hours trouble free test before shipment.
- All the machines enjoy one year free warranty ever since B/L date.
- All the machines enjoy lifelong technical support and replacement parts at cost price.
- 24*7 hours phone service
- 12 hours response online service
- Onsite installation & training
- Engineers availbe service machinery overseas
Please send inquiry with the details below:
- The daily output you want, your voltage, ambient temperature and water temperature
- For block ice machine, the ice weight you want, 10/15/20/25/50/100kg
