Humanity balun RJ45 RJ48 to BNC converter

Product Overview

Description

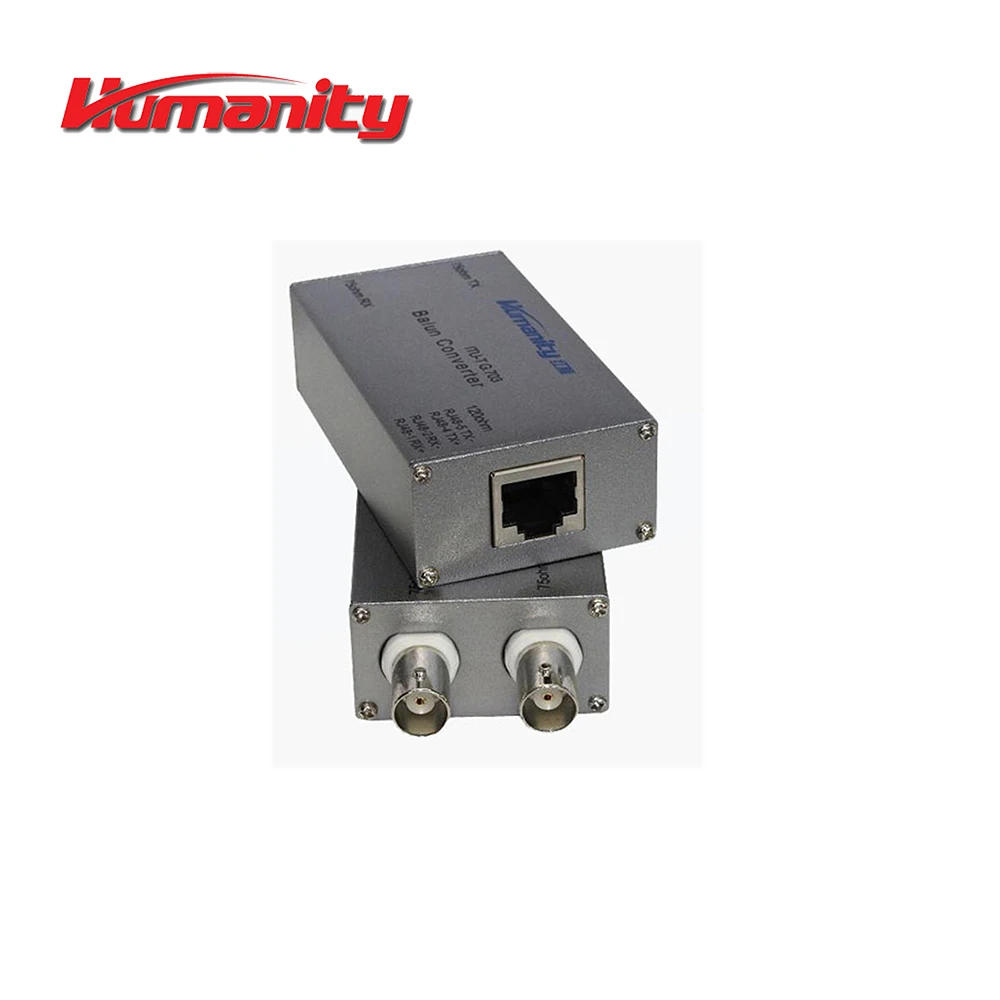

Humanity G.703 Balun RJ48 to BNC Converter

HM-C702 Humanity G.703 balun RJ48 to BNC converter solves the problem such as unmatchable between the Impedance of twist pair devices with 75 ohms to 120 ohms and physical interface etc. As the E1 intercommunication usually unmatched because of the products offered by different communication device manufacturers, it makes the device used in large amount. It can support E1 data rate 2.048Mbps, and realize the transparent transmission between 75ohm and 120 ohm. The output signal is according to ITU-T G.703.

Main Feature

• According to ITU-T G.703
• Connects 75 ohm dual coax to 120 ohm twisted pair
• Data rates up to 2.048Mbps
• Coax BNC connectors, Female or Male optional
• Settled 120ohm balance port pin
• No AC power or batteries required

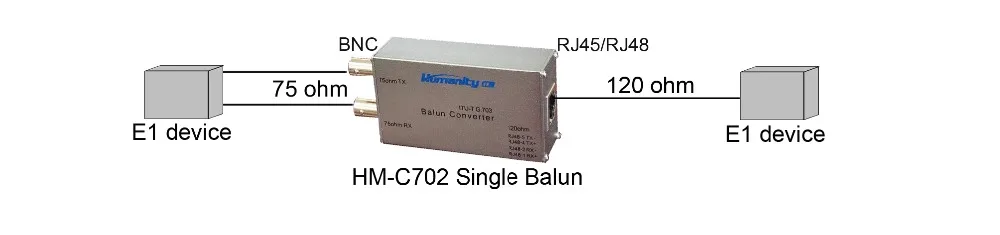

Typical Application
