Super Hard Cnc Control System Sawing Machine Circular Full Automatic Metal Cold Saw Machine for Stainless Steel Roc Cut Off
- Category: >>>
- Supplier: Dongguan Chine Chern Machinery Manufacturing Co. Ltd.
Share on (1703367474):
Product Overview
Description

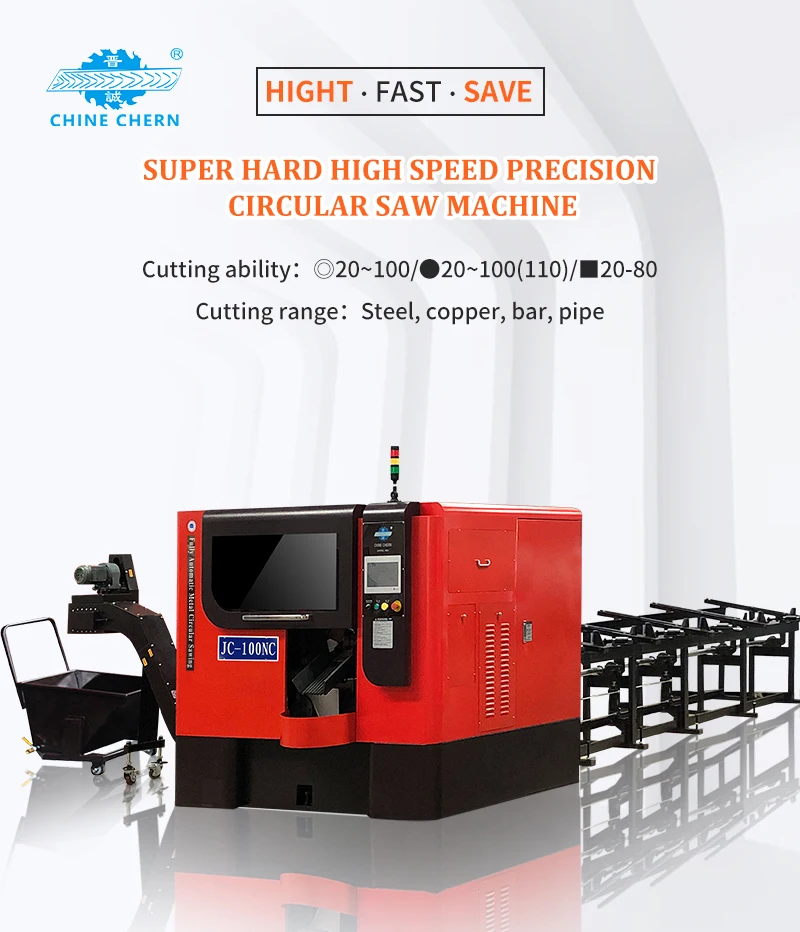

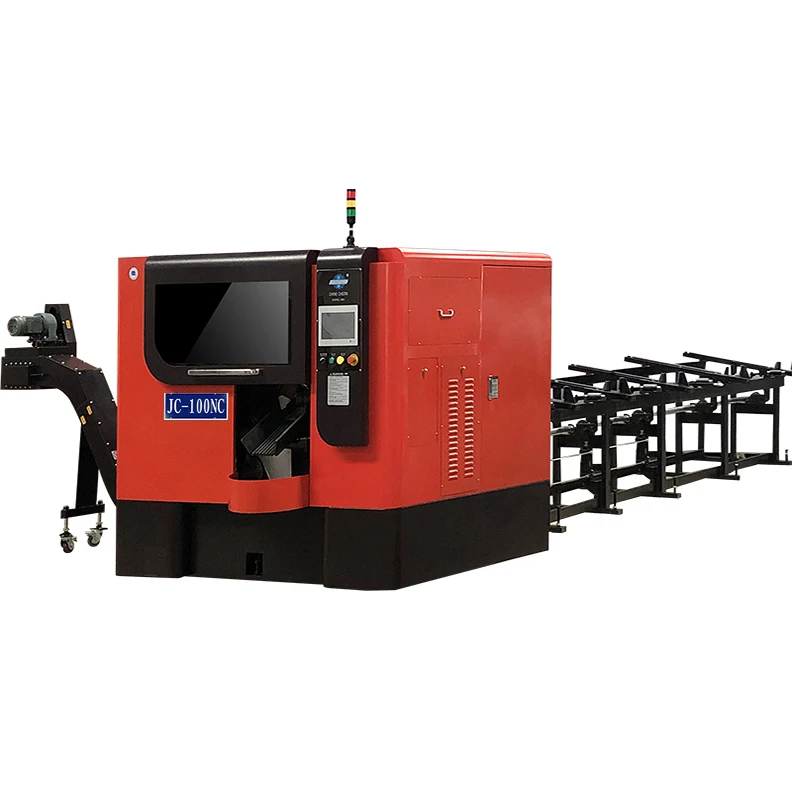

Super Hard Cnc Control System Sawing Machine Circular Full Automatic Metal Cold Saw Machine for Stainless Steel Roc Cut Off
Product Description
1.Full-automatic super hard metal circular saw machine adopts servo motor control

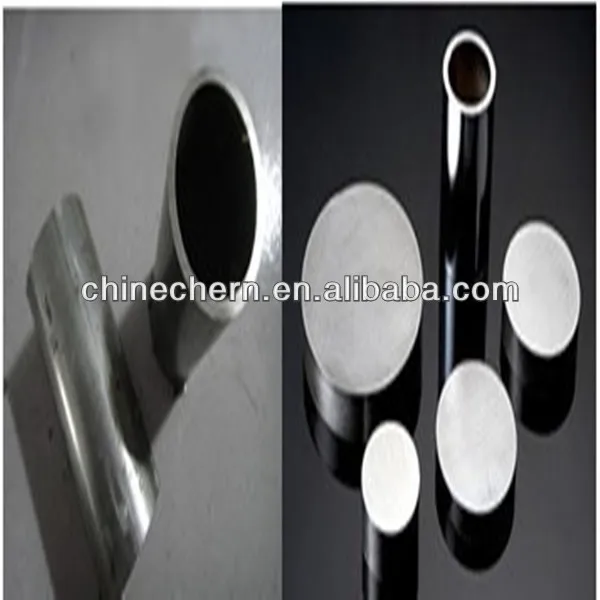

2.TCT Tungsten Carbide saw blade is suitable for cutting iron/steel solid bar.

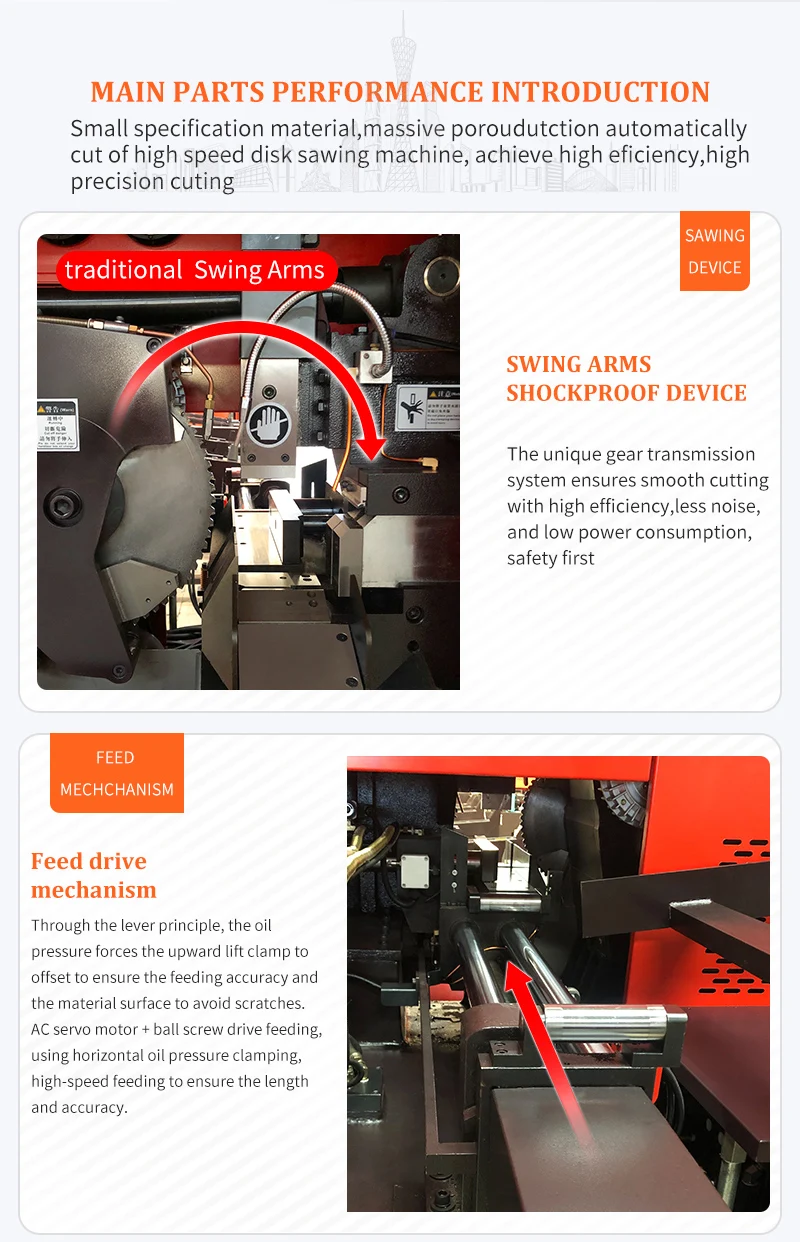

3.HSS Saw blade is suitable for cutting hollow pipe . Unique gear design ensures that smooth cutting and low noises,improve cutting efficiency,reduce power consumption ,prolong the life of saw blade.
4.Water-solubility cutting oil with automatic circulation cooling pump
5.Cutting length precision: ±0.05- ±0.1mm.
6. Servo motor drive + ball screw feed transmission.
7. Hydraulic driven sawhead feed for cutting motion.
8. It can cut aluminum profiles & Steel Bar for same machine.
| Specification | JC-100NC | |
| Cutting Capacity | Solid bar O.D | 16mm-100mm(110mm) |
| Angle profiles | 20mm-80mm(85mm) | |
| Round tube | 16mm-100mm | |
| Square tube | ||
| Motor (KW) | 11KWx4P | |
| Oil pump motor(KW) | 2.2x4P | |
| Advance Servo motor (KW) | Ball Screw+ AC Servo Motor(1.3) | |
| Feed Servo Motor (KW) | Ball Screw+ AC Servo Motor(2.0) | |
| Sawblade Specification(mm) | 315x2.3/360x2.6 | |
| Pin hole + Hole diameter(mm) | 4x10xPCD40x90(std) | |
| Cutting length(mm) | 6-600mm once/600-999mm(multiple feed) | |
| Blade speed (RPM) | 30-130 | |

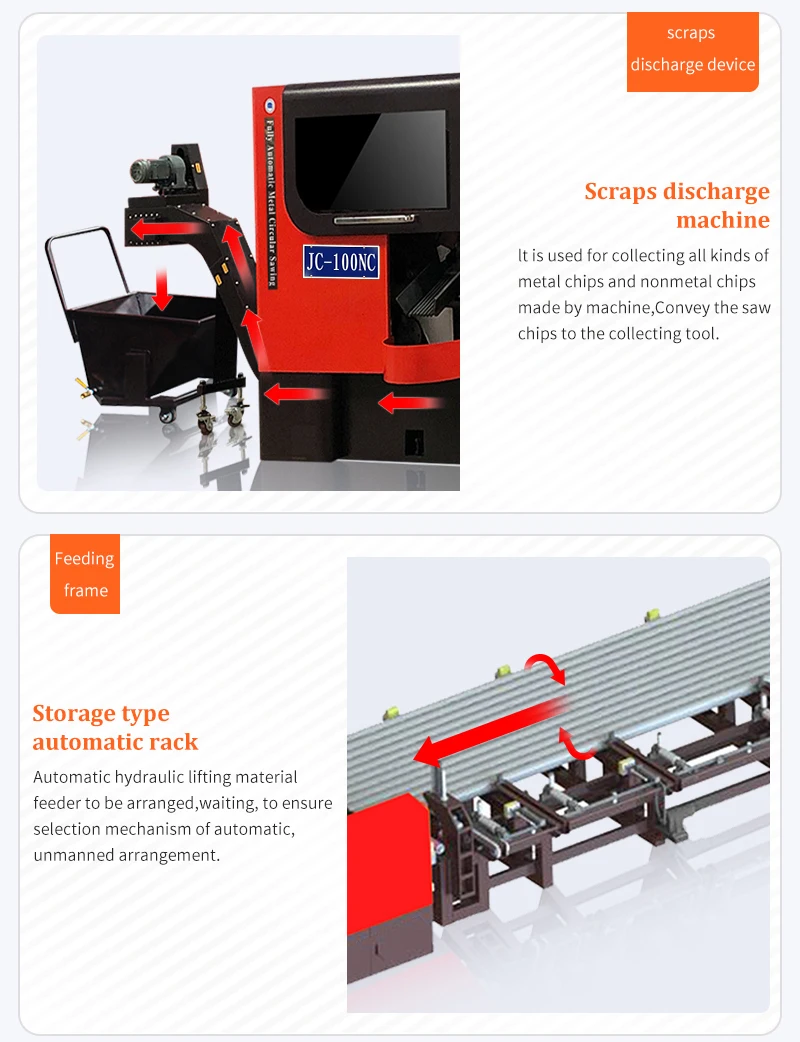

| Auto Chips Conveyor | Chain Drive (Opt) | |
| Cutting Fluid | Air Compressed Oil Mist | |
| Packing weight(bottom) (kg) | 2850 | |
| Packing size (LxWxH)(mm) | 1750x2100x2100 | |
| Load Capacity(mm) | 100x6000Lx10pcs | |
| Rack Size(LxW)(mm) | 5300Lx1600W | |

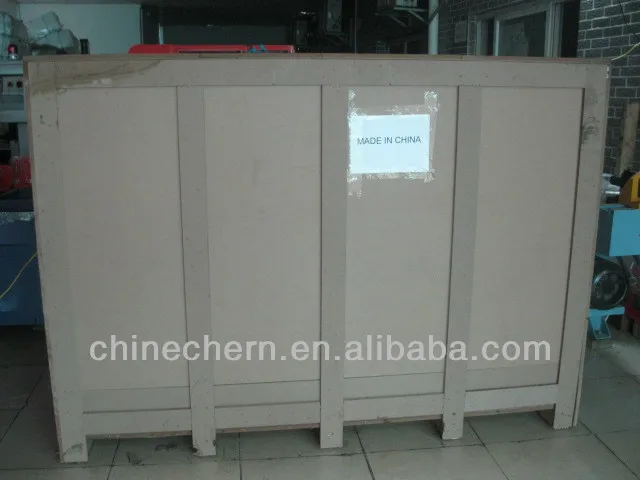

Packaging & Shipping
1.Standard export packing
2.Splint pallet
3.Plywood packae
4.Customized
2.Sea transport
3.Air transport
|

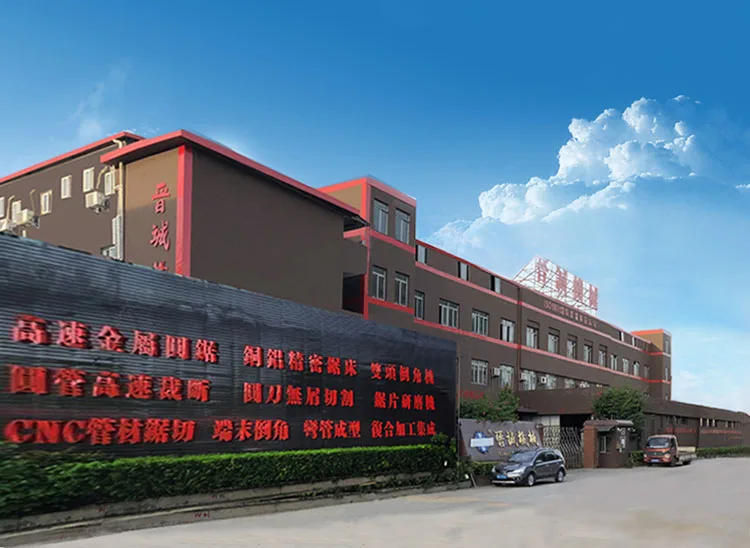

Company Information
Chine Chern is a top and professional hightech enterprise with more than 20 years of manufacturing experience.
We are fully committed to producing technologically advanced pipe processing machines, such as pipe cutting
machines,pipe bending machines, aluminum cutting machines, chamfering machines, etc. We have partnered
with leading operators and manufacturers in the industry, including BYD and some other famous customers at
home and abroad. We also set up our branch office in Taiwan. In addition, we are authorized by Taiwan Eyan
Machine Tool to be their main distributor in China.We welcome you to contact us for more information and look
forward to working with you! We will be a reliable and strong supplier in China.
1. Q: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you thesuitable machine.
2. Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client
A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client
3. Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment.
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment.
4. Q: Your price are high
A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from
our customers
5. Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
A: You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from
our customers
5. Q: How about the payment term
A: T/T 30% deposit, 70% of balance paid before shipment.
