table top ice cream machine T6240A
Basic Information | |
Model | T6240A (Air pump feed) |
Capacity | 40 Liters/hour |
Flavor | 2+1mix Flavor |
Power | 2.46KW |
Voltage | 220v/50Hz 1 phase 220v/60Hz 1 phase 220V60Hz 3Phase 380V50Hz 3Phase |
Hopper | Two , 12.5 Liters |
Freezing Cylinder | Two ,1.8 Liters |
Main Compressor | One,5039BTU/hr .R404a |
Pre-cooling compressor | One,400 BTU/hr. R134a |
Beater Motor | One,2.0Hp |
Material | Full Stainless steel |
Cooling System | Air cooling |
Exterior | |
Net Dimension | 554*654*1065mm |
Packing Dimension | 645*800*1250mm |
Net Weight | 190kg |
Gross Weight | 170kg |
Table top icecream machine T6240A
Features:
1) 2+1 mix flavor, table model, Air pump feed and full stainless steel panel
2) Capacity: 40 Liters/hour. Air pump feed
Air pump:provides required overrun which makes servings smoother,adjustable from 20% to 80%
3) 2 compressors and 1 beater motor
4)Microprocessor controls and regulates refrigeration by measuring product viscosity to maintain consistent quality
5)Full stainless steel hopper agitator keeps mix uniformity in the hoppers.
6)Pre-cooling system maintains mix below 5°C during auto & standby modes.
7)Hopper agitator : keeps mix uniformity in hoppers, and prevents reservoir's walls from frosting.
8)Products can be kept fresh at night under safe temperature.
9)World class refrigeration components, including Aspera compressor , Danfoss valves, Schneider electric .
10)Mix level indicator and alarm.
Safety Protections
Low temperature and motor overload cutouts protect from cylinder over freezing.
High and low voltage protection
Thermal overload protect from motor overheat.
1. Soft ice cream machine T6240A dimensions

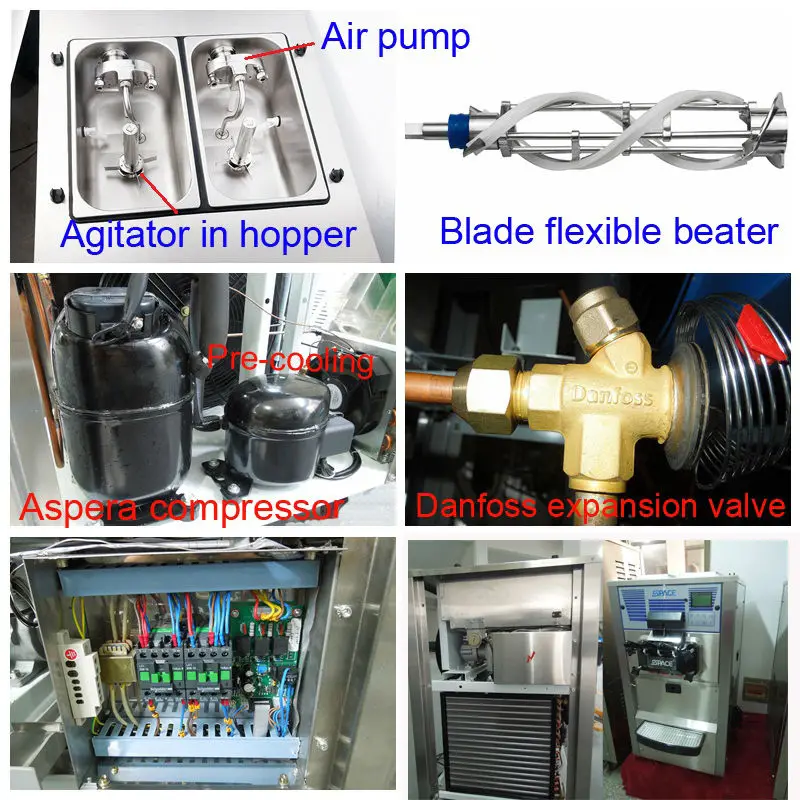

2. table top icecream machine T6240A parts details

3. Factory Workshop

4. Packing

5. table top ice cream machine products

After-sale Services
1.We provide you one year warranty for the machine
2. We provide you 3 years warranty for the compressor
3.As for the easy broken parts, we will provide 2 sets for free
4.Custom logo ,stickers or front panel design is available
