LDK long life standard duty 4 bolt flange housing ucf208 25 pillow block bearing

LDK long life standard duty 4 bolt flange housing ucf208 25 pillow block bearing

Category: Pillow Block Bearings >>>
Supplier: Xinyuan,Bearing,Industrial,Co.,Ltd.,Quanzhou

Price:$6.63 - $7.50

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

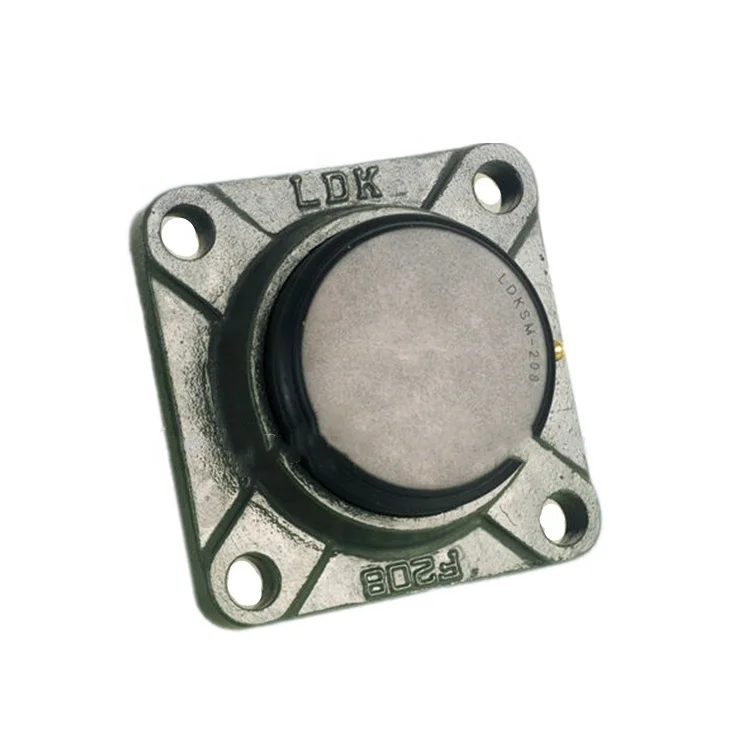

LDK long life standard duty 4 bolt flange housing ucf208-25 pillow block bearing

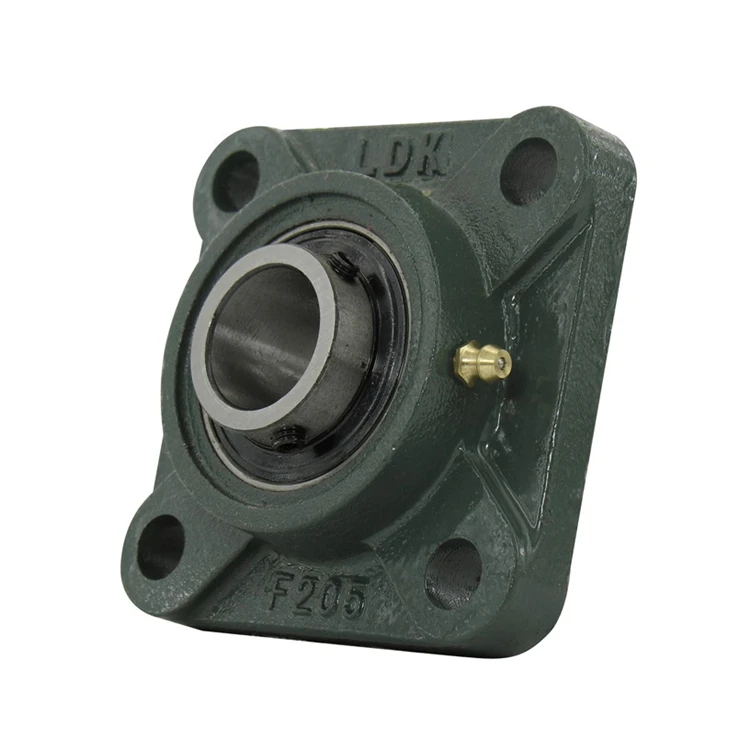

A. features of LDK 205 1" pillow block

Upon request, 205 1" pillow block could be machined grooves to be mounted with metal cover dust prevention

and safty purpose

Open / Close (S/SM) covers are optional

B.Series of LDK naf200 series

LDK long life standard duty 4 bolt flange housing ucf208-25 pillow block bearing

Unit No.	Shaft Dia		Dimensions(mm)										Bolt Size (mm)	Weight (kg)
	d		L	J	A2	A1	A	N	B	S	Z	A3
	(in)	(mm)	L	J	A2	A1	A	N	B	S	Z	A3
UCWF201		12	76	54	15	11	25.5	12	27.4	11.5	30.9		M10	0.72
UCWF202		15	76	54	15	11	25.5	12	27.4	11.5	30.9		M10	0.62
UCWF203		17	76	54	15	11	25.5	12	27.4	11.5	30.9		M10	0.61
UCF201		12	86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF201-8	1/2		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF202		15	86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF202-9	9/16		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF202-10	5/8		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF203		17	86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF203-11	11/16		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF204		20	86	64	15	12	25.5	12	31	12.7	33.3	38.2	M10	0.61
UCF204-12	3/4		86	64	15	12	25.5	12	31	12.7	33.3	38.2	M10	0.61
UCF205		25	95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.80
UCF205-14	7/8		95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.80
UCF205-15	15/16		95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.80
UCF205-16	1		95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.80
UCF206		30	108	83	18	14	31	12	38.	15.9	40.2	44	M10	1.00
UCF206-17	1-1/16		108	83	18	14	31	12	38.	15.9	40.2	44	M10	1.00
UCF206-18	1-1/8		108	83	18	14	31	12	38.	15.9	40.2	44	M10	1.00
UCF206-19	1-3/16		108	83	18	14	31	12	38.	15.9	40.2	44	M10	1.00
UCF206-20	1-1/4		108	83	18	14	31	12	38.	15.9	40.2	44	M10	1.00
UCF207		35	117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.40
UCF207-20	1-1/4		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.40
UCF207-21	1-5/16		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.40
UCF207-22	1-3/8		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.40
UCF207-23	1-7/16		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.40
UCF208		40	130	102	21	16	36	16	49.2	19	51.2	55.1	M14	1.80
UCF208-24	1-1/2		130	102	21	16	36	16	49.2	19	51.2	55.1	M14	1.80
UCF208-25	1-9/16		130	102	21	16	36	16	49.2	19	51.2	55.1	M14	1.80
UCF209		45	137	105	22	18	38	16	49.2	19	52.2	57	M14	2.20
UCF209-26	1-5/8		137	105	22	18	38	16	49.2	19	52.2	57	M14	2.20
UCF209-27	1-11/16		137	105	22	18	38	16	49.2	19	52.2	57	M14	2.20
UCF209-28	1-3/4		137	105	22	18	38	16	49.2	19	52.2	57	M14	2.20
UCF210		50	143	111	22	18	40	16	51.6	19	54.6	60	M14	2.40
UCF210-30	1-7/8		143	111	22	18	40	16	51.6	19	54.6	60	M14	2.40
UCF210-31	1-15/16		143	111	22	18	40	16	51.6	19	54.6	60	M14	2.40
UCF210-32	2		143	111	22	18	40	16	51.6	19	54.6	60	M14	2.40
UCF211		55	162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.50
UCF211-32	2		162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.50
UCF211-34	2-1/8		162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.50
UCF211-35	2-3/16		162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.50
UCF212		60	175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.20
UCF212-36	2-1/4		175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.20
UCF212-38	2-3/8		175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.20
UCF212-39	2-7/16		175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.20
UCF213		65	187	149	30	22	50	19	65.1	25.4	69.7	74.5	M16	5.30
UCF213-40	2-1/2		187	149	30	22	50	19	65.1	25.4	69.7	74.5	M16	5.30
UCF214		70	193	152	31	22	54	19	74.6	30.2	75.4	80	M16	5.90
UCF214-44	2-3/4		193	152	31	22	54	19	74.6	30.2	75.4	80	M16	5.90
UCF215		75	200	159	34	22	56	19	77.8	33.3	78.5	82.5	M16	6.30
UCF215-47	2-15/16		200	159	34	22	56	19	77.8	33.3	78.5	82.5	M16	6.30
UCF215-48	3		200	159	34	22	56	19	77.8	33.3	78.5	82.5	M16	6.30
UCF216		80	208	165	34	22	58	23	82.6	33.3	83.3	89	M20	7.30
UCF217		85	220	175	36	24	63	23	85.7	34.1	87.6	92.1	M20	8.90
UCF217-52	3-1/4		220	175	36	24	63	23	85.7	34.1	87.6	92.1	M20	8.90
UCF218		90	235	187	40	25	68	23	96	39.7	96.3	102	M20	11.60
UCF218-56	3-1/2		235	187	40	25	68	23	96	39.7	96.3	102	M20	11.60

Applications

LDK long life standard duty 4 bolt flange housing ucf208-25 pillow block bearing
