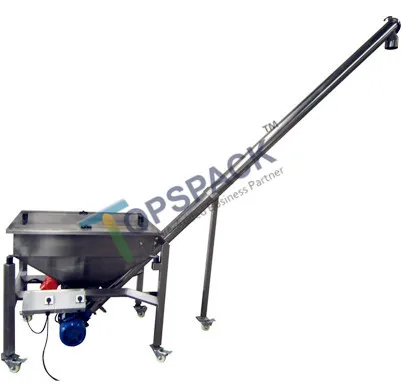

Powder Auger Feeding Machine/Inclined Conveyor/ Vibrating Hopper feeder

Product Overview

Description

With Vibrating Hopper  Auger Screw Feeder



One. Descriptive abstract:

The screw feeder can convey powder and granule material from one machine to another. It's efficient and convenient. It can work in cooperation with the packing machines to form a production line. So it is widely used in packaging line, especially semi-auto and automatic packaging line. It is mainly used in conveying powder materials, such as the milk powder, protein powder, rice powder, milk tea powder, solid beverage, coffee powder, sugar, glucose powder, food additives, feed, pharmaceutical raw materials, pesticide, dye, flavour, fragrances and so on.









Two.Characteristics:

1.  Hopper is vibratory which makes material to flow down easily.


2.  Simple structure in linear type ,easy in installation and maintenance.


3. The whole machine is made of SS304 to reach the food grade request.


4. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.


5. High pressure double crank to control the die opening and closing.


6.  Running in a high automation and intelligentialize,no pollution


7. Apply a linker to connect with the air conveyor ,which can directly inline with
   filling machine









Three.Technical Parameter:





Main Specification	HZ-2A2	HZ-2A3	HZ-2A5	HZ-2A7	HZ-2A8	HZ-2A12
Charging Capacity	2m3/h	3m3/h	5m3/h	7m3/h	8m3/h	12m3/h
Diameter of pipe	Ø102	Ø114	Ø141	Ø159	Ø168	Ø219
Hopper Volume	100L	200 L	200L	200L	200L	200L
Power Supply	3P AC208-415V 50/60Hz
Total Power	610W	810W	1560W	2260W	3060W	4060W
Total Weight	100kg	130Kg	180Kg	200Kg	220Kg	270Kg
Overall Dimensions of Hopper	720x620x800mm	1023 ×820×900mm
Charging Height	Standard 1.85M,1-5M could be designed and manufactured.
Charging angle	Standard 45degree,30-60 degree are also available

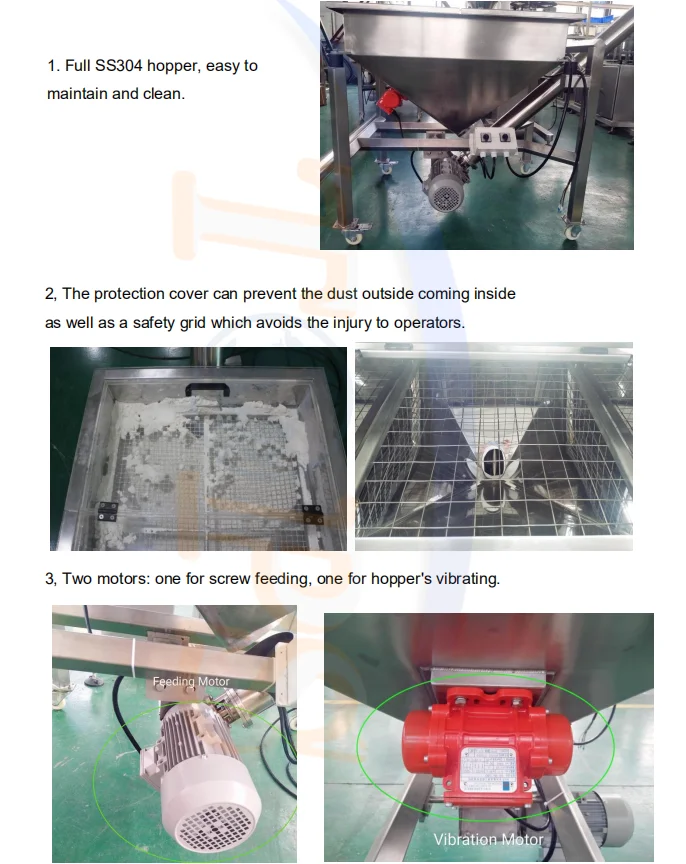

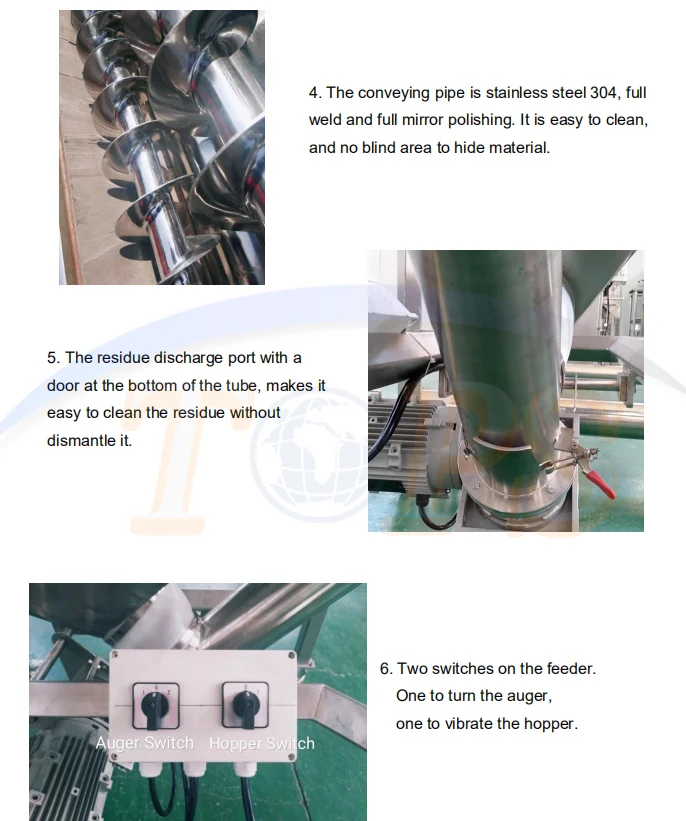

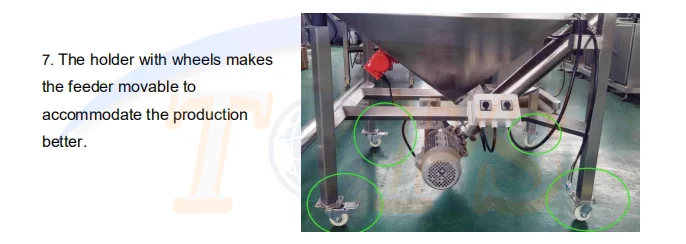

Four.Parts

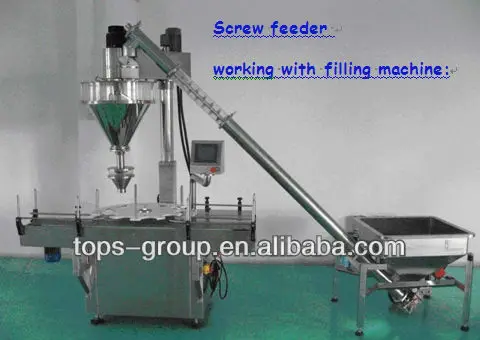

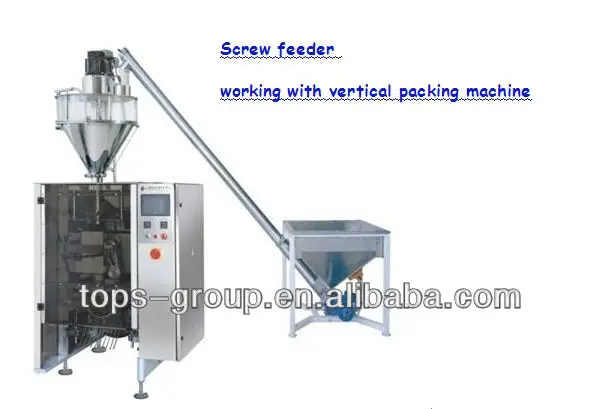

Five.Actual use











Six.Our workshop











Seven.Our aptitudes





Eight.Our Promise



As a professional supplier, we are keeping to provide to all of our customers our best quality and our best service.

Nine.Service&Qualifications

1. Two year waranty, engine three years warranty, life-long service(Warranty service will be honored if the damage is not caused by human or improper operation)


2. Provide accessory parts in favorable price


3. Update configuration and program regularly


4. Respond to any question in 24 hours
