2021 Stainless steel SS304 rotary valve price from China

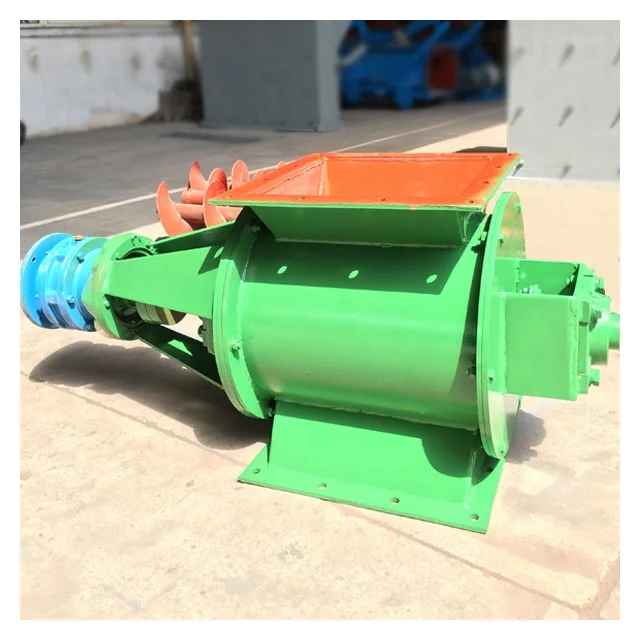

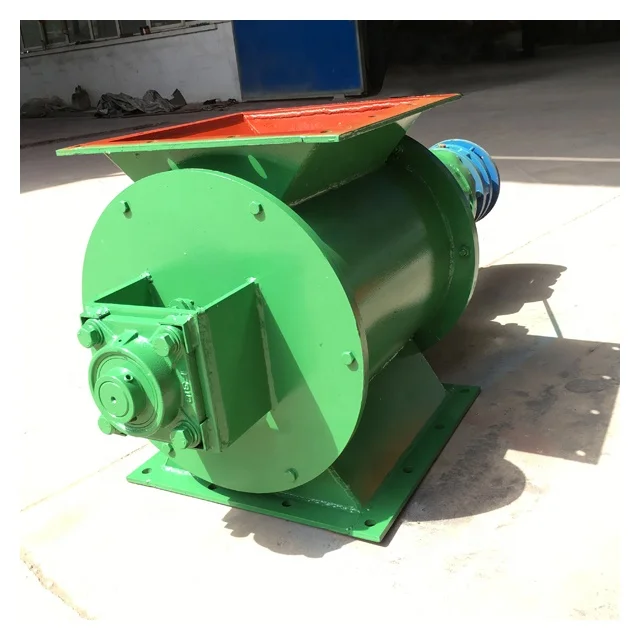

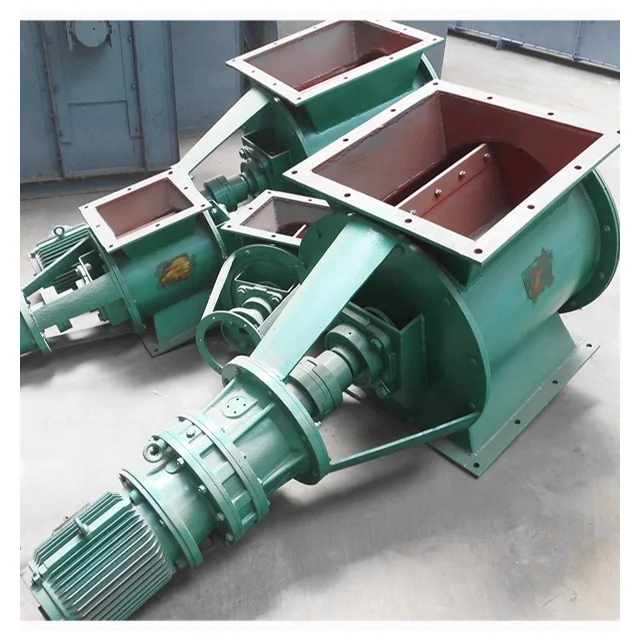

JL Type Rotary Valve description:

JL type and JLT type rotary valve is use the rotation of the impeller with standard room, transferred the powder and small granular material from the top storage bin or hopper to  the discharge port of the bottom, to achieve uniform feed or variable speed feed. It achieve uniform feed when this machine constant speed. If use a variable speed motors, the machine to achieve the adjust the feeding quantity pass to adjust and change the impeller speed at any time.



Main application:

JL rotary valve widely used in cement, building materials, mining, iron and steel industries.



Features:

1. JL rotary valve has feeding uniform, compact structure, good sealing performance and other significant advantages.

2. JL variable speed, with slip speed motor and ZQ series reducer.



Connection type for drive and the impeller rotor of powder rotary valve:

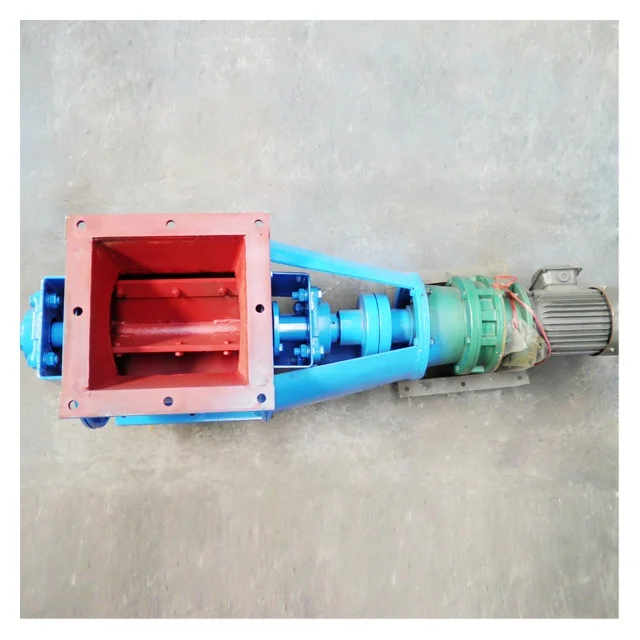

         Oldham coupling connection                                 Transmission chain connection



Model	JL200		JL300		JL400		JL500		JL630		JL1000
Impeller size(mm)	200×200		300×300		400×400		500×500		630×600		1000×1000
Displacement per revolution(m3/r·p·m)	0.005		0.018		0.045		0.05		0.09		0.11
Impeller speed(r·p·m)	10	19	19	25.5	25.5	35	25	35	20	28	20	28
Theory feeding capacity(m3/h)	3	6	20	27	68	90	75	105	108	126	154	192
Rated feed ability(m3/h)	2	4	15	20	60	80	70	90	98	110	132	160
motor power(kw)	0.75	0.75	1.5	2.2	3	4	4	4	5.5	5.5	7.5	7.5
Reducer Model	BW1		BW2		BW2		BW3		BW4		BW5
Max material size(mm)	30		45		50		60		75		110





YingDa Machinery Co.,Ltd was founded in 1981, located in Xiaodian Industrial Park, Xinxiang City, our company have been engaged in the research and production of transportation equipment and lifting equipment more than 30 years. Our main products include apron feeder, bucket elevator, belt conveyor, screw conveyor, chain conveyor, clinker conveyor, plate conveyor, Jaw crusher, hammer crusher, roller crusher, vibrating screen, drum screen etc. Any products interest you, don't hesitate to CONTACT US!

Certification:

Customer visiting:

How to choose the machine suitable for you:

1. What’s your throughput?

    Such as 5t/h,10t/h, 20t/h etc.

2. What’s the granularity of materials.

3. What’s material you need conveying?

Such as coal, cement, grain etc.

Tell me those data, we can help you choose the suitable machine for you.
