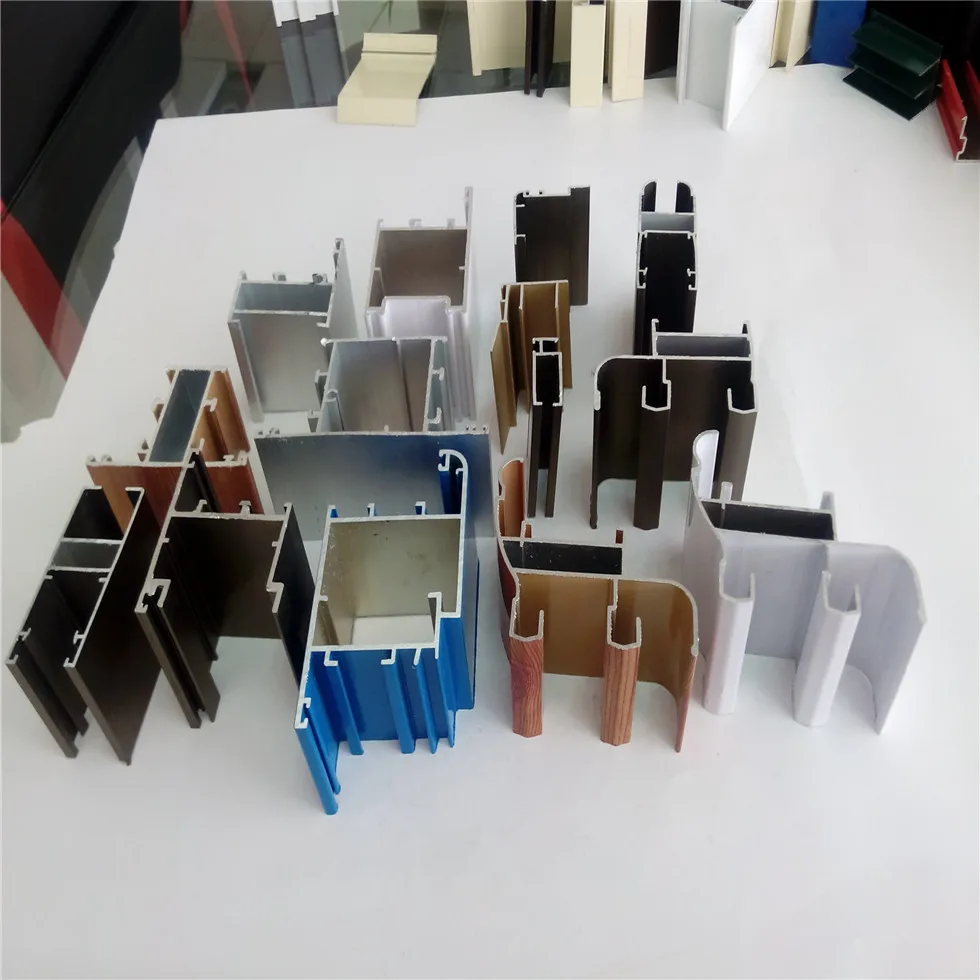

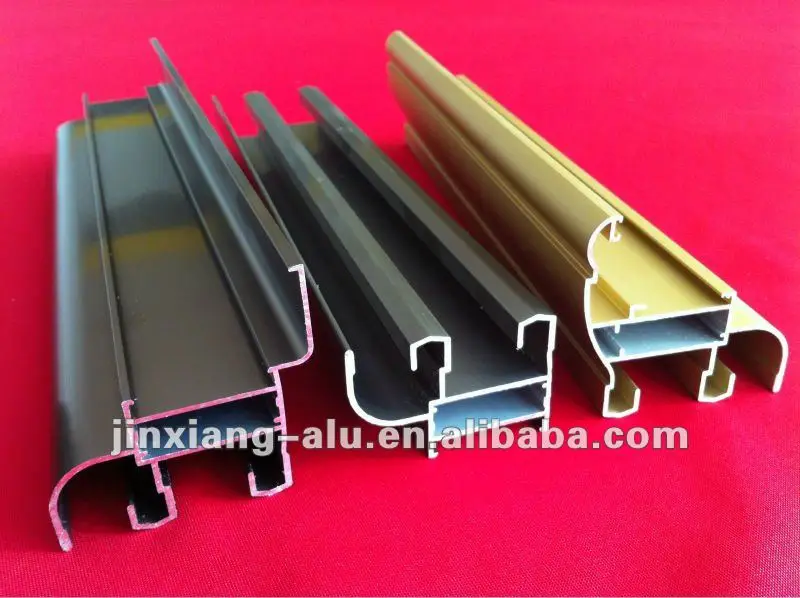

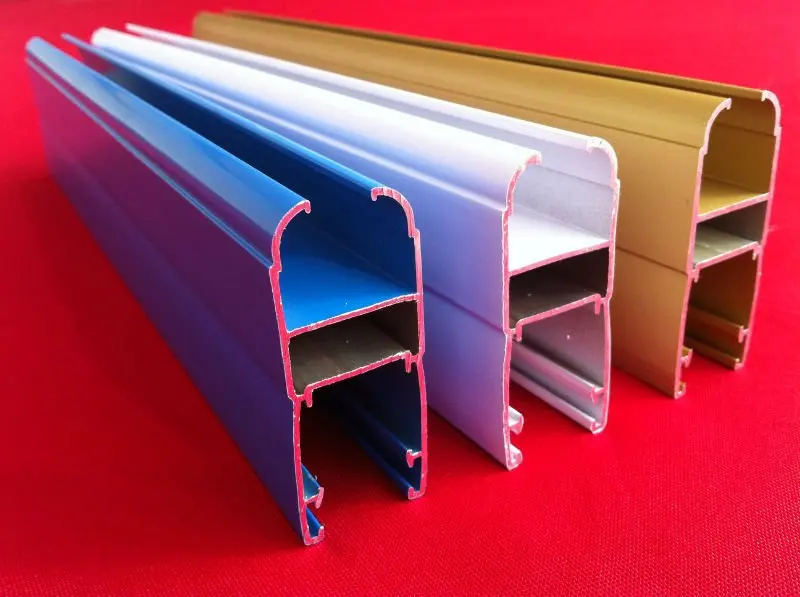

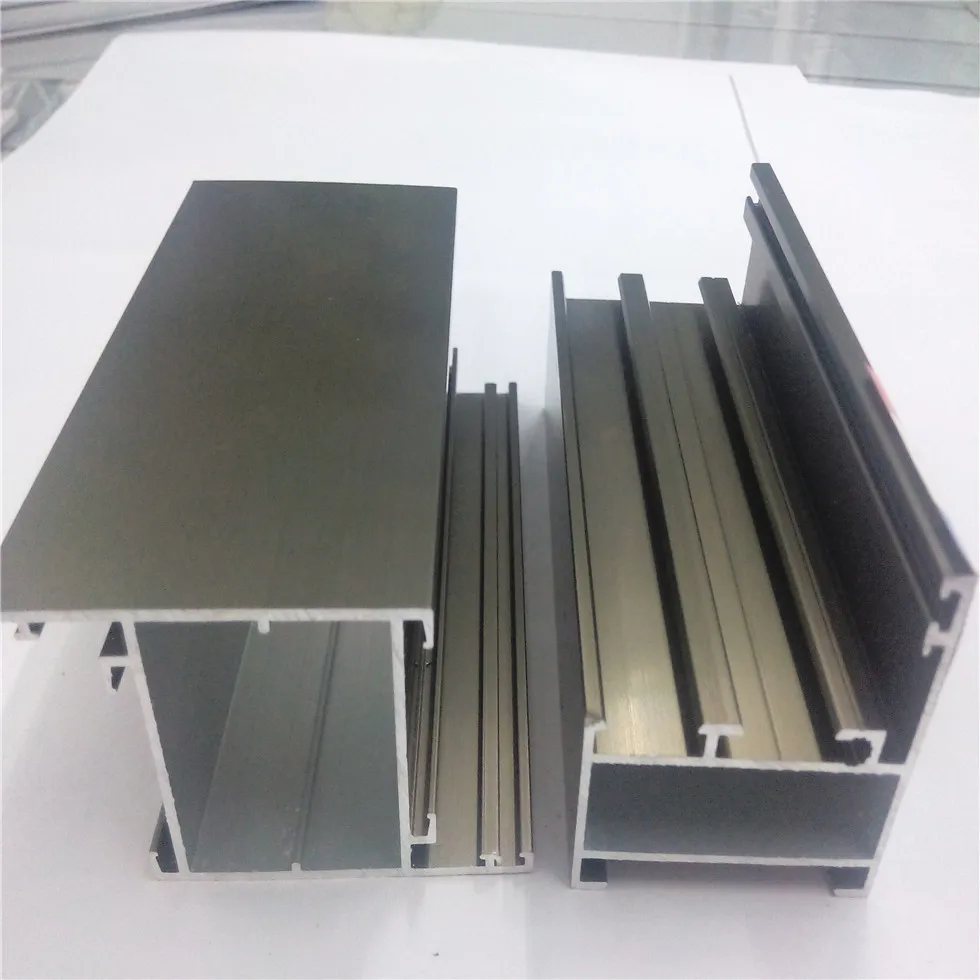

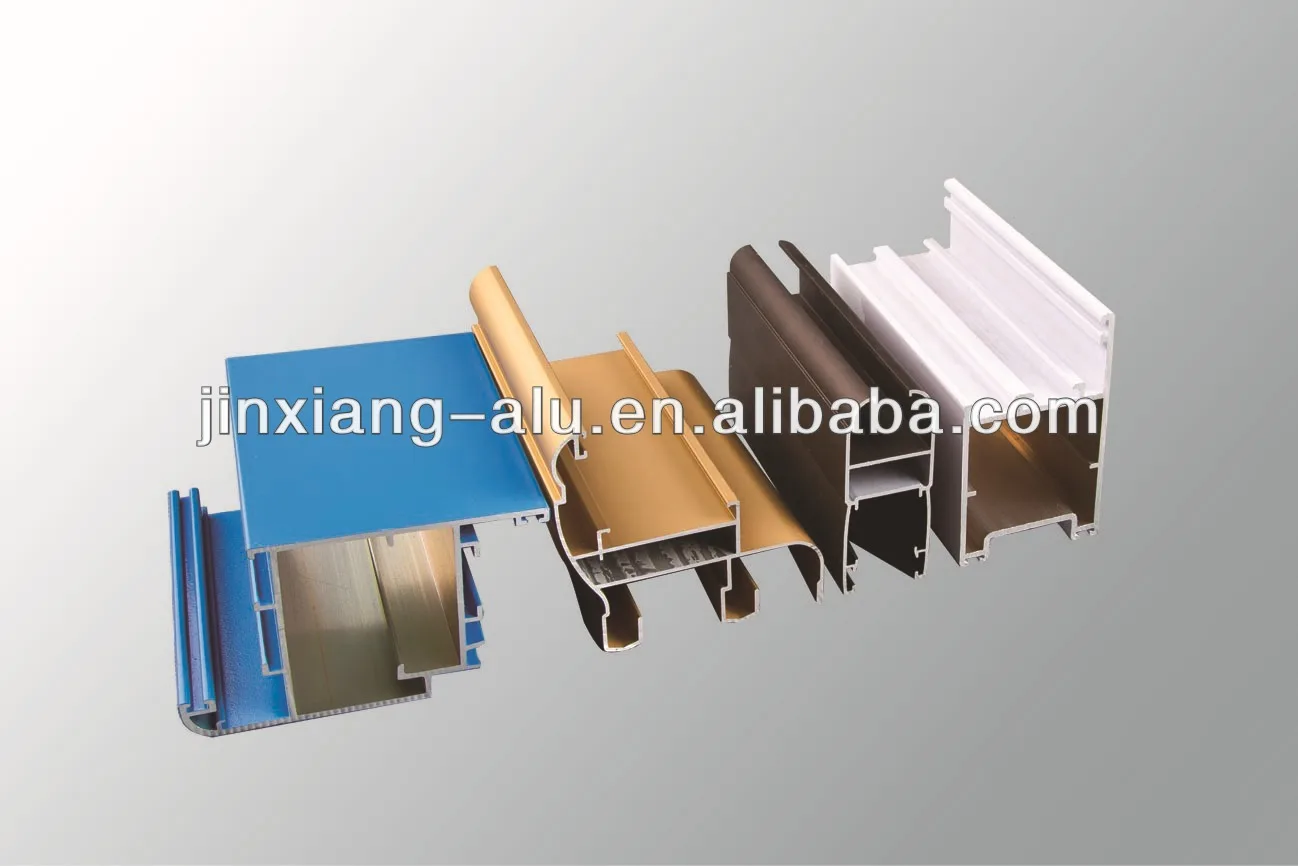

1. 6063 t5 alloy extruded aluminium profiles for Ghana window and door materials
we have exported aluminium profies to Ghana 12 years, export 5000 tons to Ghana each year, and we have all the moulds for sliding and casement window and door for Ghana .
silver,cream,white,blue,green,black,golden, champagne,dark bronze or according to your requirement
Application
Decoration, door&window, heat sink,industry, transportation, construction, solar frame
Certificate
ISO9001-2008,ISO14001,SONCAP,GB5237-2008( equals to BS, AAMA, JISH)
Shape:

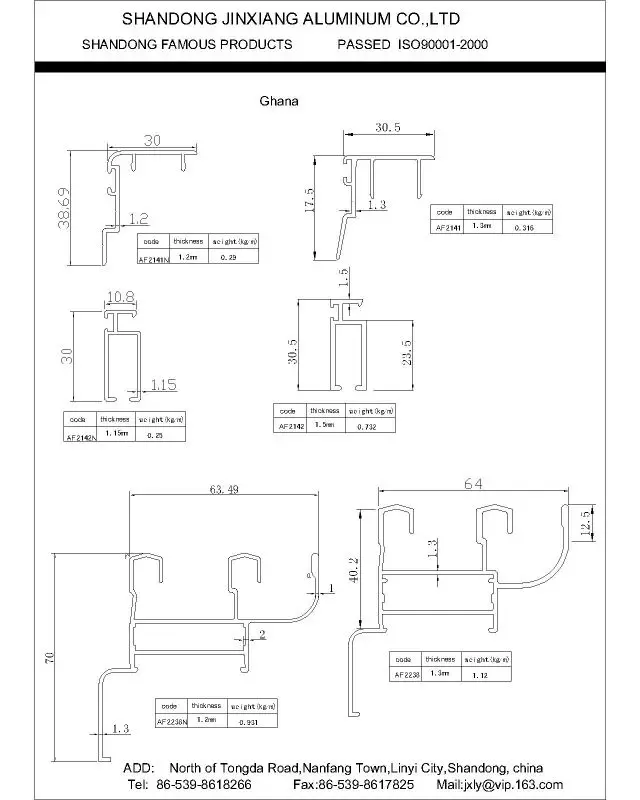

Square, Round, Flat, or according to customers' drawings
Packing details
1.protection film(with logo or without words) inside for each profile separate then
shrink film. outside
2.pearl cotton foam inside for each profile separate then shrink film
3.(protection film)+craft paper
Delivery
15-25 days after receiving down payment
3.Primary Technical Data of Jinxiang Aluminum Profile
Chemical composition
Alloy
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Impurity
Al
6063
0.2-0.6
0.35
0.1
0.1
0.45-0.90
0.1
0.1
0.1
0.15
Rest
6061
0.4-0.8
0.70
0.15-0.40
0.15
0.8-1.2
0.04-0.35
0.25
0.15
0.15
Rest
Mechanical property
Alloy
Condition
Tensile strength
Yield strength
Elongation
Vickers hardness
6061
T6
>265Mpa
>245Mpa
>8%
6063
T5
>160Mpa
>110Mpa
>8%
HV>58 HW>8
T6
>205Mpa
>180Mpa
>8%
Company Information
Shandong Jinxiang Aluminum Group was established in 1999, specialized in manufacturing various top-grade aluminium profiles, windows & doors and curtain wall. Jinxiang has an output of 500,00 tons of aluminium profiles, 55,000square meters of curtain wall. Jinxiang now has about 2600 employees, including about 200 senior technicians. Equipped with 30 lines of Mitsubishi aluminium extrusion machines from Japan and powder painting lines from GEMA of Switzerland. We have fourmajor series of thousands of specifications, including mill finish, anodized, eletrophoresis, polish, powder coating, PVDF, wood-grain, thermal break profiles. We also provide you customer designed products.
workshop
raw material:aluminium ingots; extrusion workshop ;heat treatment; moulds workshop
