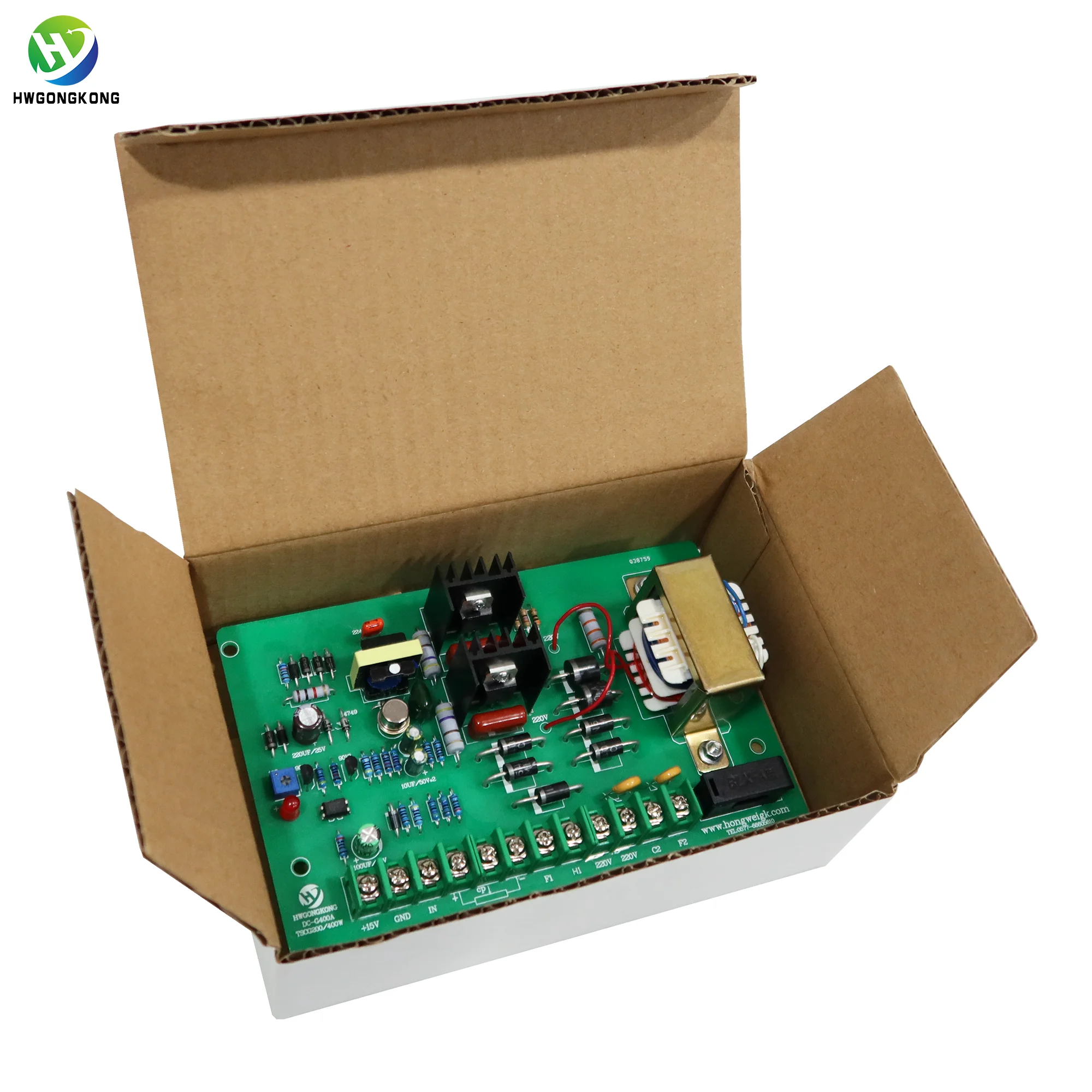

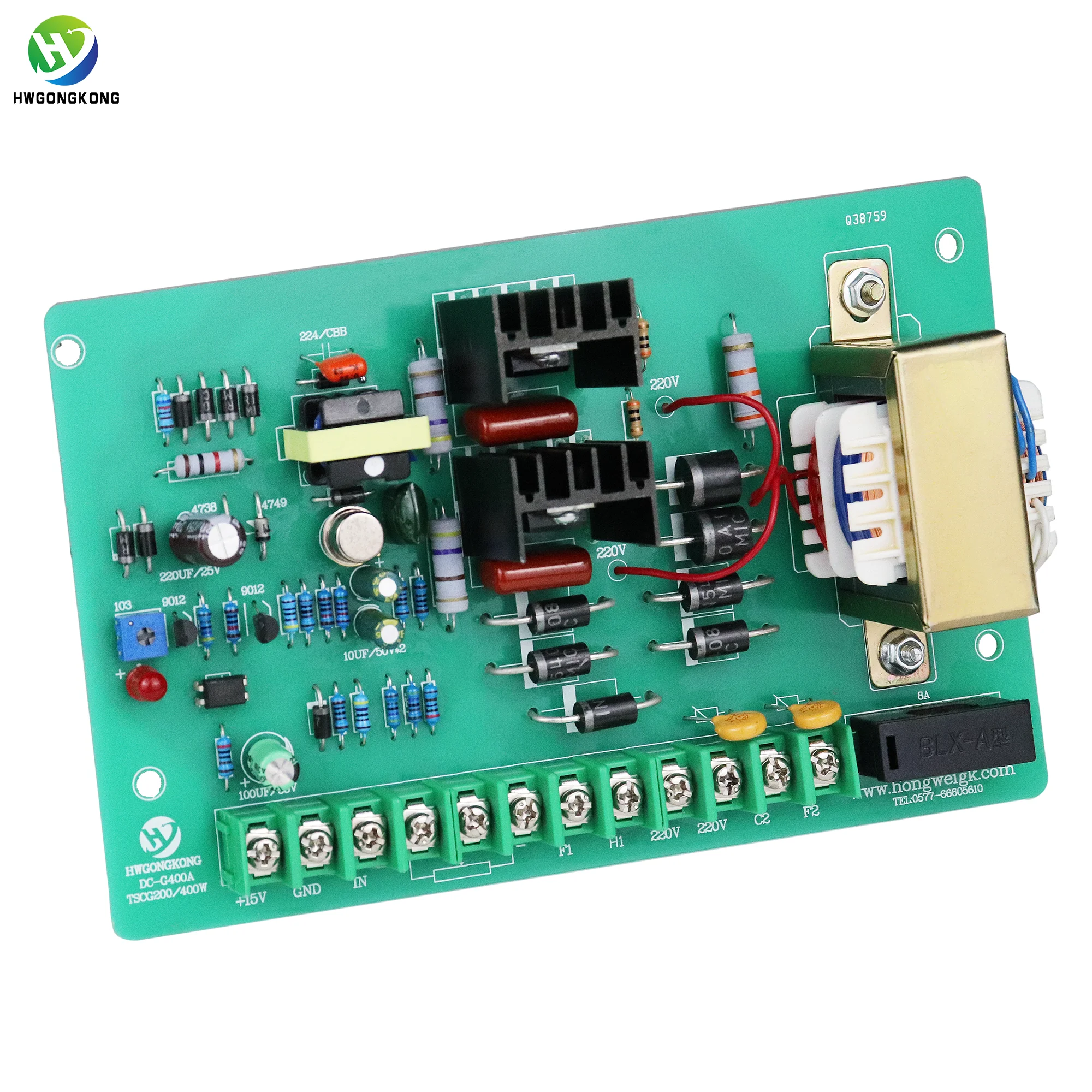

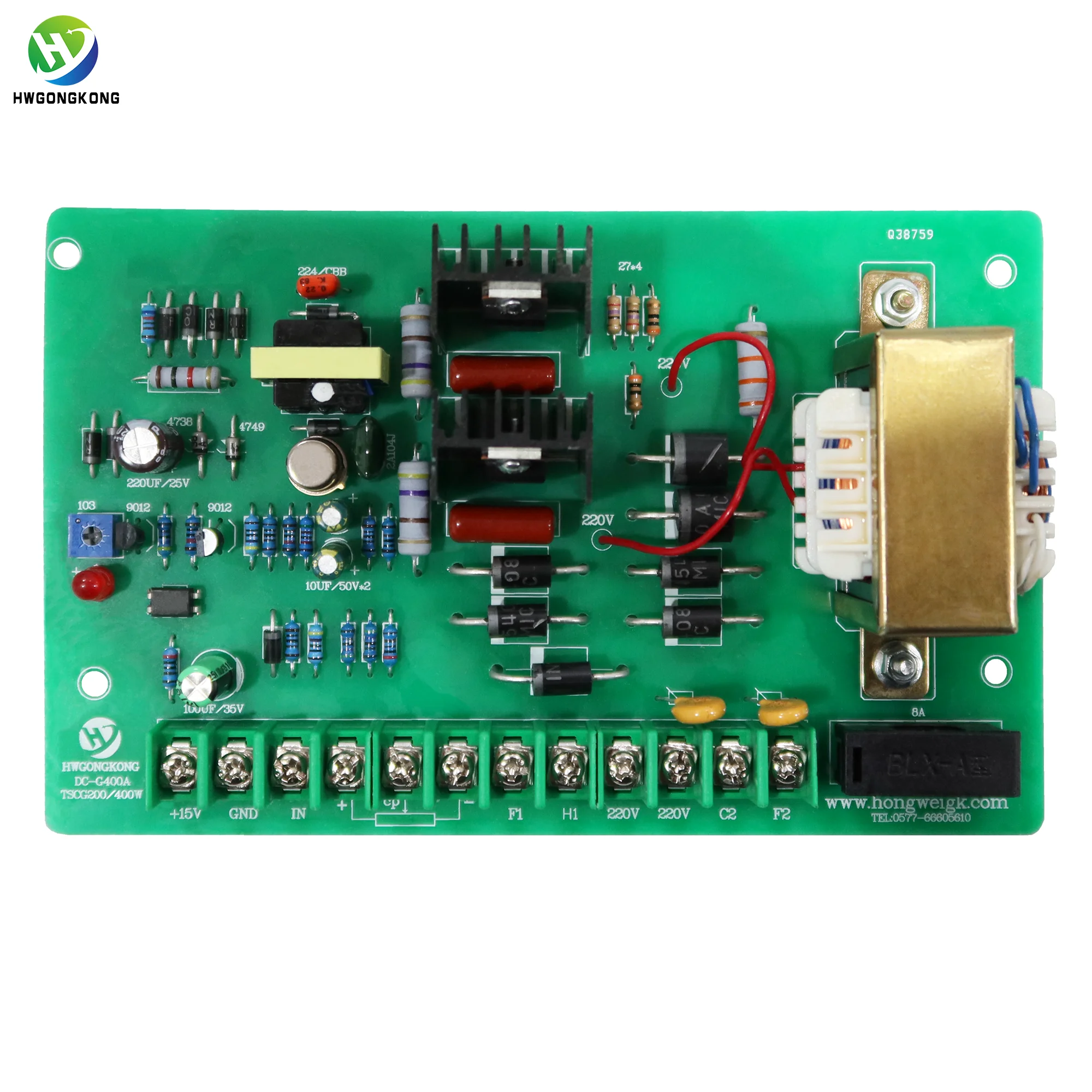

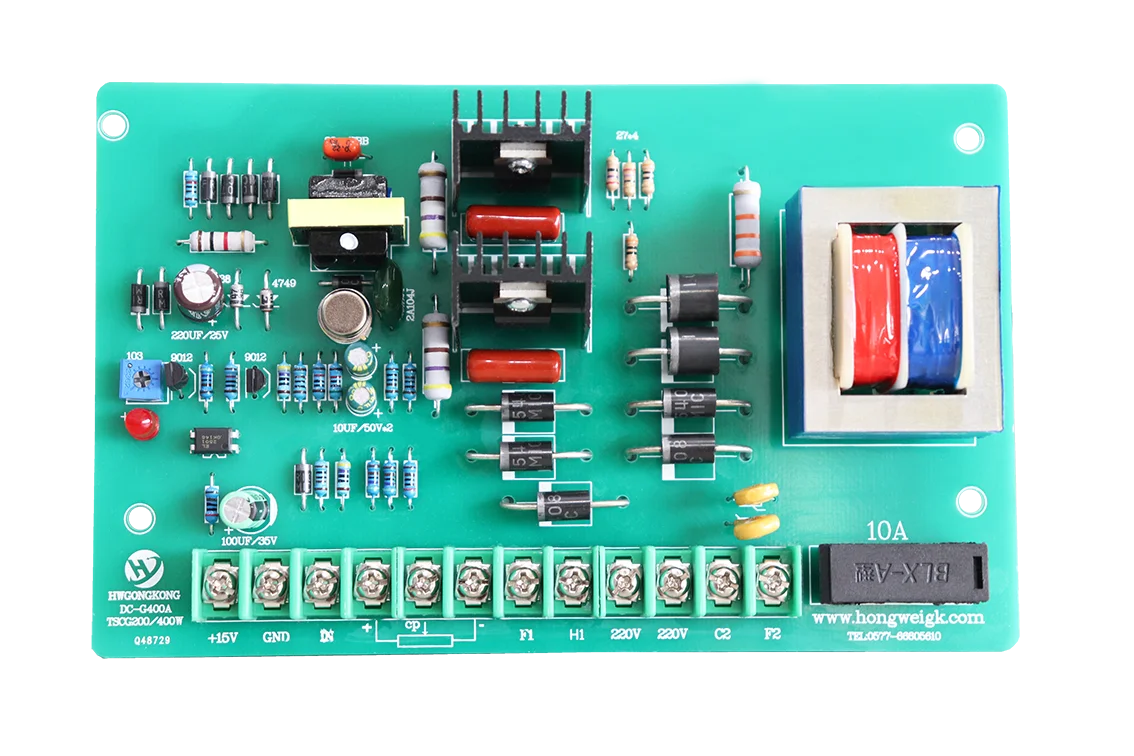

SCR 08 DC Motor Speed Control Board DC Speed Regulation Plate DC Motor Electric Control Board
- Category: >>>
- Supplier: Ruian City Hongchang Industry Control Equipment Co. Ltd.
Share on (1705253348):
Product Overview
Description
Product Description
Product Name | DC Speed Control Board |
Material | Plastic |
Type | TSCG-400(400A) |
Working Voltage | AC220V±10% |
Max. Current | 5A |
Armature Voltage | DC0-220V |
Exciting Voltage | DC200V/1A |
Control Mode | Photoelectricity,Displacement |
Connection Type | Terminal |
Adapter Motor | 50W-400W |
Packaging Materials | Carton/wooden case |
Package Dimensions | 17*12*6cm 0.5 kg（carton） |
DC motor speed control board is a SCR trigger circuit voltage regulation of DC motor speed control device, the speed control board has a low price, mature and reliable technology, speed and high precision, flexible interface and etc.It can be extensively used for paper, rubber, food, printing, metallurgy etc. needing to speed adjust mechanical equipment. The product enables DC motors to achieve step less speed and the circuit with a voltage negative feedback, overcurrent protection and soft start configuration .It is the ideal product of the DC motor speed control.
Main Features

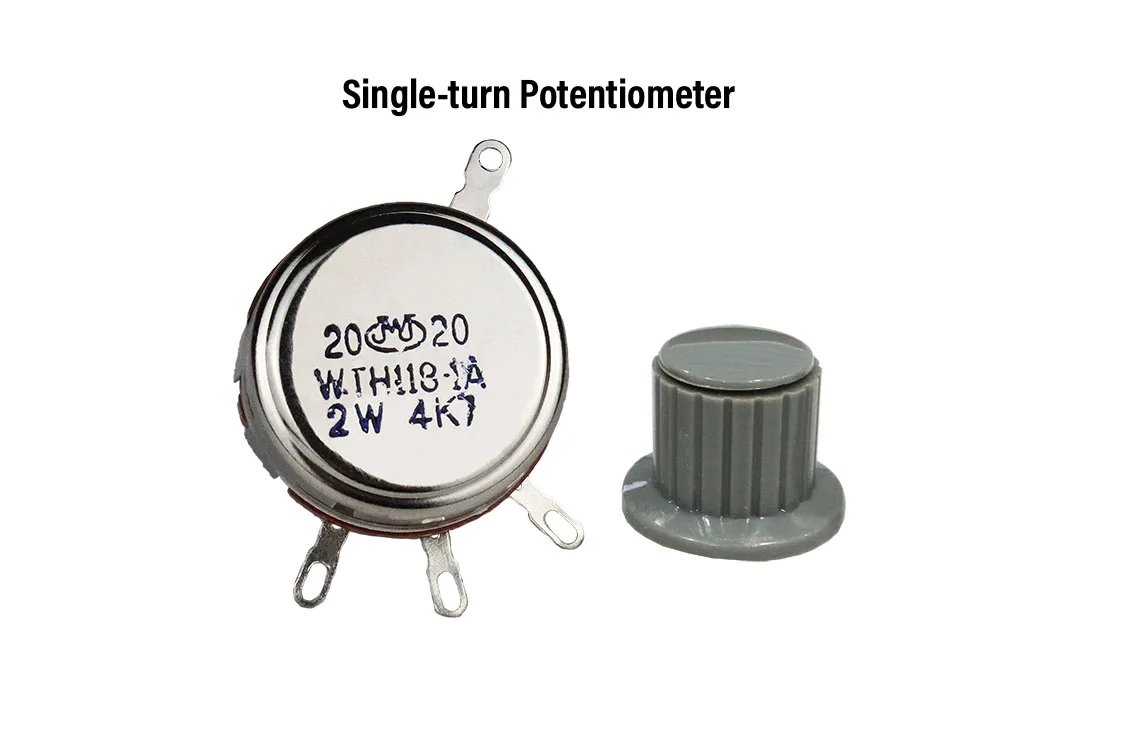

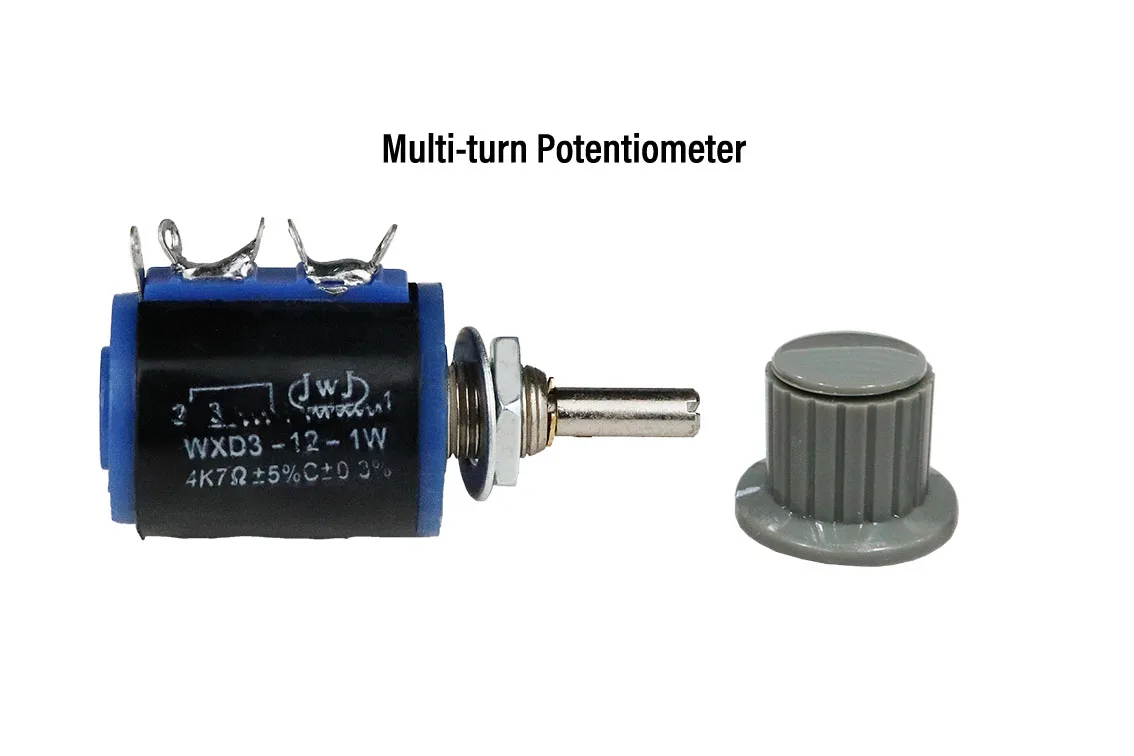

1, with the displacment controller to achieve step less speed adjust
2, with infrared photoelectric switch remote control
3, the introduction of negative voltage feedback technology to make speed more smoothly
4, with overcurrent protection devices, more reliable performance.
5, with a soft start device to eliminate the motor starting current is too large
2, with infrared photoelectric switch remote control
3, the introduction of negative voltage feedback technology to make speed more smoothly
4, with overcurrent protection devices, more reliable performance.
5, with a soft start device to eliminate the motor starting current is too large

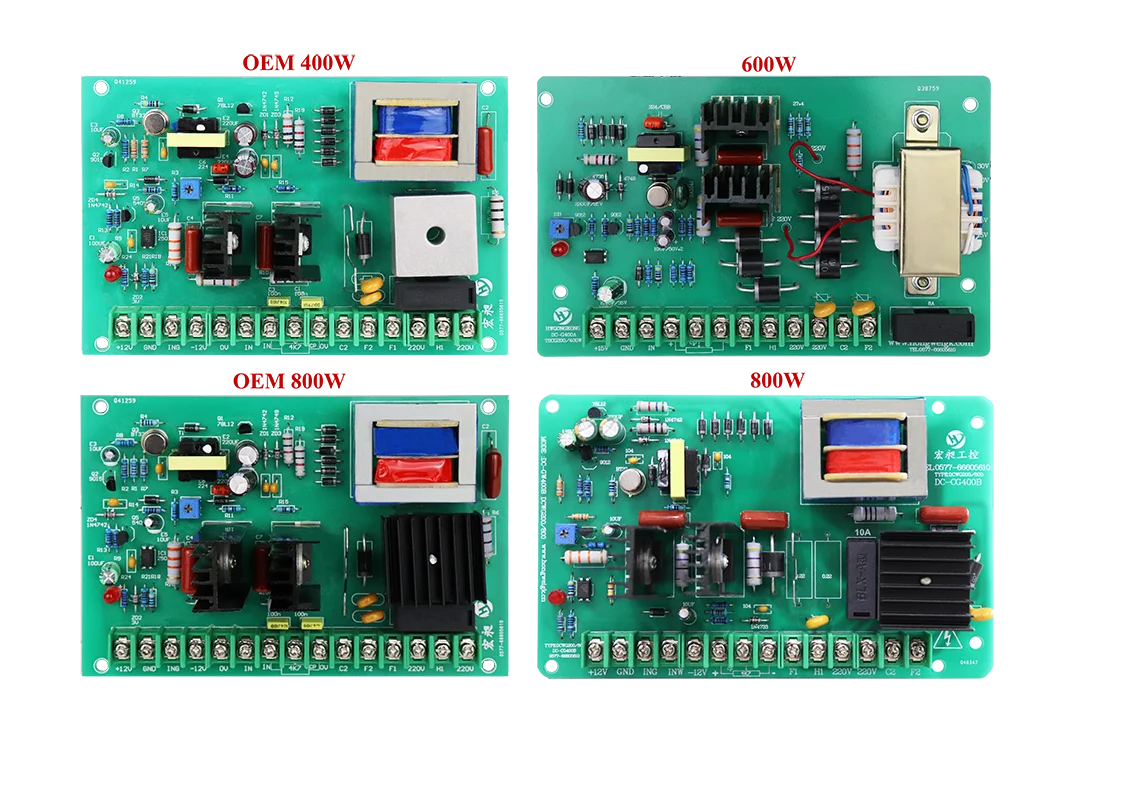

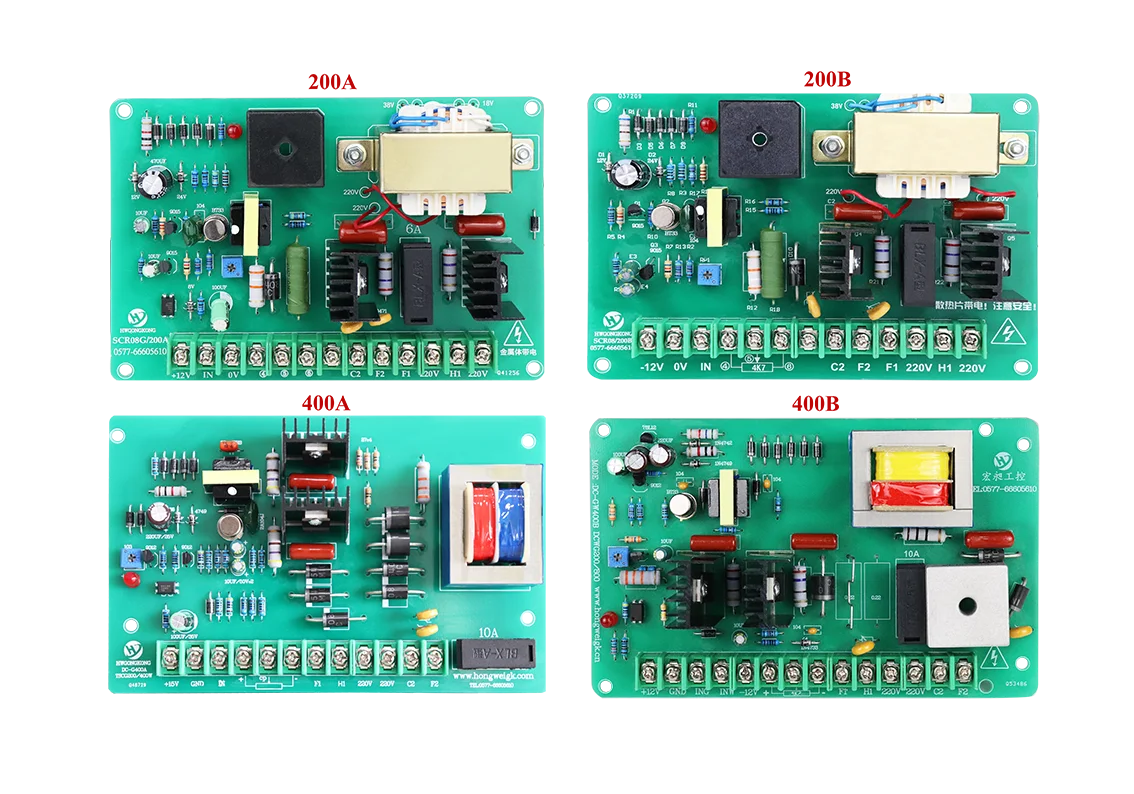

Details Images
Model | SCR08G(200A) | SCR08(200B) | TSCG-400(400A) | TSCW-400(400B) |
Working Voltage | AC220V±10% | AC220V±10% | AC220V±10% | AC220V±10% |
Max. Current | 4A | 4A | 5A | 5A |
Armature Voltage | DC0-220V | DC0-220V | DC0-220V | DC0-220V |
Exciting Voltage | DC200V/1A | DC200V/1A | DC200V/1A | DC200V/1A |
Control Mode | Photoelectric | Displacement Photoelectricity | Photoelectric | Displacement Photoelectricity |
Connection Type | Terminal | Terminal | Terminal | Terminal |
Adapter Motor | 50W-300W | 50W-300W | 50W-400W | 50W-400W |
Model | DCSG600(600A) | DCSG800(800A) | TS1100(1100A) | TS1500(1500A) |
Working Voltage | AC220V±10% | AC220V±10% | AC220V±10% | AC220V±10% |
Max. Current | 6A | 8A | 10A | 15A |
Armature Voltage | DC0-220V | DC0-220V | DC0-220V | DC0-220V |
Exciting Voltage | DC200V/1A | DC200V/1A | DC200V/1A | DC200V/1A |
Control Mode | Displacement Photoelectricity | Displacement Photoelectricity | Displacement Photoelectricity | Displacement Photoelectricity |
Connection Type | Terminal | Terminal | Terminal | Terminal |
Adapter Motor | 50W-600W | 50W-800W | 50W-1100W | 50W-1500W |

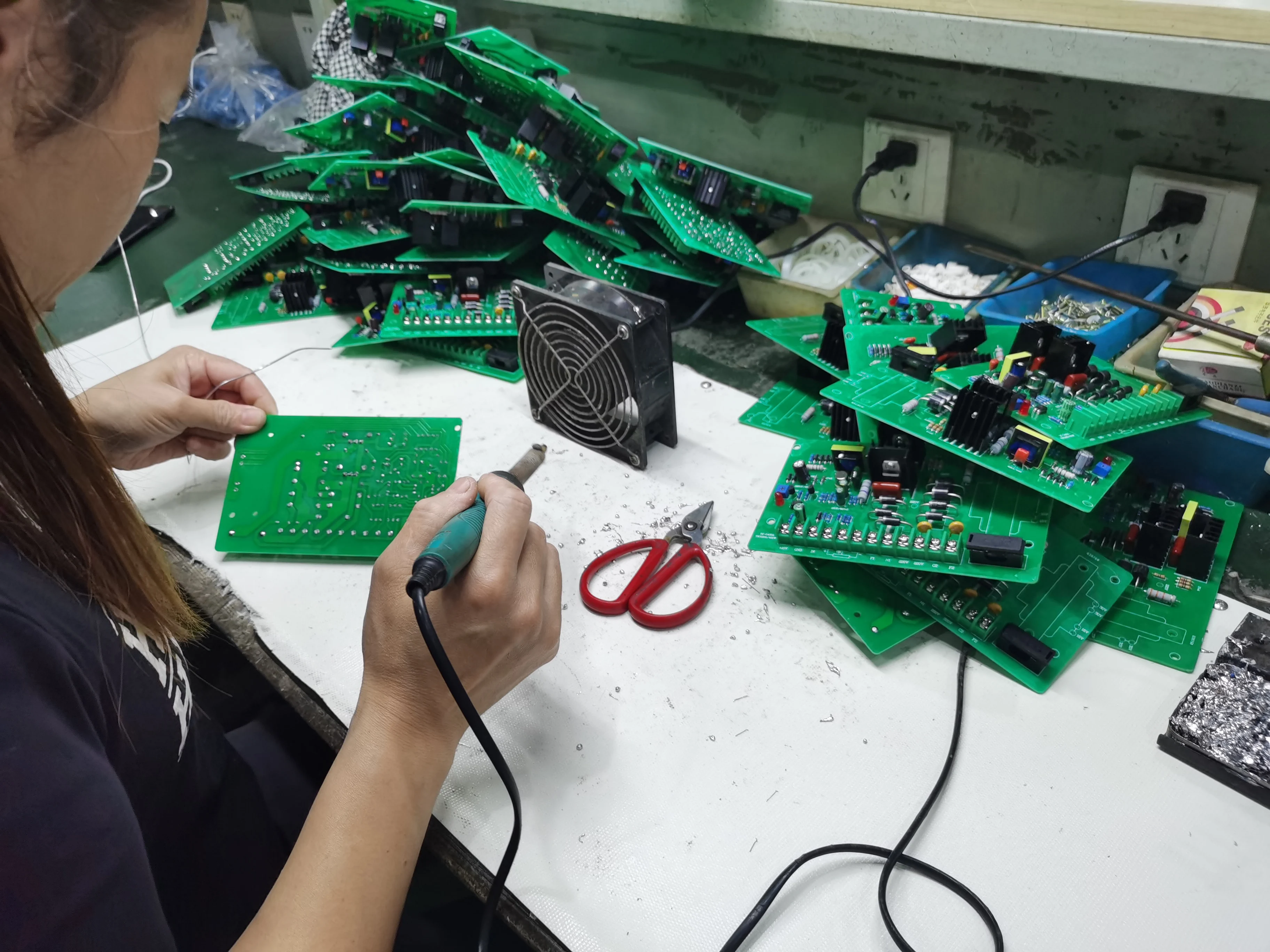

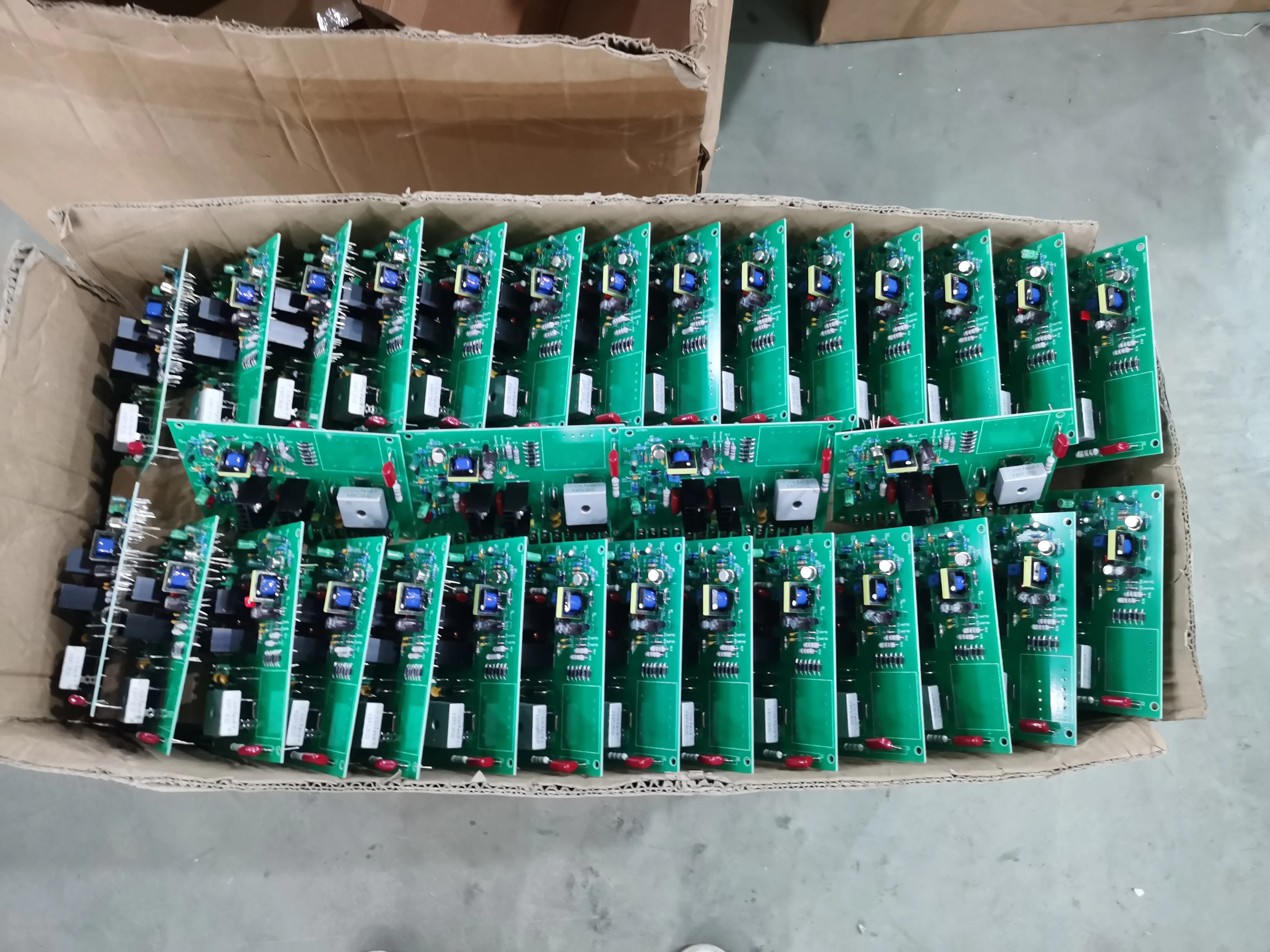

Production Line
Related Products

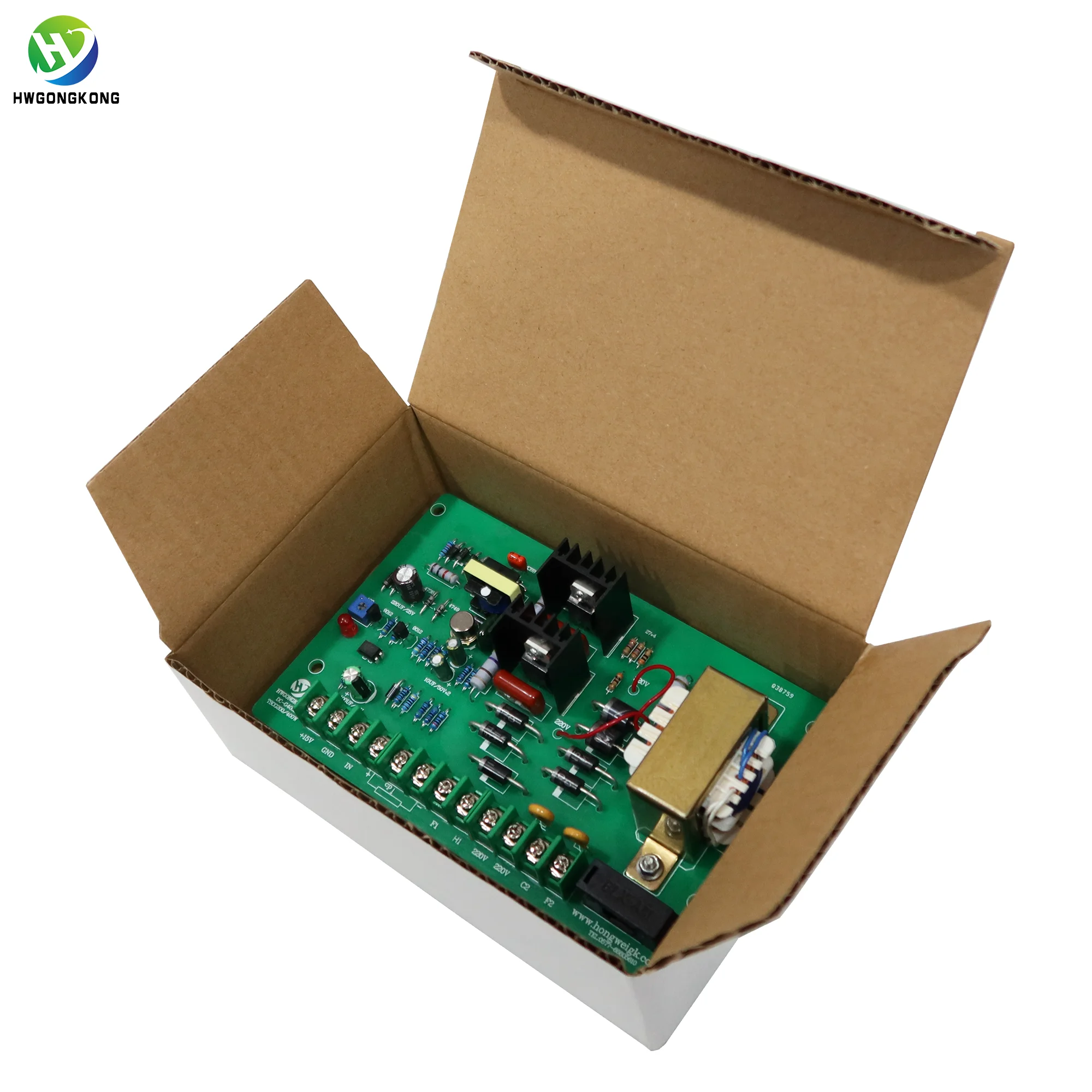

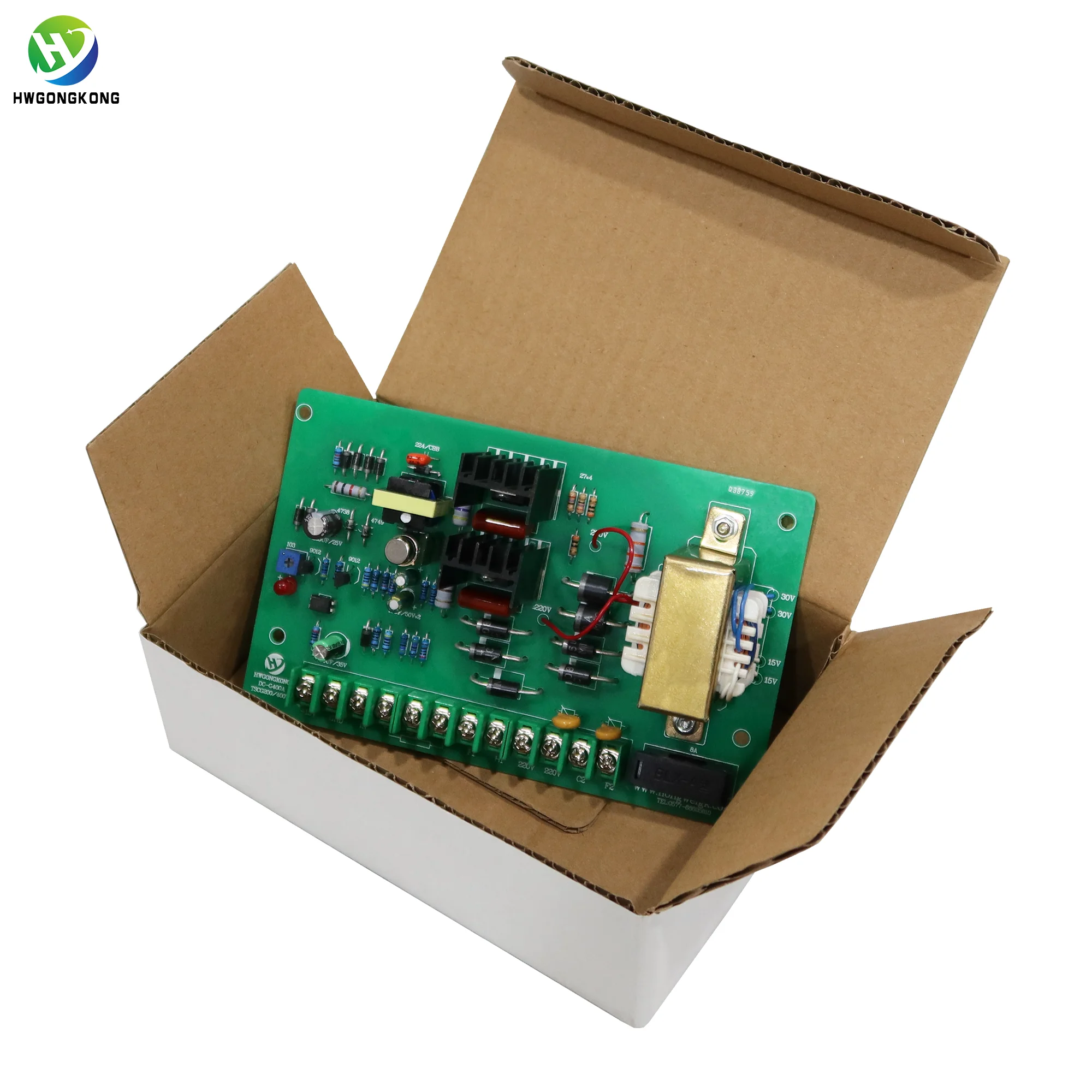

Packing&Shipping
Packaging options: carton packaging/wooden box packaging
Certifications
Company Introduction
Ruian City Hongchang Industry Control Equipment CO., LTD, established in 2005, is a professional company that integrates machinery production, research and development, and sales of electrical equipment. We are the leading manufacturer and expert on Corona treater, Magnetic Powder Brake&Clutch, Tension Controller, Static Eliminator, etc., with 18-year OEM &ODM experience. Hongchang Company independently developed HW series Corona Treatment, adopting PDM high voltage power supply technology with advanced international standards, has gained a very good reputation from many customers.

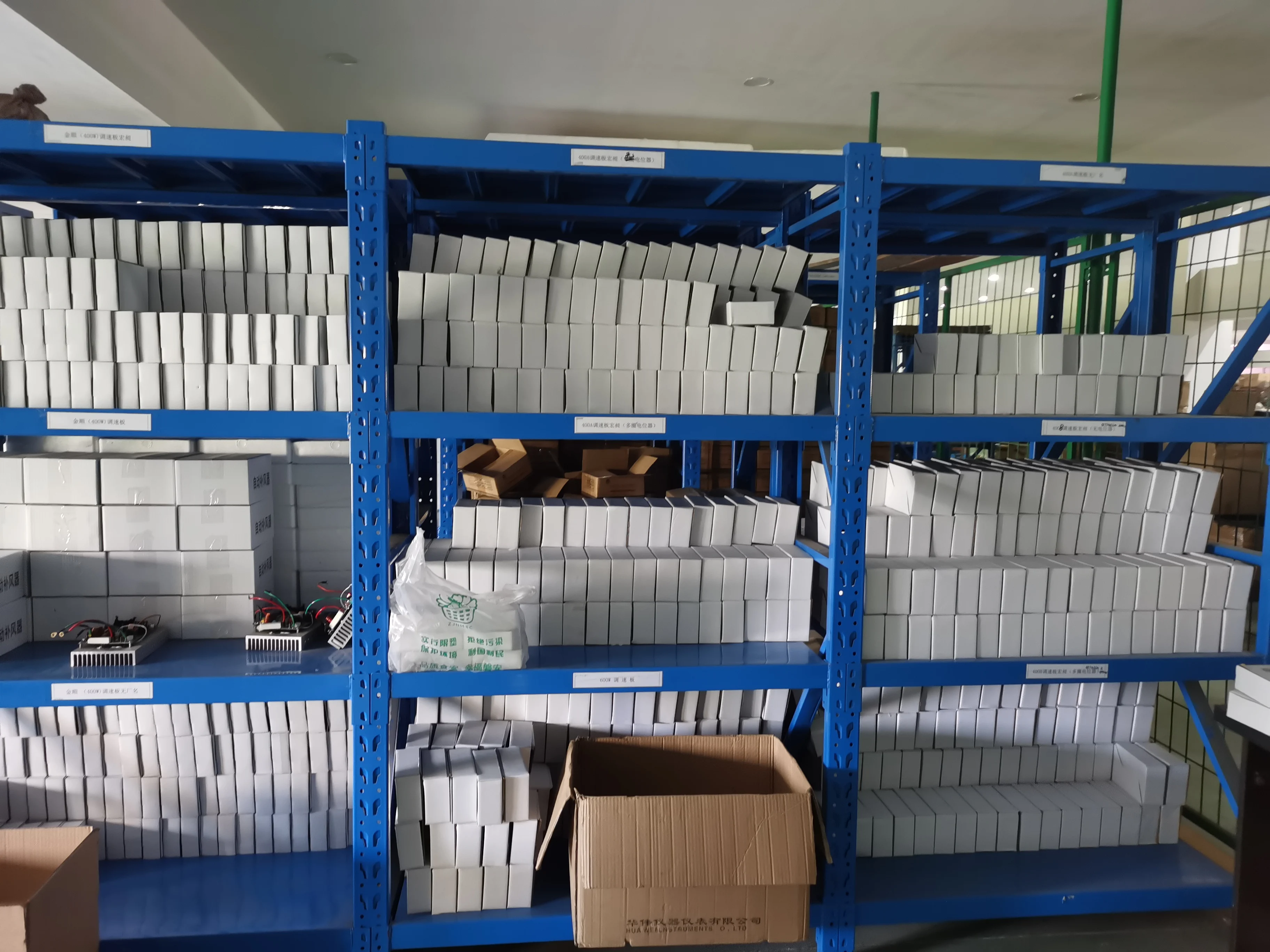

Production workshop
FAQ
Q1. Are you a factory or a trader?
A:We are a factory.
A: Generally, Cartons or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A: 100% full payment before send out
Q4. What is your terms of delivery?
A: FOB or CIF.
Q5. How about your delivery time?
A: Generally it is 1-3 days after receiving the order and full payment if the goods are in stock. or it is 3-15 days if the goods are not in stock, it is according to order quantity.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have long time testing before delivery
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
