maquina de soldar pot electropunto

Product Overview

Description

maquina de soldar pot electropunto

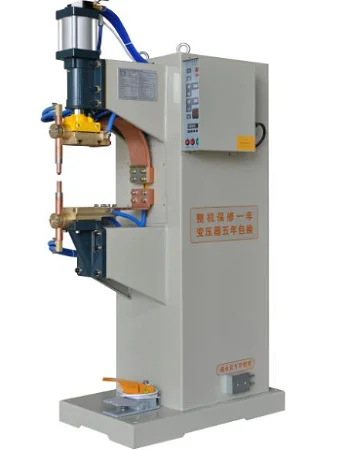

 resistance spot welding machine



 Products

Main features of the machine

(1)    Novel structure, special design, good rigidity. The welding terrace is convenient to customers to fix tongs, and weld with multiaspect ,multi-welding spot.

(2)    Adopt the microcomputer crosscurrent control, current steady, high definition, easy to handle.

(3)    The transformer adopt the import permalloy sheet steel, the secondary adopt the full copper water cooled structure.

(4)    Adopt the  accuracy guidance structure. direct pressure to cylinder body, high quality, high speed welding, pressure steady.



Model	DN-35	DTN-63	DTN-100
rate capacity	35KVA	63KVA	100KVA
rate voltage input	380V	380V	380V
rate frequency	50HZ	50HZ	50HZ
Max.short-cut current	15KA	19KA	27KA
Max.welding input	79KVA	139KVA	207KVA
Duty cyclce	15%	15%	15%
Arm dimension	200*420mm	220*420mm	220*420MM
Max.pressing force	2500N	3900N	6100N
Cylinder stroke	60mm	60mm	60mm
Consumer of cooling water	≥3.0L/min	≥3.5L/min	≥4L/min
Electrode head	Φ13mm	Φ16mm	Φ20mm
Electrode holder	Φ20mm	Φ25mm	Φ30mm
Electrode arm	Φ44mm	Φ49mm	Φ59m
Platform size	/	110*130mm	120*130mm
Welding ability	2mm+2mm	3mm+3mm	4mm+4mm
Weight	215KG	265KG	337KG
Dimension	950*430*1450mm	960*460*1500mm	1020*490*1580mm



Main technology parameter
