250L HDPE drums barrels tanks blow molding machine /55 gallon drum making machine
- Category: >>>
- Supplier: Zhangjiagang Apollo Machinery Co. Ltd.
Share on (1705813284):
Product Overview
Description
Automatic blow moulding machine for drums barrels gallons
55 gallon drum blow molding machine
Model No.: ABLD120(single station single die head)

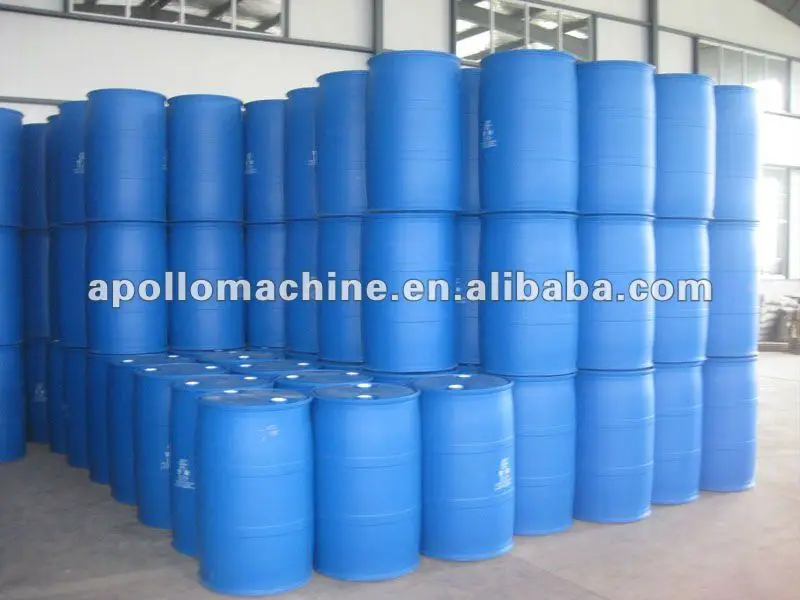

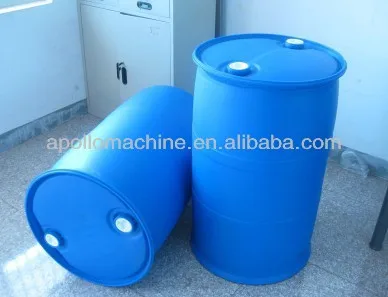

ABLD120 automatic blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 250L.
Energy saving system saving 22%~25% power consumption
Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
Max volume | 250L | ||
Output capacity | 15~18 pcs/h | ||
Size | 8.6×3.8×5.8 (M) | ||
Weight | 28.5T | ||
system | Specification | Parameters | Note |
Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature |
|
Reducer | Hard finishing,High intension,Low noise reducer |
| |
Screw | 120mm,L/D ratio 30, 38CrMoALA | Cooling system available | |
Plasticization | 350Kg/H | HDPE | |
Heating Zone | 5~8 Aluminum Heater | Automatic heating | |
Heating power | 40 KW/H |
| |
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) |
| |
Cooling Fan | 5~8zone | Automatic cooling | |

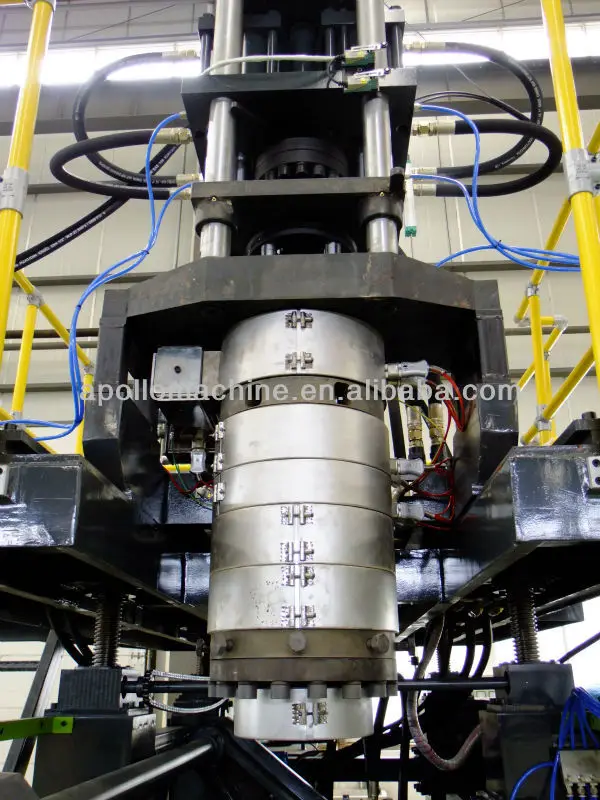

Extrusion system | Summarize | High-grade alloy steel, center feeding |
|
Die head number | 1 |
| |
Center distance of die heads |
| ||
Max die mouth | 580mm |
| |
Heating zone | 6 Stainless steel heating cycle |
| |
Heating power | 15~18KW |
| |
Clamping system | Summarize
| High intension, rigidity, center mold locking, stable mould opening and clamping system |
|
Clamping force | 980KN |
| |
Template distance | 700~1600mm |
| |

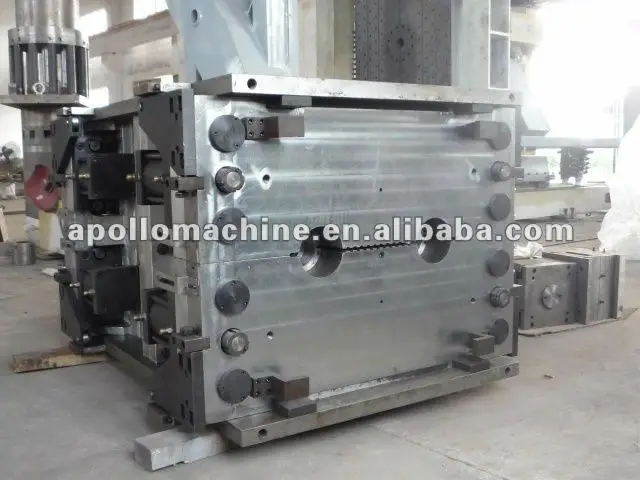

Max mould size | 1450X1650mm |
| |
Mould material | High grade 50# steel |
| |

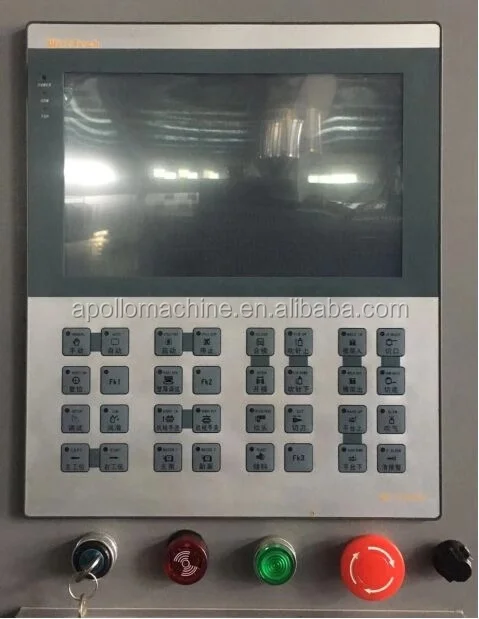

Electric system | Summarize | PLC+ touch screen(man-machine interface)standard | Japanese Mitsubishi PLC system |
Operate interface | Touch screen, automatic self-diagnose alarm system |
| |
Temperature control | Automatic temperature control module |
| |
Movement control | Japanese Mitsubishi, Chinese/English Version |
| |
Electric protection | Ampere overload, electric short circuit self-protection function |
| |
Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient |
|
Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) |
| |
Oil pump | Imported double pump |
| |
Valves | Imported oil pump valves and connections |
| |
Oil pipes | Double layer overpressure resistant |
| |
System pressure | 60Kg/cm² |
| |
Cooling system | Separate water cooling cycle, oil cooler cooling system |
| |
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system |
|
Air pressure | 1Mpa |
| |
Air displacement | 3 M3/min |
| |
Electromagnetic valve | FESTO |
| |
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system |
|
Cooling medium | Water |
| |
Water flow | 220L/min |
| |
Water pressure | 0.3-0.6MPa |
| |
alice
EXHIBITION
CERTIFICATE
FACTORY
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. What is the business item for this project ?
a.Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b.Port of Loading: SHANGHAI, CHINA.
c.Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d.Container needed: One 20GP container.
4. How is APOLLO after-sales service?
a.Inspection
Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into o peration once reach the client`s factory.
b.Debugging Instruction
APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of
equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients’ factory to the users, so that they could understand the machine features and could operate the machine by themselves.
5. What is the warranty period?
a.APOLLO machine Main parts is one year warranty with a lifelong maintenance.
b.Mould within one year or 5millions warranty
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients’ factory to the users, so that they could understand the machine features and could operate the machine by themselves.
5. What is the warranty period?
a.APOLLO machine Main parts is one year warranty with a lifelong maintenance.
b.Mould within one year or 5millions warranty
