Plastic scrap, paper, cotton and woodchips compress baler machine

Product Overview

Description

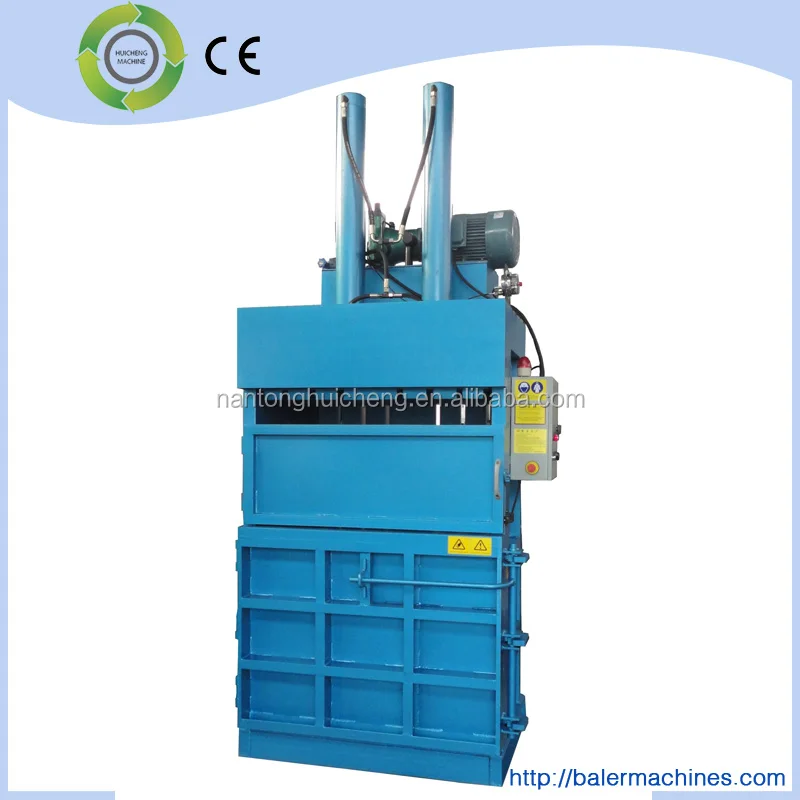

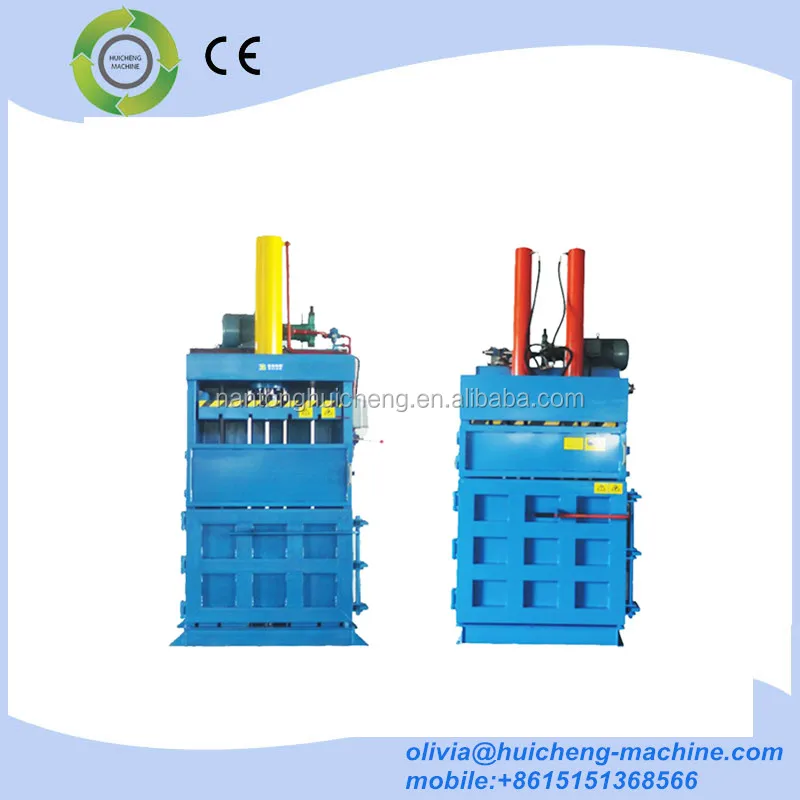

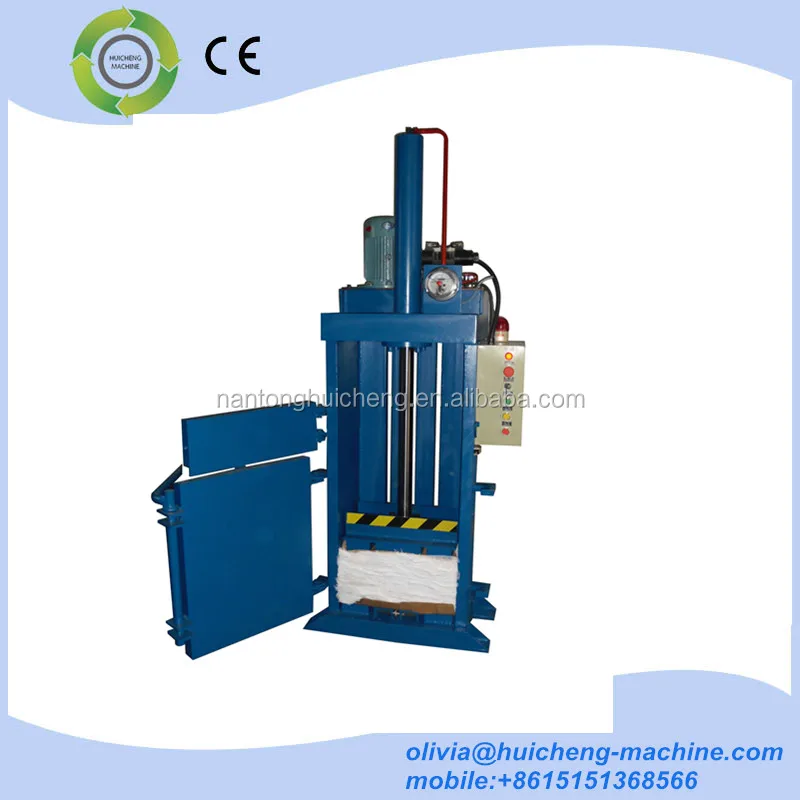

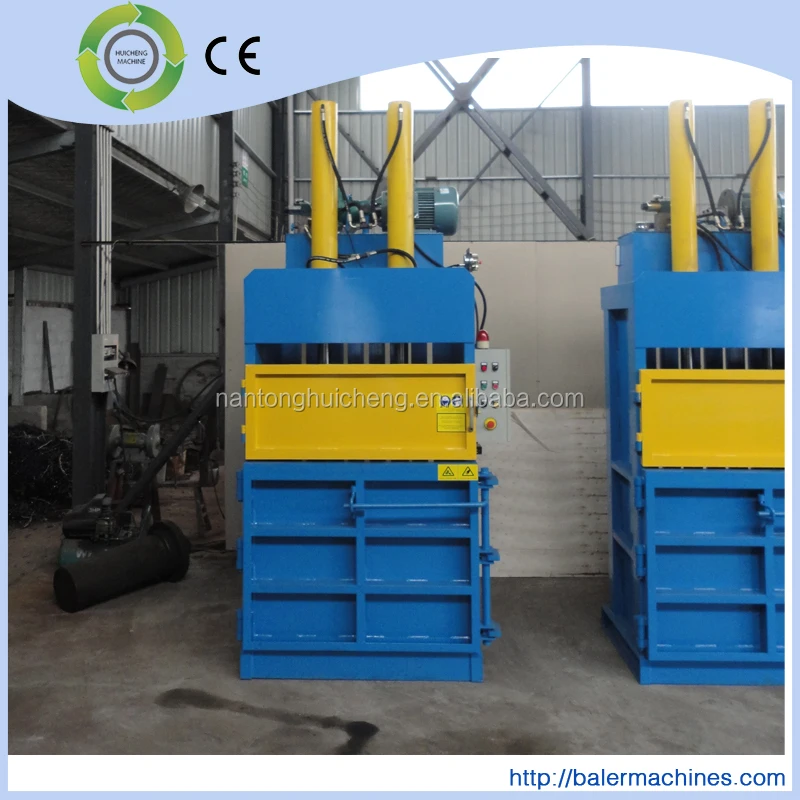

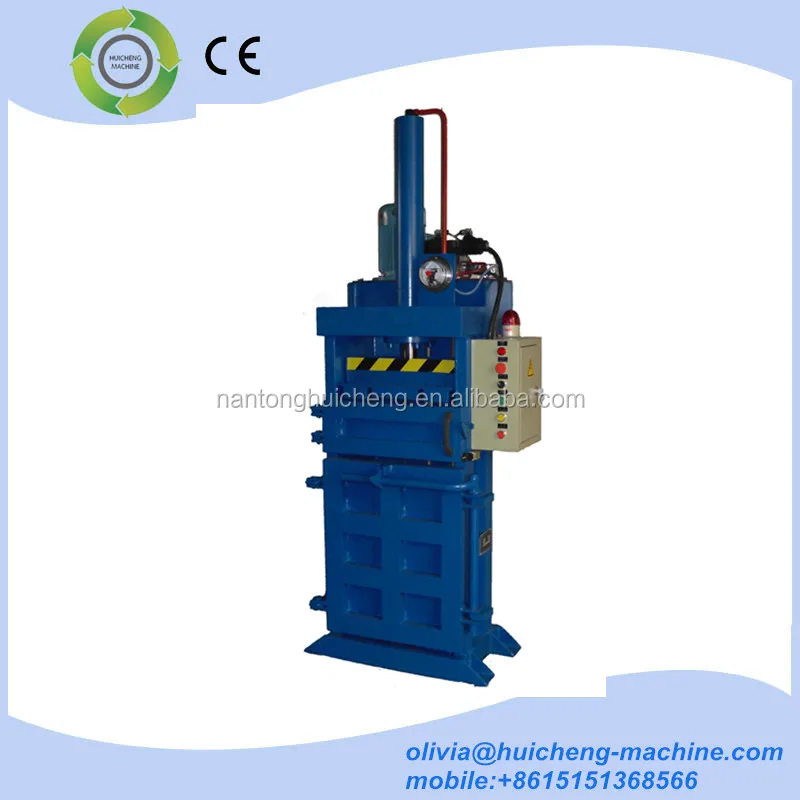

Plastic scrap, paper, cotton and woodchips compress baler machine



This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding. Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 6~8 pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.





 Features:

1.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy

2.Electric button control, it can reaches manual adjusting and semi automatic control.The door is lift up when feeding.

4.Independent feeding opening with automatic pulling out installation to reduce labor force.

5.It can be made according to the demands of customers, and the bale can be binded into “---” and  “#” shape.





Technical data





Model	Force	Bale size	Bale weight	Efficiency	Power (KW)	Machine weight	Size (mm)
HM10-6040 HE10-6040	10 Ton	600*400 mm	30-50 KG	4-6 bale/hour	2.2	800 KG	900*650*2100
HM20-8060 HE20-8060	20 Ton	800*600 mm	80-100 KG	4-6 bale/hour	4	950 KG	1000*750*2750
HM30-8060 HE30-8060	30 Ton	800*600 mm	100-130 KG	4-6 bale/hour	5.5	1000 KG	1000*750*2750
HM30-11070 HE30-11070	30 Ton	1100*700 mm	130-150KG	4-6 bale/hour	5.5	1200 KG	1350*850*3200
HM40-11070 HE40-11070	40 Ton	1100*700 mm	150-200KG	4-6 bale/hour	7.5	1800 KG	1350*850*3200
HM40-12080 HE40-12080	40 Ton	1200*800 mm	200-240KG	4-6 bale/hour	7.5	2050 KG	1600*1050*3300
HM50-12080 HE50-12080	50 Ton	1200*800 mm	250-320KG	4-6 bale/hour	7.5 or 11	2600 KG	1600*1050*3300
HM60-15075 HE60-15075	60 Ton	1500*750 mm	380-420KG	4-6 bale/hour	11 or 15	2900 KG	1850*1150*3300
HM80-15075 HE80-15075	80TON	1500*750 mm	450-480KG	4-6 bale/hour	15	3300 KG	1850*1150*3300
HM100-15075 HE100-15075	100TON	1500*750 mm	500-550KG	4-6 bale/hour	15	3700KG	1850*1150*3300

Product certificates:



Factory profile



Rugao huicheng company is established in 1995 .We are the sale of packing machine and hydraulic press machine.We insist the principle innovate makes good future which makes our company to have a good progress.



We are aiming at high-end markets with CE,ISO,etc.approved and research new product in each quarter



Huicheng, alibaba assessed 4-year gold supplier& strict quality manage as high-



end factory, with full of enthusiasm, looking forward to be your friends and strategic partner forever.
