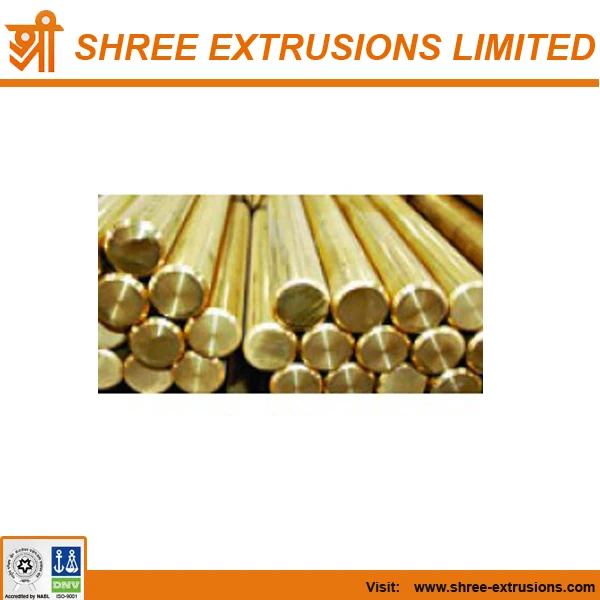

C38000 ARCHITECTURAL BRONZE LOW LEADED BRASS RODS
- Category: >>>
- Supplier: SHREE EXTRUSIONS LIMITED
Share on (170737818):
Product Overview
Description
" C38000 ARCHITECTURAL BRONZE LOW LEADED BRASS RODS "
C345 Typical Uses:-
Industrial: Pinions, Gears, Valve Stems, Flare Fittings, Adapters, Couplings
Plumbing: Plumbing Fittings, Plumbers' Brass Goods
Sizes Available :-
HOLLOW RODS:. . . . . . . . . . .Min Bore Size 20 mm and Max OD 130 mm
ROUND RODS. . . . . . . . . . . . . 6mm To 250 mm
HEX . . . . . . . . . . . . . . . 5mm To 60mm
SQUARE . . . . . . 4mm To 60mm
FLAT . . . . . . . . . . .5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS. . . AS per Customer Drawing
CHEMICAL COMPOSITION
Cu | Fe | Pb | Zn | |
Min/Max | 59.0 - 63.0 | 0.07 | 0.3 | Rem |
Nominals | 60.0000 | - | - | 40.0000 |
SPECIFICATIONS
End Product | Specification |
Bar | ASTM B36 |
Wire | ASTM B36 |
Rods | ASTM B36 |
Ingots | ASTM B36 |
Tube, Condenser | ASME SB111, ASTM B111 |
Tube, Seamless | ASTM B135, FEDERAL WW-T-791 |
FABRICATION
Joining Technique | Suitability |
Brazing | Excellent |
Butt Weld | Good |
Capacity for Being Cold Worked | Fair |
Capacity for Being Hot Formed | Excellent |
Coated Metal Arc Welding | Not Recommended |
Forgeability Rating | 90 |
Gas Sheilded Arc Welding | Fair |
Machinability rating | 40 |
Oxyacetylene Welding | Good |
Seam Weld | Not Recommended |
Soldering | Excellent |
Spot Weld | Good |
PHYSICAL PROPERTIES
Product Property | US Customary | Metric |
Coefficient of Thermal Expansion | 11.6 ·10-6 per oF (68-572 F) | 20.9 · 10 6? per °C (20-300 C) |
Density | 0.303 lb/in3 @ 68 F | 8.39 gm/cm3 @ 20 C |
Electrical Conductivity | 28 %IACS @ 68 F | 0.164 MegaSiemens/cm @ 20 C |
Electrical Resistivity | 37.0 ohms-cmil/ft @ 68 F | 6.15 microhm-cm @ 20 C |
Melting Point Liquid US | 1660 F | 904 C |
Melting Point Solid US | 1650 F | 899 C |
Modulas of Elasticity in Tension | 15000 ksi | 103400 MPa |
Modulas of Rigidity | 5600 ksi | 38610 MPa |
Specific Gravity | 8.39 | 8.39 |
Specific Heat Capacity | 0.09 Btu/lb/°F @ 68 F | 377.1 J/kg · °K at 293 K |
Thermal Conductivity | 71.0 Btu · ft/(hr · ft2 ·°F) @ 68 F | 1229.9 W/m · °K at 20 C |
