Product Overview

Description

Hot Filling Machine





 Joysun is a reliable 3-in-1 fruit juice hot filling machine manufacturer that is ISO9001 certified. With 15 years of experience in this line, we are fully capable of manufacturing this kind hot filling machines, drink filling machines, super clean filling machines and more. These filling machines are CE certified and widely used in drink water and beverage industries. In order to satisfy our customers' demand of different plastic processing machinery, we are also able to offer you molding machines, water treatment, bottle warmer & coolers, labeling machines and more products. At Joysun, we are looking forward to your inquiry and visit!

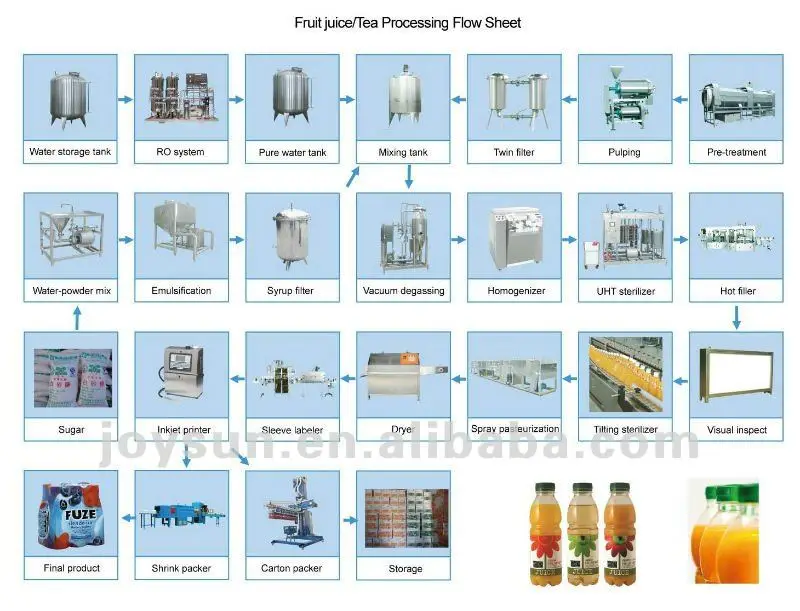

Flow Chart









Benefits of 3-in-1 Hot Filling Machine





1. This 3-in-1 hot filling machine adopts direct connection between the air conveyor and the in-feeding starwheel. It omits the in-feeding screw and the conveying chain, making it simple to change bottles. Newly-designed bottle-separating grippers are assembled to starwheel.





2. It adopts neck-hanging technology for bottle transportation. Instead of traditional starwheel, neck-hanging gripper is applied to make fast bottle changing, which requires only few parts to be adjusted.





3. This 3-in-1 hot filling machine has stainless steel rinser grippers, which have no contact to screw part of the bottle and cause no pollution to the bottle neck.





4. High-speed filling valve are equipped with perfect CIP system and control system for easy rinse.





5. The starwheel split adopts twist descending way for simple bottle changing. Only the arc board and starwheel need to be changed. It can be done within 10 minutes.





Main Composing:



1. RO/UF Water treatment equipment

2. Preform injection molding machine

3. Cap injection molding machine

4. PET bottle blowing molding machine

5. Fully automatic bottle unscrambler,

6. Air conveyer

7. Rinsing filling capping machine

8. Lamp inspection

9. OPP/PVC labeling machine

10. Code printer

11. Wrap shrinking packing machine

12. Carton packing machine

13.Palletizer





Parameters



Model	HGF18-12-6	HGF18-18-6	HGF24-24-8	HGF32-32-10	HGF40-40-12	HGF50-50-15	HGF80-80-20
Capacity (bph)	2000~4000	4000~8000	8000~12000	12000~14000	14000~18000	18000~24000	24000~36000
Filling volume (ml)	250~1500	250~1500	300~2000	300~2000	300~2000	300~2000	300~2000
Bottle size (mm)	D: Ø 50- Ø110       H:150-320
Filling precision (mm)	±5	±5	±5	±5	±5	±5	±5
Rinsing water consumption (m³/h)	0.8	0.8	1.0	1.5	2.0	3.5	5
Air pressure (Mpa)	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Air consumption (m³/min)	0.5	0.5	0.5	0.5	0.6	1	1
Power (kw)	3.5	3.5	4	7.5	7.5	11	11
Dimension (L×W×H)(mm)	2300×1550×2500	2800×1900×2700	3200×2150×3000	3800×2900×3200	4200×3250×3300	4950×3900×3300	7800×5600×3300
Weight (kg)	2500	3000	5300	8000	10000	12000	13000

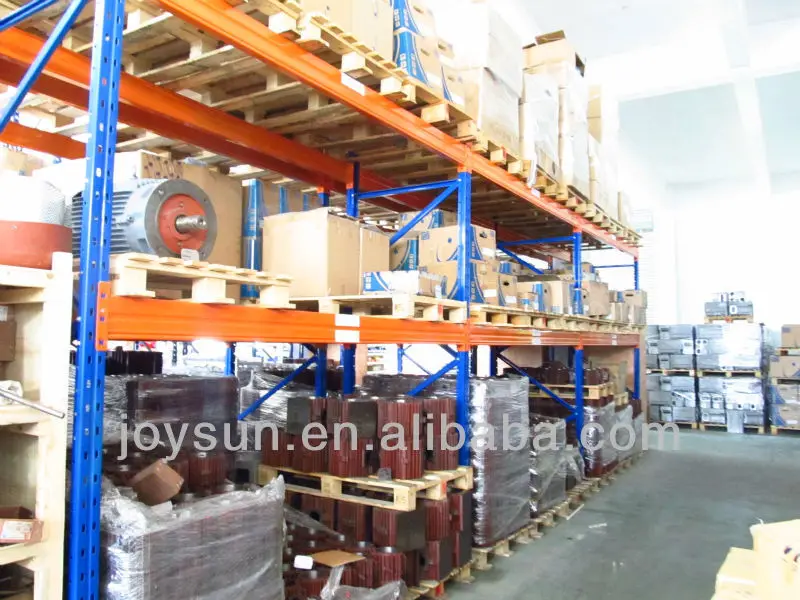

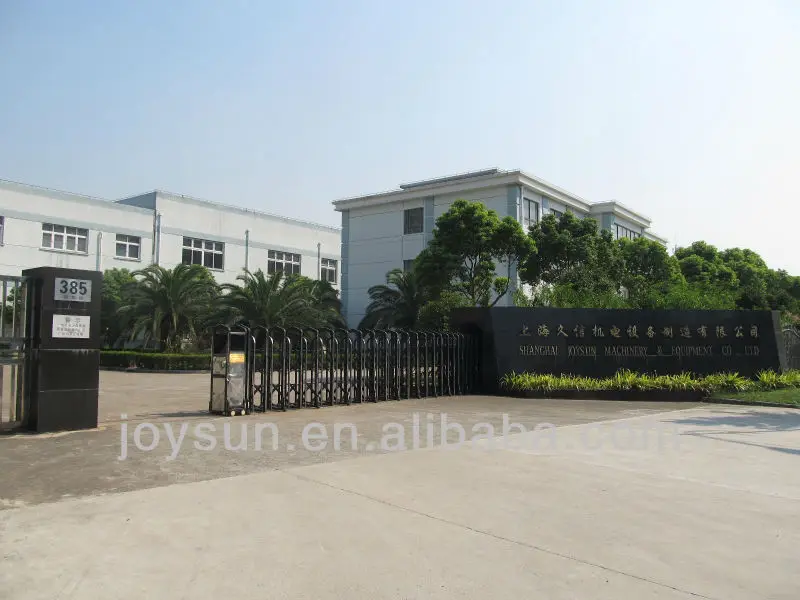

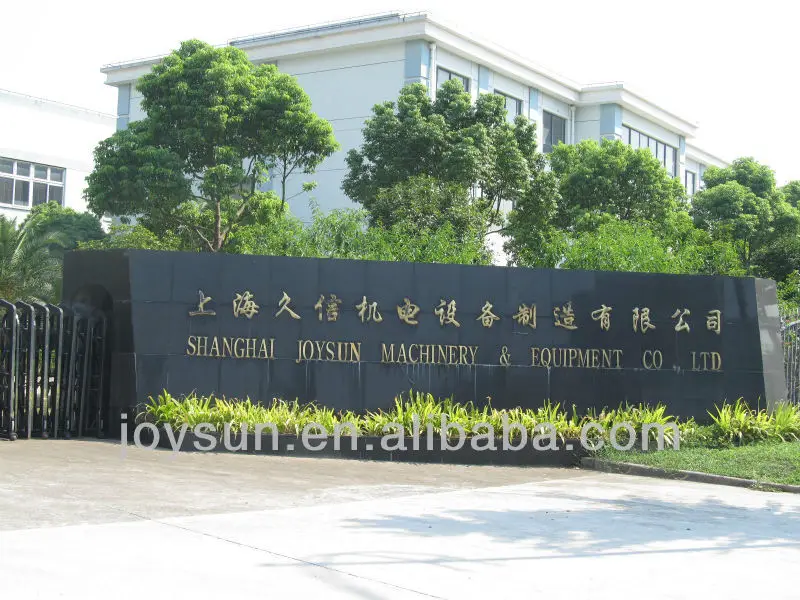

Factory

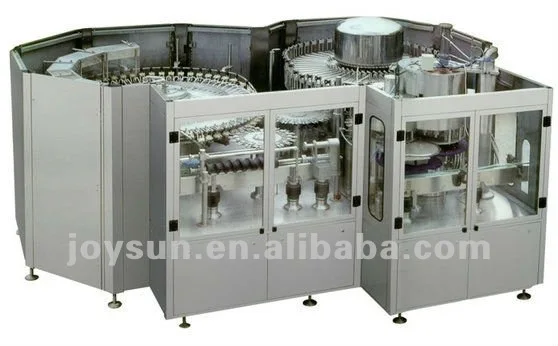

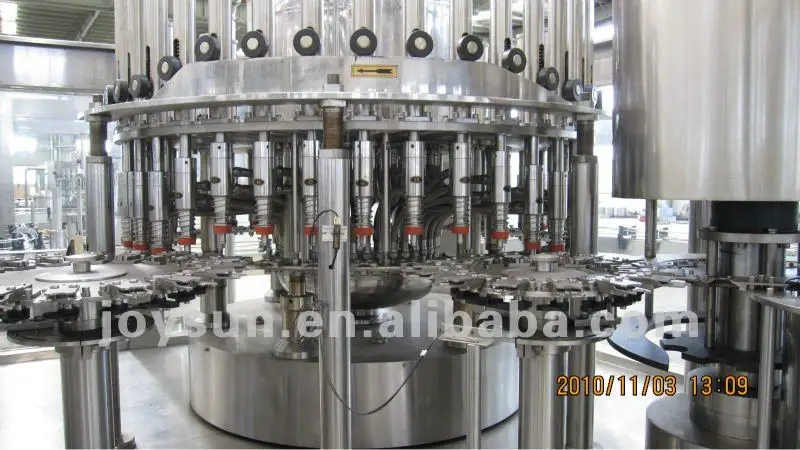

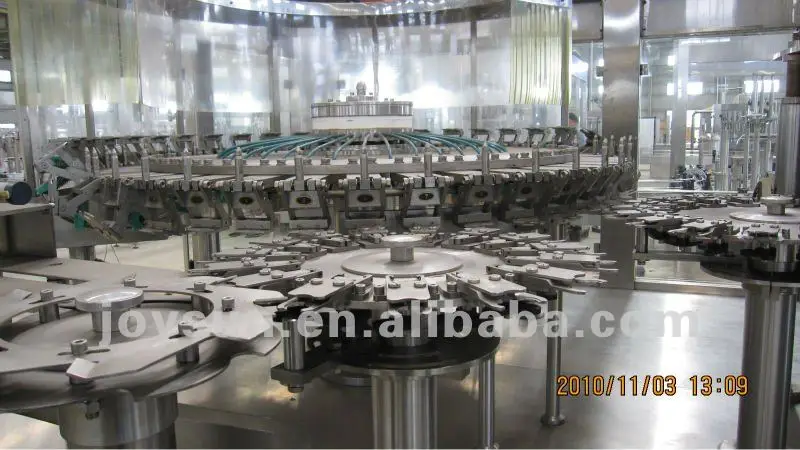

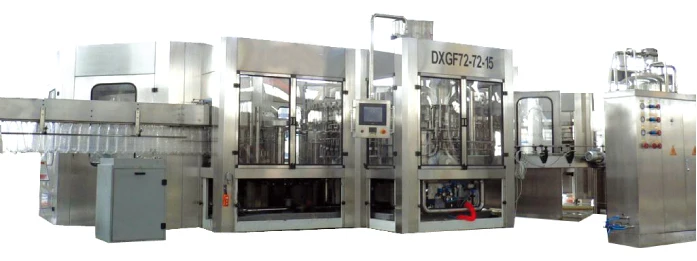

Machine Picture
