Security 304 Stainless Steel Tripod Turnstile Gates Drop Arm Turnstile QR Code Reader Three Roller gates Guangdong Manufacturer
- Category: >>>
- Supplier: Shenzhen Yuchain Technolgoy Co. Ltd.
Share on (1707685270):
Product Overview
Description
Product Description

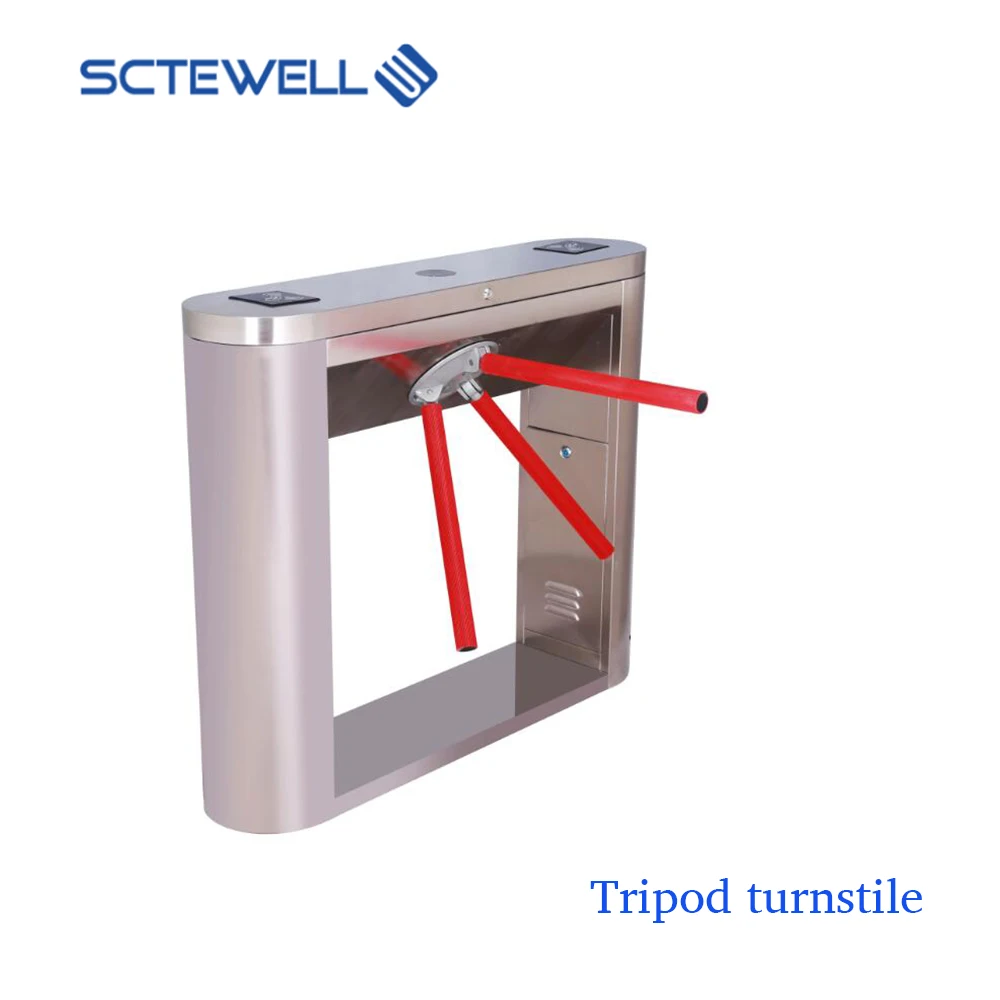

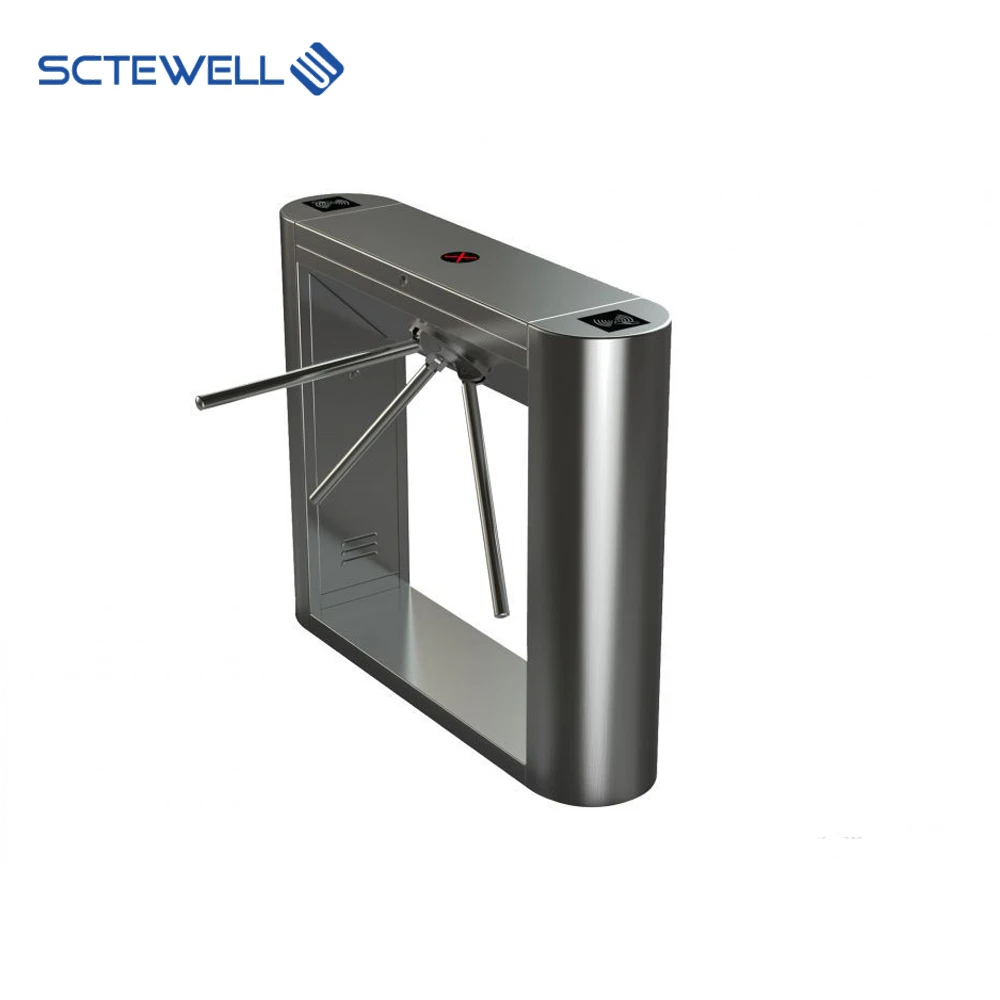

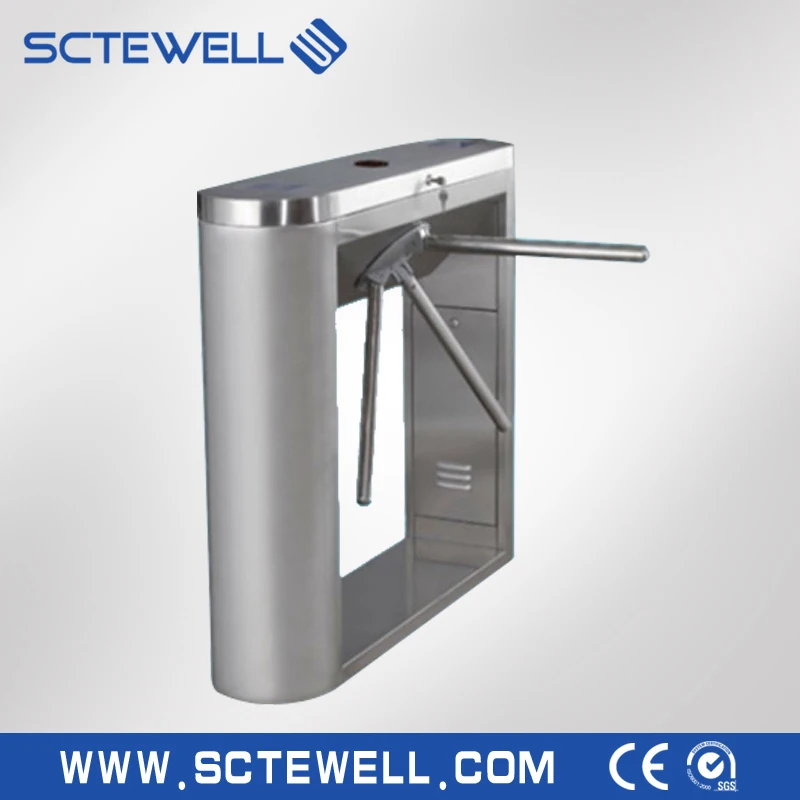

Security 304 Stainless Steel Tripod Turnstile Gates Drop Arm Turnstile QR Code Reader
The turnstile provides a basic tripod to control access smoothly and effectively by basic
operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.
According to different machine centers, intelligent tripod turnstile can be divided into fully automatic tripod turnstile and
semi-automatic tripod turnstile. Their differences are fully automatic product can finish any work by power. The arm will
automatically drop when it is powered off. And the arm will automatically go up when power is turned on again.
semi-automatic tripod turnstile. Their differences are fully automatic product can finish any work by power. The arm will
automatically drop when it is powered off. And the arm will automatically go up when power is turned on again.
Specification
item | value |
Model Number | RAP-ST204 |
Product name | Tripod Turnstile |
Arem Lenth | 510mm |
Logic voltage | 24v |
interface | standard port-RS485 |
Transit speed | 20-30 persons per minute |
Weight | 60 kg/pcs |
Specification | 1200*280*990cm |
Motor | DC 24V Brushless Motor |
Power supply | AC220V±10V, 50HZ |
working Temperature | -15℃一60℃ |
Material | 304 stainless steel |
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on,turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction
card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7.It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8. It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is
optional)
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on,turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction
card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7.It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8. It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is
optional)
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
Features＆Function
Rod sleeve design：
There is a red cylinder protective sleeve,
To protect the 3 pcs swing arm
SUS 304 framework
SUS304 framework, 1.5 mm thickness, Grinding / draw bench surface,hard-wearing quality.
Design accord to Body Engineering
Fixing screw add spring washer to prevent loosening,improve the Pit impact function。Perfect heat Dissipation Structure ,firmware is good at anti-corrosion.
One way or two way swipe card，attractive appearance，antirust and durable.
Reinforce base design make the turnstile more solidly.
We specially add heat sink holes to heat dissipation and make the lifetime longer.
Our project
Applicable Scene
Packing & Delivery
Packing details：
The wooden box is fumigated, inner is with carton package, protect machine not damage.
package size：136*38*115 cm weight: 63 KG
Delivery details:
Transportation by air or by sea is support, according to customer require choose the best solution.
Payment:T/T in advance,western union,L/C
Company Profile
FAQ
Q1: Can we connect your access control system with our system?
A: Yes, we provide and Software development service with connection port.
Q2: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q3: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you a copy if you want.
Q4: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates
with screws and connect power supply cables and internet cables.
Q5: How about your warranty?
A: Our products have one year warranty.
