die casting fan bimetal radiator with three windows 500mm
- Category: Other Home Heaters >>>
- Supplier: Jiangsu Unbeatable Energy Group Co. Ltd.
Share on (1707694750):
Product Overview
Description

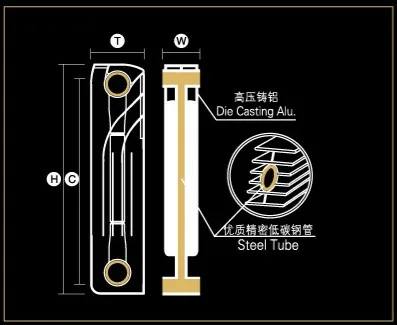

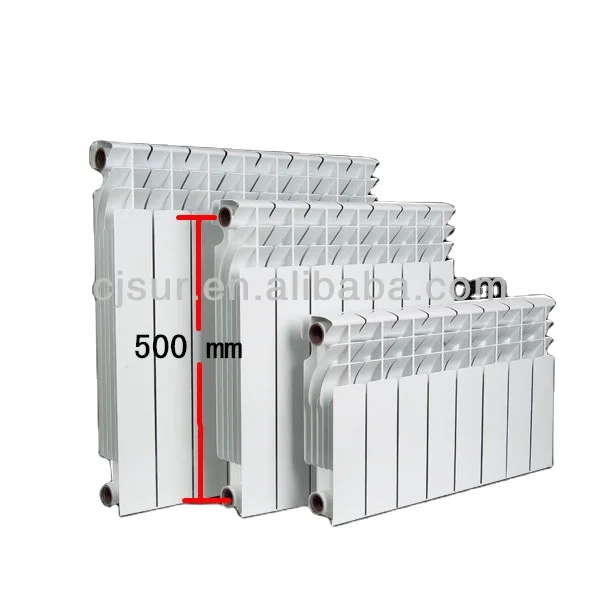

Die casted bimetal radiator 500mm
Technical data:
Model | Demension(H*W*L) | Central Distance (mm) | Working Pressure (MPa) | Thermal Output T=64.5°C(W) |

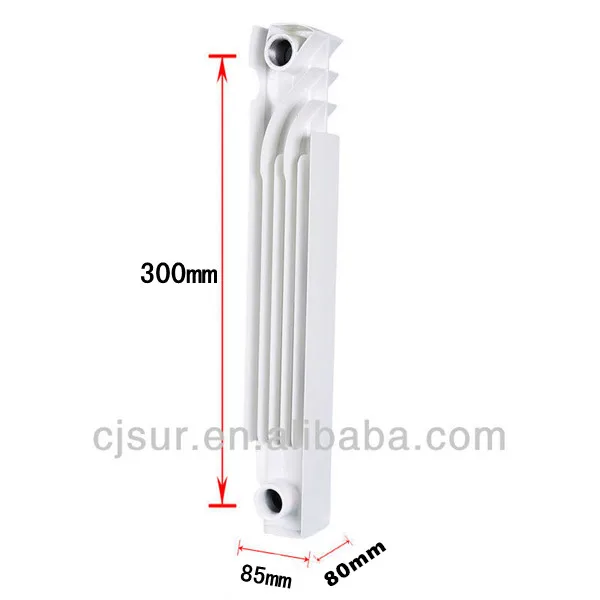

UR7002-300 | 80*85*366 | 300 | 1.5 | 128 |
UR7002-500 | 80*85*566 | 500 | 1.5 | 178 |
UR7002-600 | 80*85*666* | 600 | 1.5 | 196 |
UR7002-800 | 80*85*866 | 800 | 1.5 | 230 |
UR7002-1000 | 80*85*1066 | 1000 | 1.5 | 284 |
UR7002-1200 | 582*80*1266 | 1200 | 1.5 | 311 |
UR7002-1600 | 80*85*1666 | 1600 | 1.5 | 411 |
UR7002-1800 | 80*85*1866 | 1800 | 1.5 | 466 |
Various heating system:

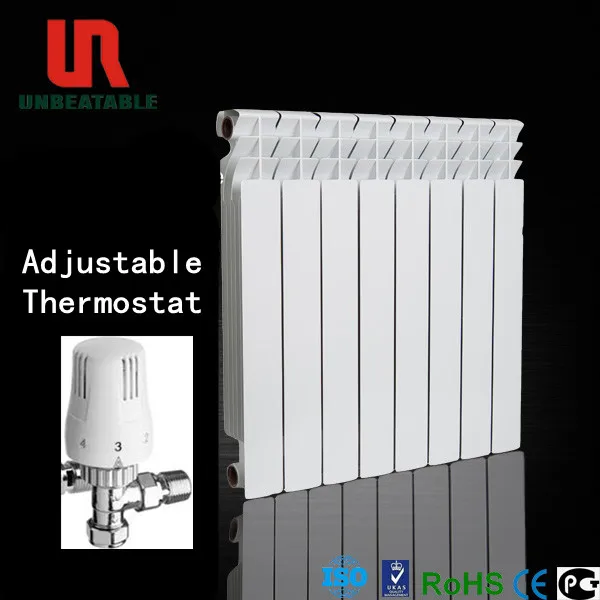

Oil-fiiled or water with thermostat electric heating wire
Advantages of UR7002 series bimetal radiators:

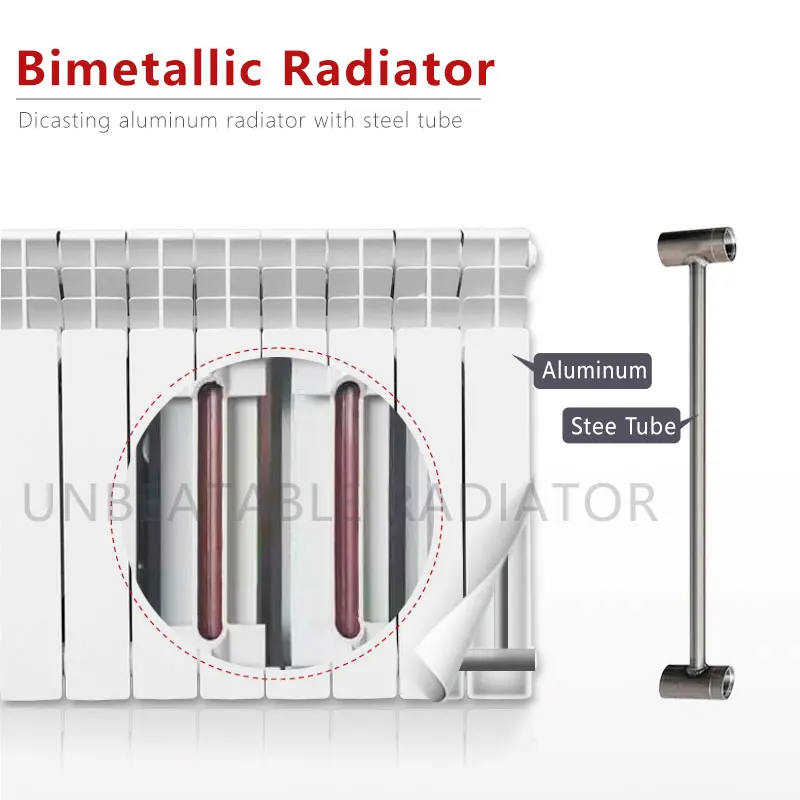

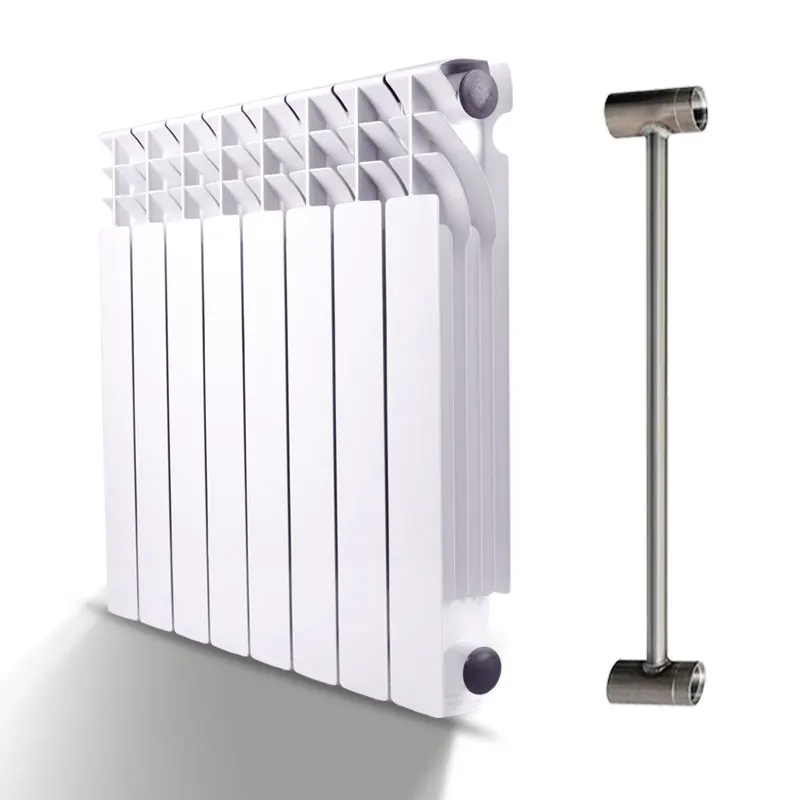

(1) Anti-corrosion ADC12 die casting aluminum body material and high quality low-carbon steel #Q235 water tube supploy double guarantees.
(2) Hidden water channel prevents children from being hurt. Bimetal radiators from 800-1600mm, we adopt the advanced plug-in techonology.
(3) Easy to adjust the element quantity for different room size and temperature request.
(4) Thanks to automatic pretreatment procedure,electrophoresis painting line and advanced
roast facility, color on surface is perfect.
(5) Efficient heating and high thermal output helps energy saving and environmental protection.
(6) No risk of excess pressure. Thiness of steel tube no less 1.8mm, which guaranteed the radiators able to withsatnd higher pressure.The testing pressure of our products is 24 bars of three times.Working pressure is 20 bars and the Max pressure is more than 38 bars.
We are professional in producing Radiators,offering 5 year's guarantee and good after-sale service.Our products are saled well in Europe, Americas, Africa and Asia.No.1 sales products are as following:
(1) MPU High Intelligence Heater
(2) Warmlet Towel Warmer with Air Blower
(3) Die Casting Aluminum Radiator
(4) Towel Warmer
(5) Bimetal Radiator
(6) Specific Accessories matched with our Raiators
We have strong support from our company's advanced manufacturing facilities and abundant personnel resource.
Production line:
Electrophoresis painting line from Germany:
Electrophoresis
♦Pretreatment: Degreasing, passivation solution from world top 500 company.
♦Electrophoresis: E-coat imported from Europe.
♦ Powder spraying: Four staggered spray guns,degreasing and passivation liquid is from Germany Henkel.
♦ 300-metre international automatic electrophoresis painting line, E-coat imported from Germany BASF, global top level technology.
Electrophoresis paninting line :
The radiators are immersed in solution in an electrified tank containing the paint. It is draw to the parts, where the addition or subtraction of electrons change, the paint from ions in solution to solid particles adhering to the parts in a manner.
The coatings cover every nook and cranny because as the high sports become electro coated, analogous toelectroplating of metals.
Through the procedure, this painting application, offers an excellent corrosion protection and great absorption to the surface.
Production line:
Packaging & Shipping
Packing of water aluminium radiator:
(1)Automatic thermal film with sealing system
(2)Master carton,1 set/carton
(3)Double packing protection prevent products from damage
(4) Automatic thermal film and sealing system,1-2 color watermark carton, 5 corrugated thick carton
Welcome your inquiries and site visit !
