ITC T 4060MP Series 4 Channel 4*4 Audio Matrix Various Occasion Used PA System for Sale
- Category: >>>
- Supplier: Guangzhou ITC Electronic Technology Limited
Share on (1707880032):
Product Overview
Description
ITC T-4060MP Series 4 Channel 4*4 Audio Matrix Various Occasion Used PA System for Sale

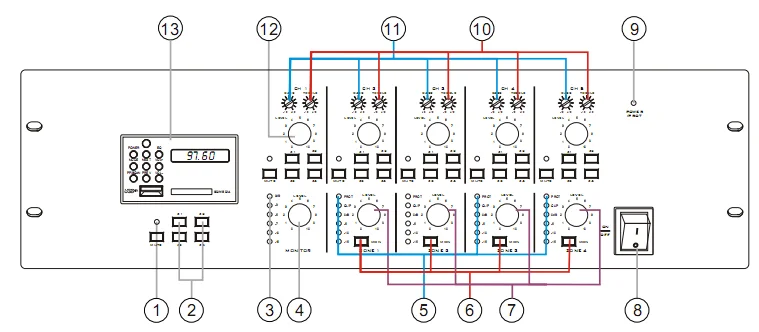

Front Panel
1 Button for mute control
2 Matrix-style choosing output buttons for MP3 and radio tuner
3 Monitor volume level indicators
4 Adjustment rotary knob for monitor volume
5 Volume level indicator for each zone
6 Switcher for monitor
7 Volume control for each output
8 Power Switcher
9 Indicator for Power
10 Individual treble control
11 Individual bass control
12 Volume control for Channel 1
13 MP3 Player with USB port and SD slot

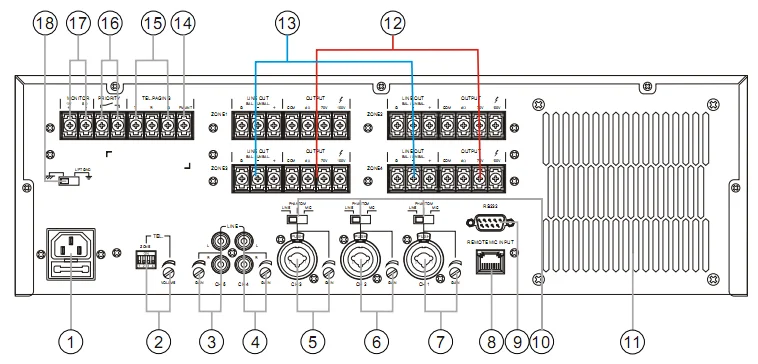

Rear Panel
1 Socket for AC power
2 DIP switch and volume control for TEL
3 Input and gain control for Channel 5
4 Input and gain control for Channel 4
5 Mic/Line input and gain control for Channel 3
6 Mic/Line input and gain control for Channel 2
7 Mic/Line input and gain control for Channel 1
8 Input for remote paging microphone
9 RS232
10 Switcher for Mic and Line
11 Vent
12 Versatile speaker output of Zone 1 to 4
13 Line output for Zone 1 to 4
14 Antenna port
15 TEL input
16 Short receiving port to change the priority between TEL and MIC 1
17 Monitor output
18 Ground method swithcer
Feature
l It’s 4 channel amplifier in design of 3U rack mount.
l All input could be matrix-style assigned to different 4 output simultaneously.
l 5 input and MP3 input are with individual treble/bass control and volume control.
l 3 Mic/Line input is with phantom power and gain control.
l 2 AUX input is in type of RCA and is with gain control.
l It’s with both USB port & SD slot to read MP3 files, which is supplied by individual power.
l It’s with internal radio tuner.
l Users could connect the host and remote paging microphone via RJ45.
l Versatile speaker output for each 4 channel: 70V, 100V and 4 ohm.
l It offers RS232 to work with third-party system.
l Priority level from high to low:
(Before triggered by short) Mic 1=TEL=Remote Mic=Mic 2>Mic 3>Line 4>Line 5>MP3
(After triggered by short) TEL=Mic 1=Remote Mic=Mic 2>Mic 3>Line 4>Line 5>MP3
l With monitor
l Complete protection for short, over-heat, overload, etc.
Specification
Model | T-4060MP | T-4120MP | T-4240MP |
Power Output | 4x60W | 4x120W | 4x240W |
Versatile Speaker Output | 70V, 100V & 4Ω | ||
Input Sensitivity & Impedance | CH1, CH2, CH3/MIC: ±2.5mV/600 ohm Phantom Power: ±2.5mV Line: AC 175mV/10 Kohm, balanced CH5, CH6:350mV/10 Kohm, balanced TEL: 350 mV/10 Kohm Remote Mic: ±387mV/10 Kohm | ||
Tone | Bass: ±10dB at 100Hz Treble:±10dB at 10KHz | ||
S/N Ratio | ≥65dB | ||
LINE1-4 Output Level | 1V/ 600 ohm (Balanced) | ||
Frequency Response | 80-16KHz (0/-3dB ) | ||
MP3 | Support MP3 format, max. of capacity is 32GB | ||
SD File System | Only support FAT16 & FAT32, not support to create folder | ||
Mp3 Format | Supports MPEG audio 1, 2 and 2.5. Supports Layer 1, 2and3 Supports sample rates 8k, 16k, 32k, 11.025k,22.05k, 44.1k, 12k, 24k and 48kHz Supports bit rate 8 to 320 kbps and VBR (Variable Bit Rate).Except free format | ||
THD | ≤1% | ||
Power Consumption | 375W | 750W | 1500W |
Power Supply | ~230V/50Hz | ||
Dimension | 484*440*132mm | ||
Weight | 8.1Kg | 11.68Kg | 22Kg |

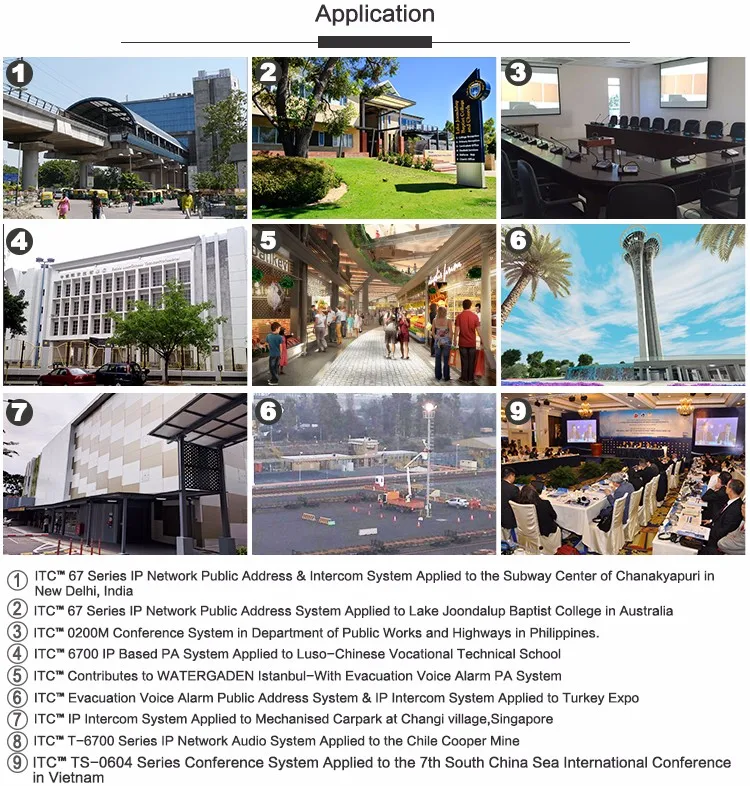

Application
