BS 5155 butterfly valve with wafer connection, centerline shaft

Product Overview

Description

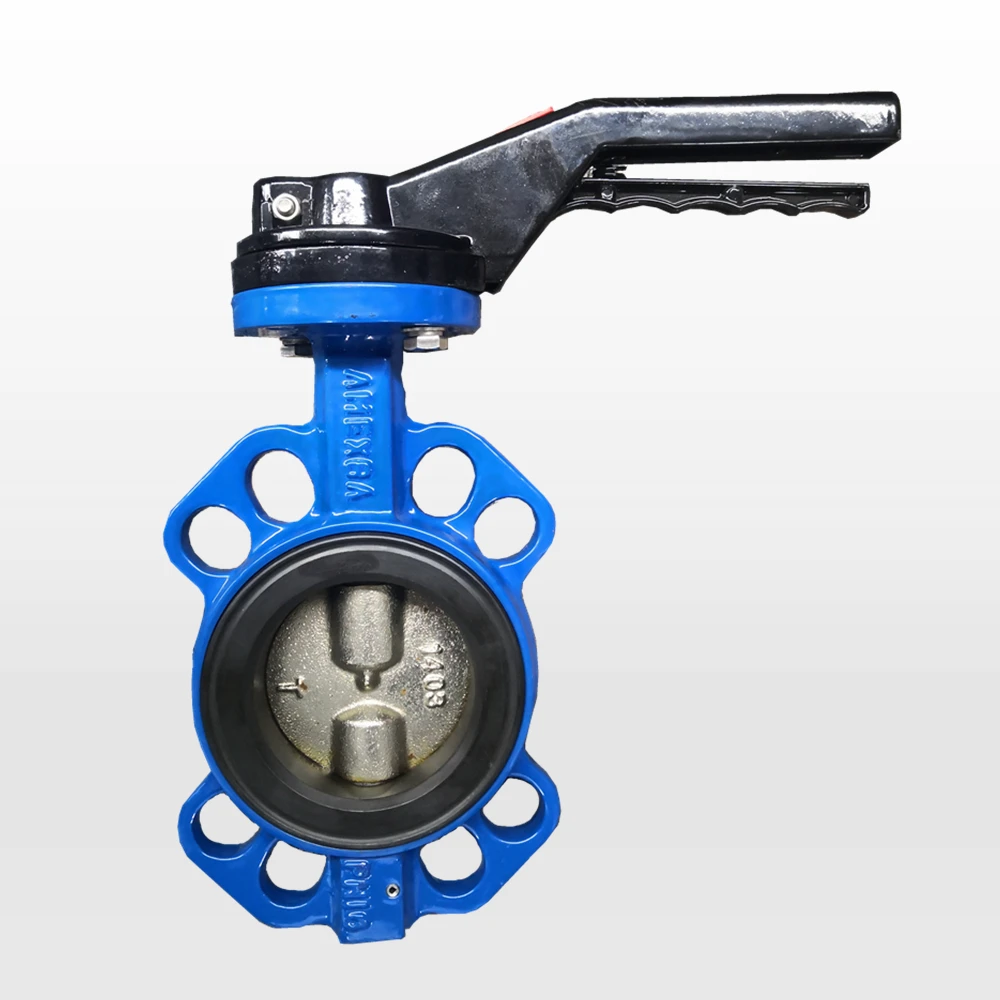

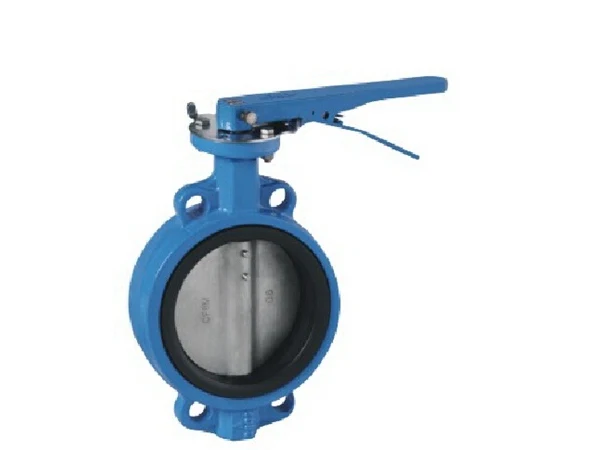

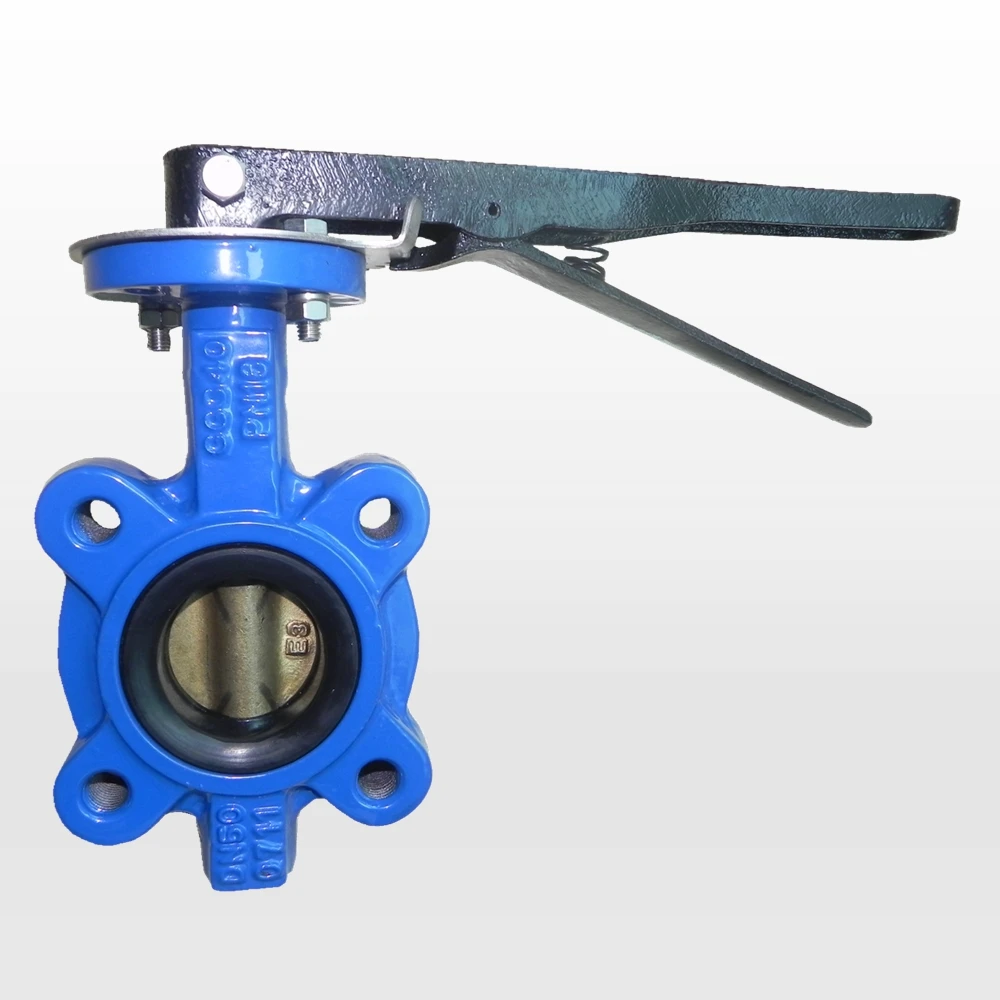

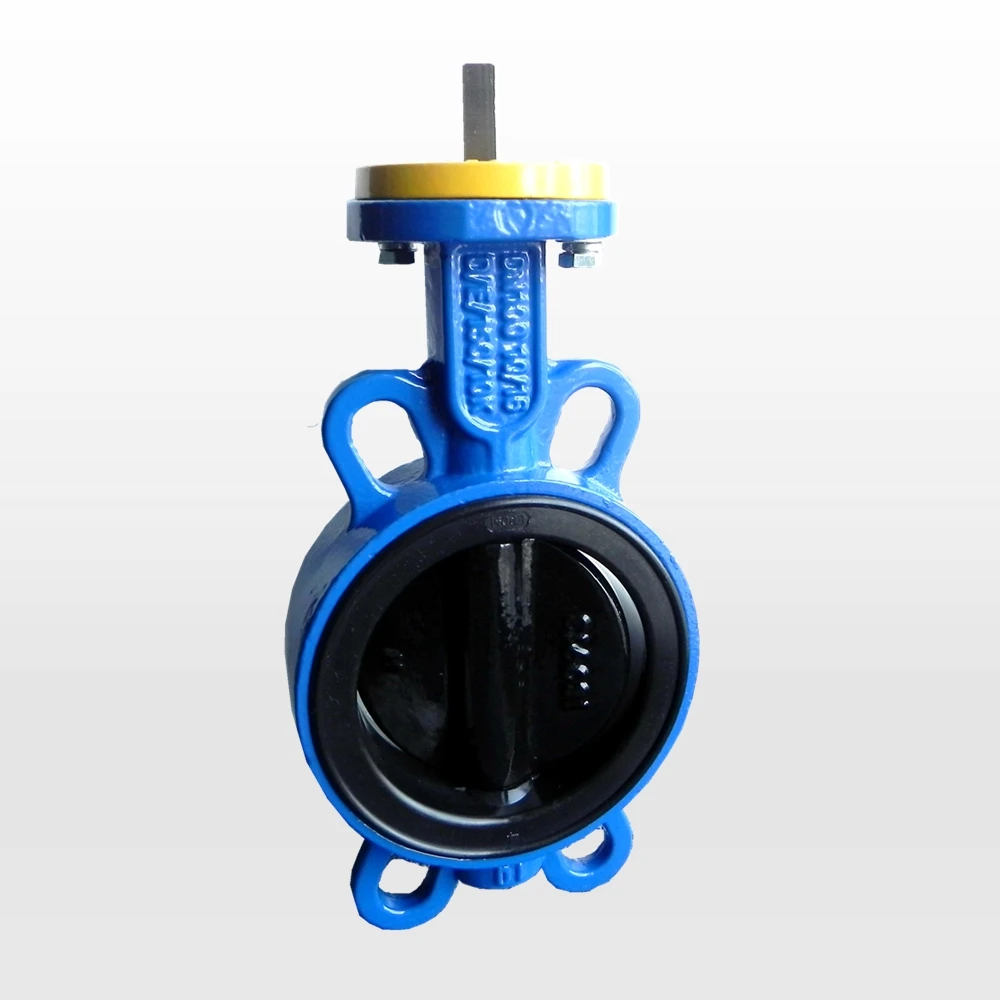

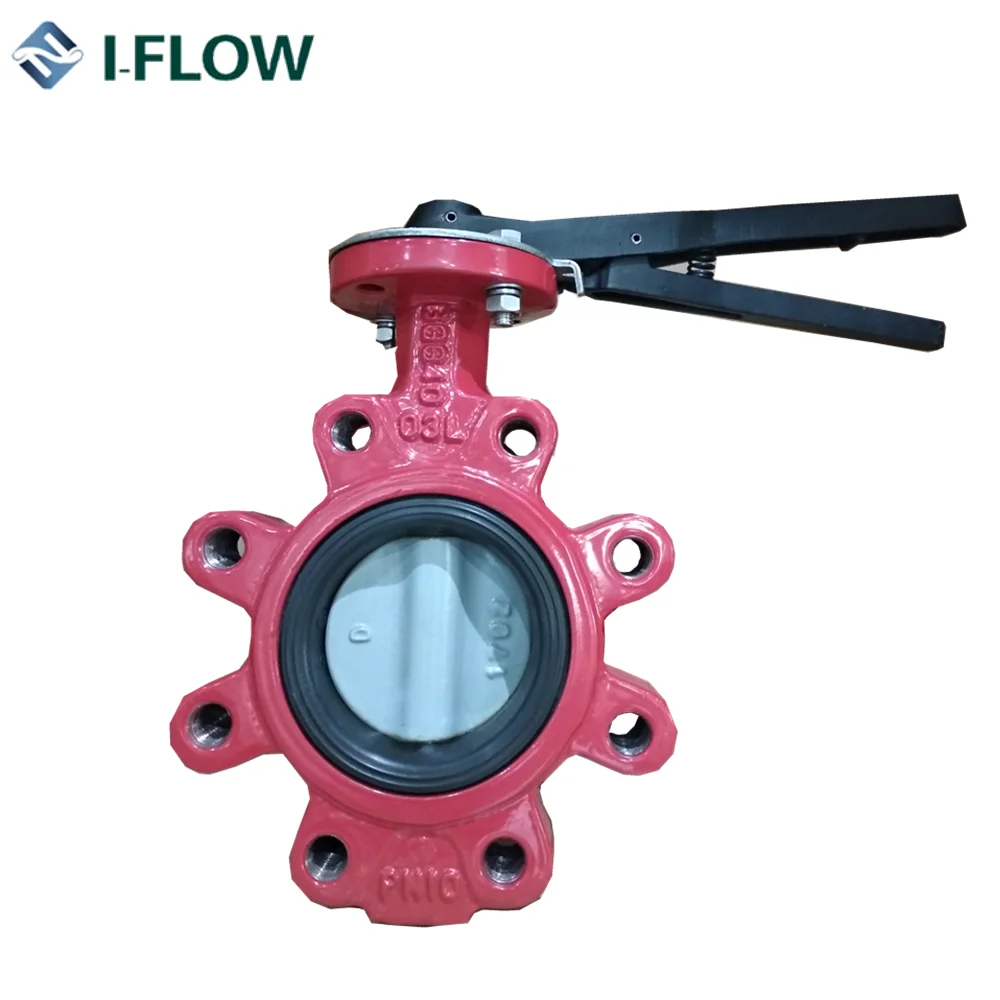

BS 5155 butterfly valve with wafer connection, centerline shaft



Face to Face:API 609 Category A

                        MSS SP-67

                        BS 5155 Series 4

                        ISO 5752 Series 20

End connection:ANSI 16.1 CLASS 125 ,B16.5 Class 150

                             EN1092-2 PN10.PN16/

                             JIS 5K,10K ,16K

Top Flange:         ISO 5211

Tightness Check: API 598 Table 5

Temperature range: -40°c to 232 °c depending on the medium and selected body/seat materials

Operating Pressure:Max 232 psi(16 bar) for DN50-DN300

                                     Max 150 psi(10 bar) fro DN350-DN1200



Standard Features:

*All wafer and lug type BFV are designed to allow for 2" of insulation

*Wafer body features 2 or 4 flange alignment holes for easy installation

  Lugged body with drilled and tapped holes may be used for dead-end service(Please specify when ordering)

*ISO 5211 top flange for easy actuation

*One-piece shaft design, blow-out proof,ensures positive disc positioning and accurate flow control.

*3 shaft bushing/seals provide shaft support for proper alignment and backup for the primary shaft seal formed by the disc/seat interface

*disc edge is machined and polished 360º to assure low friction,which results in low operating torque plus increased seat life

*Precision taper pins,vibration-proof,ensure positive shaft-disc connection

*The phenolic-backed,non-collapsible,resilient seat is perfectly secured and fully lined in the body,which isolates the body componenets from the media and provides the primary shaft seal.Seat is field replaceable.



Absolutely tight shut-off in either flow direction

Can be installed in any desired direction
