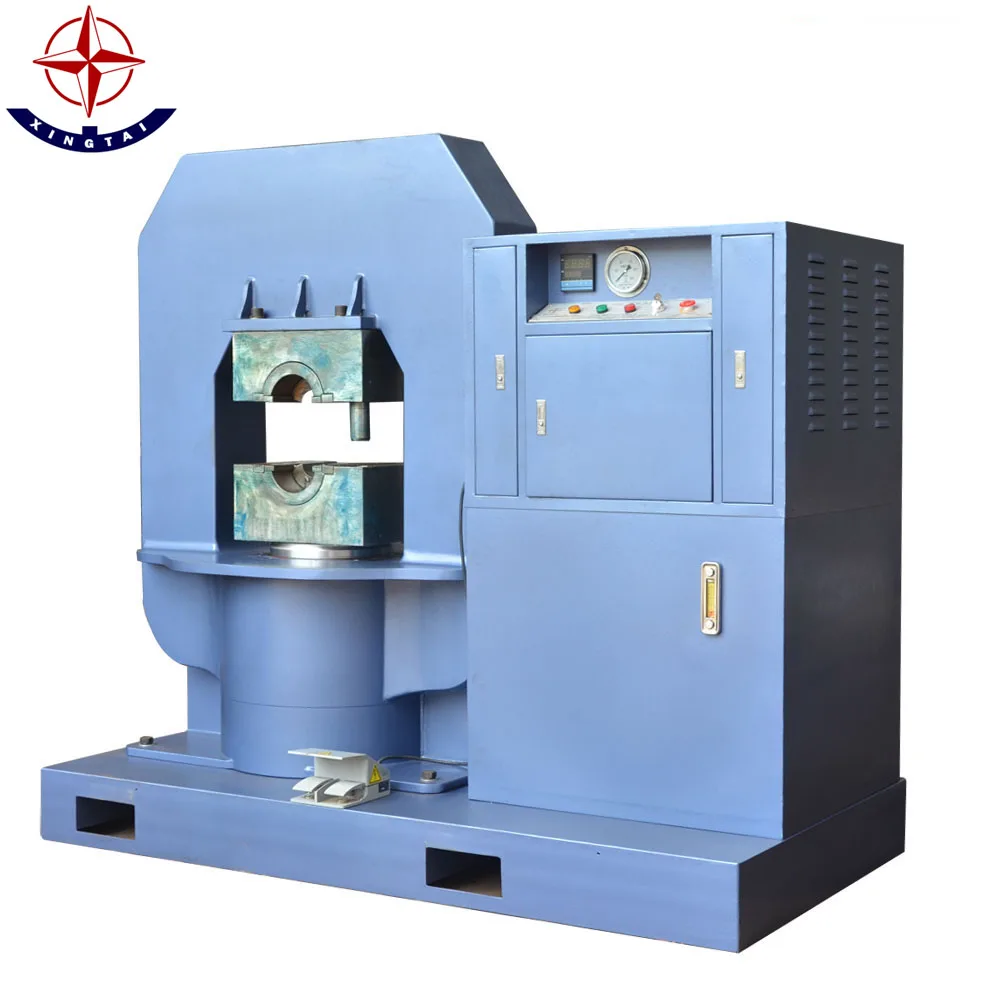

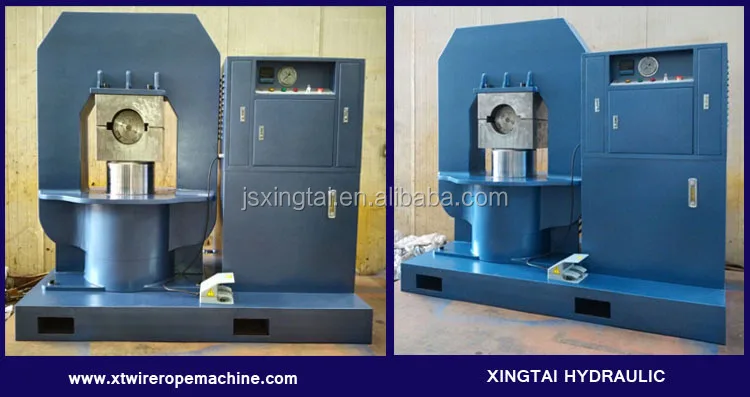

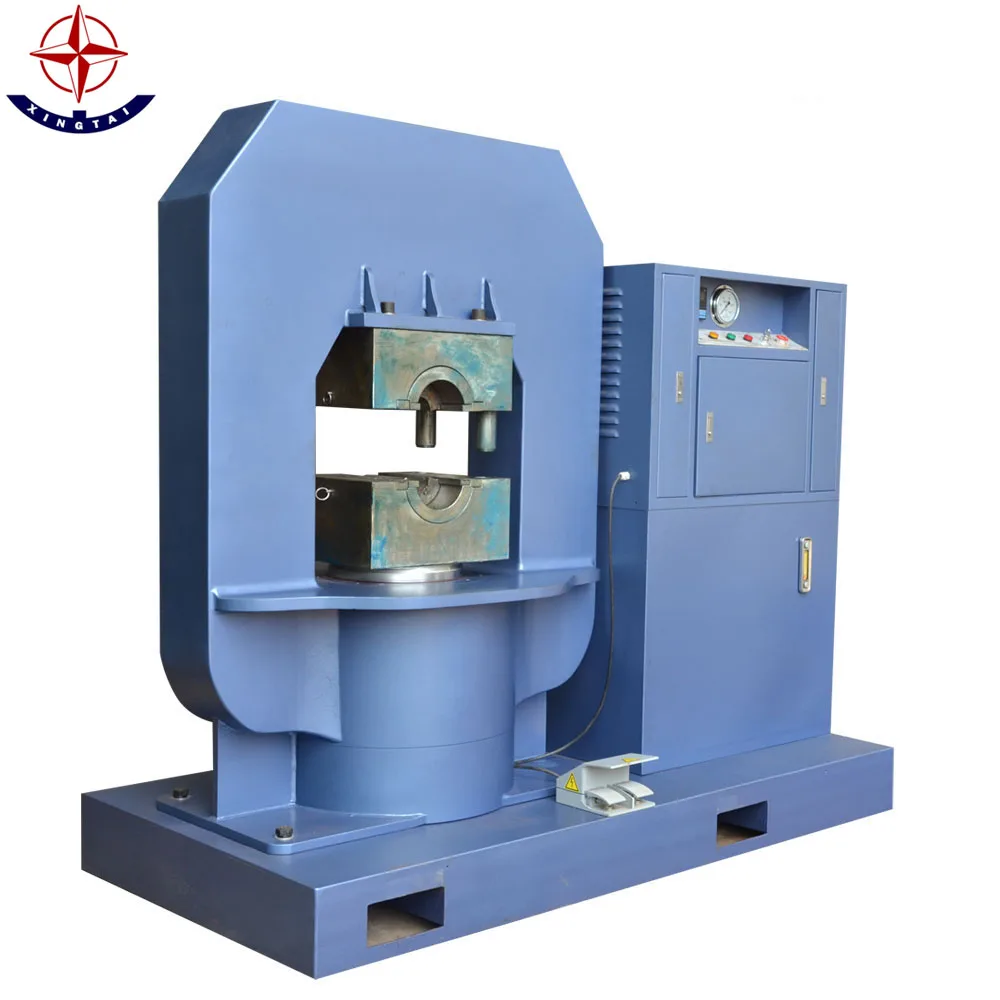

hydraulic steel wire rope splicing machine,pressing machine
- Category: >>>
- Supplier: Jiangsu Xingtai Hydraulic Manufacture Co. Ltd.
Share on (1708493742):
Product Overview
Description
Product Description

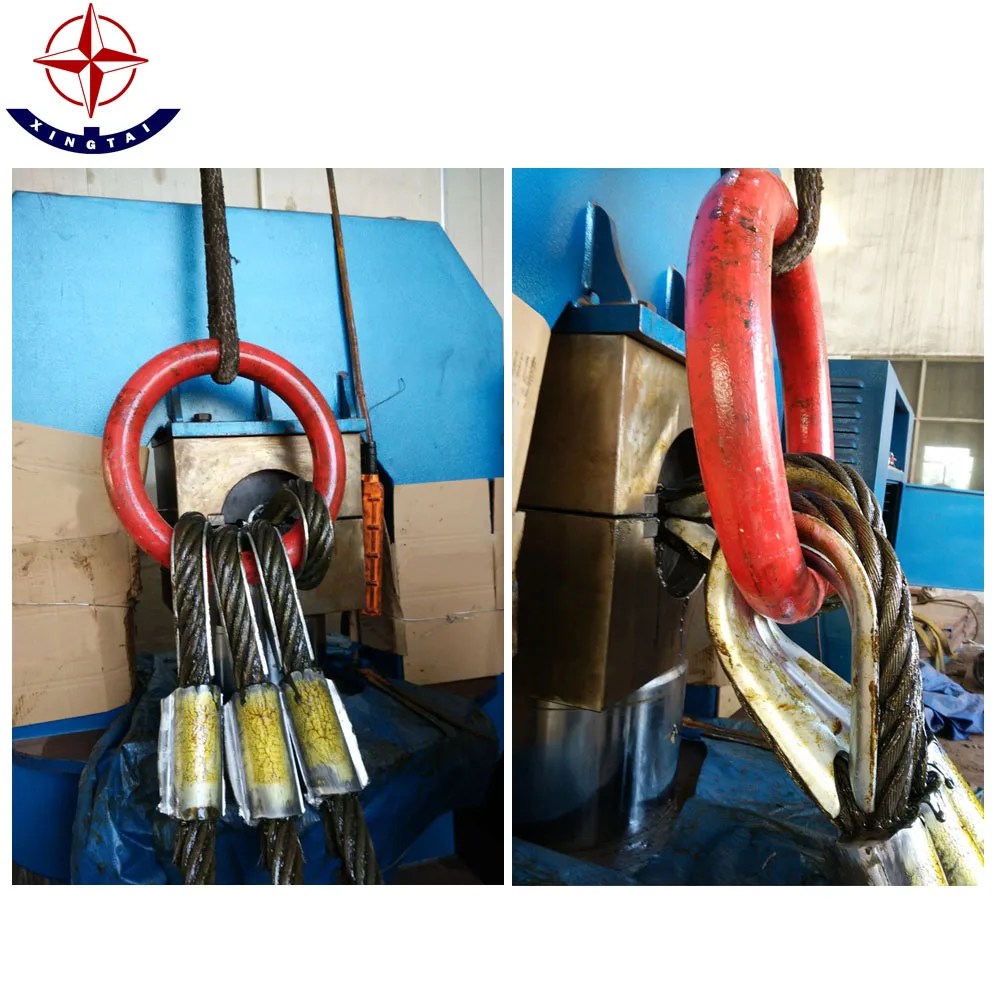

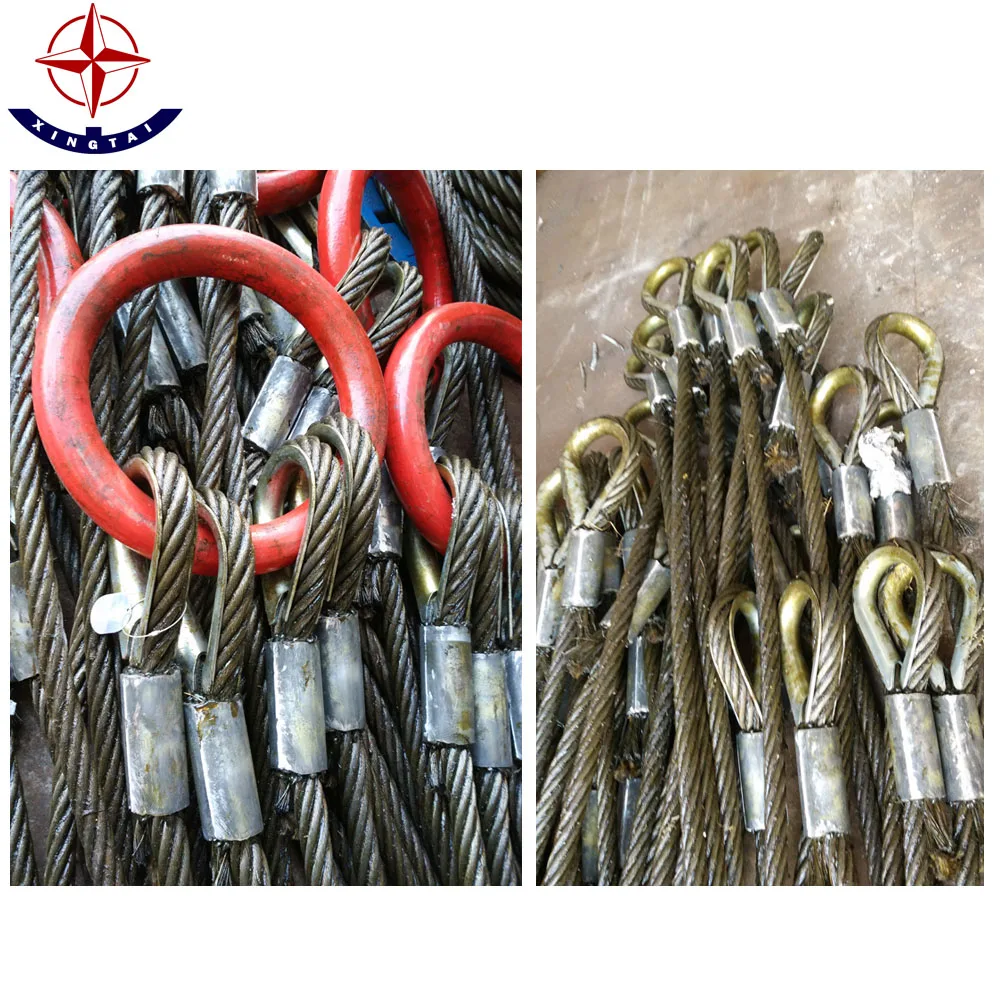

Xingtai wire rope press machines are used to make pressed wire rope sling. Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.
Product Specification | |
Mode No. | GT-1000T |
Max press power (KN) | 10000 |
Max wire rope diameter in one pressing (mm) | Φ44 |
Max wire rope diameter in multi-pressing (mm) | Φ56 |
Power (KW) | 11 |
Max working pressure (Mpa) | 56Mpa |
Max piston movement (mm) | 200 |
The up speed of piston (mm/sec) | 4.8 |
The down speed of piston (mm/sec) | 10 |
Total length (mm) | 2100 |
Total width (mm) | 1100 |
Total height (mm) | 2000 |
Net weight (kg) | 6000 |
Accessory | Seals,key,use manual |
Package | Standard export package |
Video | Yes |
Delivery time | 45 days |
Features | |
1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface | |
2. The body of swaging construction is manufactured from one single block construction that ensure stress uniform, high strength, long service life. | |
3. Xingtai use latest materials, Combined seals and ultra-wearable guide ring between the the piston rod and the cylinder, so that the cylinder is with higher sealing performance, safe, reliable and durable | |

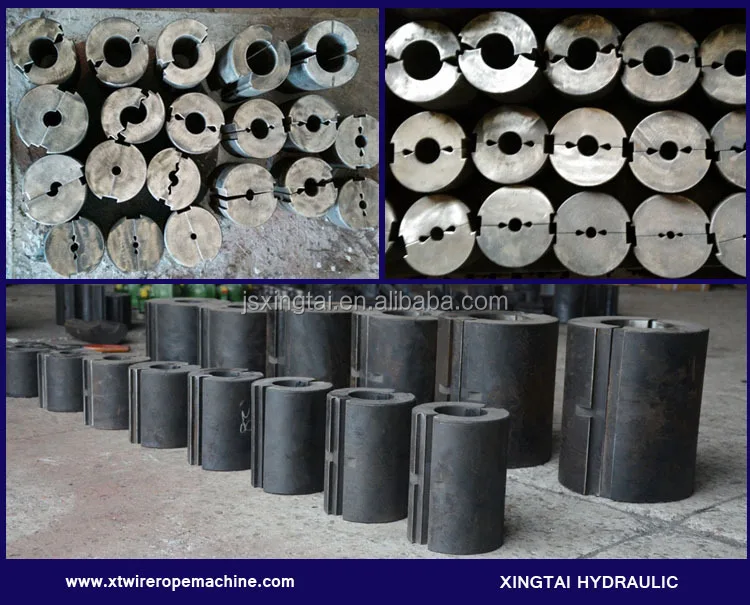

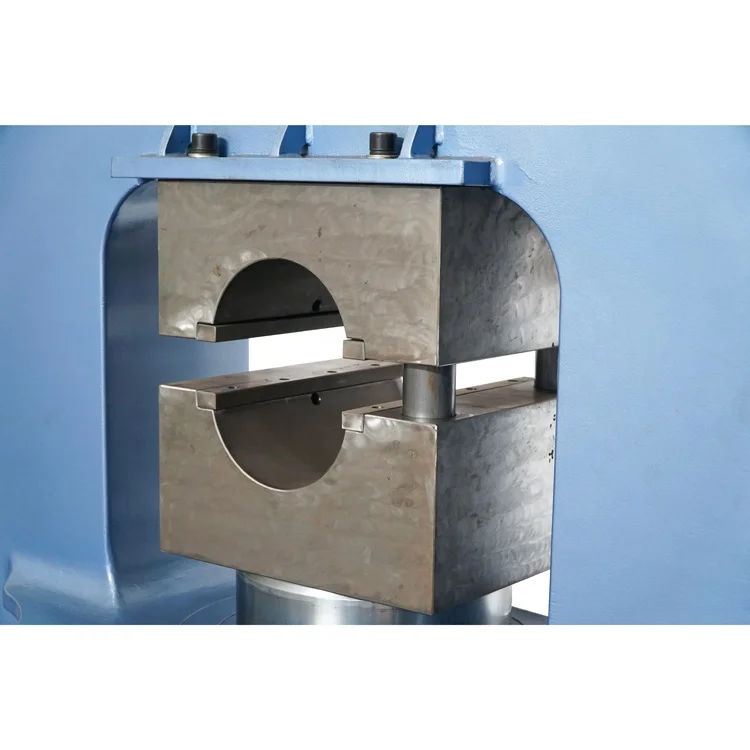

4. Round mold design and automatic positioning is easy to change different molds. | |
5. Piston can be stopped any position. | |
How to operate | |
1. Fix mould, tight the bolts on the left of both tool set; | |
2. Adjust pressure according pressure table shows on machine; | |
3. Put sleeve/ferrule with wire rope on the middle of mould vertically; | |
Operate pedal rise switch, the piston will rise and rising pilot lamp lights; Auto-stop when reach adjusted presure; operate down switch and take out pressed wire rope; | |
After-sales services | |
24 hours around the clock & 12 months warranty | |
Life-long maintenance service for the product | |

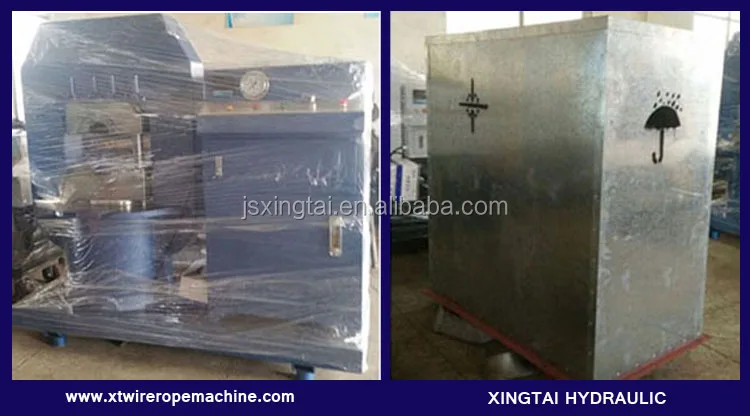

Packaging & Shipping
Shrinkrwap and iron box

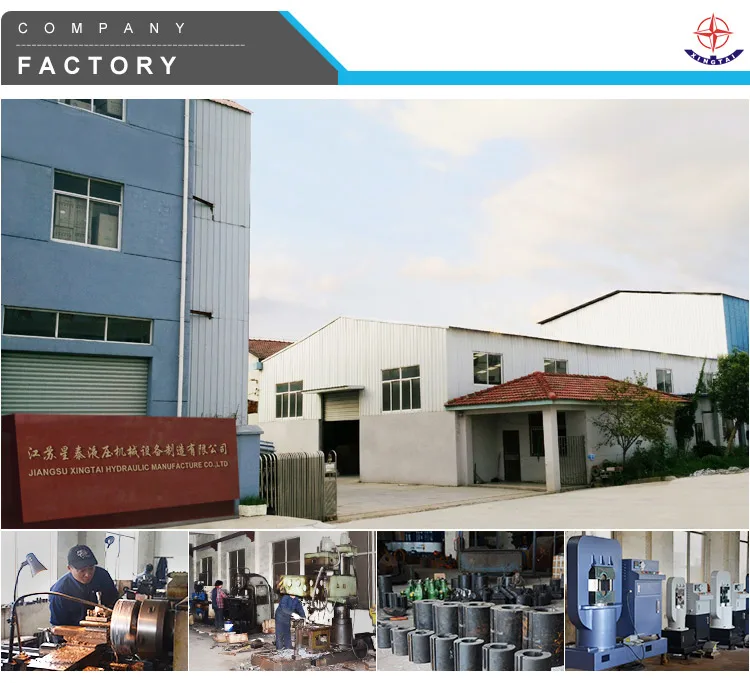

Company Information
Jiangsu Xingtai Hydraulic Manufacture Co.,Ltd was founded in 1992, and located in Taizhou City, Jiangsu Province, China. Xingtai hydraulic engages in hydraulic wire rope press machine, wire rope annealing and tapering machine,aluminium sleeve,and lifting clamp. Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.
Xingtai hydraulic regards the concept of high quality, competitive price, eternal promise as service policy, We shall meet customers'need and offer customer best service. We will try our best to provide service to our old and new clients as before and build our nice future together.
