sorting machine for beans/grain/sesame export to Bangladesh

Product Overview

Description

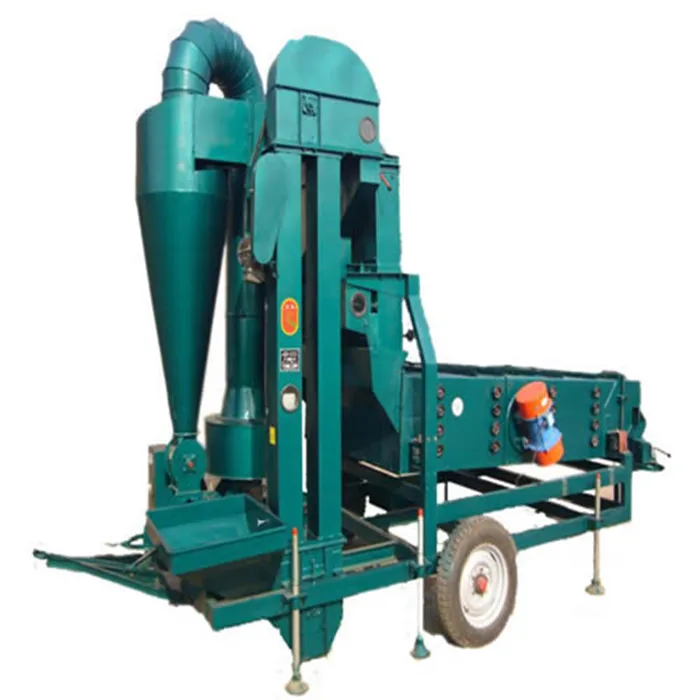

Seed cleaning and sorting machine

This series of products belong to air-and-screen cleaning equipments.

They use the difference of critical velocity in the vertical airflow between

seeds and impurities and the difference among seed geometric dimensions to separate impurities.

These products can remove absolute light,big and small impurities.They have good effect on

cleaning grain seed,tree seed,grass seed,oil crop seed and commodity grain,etc.

They widely used in seed processing and agricultural products processing industry.

The theory decide they cannot remove density-type impurities such as moulded kernels and injured kernels and injured kernels.



 Data Sheet



Model	Production power      Kg/h	Total power    Kw	Total Weight     kg	External Dimensions  Length x width x height
5XC-3B	3000	4.25	1200	3970X1770X2720
5XC-5B	5000	6.99	1500	5010X1820X3050
5XC-5BH	5000	7.74	1500	5010X1820X3350
5XC-7.5BH	7500	10.1	1800	5340X2060X3560
5XC-10	10000	6.99	1600	4200X2300X3200
5XC-15BH	10000	10.5	2000	5340X2310X3560

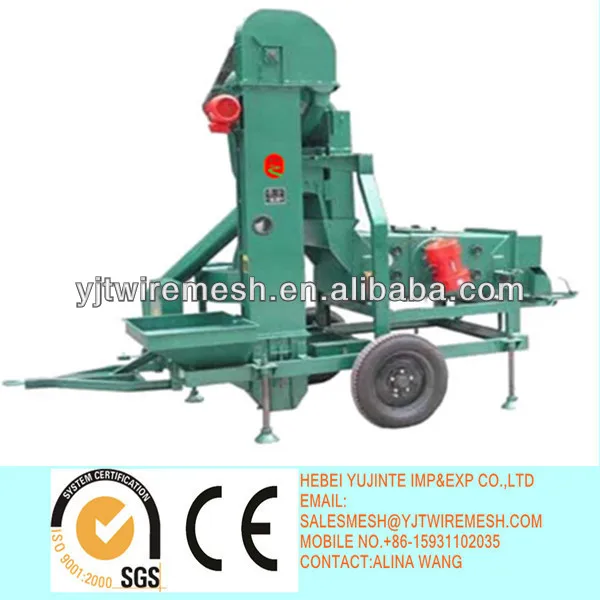

5XC-3B Seed cleaning and sorting machine

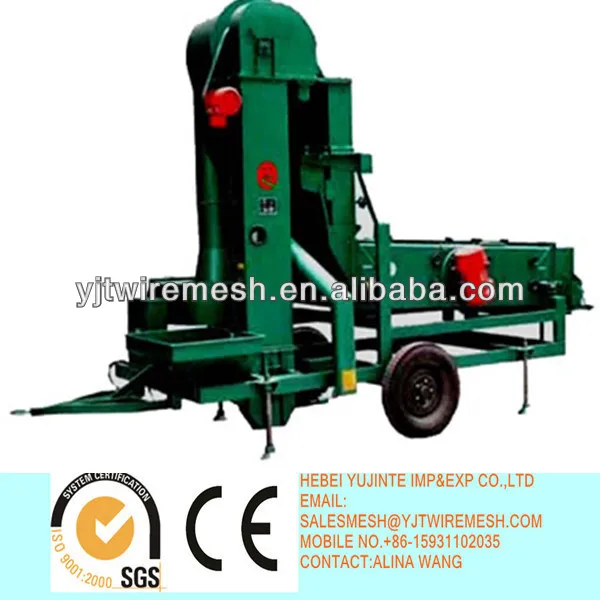

5XC-5B Seed cleaning and sorting machine

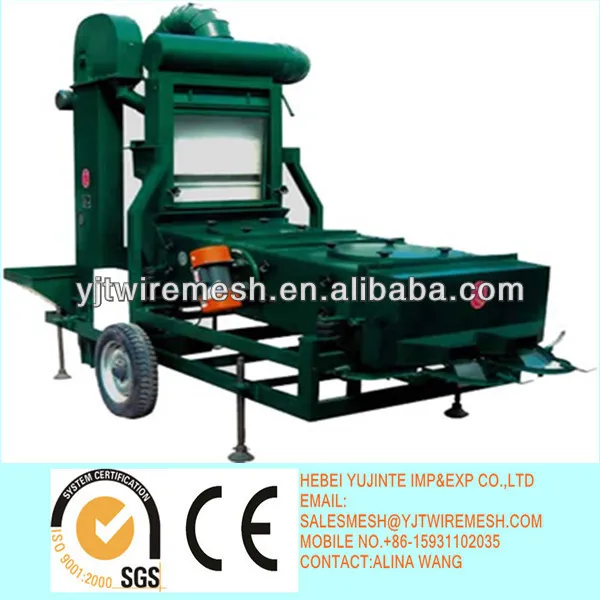

5XC-5BH Seed cleaning and sorting machine

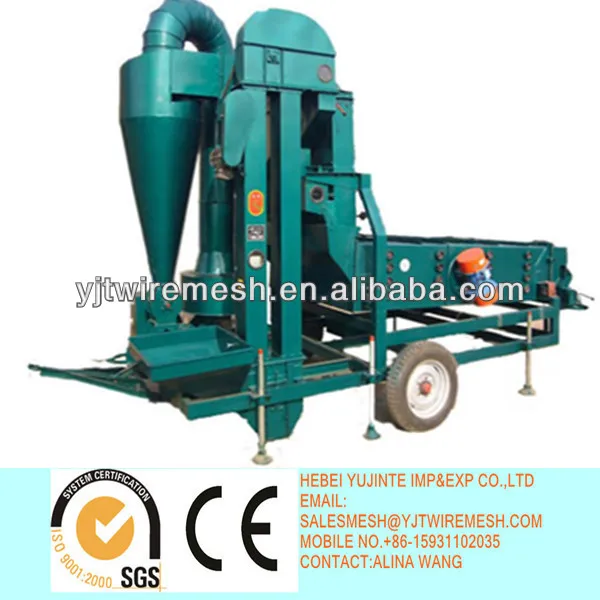

5XC-7.5BH Seed cleaning and sorting machine

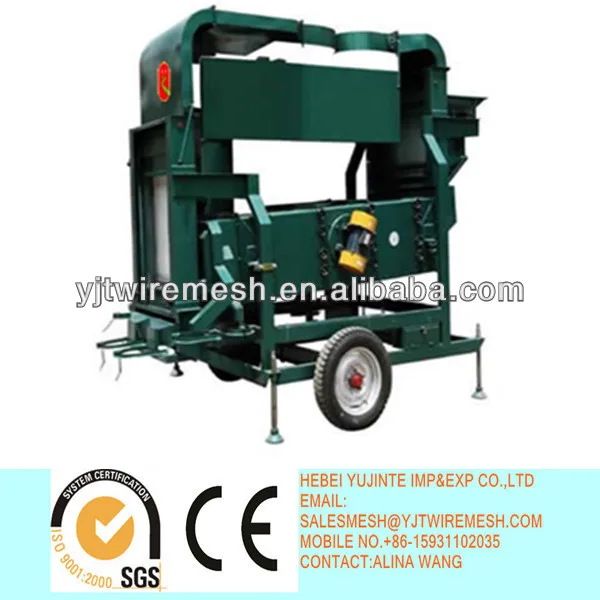

5XC-10 Seed cleaning and sorting machine

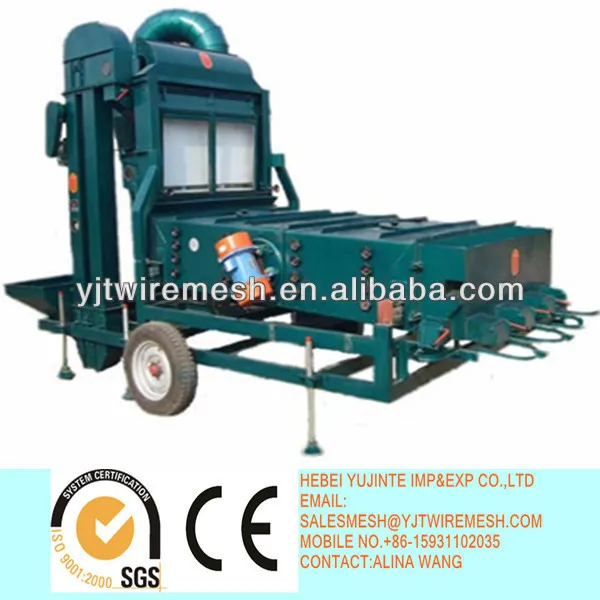

5XC-15BH Seed cleaning and sorting machine
