Product Overview

Description

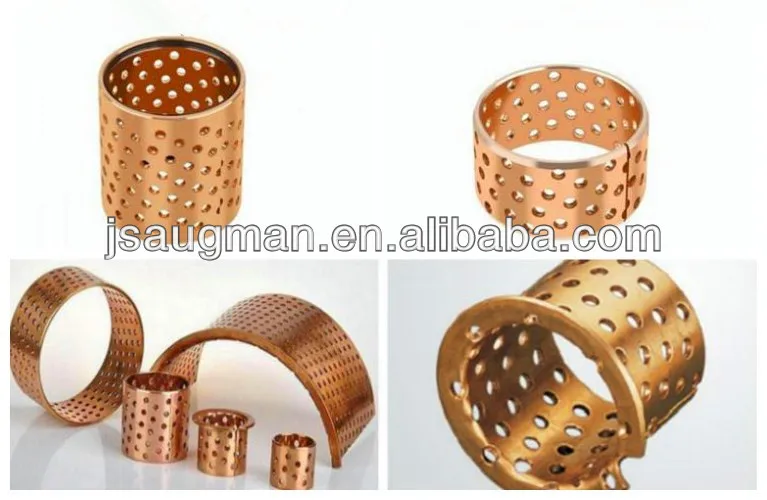

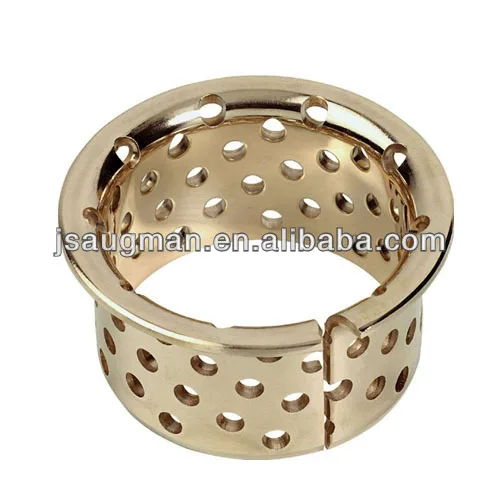

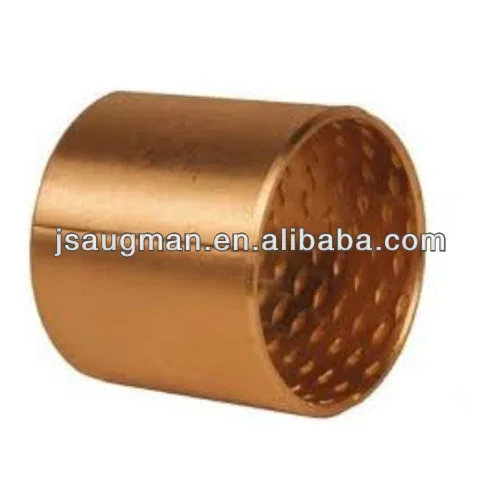

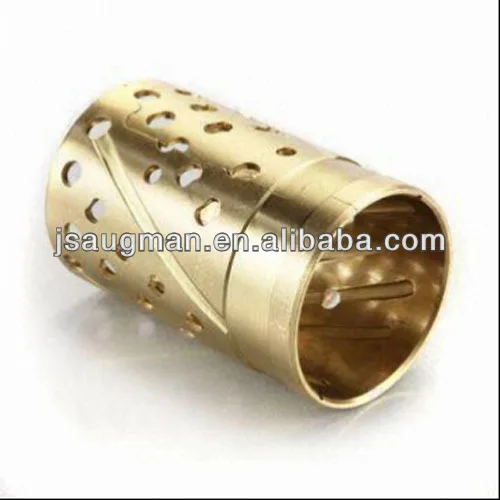

sintered bronze bush bearing oil bearing FB-090 wrapped bronze bushing

Introduction:

FB090 Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.

The sliding surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.

Technical Data:

Material	static	120N/m m²	Hardness	HB 110-150
	dynamic	40N/m	Extension of degree	40%
Maximum linear speed		2m/s	tempearure	-100°C~+200°C
Max.PV		2.8N/mm*/s	Friction coefficient	0.08~0.25
strength of extension		450N/m m²	heat conductivity coefficient	60W(mk)-1
yield strength		250N/m m²	coefficient of thermal expansion	15x10-6k-1

Features:

1. Thermal conductivity, high load-bearing capacity is strong.

2. Excellent chemical corrosion resistance performance.

3. Inner hole can leave allowance for secondary processing

 Applications:

These bearings are suitable for both radial and axial movements.

The bushings are well suited for machinery in dirty environments where shock loads and/or vibrations occur.

Our FB series bearings including:

Material Type	FB-090	FB-092	FB-08G	FB-09G
Load capacity	75n/mm²	60n/mm²	65n/mm²	65n/mm²
Temperature	-80~200°c	-100~200°c	-100~260°c	-100~260°c
Speed limit	2.5m/s	2.5m/s	4m/s	4m/s
PV limit(oil)	16N/mm²·m/s	16N/mm²·m/s	15 N/mm²·m/s	15 N/mm²·m/s
