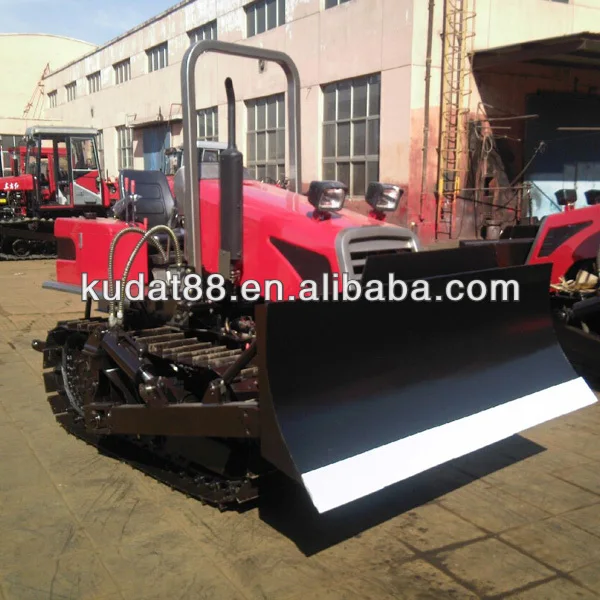

mini bulldozer C402Q
- Category: >>>
- Supplier: Wuhan Kudat Industry & Trade Co. Ltd.
Share on (1709252910):
Product Overview
Description
mini bulldozer C402Q
C402Q(Q X)/C502Q(QX)
Belong 40-60(C402/C502/C602)horsepower series ,suitable for agricultural tasks and earthwork tasks and orchard tasks.
Considerable design control system, according with driver habit, comfortable and handiness, reduce intensity of labor.
Main clutch is new frame, with easy control and great durability.(4F+2R)×2 gearbox adopt mating ring shifting, more reliable ,light control force ,comfortable the driver ,promote machine speed with great efficiency .
Main technical specifications
Type | C402Q(QX) | C502Q(QX) |
| |
Engine type | Model | LR3105T60 | LR3108T52 |
|
cylinder diameter × journey | 105×120 | 108×120 |
| |
Rated power out put (kW) | 29.41 | 36.76 |
| |
Rated speed (r/min) | 2200 | 2200 |
| |
Fuel Consumption (g/kW•h) | 242 | 235 |
| |
Overall dimensions L×W×H (mm) | 3735×2016×2176 (With blade) | |||
Operating weight (kg) | 3650(With blade) | |||
Track gauge (mm) | 1100 | |||
Wheel base (mm) | 1600 | |||
Track width (mm) | 310 | |||
Ground pressure (kPa) | 34.58(With blade) | |||
Blade | Type | Stationary straight shovel | ||
Height ×width | 850×2462 | |||
Drop below ground | ≥290 | |||
Lifting height | >625 | |||
