Roller blinds cutting machine(ultrasonic)

Product Overview

Description

GOOD CHOICE TO CUTTING ROLLER BLIND FABRIC!

SPECIFICATIONS

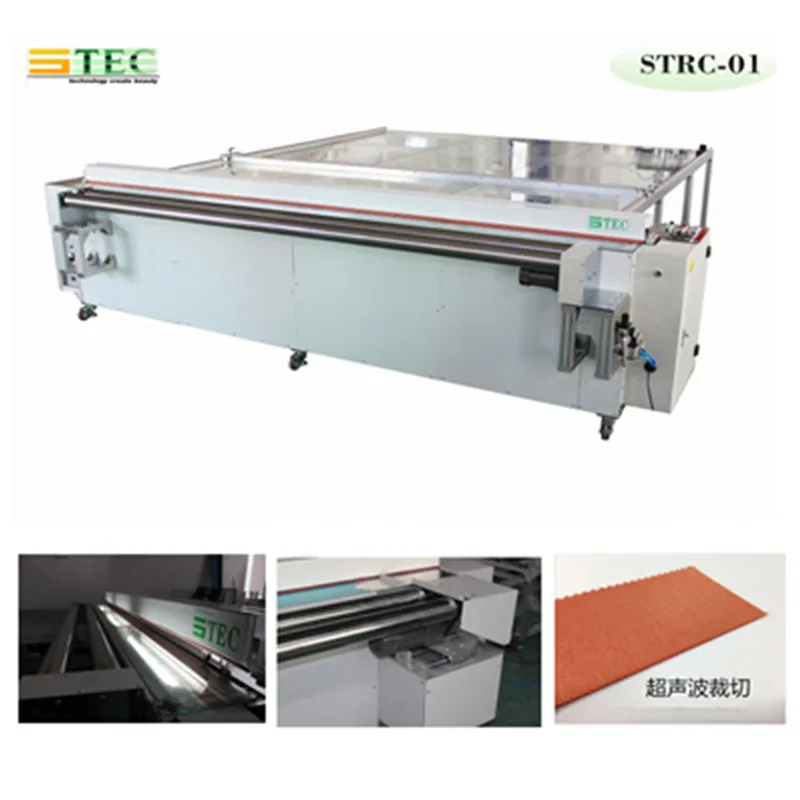

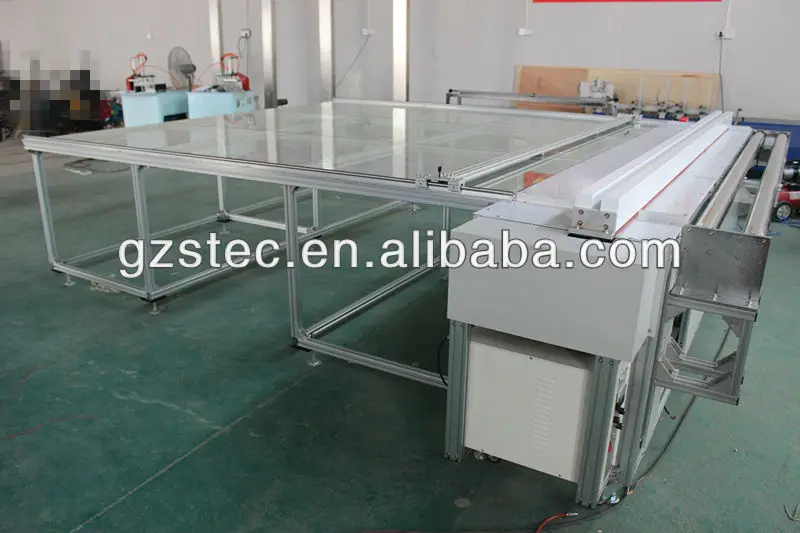

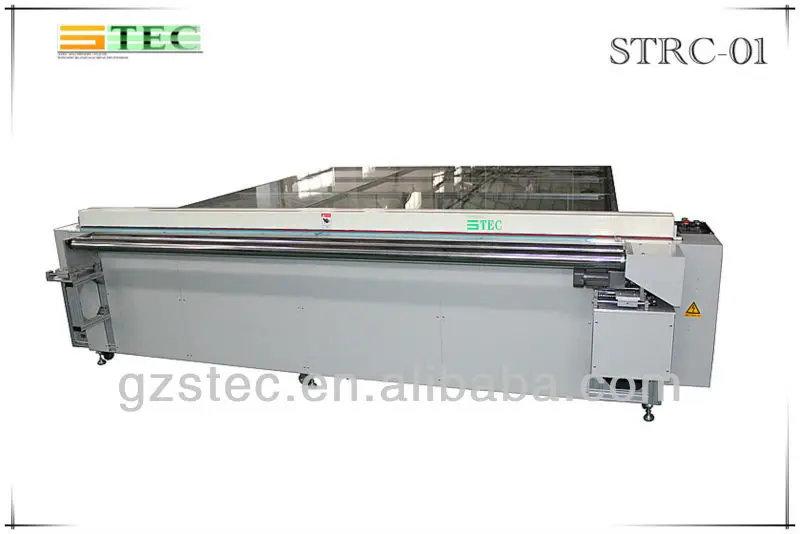

Ultrasonic Roller Blind Fabric Cutting machine
Voltage	110/220V AC 50/60HZ
Rate power	2.0KW
Working air pressure	0.4~0.5PMA
Max fabric cutting width	2700mm/3000mm(standard)/3500mm/4000mm
Cutting system	20K Ultrasonic cutting
Blade	HSS Blade
Leveling	Adjustable foot leveling with wheel
Dimension	L3900mm*W900mm*H1100mm
Packing size	4100mm*1000mm*1250mm
N.W	750KG
G.W	860KG
Package	Steel frame with poly wood board cover



1. Suitable for cutting sunscreen fabric, polyester base fabric, PVC fabric, awning fabric.
2. Excellent cutting and sealing propertis
3. Stable ultrasoinc output, cutting the fabric with beautiful edge, no fray, no bruning.
4. This machine uses the liner cutting system with perfect straight cuts for square cutting
5. Fabric sensing system, to improve the cutting speed. Cutting knife will return immediately after cutting any wide fabric.
6. Electric fabric feeding and fabric calibrating moving system to improve feeding speed and accuracy.

7.Optional function:

• remove control


• back table with rolling jig

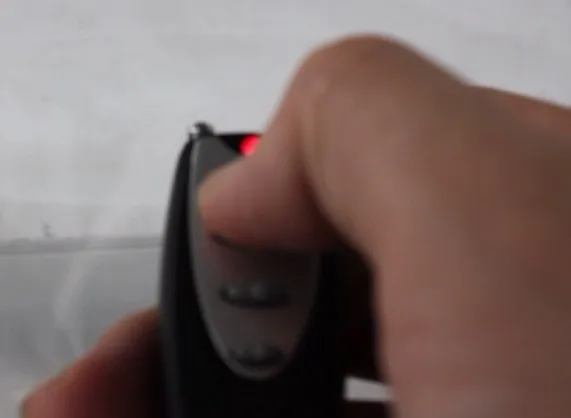

OPTIONAL FUNCTION:REMOVE CONTROL

CUTTING EFFECT

APPLICATION

PACKING AND SHIPPING

Package:steel frame with polywood cover(no wood),make sure machines in good condition .
