Product Overview

Description

GSM Electric Gate Roller Shutter Garage Door



Gsm Gate Opener

Gsm Swing Garage Door Opener

Electric Roller Shutter Opener

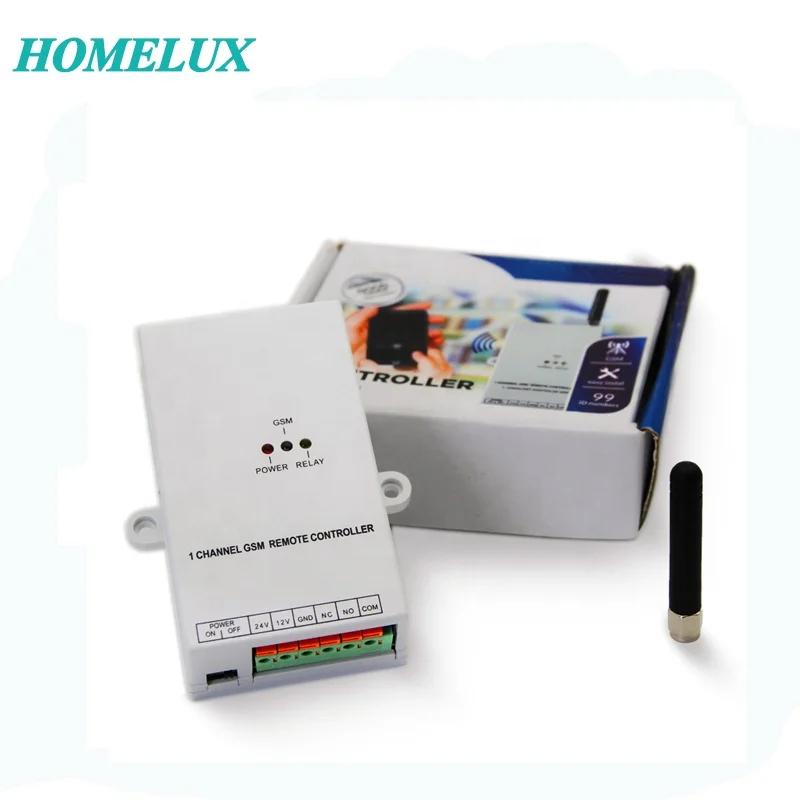

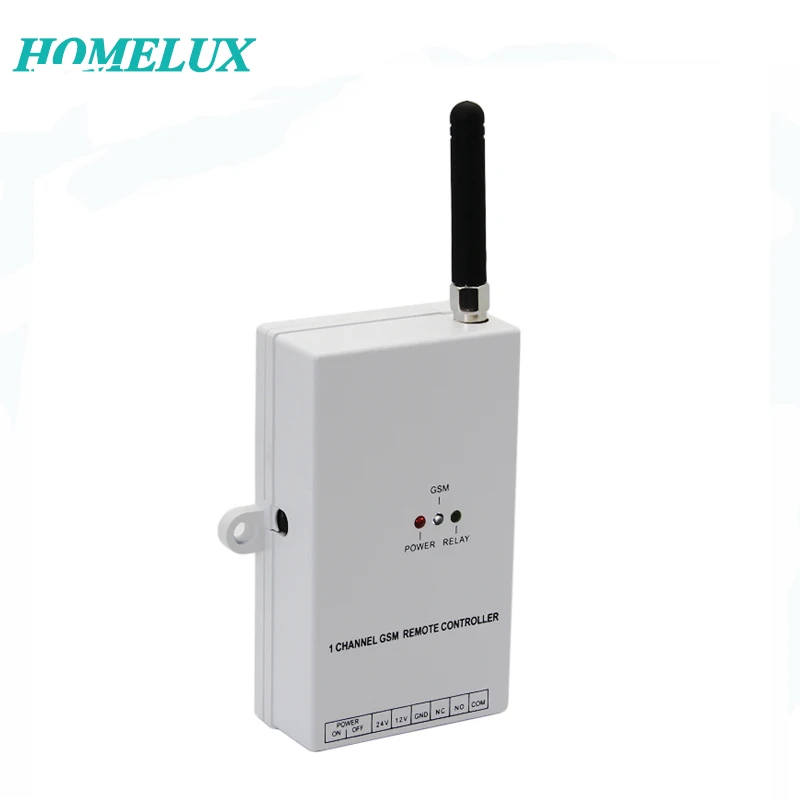

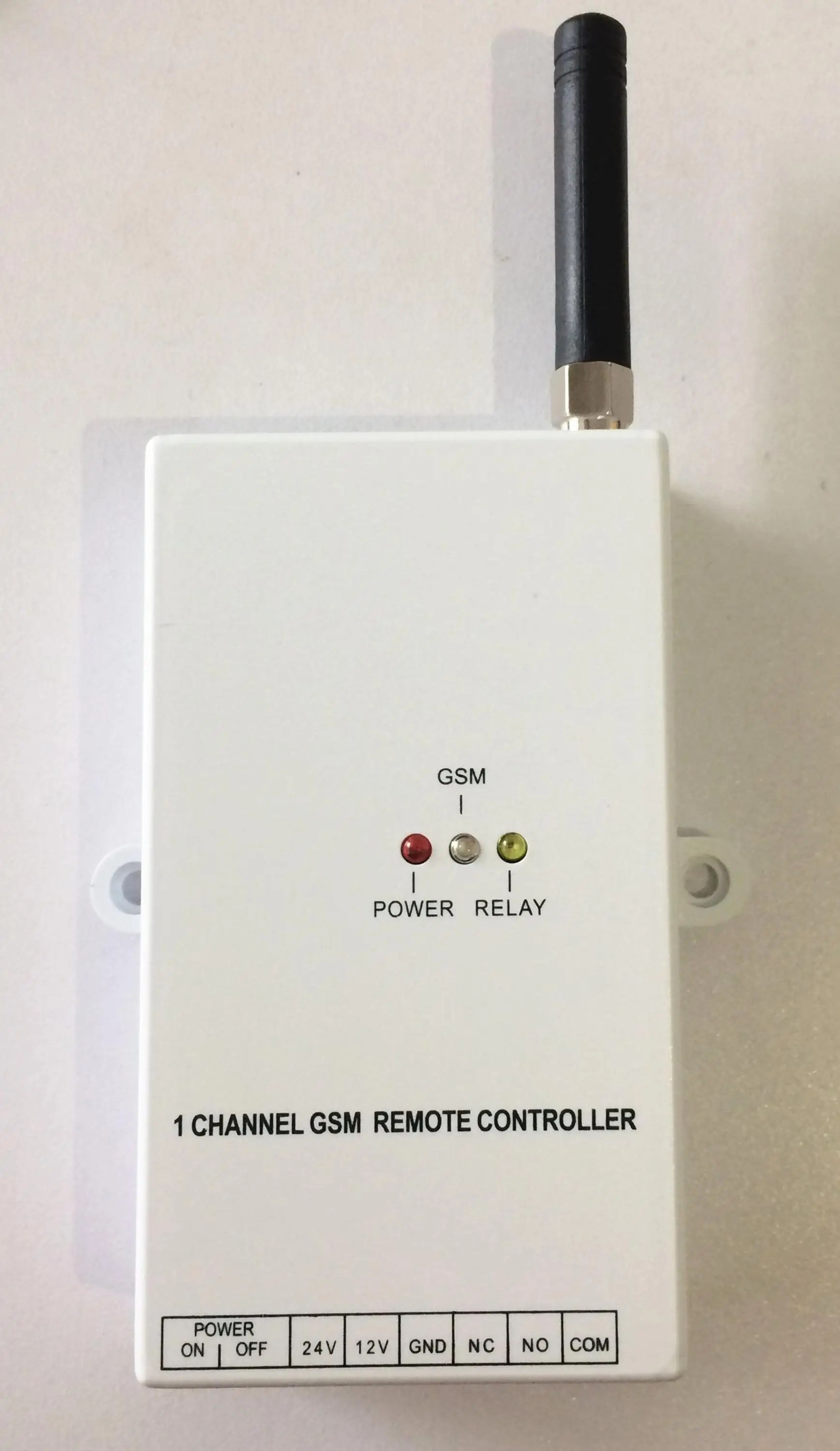

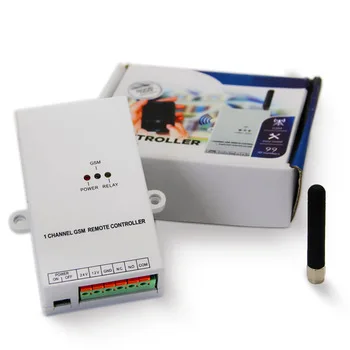

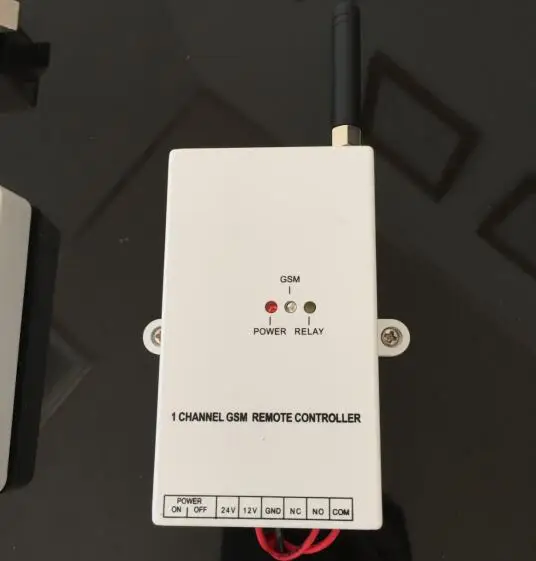

GSM door opener is a GSM switch remote control system which can activate automatic gates with a free call from you mobile phone. The users’ phone numbers are programmed into the device by SMS. The device recognizes incoming Caller ID and drop the call before switching. With this system you can authorize up to 99 mobile phones to open the gate at no cost. This system has two models N/O,N/C output



Features:



1. Free charges. the call from authorized number then carry’s out the turn ON/OFF

2. Multiple applications. (Gates, bollards, barriers, garage doors, shutters and access doors or machines);

3. Secure - Using caller ID for identification, unknown callers are ignored;

4. Can be operated from anywhere, no distance limit;

5. Add or remove users by SMS Text command;

6. No need to provide a remote control for different users;

7. Up to 99 authorized phone numbers can be configured;

8. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message to admin immediately;

9. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;

10. The relay action will return a SMS confirmation to the owner; this function is editable by user;

11. Based on GSM Network, no need any applications.



Specifications of the GSM SMS Controller:





1. How to store the user phone number (total 99 users)



1) Admin phone number setup

Keep pressing SET button, SET indicator light on, call with admin phone to device SIM card phone number(Which insert the GSM door opener). If save successfully, SET indicators will light off hang up the phone. And send SMS to admin (Save Admin OK)

Notes: if the gsm controller did not receive any calls in 30s, it will automatically exit setting status.

Only admin number can be add by this way ,and add other 98 users



2) How to add 98 users number by SMS

The short message formal for setting (only for admin number): passwords (4 digits)+AD+ phone number (the SMS should be send by admin number)

For example: the initial password is 1234, phone number is 135900000, so input short message as below:

1234AD135900000

After operation successfully you will receive a SMS for confirmation

Add 135900000 OK

You can use this way to add other users

Notes: 1) Only admin number can receive confirm SMS

2) The initial password is 1234

3) The password only 4 digits



2, How to Delete User Number

1) Input SMS: 4 numbers for password DD TELL NUMBER

Example: The host’s password is 1234. If you want to delete the 135900000 user number,

Send SMS: 1234DD135900000

After operation successfully admin and you will receive a SMS for confirmation

DD 1359000000 OK



2), For Delete all user number

Send SMS 1234FD

After operation successfully admin will receive a SMS for confirmation

FD OK



3. How to Change Password by SMS

The short message formal for change password (only for admin number): old passwords (4 digits)+CP +New Password

Example: The default password is 1234, if you want to set 8888 as the new password,

Send SMS: 1234DD8888

1234CP8888

After operation successfully you will receive a SMS for confirmation

PASS CHANGE



4, Setting Require

For check how many user number have been store, password, and relay output model:

Send SMS CHK to GSM controller, you will receive a SMS for system status as following

Password: 8888

22 Free Memory



5, Output Setting

GSM Controller have different Relay Output N/O, N/C

Notes: The closing time of PILSE contact is 3 seconds.
