Abrasion resistant high adhesive sw rubber conveyor belt
- Category: >>>
- Supplier: Zhejiang Three-V Imp. & Exp. Co. Ltd.
Share on (1711088000):
Product Overview
Description
Abrasion resistant high adhesive sw rubber conveyor belt
Product Description
Features:
Corrugated sidewall design allows for greater transport volume with increased sectional loading area, enabling a narrower conveyor design.
Reduces foot space as steep incline or vertical transport is possible with pin hooks attached belt widthwise.
No skirt board is required as transport materials spillage is prevented by high wavelike raised strips.
lncline angle can be easily adjusted with specially strongbelts and press rollers.
Flat rollers may be used to reduce the equipment cost.
Corrugated sidewall design allows for greater transport volume with increased sectional loading area, enabling a narrower conveyor design.
Reduces foot space as steep incline or vertical transport is possible with pin hooks attached belt widthwise.
No skirt board is required as transport materials spillage is prevented by high wavelike raised strips.
lncline angle can be easily adjusted with specially strongbelts and press rollers.
Flat rollers may be used to reduce the equipment cost.

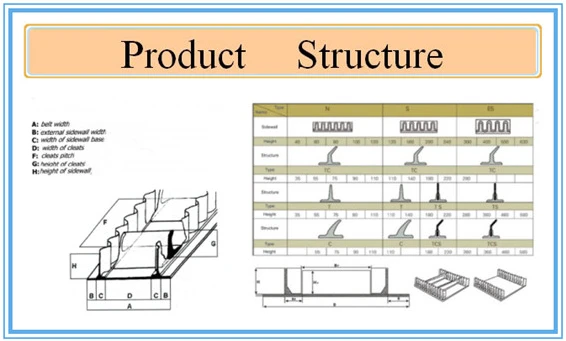

| Type of sidewall | N | S | ES | ||||||||||
| Height of sidewall | 40 | 60 | 80 | 100 | 120 | 120 | 160 | 200 | 240 | 300 | 400 | 500 | 630 |
| Type of cleat | TC | TC | TC | ||||||||||
| Height of cleat | 35 | 55 | 75 | 90 | 110 | 110 | 140 | 180 | 220 | 280 | |||
| Type of cleat | T | T | TS | TS | |||||||||
| Height of cleat | 35 | 55 | 75 | 90 | 110 | 110 | 140 | 180 | 220 | 280 | 360 | 460 | 580 |
| Type of cleat | C | C | TCS | TCS | |||||||||
| Height of cleat | 35 | 55 | 75 | 90 | 110 | 110 | 180 | 220 | 280 | 360 | 460 | 580 | |

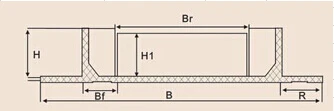

| Bsse Belt Width B(mm) | Side wall Height H(mm) | Cleat height H1(mm) | BF(mm) | R(mm) | Br(mm) |
| 300 | 40 | 35 | 25 | 180 | 35 |
| 60 | 55 | 50 | 120 | 40 | |
| 80 | 75 | ||||
| 400 | 60 | 55 | 50 | 180 | 60 |
| 80 | 75 | ||||
| 100 | 90 | ||||
| 500 | 80 | 75 | 50 | 250 | 75 |
| 100 | 90 | ||||
| 120 | 110 | ||||
| 650 | 100 | 90 | 50 | 350 | 100 |
| 120 | 110 | ||||
| 160 | 140 | 75 | 300 | ||
| 800 | 120 | 110 | 50 | 460 | 120 |
| 160 | 140 | 75 | 410 | ||
| 200 | 180 | ||||
| 1000 | 160 | 140 | 75 | 550 | 150 |
| 200 | 280 | ||||
| 240 | 220 | ||||
| 1200 | 160 | 140 | 75 | 690 | 180 |
| 200 | 180 | ||||
| 240 | 220 | ||||
| 300 | 280 | 105 | 630 | ||
| 1400 | 200 | 180 | 75 | 830 | 210 |
| 240 | 220 | ||||
| 300 | 280 | 105 | 770 | ||
| 400 | 360 | ||||
| 1600 | 200 | 180 | 75 | 970 | 240 |
| 240 | 220 | ||||
| 300 | 280 | 75 | 910 | ||
| 400 | 360 | ||||
| 1800 | 240 | 220 | 80 | 1100 | 270 |
| 300 | 280 | 105 | 1050 | ||
| 400 | 360 | ||||
| 500 | 460 | 125 | 1010 |

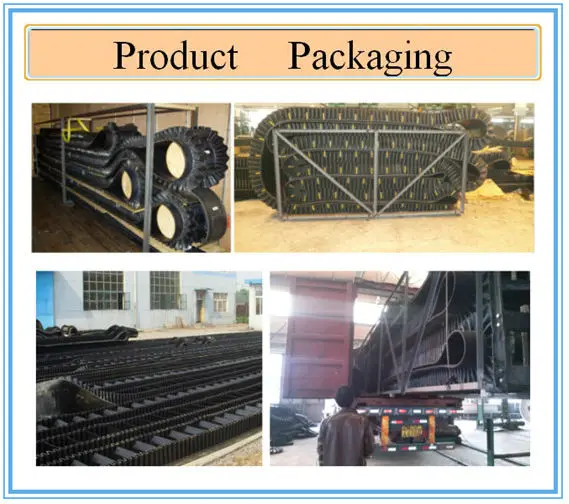

Packaging & Shipping
Company Information
Having specialized in mechanical conveyor systems products for more than 20 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Imp&Exp Company,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
