korea aluminium composite panel
- Category: >>>
- Supplier: Chongqing Lanren Aluminium Co. Ltd.
Share on (1711206798):
Product Overview
Description
Product Overviews

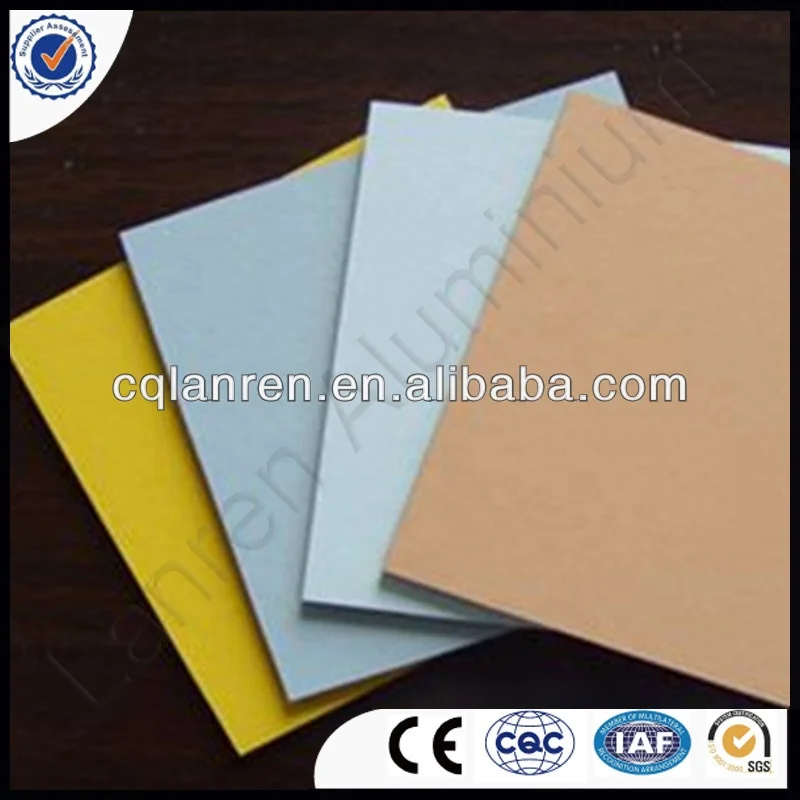

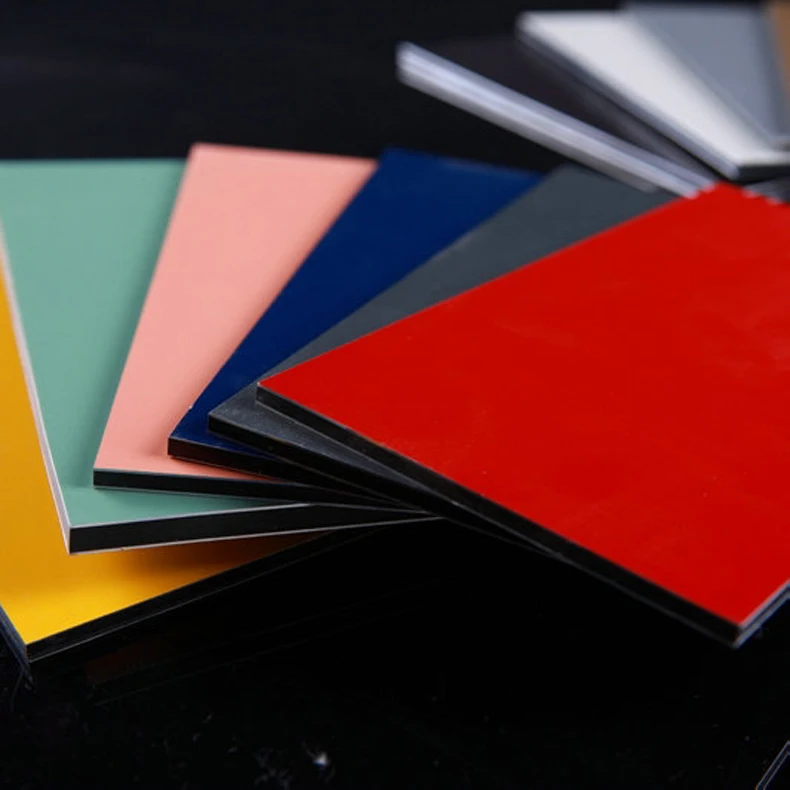

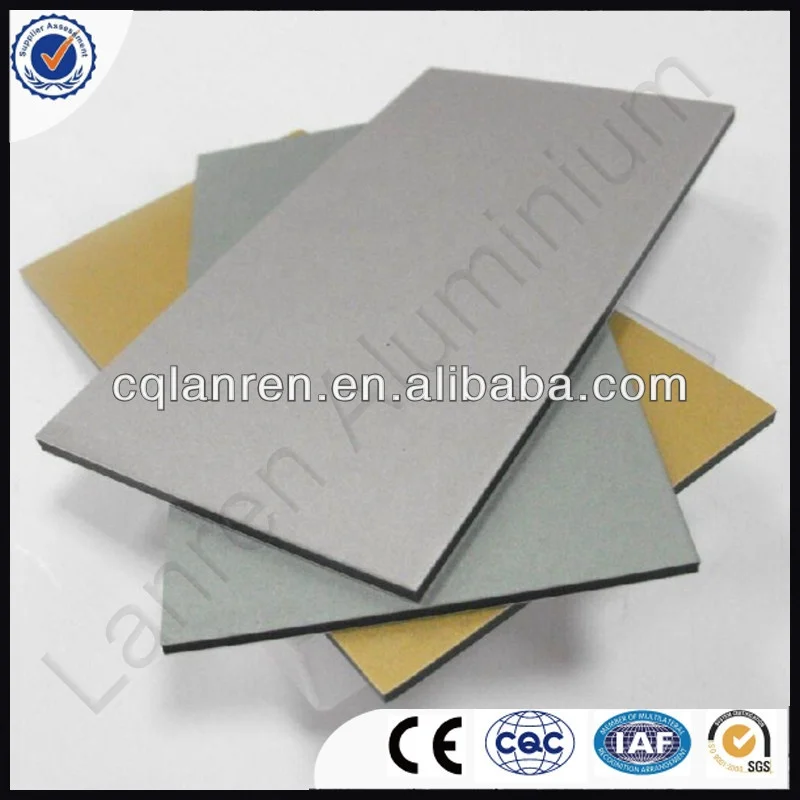

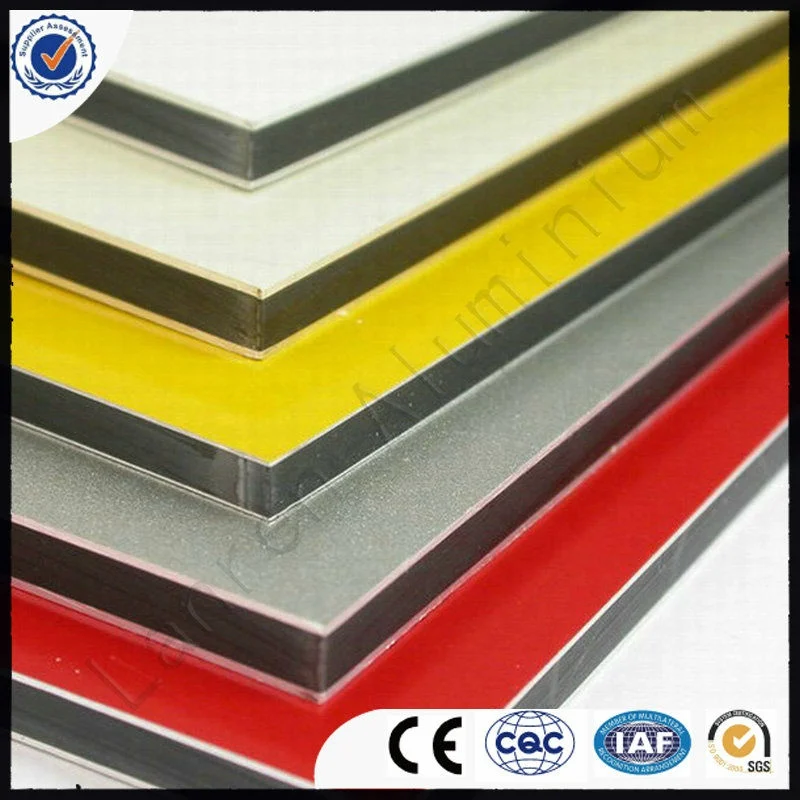

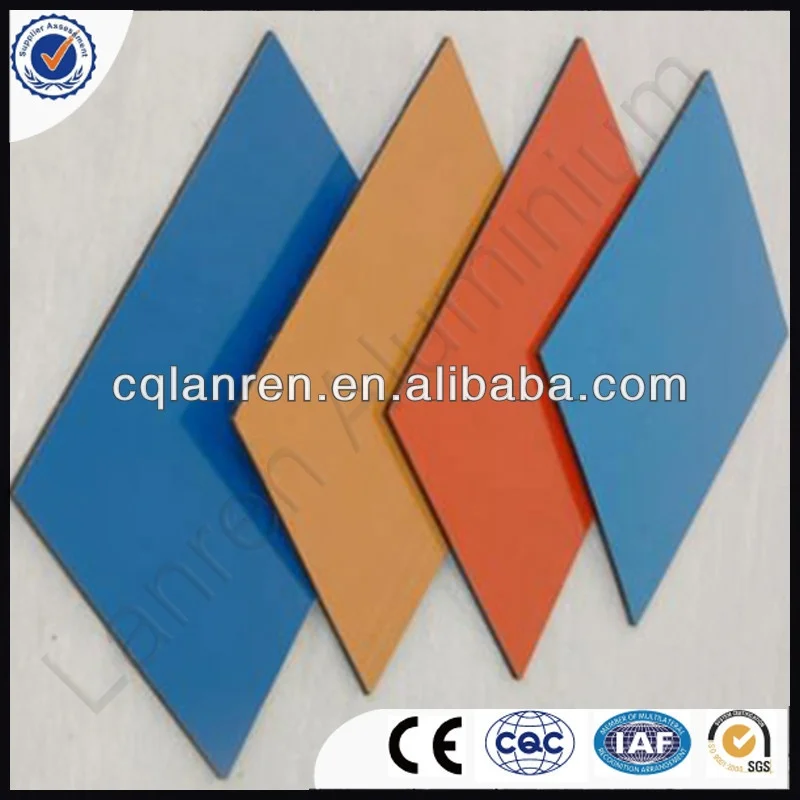

LANREN PVDF Aluminium composite panel is consisted of 3 layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG.VALSPAR of USA and Becker of Sweden.
Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality PVDF aluminum composite panels. Our PVDF aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate.Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.
Specification:
| Panel Thickness(mm) | 1.5mm-8mm |
| Aluminium Skin Thickness(mm) | 0.08mm-0.5mm |
| Width(mm) | 1000mm,1220mm,1250mm,1500mm,2000mm(Max) |
| Length(mm) | 1000mm-8000mm |

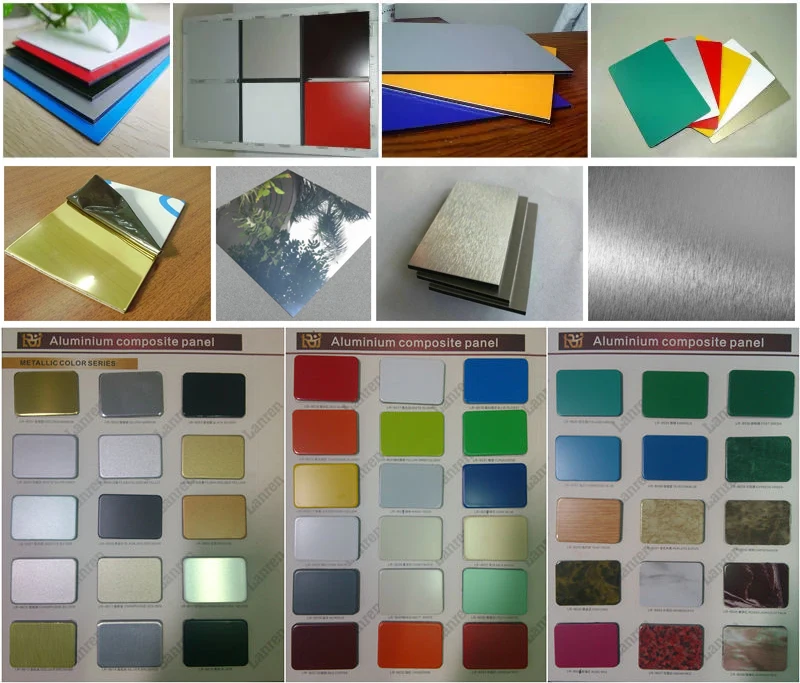

| Surface Coating | PE,PVDF,NANO,Mirror,Brush,Wodden,Marble |
| Painting Thickness | 16Mic-18Mic(PE),25Mic-28Mic(PVDF) |
Dimensional Tolerances:
| Panel Width | +/-2mm |
| Panel Length | +/-3mm |
| Panel Thickness | +/-0.2mm |
| Panel Diagonal | <5mm |
| Aluminium Skin Thickness | +/-0.02mm |
| Color Diffrence | E<2.0 |
Feature:
-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning
Applications:
1. Constructional exterior curtain walls;
2.Decorative renovation for storey-added old buildings;
3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4.Advertisement board, display platforms and signboards;
5. Wallboard and ceilings for tunnels;
6. Raw materials in industrial purpose;
7. Materials used for vehicle and boat.
