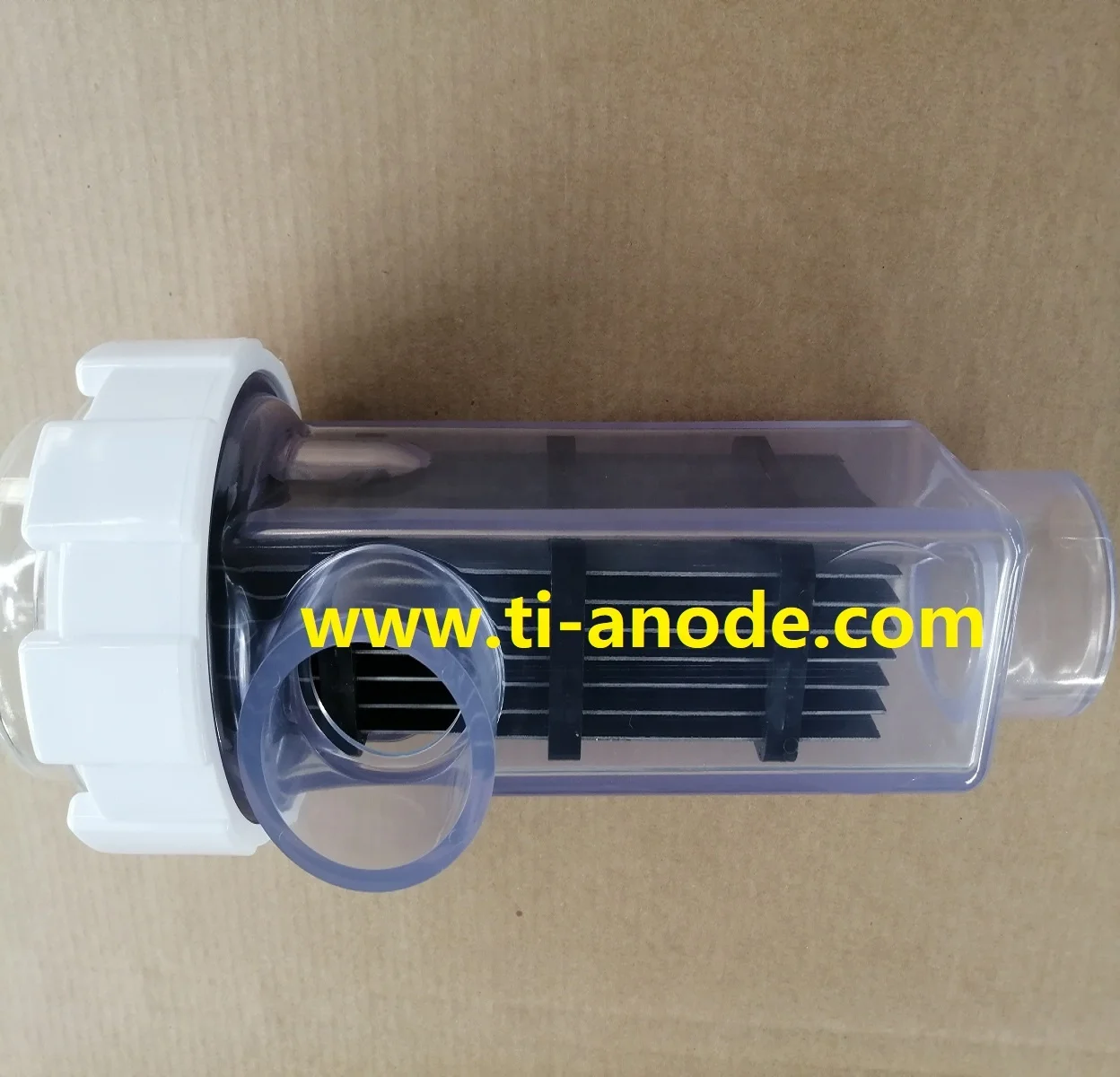

Salt Chlorinator Cell Salt Swimming pool cell Saltwater Pool Chlorine Generator cell Sodium hypochlorite generator

Product Overview

Description



 Xinxiang Future Hydrochemistry Co., Ltd. (FHC) specializes in developing and manufacturing high-performance MMO coated titanium electrode products. We deliver reliable, state of the art and cost-effective products. Our products have been used in China for over 30 years, our products export to overseas had been steadily increased in North America, Europe, Africa, South America, Middle East and Asia, etc.

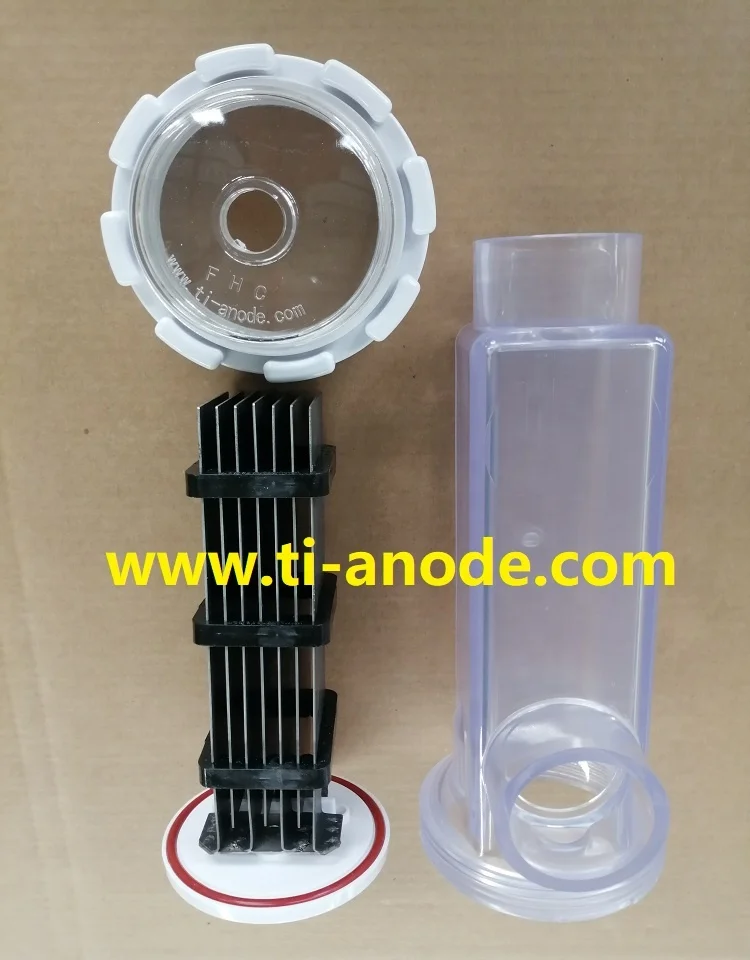

FHC Salt Water Chlorinator has been used in the market for many years. There are two types of titanium electrodes for salt chlorinator: one is bipolar (self-cleaning with reversing polarities in a period of 0.05-24 hours) and another is monopole (polarities are not reversed during the electrolysis process and usually a manual cleaning is required).



Features:

Quick installation, maintenance free and user friendly

No more purchasing , handling and storing chlorine  chemicals

No more chlorine smell and itchy

Lowest running cost

High performance and efficiency mesh or plate electrodes

Clear cell case for easy electrodes inspection



Salt chlorinators have added a new dimension to the concept of pool water treatment, as they increase the quality of the water, do not need chemical products and make maintenance work easier.



Water treatment by electrolysis is a closed cycle in which salt is not consumed. Chlorine is generated from table salt dissolved in the water, without the need to store or handle chemical products. The chlorine generated destroys organic matter and patho-gens in the water and turns back into salt. Disinfection is more effective than in other systems due to the combined action of chlorine and the active oxygen that are generated during electrolysis.



The salt chlorinator cell characteristics:

1. Self cleaning reverse polarity.

2. High quality titanium cells.

3. Transparent cell.

4. Maximum working pressure: 250 kpa.

5. The brine strength is 3 ~ 5 Gram/l.

6. The cell lifetime is not less than 10000 hr.

7. The pool capacity range: Cool climates, 40,000 ~180,000 liters.  Hot climates, 25,000 ~120,000 liters.

8. The inside diameter of the inlet & outlet pipe is 50 mm.

9. We don't have power supply.



We have five self cleaning reverse polarity Salt chlorinator cell: RP-10, RP-15, RP-20, RP-25, RP-35, their operating parameters are as follows:

1, RP-10 salt chlorinator cell operational parameters: The operating condition is 10 DCA / 5 ~ 7 DCV.  The output is 10 Gram active chlorine / hr.

2, RP-15 salt chlorinator cell operational parameters: The operating condition is 15 DCA / 5 ~ 7 DCV.  The output is 15 Gram active chlorine / hr.

3, RP-20 salt chlorinator cell operational parameters: The operating condition is 20 DCA / 5 ~7 DCV.  The output is 20 Gram active chlorine / hr.

4, RP-25 salt chlorinator cell operational parameters: The operating condition is 25 DCA / 5 ~ 7 DCV.  The output is 25 Gram active chlorine / hr.

5, RP-35 salt chlorinator cell operational parameters: The operating condition is 35 DCA / 5 ~ 7 DCV.  The output is 35 Gram active chlorine / hr.



The salt chlorinator cell Features:

1, Quick installation, maintenance free and user friendly

2, No more purchasing, handling and storing chlorine chemicals

3, No more chlorine smell and itchy

4, Lowest running cost

5, High performance and efficiency mesh or plate electrodes

6, Clear cell case for easy electrodes inspection



Please note: Each purchaser will only be allowed to purchase for 1 cells each time.



In addition, we are also willing to customize various titanium electrode combinations or electrolysing cell for customers.



We have various specifications of fully automatic sodium hypochlorite generator.

We have output 50 g/hr to 50 kg/hr sodium hypochlorite generator with effective chlorine concentration of 0.6 ~ 0.8%.

We can also design and manufacture the Electrolytic cell of Sodium hypochlorite generator according to customers' requirements.
