8 inch/8.4 inch industrial panel mount touch screen monitor for CNC machine

Product Overview

Description



Industrial Monitor



DESCRIPTION

ITD industrial monitor LCD displays are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design. ITD industrial display monitors provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. ITD industrial IP65/ NEMA 4 touch display monitors are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. ITD full-range selection is provided in screen sizes from 5” to 82”.



BENEFITS

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, etc

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, HDM1, AV, S-Video, BNC etc multiple inputs/outputs optional

12. Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running



SPECIFICATION

8 inch/8.4 inch industrial panel mount touch screen monitor for CNC machine

Panel	Cell Type/Glass Surface	TFT
	Aspect Ratio/Size	8.4” 4:3
	Active Area	170.4mm(W)×127.8mm(H)
	Pixel Pitch	0.213(H)×0.213(V)mmm
	Native Resolution/Colors	800 x 600/16.7M
	Brightness/Contrast	250nits/500:1
	Response Time	10ms
	Viewing Angle(Typical)	70/70/60/60
	Light Source	LED backlight with 50000hours’lifetime
Input Signals	VGA
Convenient Features	Backlight adjustment, Plug & Play, OSD Multi-Languages
Power	External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption	Operation/Power Saving	15W (Max)
Key Control	Power on/off with LED, Menu, Select, Adjustment(Right/Left)
Order Information	8.4”panel mount monitor with resistive touch/ITD084PMT101
	8.4”panel mount monitor with PCAP touch/ITD084PMT501
	8.4”panel mount monitor with tempered glass/ITD084PMG101

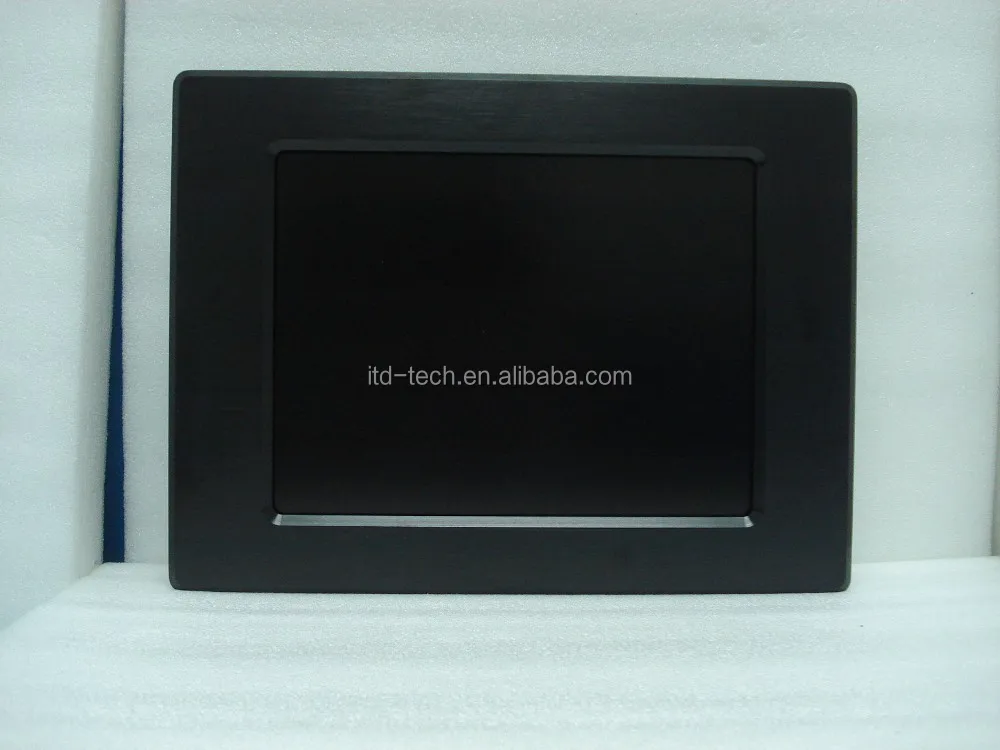

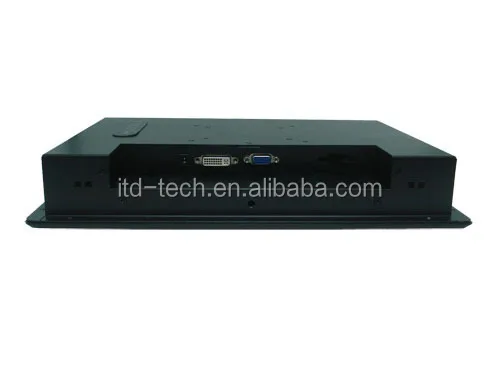

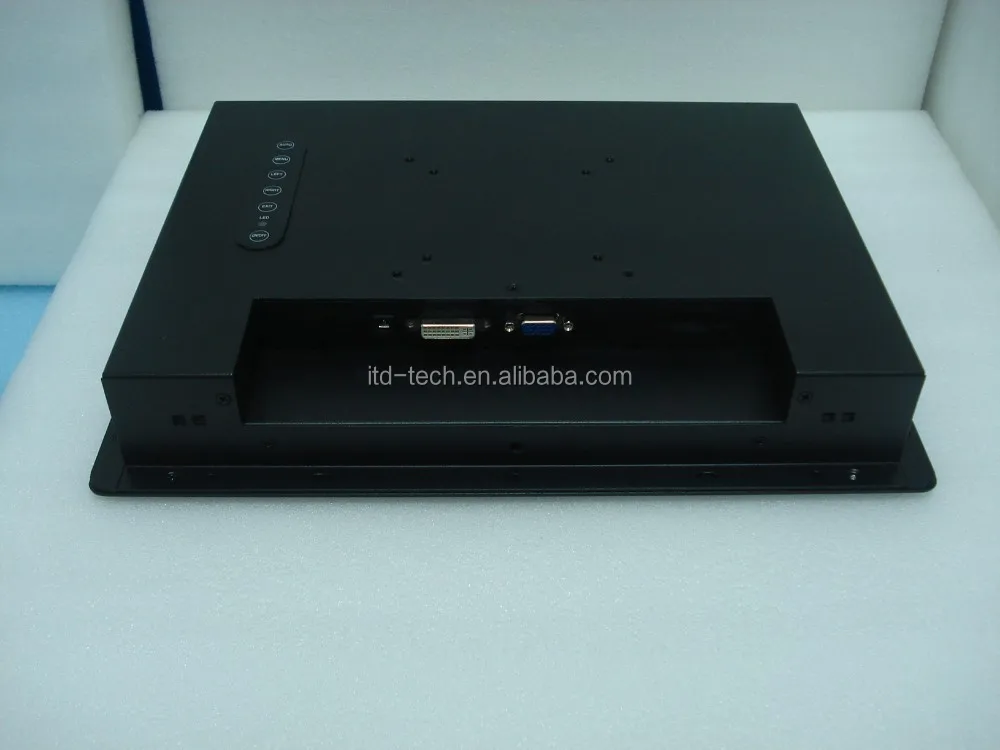

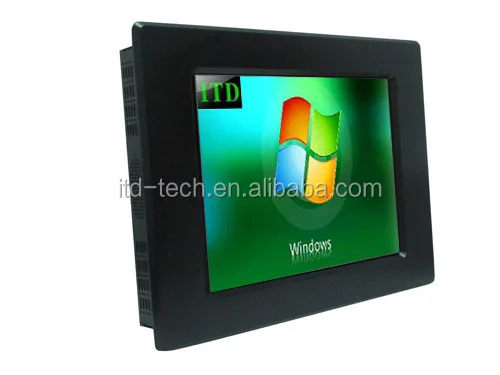

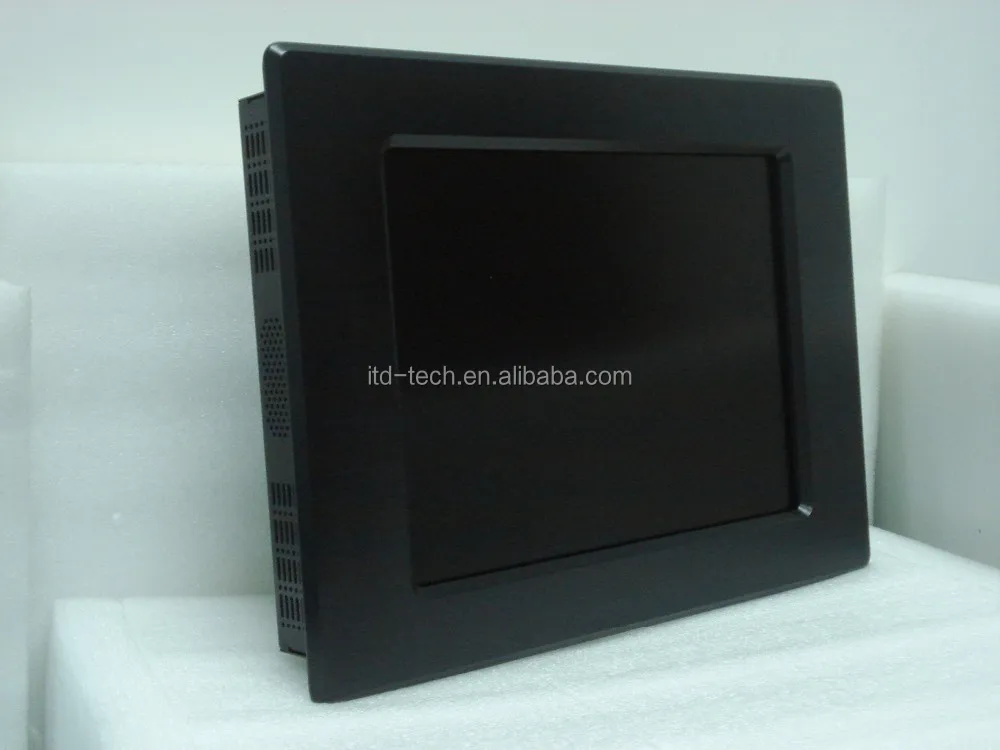

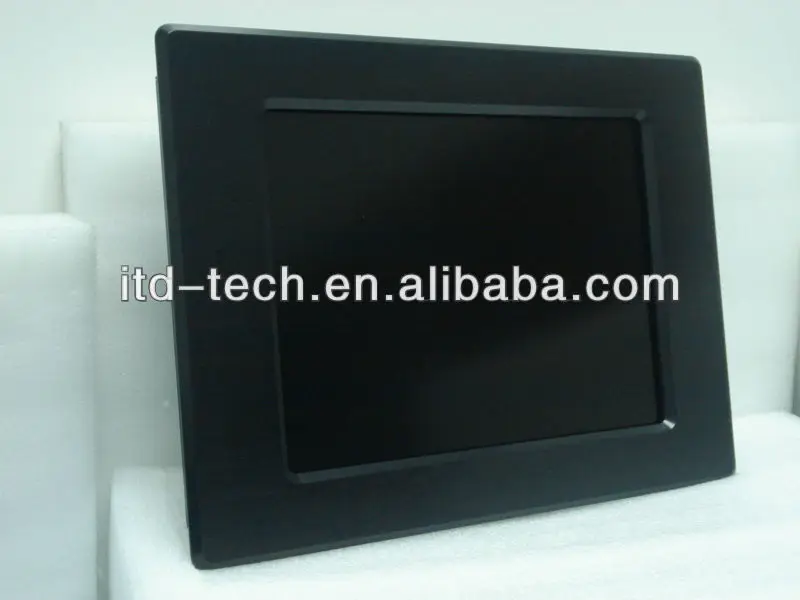

PRODUCTS IMAGES

8 inch/8.4 inch industrial panel mount touch screen monitor for CNC machine
