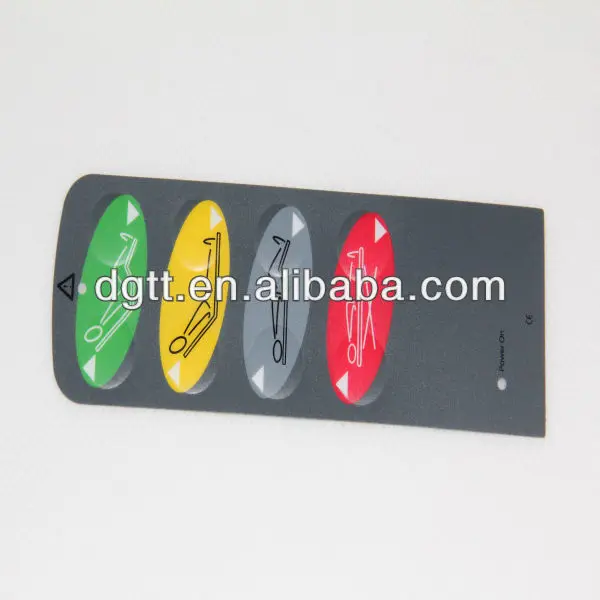

Matrix sealed tactile metal dome membrane switch with led lights manufacturer

Product Overview

Description

pads keyboard switch graphic overlay   Membrane   keypads keyboard switch graphic overlay









Membrane Switch Advantages:
Appearance	Beautiful, bright in color
Design	Small size /   light weight  /  thin thickness /  OEM
Feature	Abrasion resistant  /  Tightness is good  /  moisture-proof  /  dust-proof anti-oil  /  anti-corrosion  /  erosion of harmful gases proof  /            acid and alkali proof  /  quake proof.
Quality	In-house 100% functionally tested / long life span
Operation	Easy to operate  /  intuitive  /  safe  /  reliable  /  Installation and connection convenience





Certification	ISO9001, ISO14001 & ROHS.
Components:	LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
Electronic characteristics
Circuit rating	35V(DC),100mA,1 W
Contact resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation resistance	>100MΩ 250V(DC)
Contact bounce	≤5ms
Dielectric withstand	250VRms(50 - 60Hz/1 min)
Life expectancy	flat type≥5million times, tactile type:≥1 million times
Mechanical Properties
Operating pressure	flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)
Switch stroke	flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm
Environmental parameters
Operating Temperature	-20°C - +80°C
Storage temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours





Features:



1. Material: PET/PC with different thickness and finish
2. Button effect: embossing + metal domes respectively for good tactility and perfect feedbacks.
                          Also we can offer the other options: a. embossing, no metal domes;
                                                                               b. metal domes, no embossing
                                                                               c. no embossing, no metal domes (flat type)
 3. LEDs can be embedded;
 4. LCD clear window can be made.
 5. Colors for graphics are matched with Pantone No., Bi-color leds are also available.

 6. General structure: Overlay--Spacer under overlay--Fixed layer(if metal domes added)/Top circuit--  (Metal domes)--  Spacer above lower circuit--Lower circuit --Adhesive.
 7. Flexible cable for connecting with 2.54mm ptich/1mm pitch/0.5mm pitch.




Our Best Service:brane switch with LED , flexible membrane switch with LED

• ESCROW,so your fund is safe

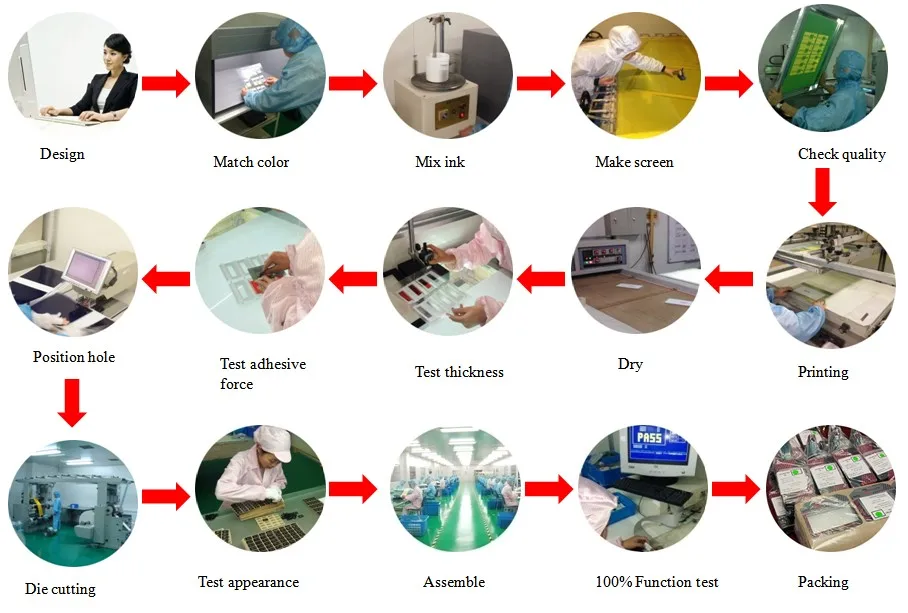

• Custom design expertise
• Single source manufacturing
• Assembly of surface mount components/circuit boards/backplates
• Multi-tasking switch pattern designs
• Custom molded boxes, bezels and frames with switch installation
• Precise color matching and repeatability
• Water resistant designs
• Fiber optic back-lighting
• 100% function testing of all circuits in-house





Let our engineer teams help you assess your membrane switch design options. we will tailor your membrane switch and graphic overlay to fit the application and your specifications.

• Materials: Depending on the application and environmental requirements, Polyester and Polycarbonates are commonly used. Thickness ranges are .007" to .010". Blended materials and UV hardcoat surfaces are additional options.
• Selective Textured Surfaces : For hardcoats as well as aesthetic enhancement of the graphic overlay.Durable and surface printing. Finish Options: glossyor matte surface,3H scratch resistance
• Embossing: Embossing of the key pads for key location can be achieved by full key (pillow) pad embossment or rim embossment.
• Windows: Transparent and deadfront display windows for viewing LCD and LED displays.
• Termination: Tail termination is accomplished by snap fit connectors, solder tabs, or exposed silver tabs (.100" centers typical).
• Tactile Feedback: Stainless steel domes range from 8-20mm. Poly domes are embossed onto a polyester layer or circuitry.
• Shielding: Shielding from ESD/EMI/RFI can be accomplished by a layer of metallized polyester or by screening a layer of selective graphite ink.
• Backlighting: Tiantai offers several options for the various information readout devices available to fit customer requirements.
• Panel Cutouts: Die cut holes and access for mechanical switches may be incorporated into membrane switch designs.
• Back-Plates and Printed Circuit Boards: Available as a finished assembly with  membrane switches.
• Environmental Design: Applications subject to various degrees of chemical exposure, moisture or high humidity are engineered and constructed accordingly. Outdoor UV resistant ,UV cured inks ,printed with up  to  complicated process color.

• Tail: The connector tails on membrane switches are typically designed so that a “tail filler” is needed between the tail exit position of the switch and the edge of the part. For membrane switch applications where moisture exposure is expected, this tail filler can result in moisture traveling along the tail and into the system electronics.

         Tiantai can design a membrane switch with no tail filler and associated moisture path. This design features a continuous “gasket” backside adhesive perimeter.

• Graphic Design and Engineering Assistance:Minimize air gap without spacer dots,backside of overlay,eliminate air gap with optically clear adhesive. Full service art and engineering departments are ready to provide complete or partial assistance in the aesthetic design of graphic overlays and the engineering of correct switch construction for your application.
