Industrial Sieve Grading Powder Metallurgy Screening Equipment
Industrial Sieve Grading Powder Metallurgy Screening Equipment
Industrial Sieve Grading Powder Metallurgy Screening Equipment
Industrial Sieve Grading Powder Metallurgy Screening Equipment
Industrial Sieve Grading Powder Metallurgy Screening Equipment
Industrial Sieve Grading Powder Metallurgy Screening Equipment
Industrial Sieve Grading Powder Metallurgy Screening Equipment

Industrial Sieve Grading Powder Metallurgy Screening Equipment

Share on (1713031054):


Price:$10,000.00

Quantity:


Product Overview

Description





Specification


item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works , Energy & Mining
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Gearbox, Gear
Condition
New
Type
Circular
Application
Flour,salt,sugar,milk,nuts,chemicals, metallurgy
Place of Origin
China
Brand Name
PK
Voltage
220V,380V,415V,600V or other
Dimension(L*W*H)
as per order
Weight
200KG
Warranty
12 months
Model
XZS 500/600/800/1000/1200/1500/1800/2000
Layer
1~3
Volume
690*690*600-2430*2430*1500mm
Mesh specification
2-500 mu/inch
Max particle size
less than 20-50mm
Material
Carbon steel, stainless steel
Diameter
400-2000mm
Applicable Material
Flour,salt,sugar,milk,nuts,seeds,grains,oil,fruit juice
Spare parts

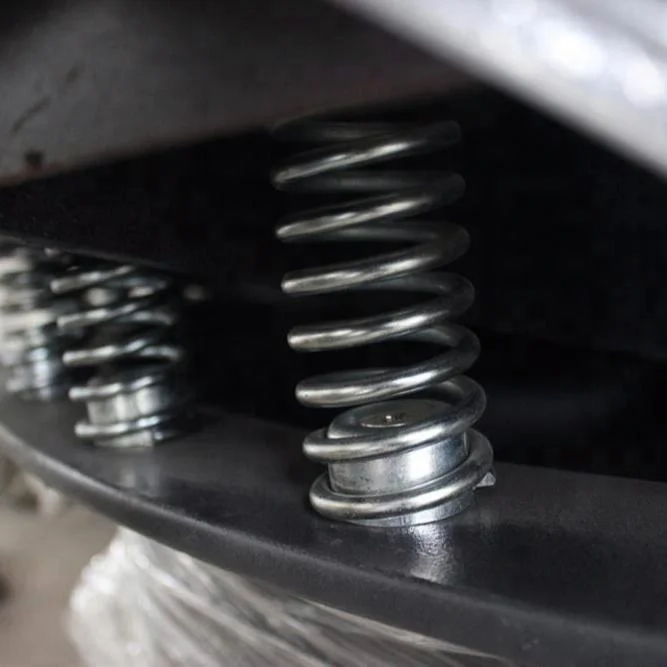

rubber ball, frame,spring ect.


Product Description




Introduction

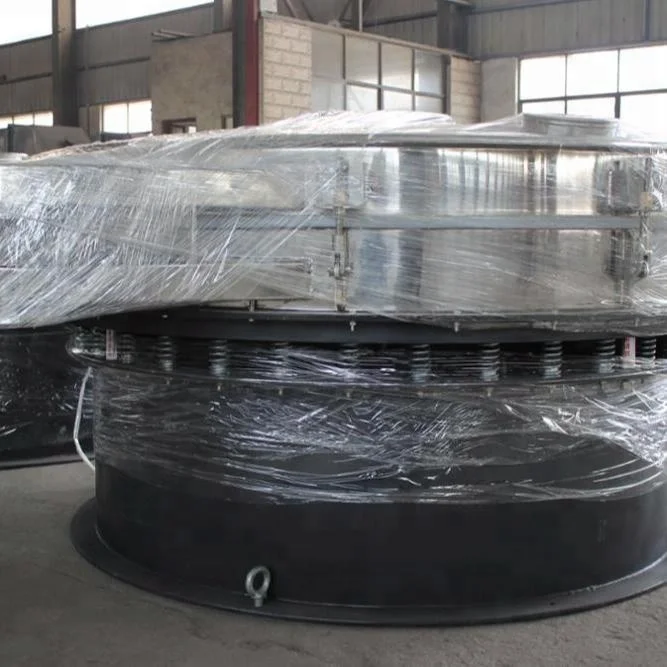

Rotary vibrating screen is designed as a high-precision screening machinery, it is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.


Working Principle

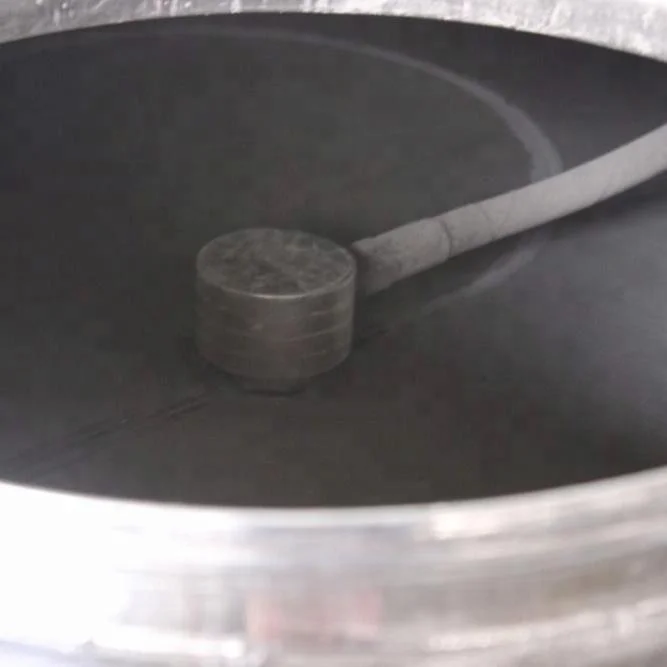

The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.




Application
Rotary Vibrating Screen is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.


Product Paramenters


Model
Nominal Diameter(mm)
Screen Diameter(mm)
Screen Surface Area(m3)
Feeding size (mm)
Specification
NO. of Layers
Frequency(rpm)
Power(Kw)
XZ-400
400
340
0.09
<10
2-325
1-5
1500
0.18
XZ-600
600
530
0.22
<10
0.25
XZ-800
800
720
0.4
<20
0.55
XZ-1000
1000
900
0.63
<20
0.75
XZ-1200
1200
1100
0.95
<20
1.1
XZ-1500
1500
1400
1.5
<20
1.5
XZ-1800
1800
1710
2.3
<30
2.2
XZ-2000
2000
1910
2.86
<30
3.7




Henan Pingyuan Mining Machinery Co., Ltd.
Established in 1960, Henan Pingyuan Mining Machinery Co., Ltd. Has enjoyed more than 50 steady years of successful growth to become an international company employing over 200 directemployees with annual sales exceeding $1,200 million.lt is located at 289 yellow river road of Xinxiang, China with an area of 88,400 m2 which includes 16,200 m2 of standard heavy duty industrial workshop.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.










Q1：Are you factory or trade company?
A: We are factory


Q2：Where your products have been exported before?
A: Our products have been sold to South Asia, Africa, South America, middle East and so
on.


Q3：How will you help the customer to install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initialproduction at


Q4：How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. lf there are problemsyoucould not handle, we will send our technicians to your place and you are therefore.responsible for all thecost involved.


Q5：What about the payment method?
A: T/T, L/C Paypal is available


Q6：What about after-sale service?
A:12 months warranty for all kinds of products
