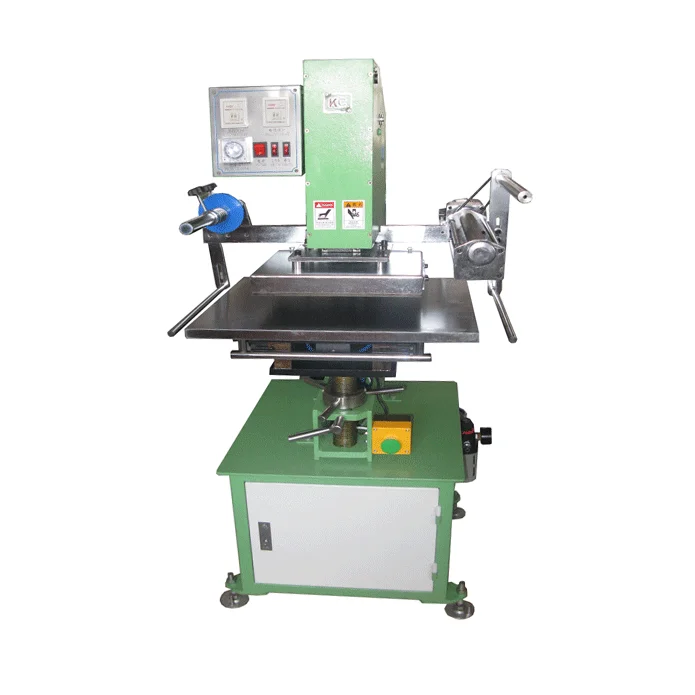

H-TC3045LN Pneumatic Movement-table hot stamping Machine//Structure
Working table
High strength Steel plate , size:420*500mm.automatically in-out
Stamping Head drive
Pneumatic drive
Foil collecting method
Motor-drive , Collecting time adjustable
Press adjustment
Up-down of working table
Temperature control
Heating tube heat up,Automatically temperature controlling, temperature free setting
Foil collecting
Motor drive, Automatically collecting
Stamping plate size
300*450mm.
H-TC3045LN Pneumatic movement-table hot stamping machine //Usage and characters
Guide
Gilding - paper, leather, wood, plastic;
Baked - wood products, baked painting, gift box packaging;
Embossing - paper, leather, cloth;
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
Automatic feed foil, automatic temperature controlling ensures stamping quality;
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials;
Pneumatic drive, pressure large;
Automatically working table.

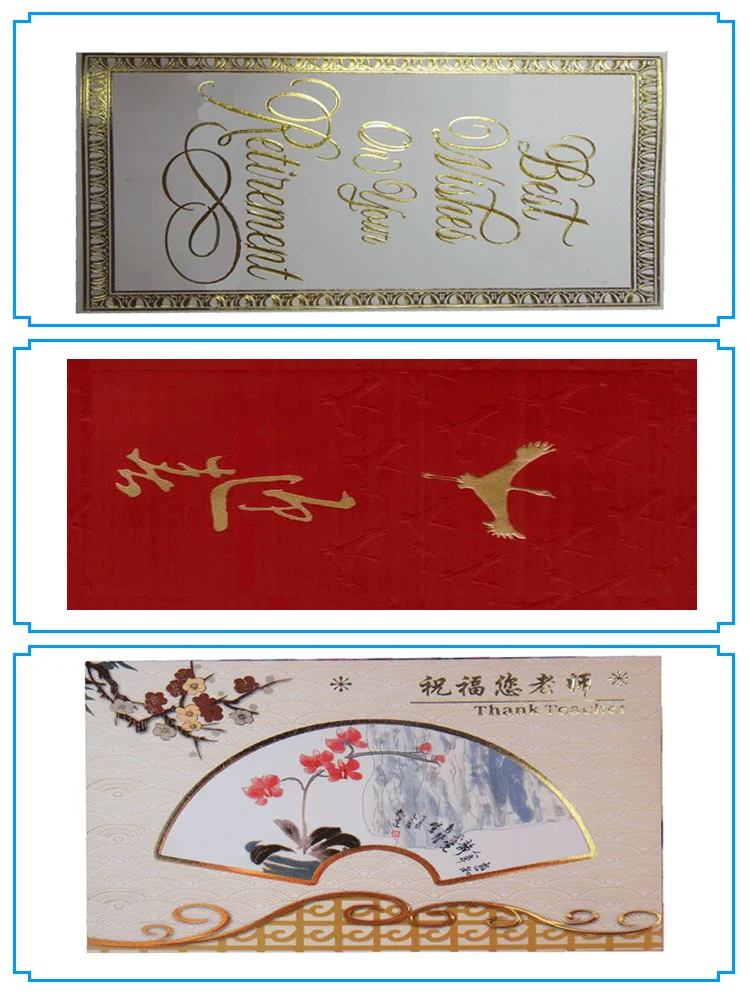

Application fields
Paper Gilding, Leather Impression, Wood ware Baking;
Paper Concave-convex embossing, Cloth hot stamping;
Plastics Bronzing;
Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing;
Woodiness objects baking-burns and Impress;
Leather bronzing and Molding;
Paper products concavo indentation;
Graduated disc of clock bronzing.
H-TC3045LN Pneumatic movement-table hot stamping Machine //Parameter
Technical parameters
H-TC3040LN precision hot stamping Machine
Hot plate area:300×400 mm
Working table area:420 ×500mm
Max. printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:3000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC
H-TC3045LN precision hot stamping Machine
Hot plate area:300 × 450 mm
Working table area:420 ×500mm
Max. printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:3000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC
Works supply
110V-220VPower supply
5-7Bar compress air
Package list
Package size: 790*850*1550mm
Gross weight: 278kg
CBM: 1.96524
H.S.Code
8443198000
Certificate
CE
H-TC3045LN Pneumatic movement-table hot stamping machine //Advantage
Function
Table can be pulled into and pulled out the pick and place of convenience products;
Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Table lifting screw adjustment, simple and convenient;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
Leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace.
Structure

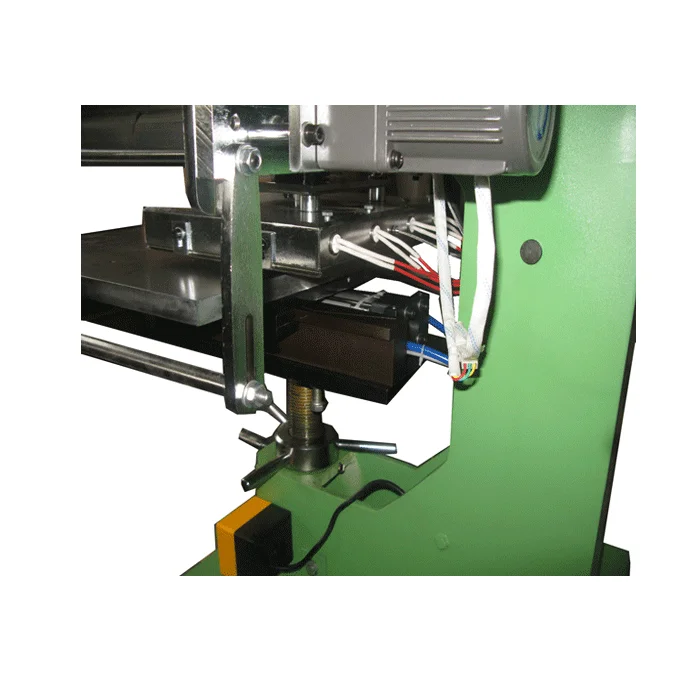

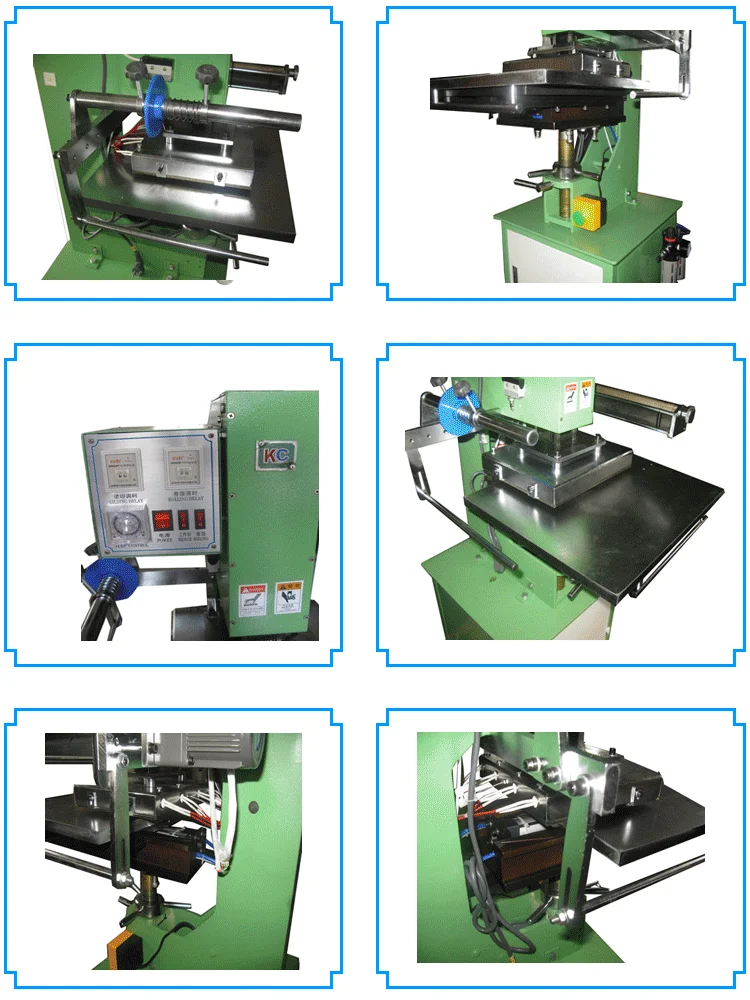

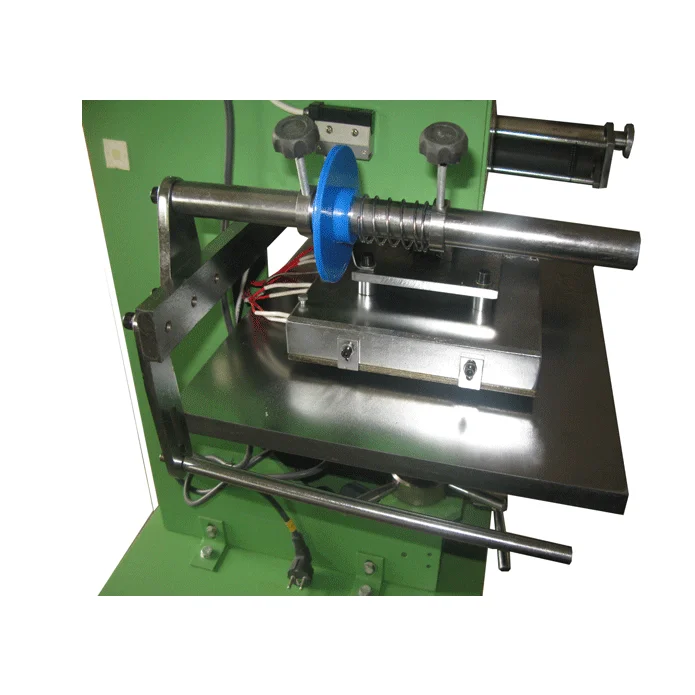

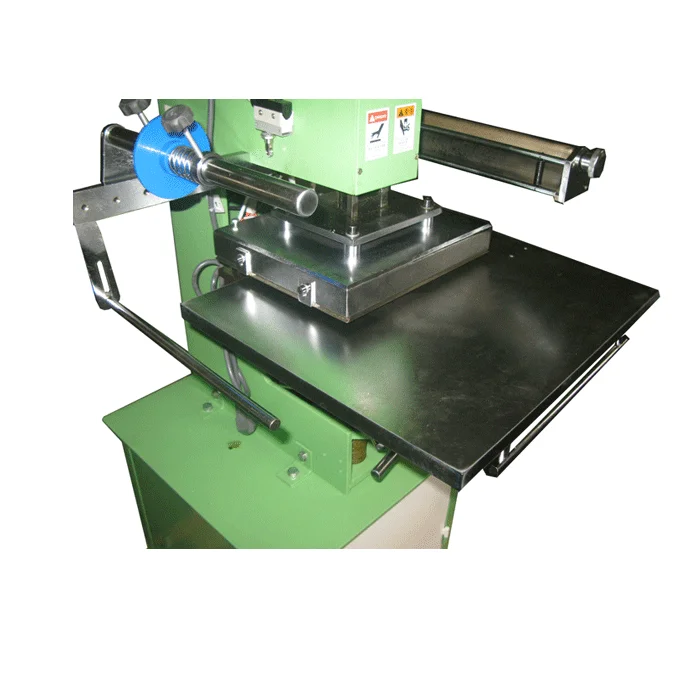

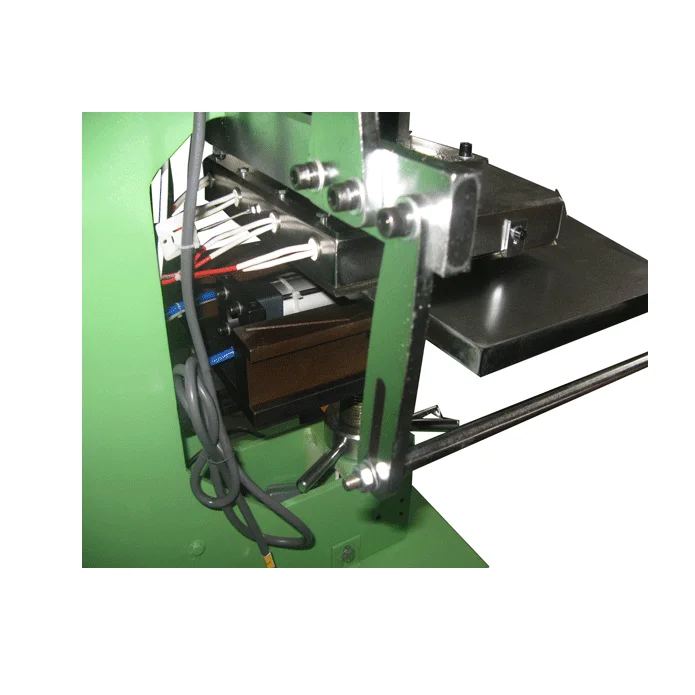

Details
Packaging & Shipping
Machine is very heavy, It is recommended to use mechanical forklift move and handling, avoid i nversion, Impact, Shake.
