synchronous control technique of reinforcing mesh machine/welded wire mesh machine

Product Overview

Description

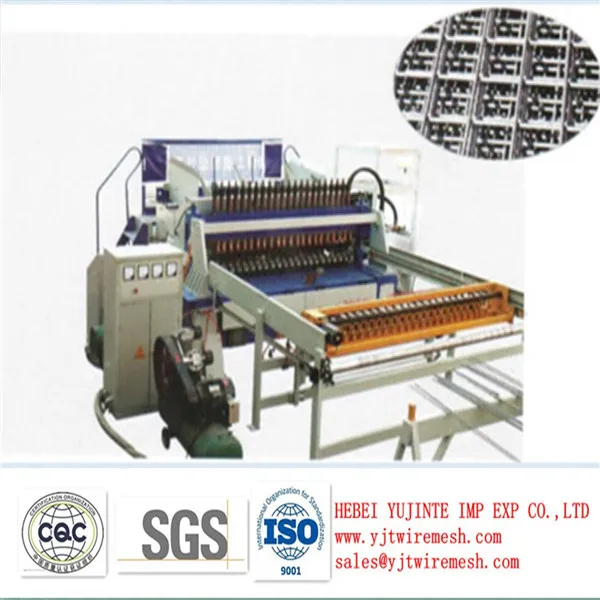

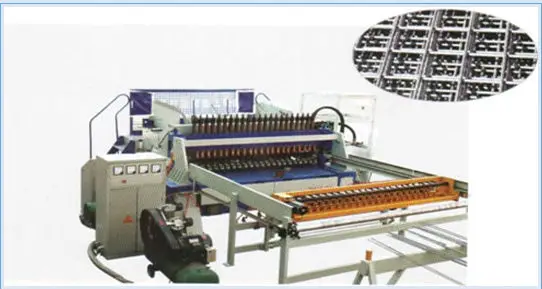

reinforcing mesh machine/welded wire mesh machine



Introduction of Reinforcing mesh machine :
This machine adopts synchronous control technique, both the welding time and cent-controlwelding is supervised by PLC (industry computer and chassis). It adopts modularization design, soit is easy to improve the machine's function and the feature. The line wires are fed automaticallyand continuously, so it saves much welding time to wait. Feeding position is accurate, the edgesare regular and also could be adjustable. There is a big hopper for cross wires it could contain oneton wires, in this case it save much labour to add wires. Wire falling is also very precise. It adoptsservo motor to pull the mesh repeatedly, the mesh size are accurate and also could be adjustable.The welding power is FM and timing motor. Compared with abroad machine whose power is airpressure, this machine has such advantages: firm welding, little noise, high speed, smaller investment, lower maintenance



Main parameter of Reinforcing mesh machine :

Wire diameter	5-12mm	Rated voltag	380v
Welding aperture	100*100-300*300mm	Rated electrica power	1500kva
Width of mesh	2500mm	Welding speed	50 times/m
Number of electrodes	24	Overall dimension	20*5*2.3m
