Product Overview

Description

oilite wrapped bronze bushing oil impregnated bronze bushing

Introduction:

Technical Data:

Density8.8g/cm³
Compression Strength470N/mm²
Coefficient of Heat Conduction58W/m·k
Coefficient of Linear Expansion18.5× 10-6/k
Hardness90~120HB
Elongation40%
Alloy MaterialCuSn8P0.3

Features:

1. Thermal conductivity, high load-bearing capacity is strong.
2. Excellent chemical corrosion resistance performance.
3. Inner hole can leave allowance for secondary processing



Application:

Agricultural machine,construction machine,crane,underpan parts,conveyor,elevator,winch,planning machine…

fb application.jpg

Our FB series bearings including:

Material TypeFB-090FB-092FB-08GFB-09G
Load capacity75n/mm²60n/mm²65n/mm²65n/mm²
Temperature-80~200°c-100~200°c-100~260°c-100~260°c
Speed limit2.5m/s2.5m/s4m/s4m/s
PV limit(oil)16N/mm²·m/s16N/mm²·m/s15 N/mm²·m/s15 N/mm²·m/s

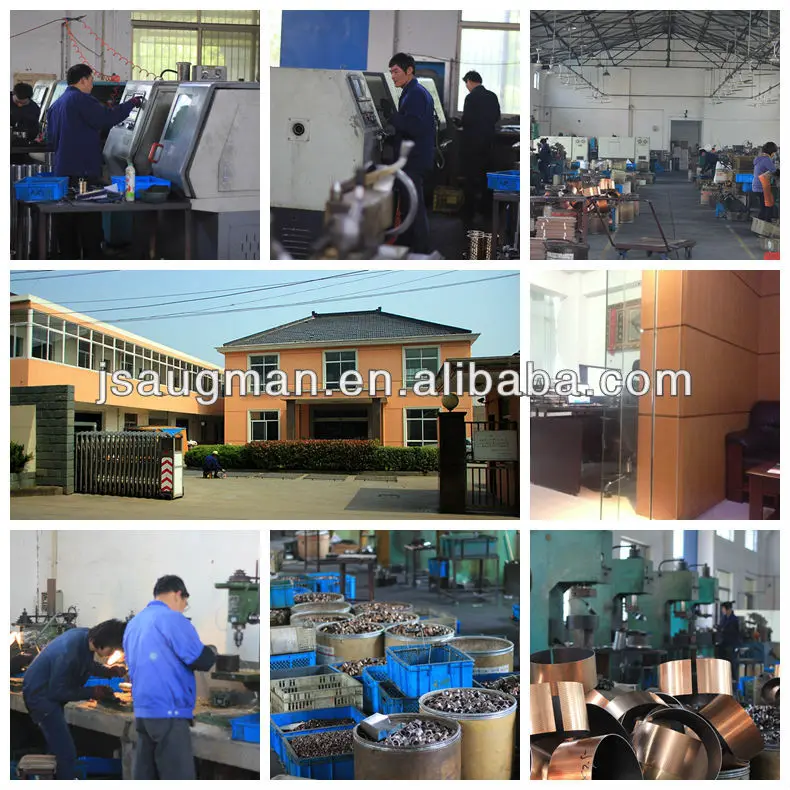

Workshops:


Packing:

bushing packing (1)

bushing packing

Shipping:
