high quality ice block machine 5 tons per day for sale
- Category: >>>
- Supplier: Shenzhen Zhongxue Refrigeration Equipment Co. Ltd.
Share on (1713933894):
Product Overview
Description

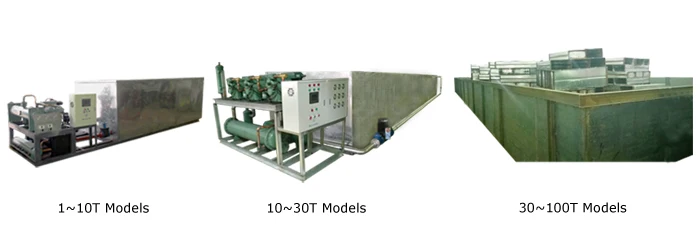

Block Ice Machine
Product DescriptionFeatures:
- Brine pool type block ice making machine
- Block ice weight: 10/15/20/25/50/100kg
- Refrigeration system: Feron system R22, R404A; Ammonia system R717
- Evaporating temperature: -19°c; condensing temperature: 40°c
- Material of brine tank: 6mm thick carbon steel, material of ice mould: 1.5~2.0mm thick galvanized iron sheet or SUS304
- Compressor: Bitzer piston type, Hanbell screw type, Bingshan open screw type
- Cooling type: air cooling, water cooled, evaporative cooled
- Auxiliary equipments: lifting crane, melting tank, dumping device, water filler

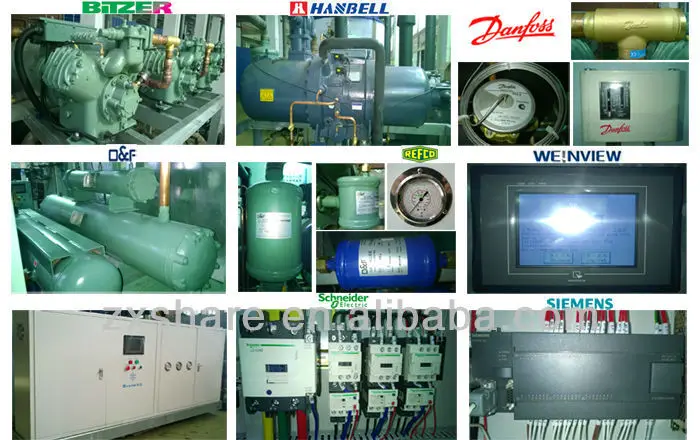

Components:

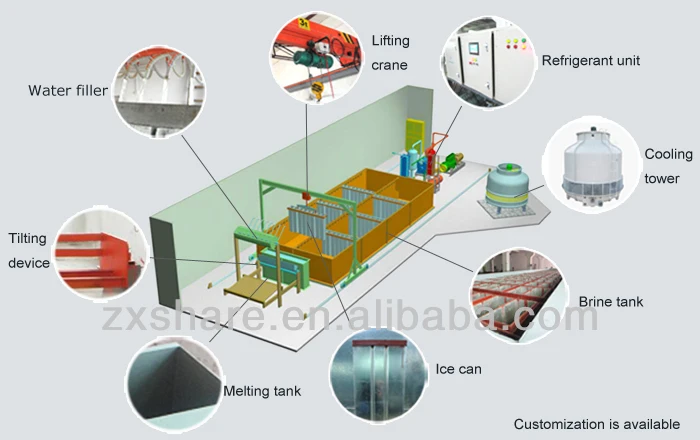

Layout:
Parameter:
Block Ice Machine | |||||||
Model | Daily Output | Ice Weight | Total Power | Compressor | Cooling Type | Dimension | Weight |
ZB1.0T-R4A | 1.0T/24h | 10/15/20/25Kg | 6.4kW | Copeland | Air cooling | 2050*1000*800mm | 800Kg |
ZB3.0T-R4A | 3.0T/24h | 10/15/20/25Kg | 14.3kW | Bitzer | Water cooled | 2473*1557*720mm | 1400Kg |
ZB5.0T-R2W | 5.0T/24h | 10/15/20/25Kg | 25.9kW | Bitzer | Water cooled | 4735*1580*1130mm | 2650Kg |
ZB8.0T-R2W | 8.0T/24h | 10/15/20/25Kg | 41.5kW | Bitzer | Water cooled | 5160*1820*1400mm | 4000kg |
ZB10.0T-R2W | 10.0T/24h | 20/25/50/100Kg | 48.2kW | Hanbell | Water cooled | 6280*2000*1600mm | 4650Kg |
ZB15.0T-R2W | 15.0T/24h | 20/25/50/100Kg | 53.3kW | Hanbell | Water cooled | 9800*2000*1500mm | 5000Kg |
ZB20.0T-R2W | 20.0T/24h | 20/25/50/100Kg | 69kW | Hanbell | Water cooled | 12600*1940*1500mm | 5500Kg |
ZB25.0T-R2W | 25.0T/24h | 20/25/50/100Kg | 97.8kW | Hanbell | Water cooled | 13500*2800*1600mm | 6000Kg |
ZB30.0T-R2W | 30.0T/24h | 20/25/50/100Kg | 123kW | Hanbell | Water cooled | 14600*3000*1600mm | 6500Kg |
ZB40.0T-R2W | 40.0T/24h | 20/25/50/100Kg | 166kW | Hanbell | Water cooled | 19500*3800*1600mm | 7500Kg |
ZB50.0T-R2W | 50.0T/24h | 20/25/50/100Kg | 182kW | Hanbell | Water cooled | 13300*6200*1560mm | 8000Kg |
Company Information

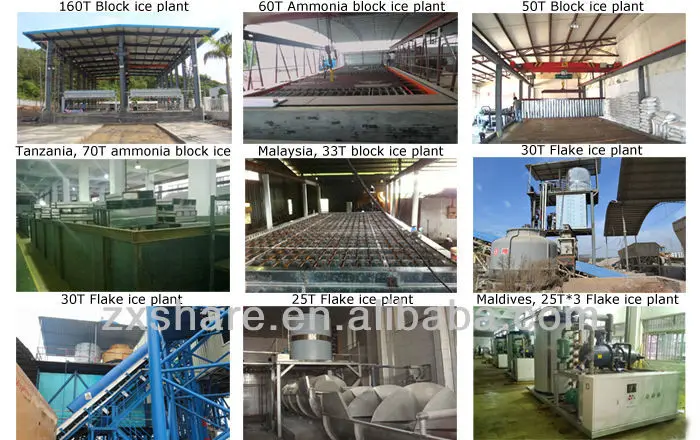

Project cases:
Application fields:
Packaging & Shipping
Our Services
- All the machines enjoy 72 hours trouble free test before shipment.
- All the machines enjoy one year free warranty ever since B/L date.
- All the machines enjoy lifelong technical support and replacement parts at cost price.
- 24*7 hours phone service
- 12 hours response online service
- Onsite installation & training
- Engineers availbe service machinery overseas
Please send inquiry with the details below:
- The daily output you want, your voltage, ambient temperature and water temperature
- For block ice machine, the ice weight you want, 10/15/20/25/50/100kg
