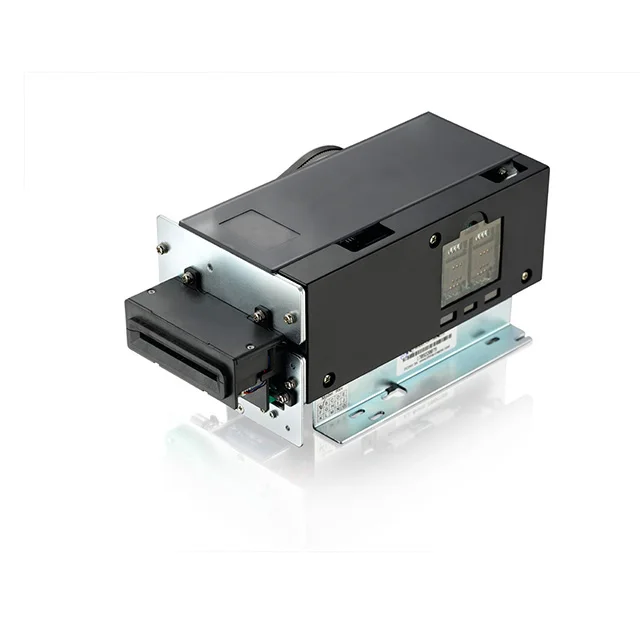

Motor Hybrid Magnetic IC Card Reader and Writer for Kiosk CRT 350N
Motor Hybrid Magnetic IC Card Reader and Writer for Kiosk CRT-350N
Motor Hybrid Magnetic IC Card Reader and Writer for Kiosk CRT-350N

Motor Hybrid Magnetic IC Card Reader and Writer for Kiosk CRT 350N

Share on (1714210718):


Price:

Quantity:


Product Overview

Description



Product Description


  • Overview:

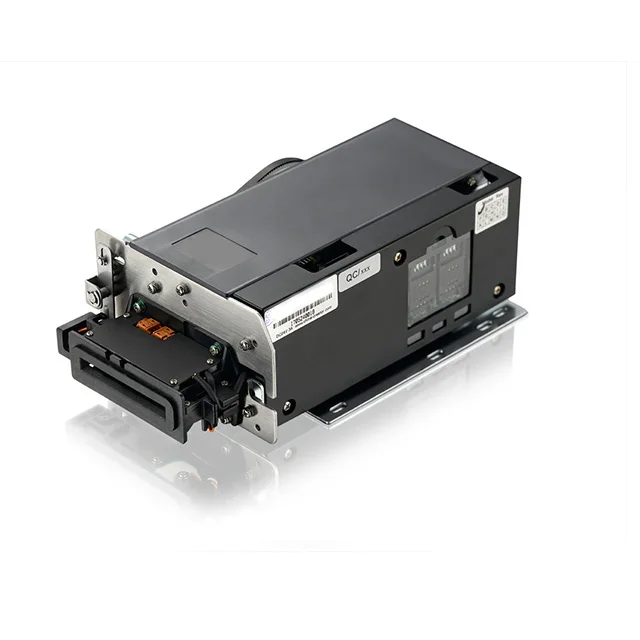

CRT-350-NJ10 is motorized card reader and writer which can read/write IC / Magnetic card by automatically feed in and eject. It has the following advantages:
●High security design;
●Tamper-Proof Design ;
● Compatible with other popular external dimension and communication protocol;
● PSAM board for option;
● Anti skimming design by hardware and
software;
● Reject abnormal card automatically
● Write Lo-co &Hi-co magnetic card 300-
4000oe


Main Features:
1) Support magnetic card read/ write , contact IC card / SAM card read / write.
2) Electric controlled gate, support gate opened by magnetic card or by switch.
3) Electric feed-in and ejection, support back-end card swallowing function, supports jitter input card
from front-end.
4) The communication protocol meets the standard requirements of financial self-service equipment.
5) Passed CE and RHOS testing certification.
6) Support power failure protection.
7) Comply with EMV 4.2 Level 1 and PBOC 3.0 Level 1 certification.
8) High reliability and durability


Specifications:


Items
Description
General specifications
Card transmission function
Motor drive mode, support front-end card loading and unloading, back-end card swallowing (recycling card);
Rubber wheel drive card mode;
Magnetic card read/write
ISO/IEC Track1 Track2 Track3 read/write;
Support Lo-co (300oe) or Hi-co (2750oe) optional
Communication
RS-232 (single-machine asynchronous half-duplex communication);
Interface: DB9M
Electronically controlled gate
Electronically controlled safety gate, the default is closed;
Open gate by command;
Power Consumption
1) Working voltage: DC 24V ±10%
2) Power ripple: < 200mV
3) Working current (excluding solenoid current):
Quiescent current : < 250mA
The peak current : < 3000mA (duration 50ms)
The current only when the card is driven : < 1200mA
4) Electromagnet operating current:
Gate solenoid current : < 800mA
IC card electromagnet current : < 600mA
Card transmission speed
190mm/s ±5% (card transmission speed when read/write magnetic card
Maximum speed 300mm/s
Card transmission time
about 1.5s, from the card port holding the card slot to the card machine
Front card output length
24mm ±1mm, card output length when front card holder
Withstand voltage rating
DC200V, 1min, between the circuit board GND and the metal body
Insulation resistance
DC200V, > 10MΩ, between the circuit board GND and the metal body
Net Weight
Approx 1.3kgs
Temperature/Humidity
In operation 5℃~ 50 ℃ / 20% ~ 80% RH (Without condensing)
In storage -20℃ ~ 70 ℃ / 20%~ 80% RH (Without condensing)
Card Specifications
Magnetic card Prejudgment
Two methods in options:
1. Support Identify ISO/IEC Track2 or ISO/IEC Track3 to open the gate;
2. Or support Identify ISO/IEC Track1 or ISO/IEC Track2 or ISO/IEC Track3 to open the gate (optional)
Contact IC card read / write
Support asynchronous card, synchronous card read and write
1). CPU card (asynchronous card) conform to ISO/IEC 7816 -1, -2, -3
2) Synchronous IC card: ISO/IEC 7816 -1, -2, -10 specifications;
Support SL4442/SLE4428 logic encryption IC card read and write;
AT24C01/24C02/24C04/24C08/24C16/24C32/24C64 memory card read and write;
AT88SC102 card logic encryption card read and write
SAM card read / write
Support SAM card operation,
1) SAM card standard: ISO/IEC 7810/ID000 ISO/IEC 7816-1/2/6,
2) 2 SAM card sockets (SAM1, SAM2) integrated on mainboard,
3) Support SAM card status detection
Card standards
ISO/IEC 7811 magnetic card standard
ISO/IEC 7816 IC card standard
EMV2000 Ver 4.0 L1 certification standard
PBOC 3.0 L1 certification standard
Applicable card dimension
Length: 85.47～85.90 mm
Width: 53.92～54.18 mm,
Thickness: 0.76±0.1 mm
Reliability
Life time
Read and write heads: >1,000,000 passes
Predicted head: < 1,000,000 times
Drive motor: > 1,500,000 cycles
Synchronous belt: > 1,000,000 times
Transmission rubber wheel: >1,000,000 times
IC card slot: > 300,000 contacts
Magnetic card error rate
Error rate: < 1/1000
Extreme magnetic card reading ability:
support TC-JI 15% BB 30%SI Q card
support TC-A 30%SI Q card
IC card error rate
< 1/1000
MTBF
> 200,000 hours (electronics only)
Self-test
1) Safety self-check : Power-on self-test, Command self-check, Work self-check
2) Sensor self-check


Product Usage

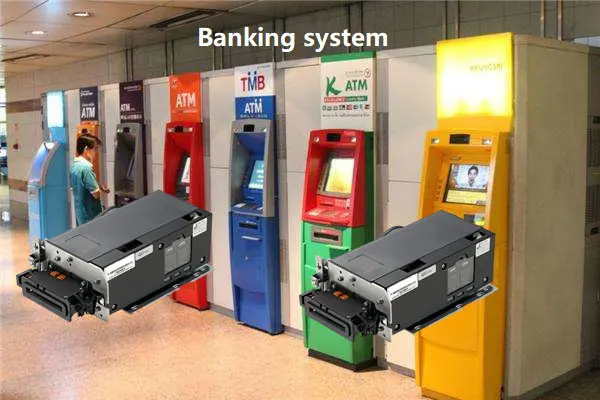

● ATM
● Card vending machine
● Payment systems
● Kiosk self-service terminals
● Access control terminals
● Security terminals
● Parking systems
